Barcode & QRcode reader for Sony Alfa-SLR-Camera

Summary

Alfa-SLR-camera supports a license "LCN-STP" to record a barcode data to jpeg file. To use it, Barcode reader for Alfa-SLR-camera is necessary.

This project provides the Barcode reader using AtomS3R and QRcode2-base.

Parts

• ILCE-6700 or ILCE-1M2 (LCN-STP supported cameras)
• "LCN-STP" license
• M5Stack AtomS3R
• M5Stack Atomic QRCode2 Base
• USB C-C cable with external power connector
• Mobile battery

Important notice

This firmware uses Sony's Camera Remote Toolkit. After you use this firmware, your camera will be out of such manufacturer-warranty as specified by Sony.

License agreement of Camera Remote Toolkit

REQUIREMENTS AND LIMITATIONS
Please also note that you shall:
(a) explain to and obtain a consent from the END-USERS, before licensing the END-USERS to copy or use the APPLICATION SOFTWARE, that once a DEVICE is used or controlled through the APPLICATION SOFTWARE, the DEVICE will be out of such manufacturer-warranty as separately specified by SONY with respect to the DEVICE;

Setup instruction

1. Burn a firmware "QRcode2 for Alfa-SLR-camera" on M5Burner.

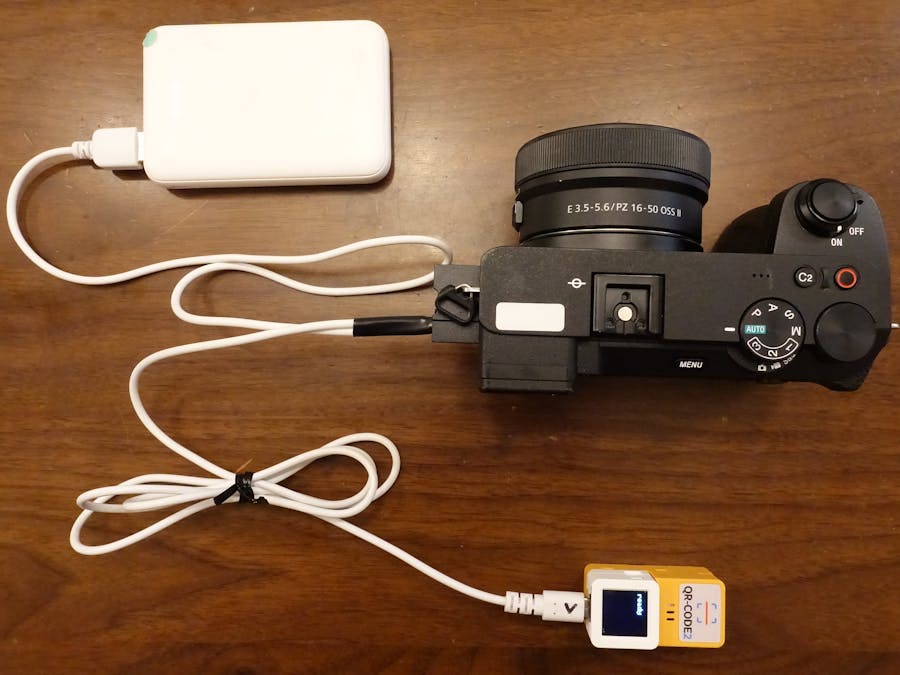

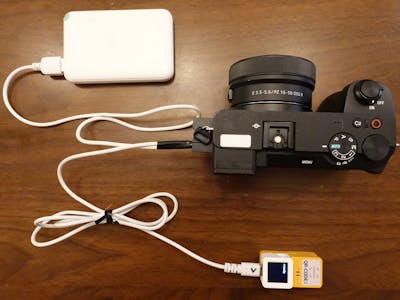

2. Connect a AtomS3R to QRCode2 Base, mobile battery.

3. Setup SLR-camera with body menu

[Setup]-[USB connection mode]-[PC remote]
[Setup]-[USB Power Supply]-[Off]
[Shooting]-[File]-[Scan&Tagging]-[Display unique ID]-[On]
[Network]-[Cont./PC Remote]-[Remote Shoot Setting]-[Still Img. Save Dest.]-[Camera Only]

4. Scan
Connect AtomS3R to camera.
Scan Barcode/QRcode.

5. Please check the followin exif data on jpeg file.

Exif IFD area: MakerNote IFD
Exif Tag No.: 0x2043
Data size: Up to 128 characters / Maximum 256 bytes
Data format: UTF-16LE (Little Endian)

For detail information, see Volume Photography License Compatible Functions on Sony site.

Caution

• It is necessary to disconnect the USB cable while AtomS3R is booting up.
  Right after of reset of AtomS3R, AtomS3R drives D-/D+ as USB device mode. If the USB cable is connected to the camera at this time, the camera detects AtomS3R as USB device mode. After AtomS3R boots up, it switches the connection mode from device to host, but the camera cannot detect it.
• If the camera does not support the “LCN-STP” license, or if the license is not installed to the camera, you can record barcode/QRcode to JPEG files but you cannot view it on the camera.
  ILCE-1~, ILCE-9M3,
  ILCE-7M4, ILCE-7RM5~, ILCE-7SM3,
  ILCE-7CM2, ILCE-7CR,
  ILCE-6700,
  ILME-FX2, ILME-FX3~, ILME-FX30,
  ZV-E1, ZV-E10M2
