Things used in this project

Hardware components:
Esquilo%20top%20small
Esquilo Air
×1
181 02
Adafruit Standard LCD - 16x2 White on Blue
×1
09939 01
Rotary potentiometer (generic)
10k pot
×1
12002 04
Breadboard (generic)
×1
Male/Male Jumper Wires
I used: 4 red, 4 black, 2 white, 2 orange, 1 yellow, 1 green, 1 blue
×15

Schematics

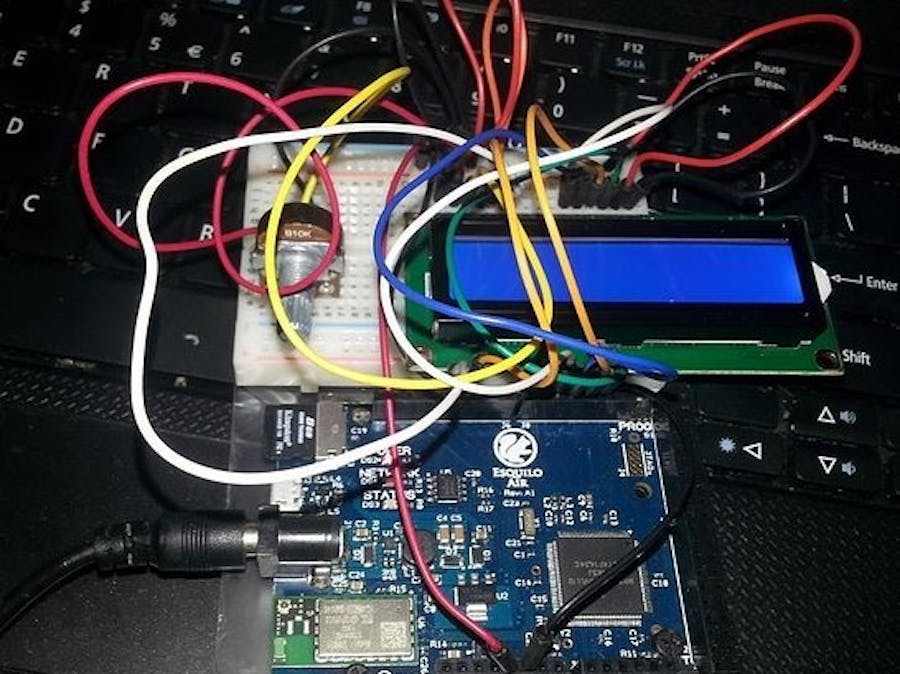

Esquilo 1602A wiring diagram
Wiring diagram for hooking 1602A LCD to Esquilo Air
Plzqjazjtgfdtvalp384

Code

LCD Hello World demo for LiquidCrystal library port to EsquiloPlain text
/*
LiquidCrystal Library - Hello World
Demonstrates the use a 16x2 LCD display. The LiquidCrystal
library works with all LCD displays that are compatible with the
Hitachi HD44780 driver. There are many of them out there, and you
can usually tell them by the 16-pin interface.
This sketch prints "Hello World!" to the LCD
and shows the time.
The circuit:
* LCD RS pin to digital pin 12
* LCD Enable pin to digital pin 11
* LCD D4 pin to digital pin 5
* LCD D5 pin to digital pin 4
* LCD D6 pin to digital pin 3
* LCD D7 pin to digital pin 2
* LCD R/W pin to ground
* LCD VSS pin to ground
* LCD VCC pin to 5V
* 10K resistor:
* ends to +5V and ground
* wiper to LCD VO pin (pin 3)
Library originally added 18 Apr 2008
by David A. Mellis
library modified 5 Jul 2009
by Limor Fried (http://www.ladyada.net)
example added 9 Jul 2009
by Tom Igoe
modified 22 Nov 2010
by Tom Igoe
2016.11.29 -- Ported to Esquilo by Leeland Heins
This example code is in the public domain.
*/

require("GPIO");

dofile("sd:/LiquidCrystal.nut");

local lcd = LiquidCrystal(0x00, 12, 0, 11, 5, 4, 3, 2, 0, 0, 0, 0);

// set up the LCD's number of columns and rows:
lcd.begin(16, 2, 0);
// Print a message to the LCD.
lcd.clear();
lcd.home();
lcd.print("hello, world!");
while (true) {
lcd.setCursor(0, 1);
local mils = millis() / 1000;
lcd.print(mils.tostring());
}
No preview (download only).
LiquidCrystal library for Esquilo
Port of Arduino LiquidCrystal library to Esquilo

Credits

27eae0443d051e9e246159707c1f2203
Leeland Heins

Hardware & Software H4x0r

Contact

Replications

Did you replicate this project? Share it!

I made one

Love this project? Think it could be improved? Tell us what you think!

Give feedback

Comments
