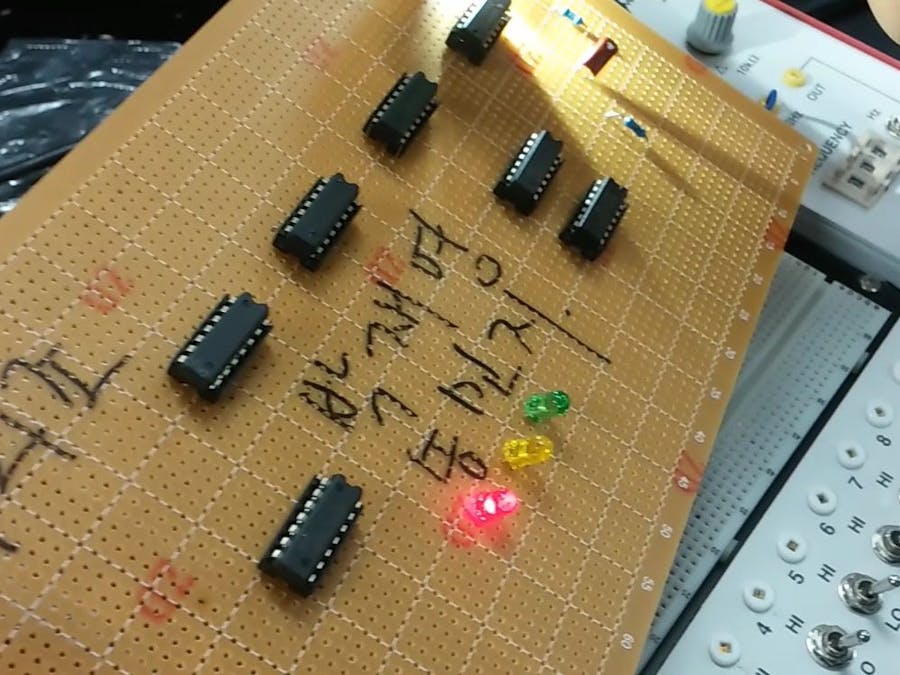

Traffic Light Control System

Designed traffic light control system using ring shift counter as a sequencing device.

IntermediateShowcase (no instructions)1,313
Traffic Light Control System

Things used in this project

Hardware components

Photo transistor
×1
74HCT14
×2
AND gate
×1
OR gate
×1
Resistor 1k ohm
Resistor 1k ohm
×1
Resistor 100k ohm
Resistor 100k ohm
×1
Capacitor 1 nF
Capacitor 1 nF
×1
Shift Register- Serial to Parallel
Texas Instruments Shift Register- Serial to Parallel
×5
LED (generic)
LED (generic)
×3

Hand tools and fabrication machines

Soldering iron (generic)
Soldering iron (generic)

Story

Read more

Schematics

5 bit ring shift counter
