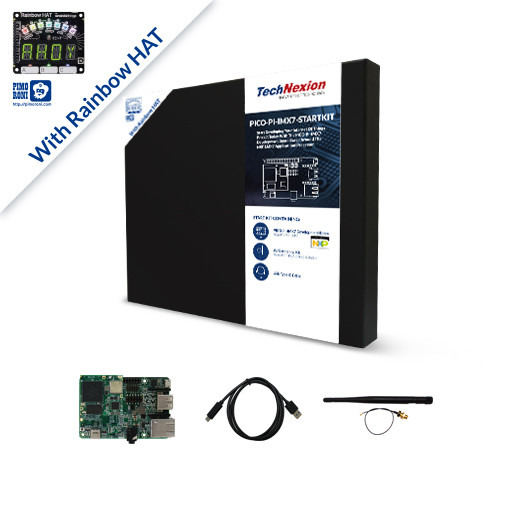

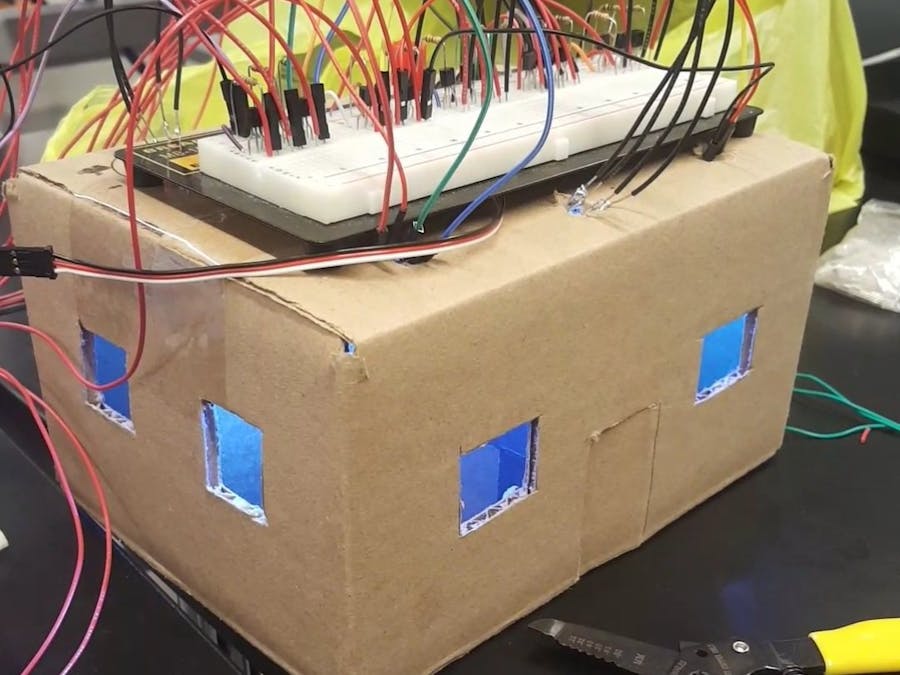

By using the voice control libraries for Android things and the Rainbow Hat add on, software was written to process speech input into light controlled commands. These commands were placed in a packet depending on what type, color and room should be lit up and transmitted to a MSP430FR6989 over UART. The MSP used its numerous GPIO pins to control 5 RGB LEDs depending on the incoming UART messages.
/*
* Copyright 2017, The Android Open Source Project
*
* Licensed under the Apache License, Version 2.0 (the "License");
* you may not use this file except in compliance with the License.
* You may obtain a copy of the License at
*
* http://www.apache.org/licenses/LICENSE-2.0
*
* Unless required by applicable law or agreed to in writing, software
* distributed under the License is distributed on an "AS IS" BASIS,
* WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
* See the License for the specific language governing permissions and
* limitations under the License.
*/
package com.example.androidthings.assistant;
import android.app.Activity;
import android.content.SharedPreferences;
import android.media.AudioFormat;
import android.os.Bundle;
import android.os.Handler;
import android.preference.PreferenceManager;
import android.util.Log;
import android.widget.ArrayAdapter;
import android.widget.ListView;
import com.example.androidthings.assistant.EmbeddedAssistant.ConversationCallback;
import com.example.androidthings.assistant.EmbeddedAssistant.RequestCallback;
import com.google.android.things.contrib.driver.button.Button;
import com.google.android.things.contrib.driver.voicehat.VoiceHat;
import com.google.android.things.pio.Gpio;
import com.google.android.things.pio.PeripheralManagerService;
import com.google.android.things.pio.UartDevice;
import com.google.assistant.embedded.v1alpha1.ConverseResponse.EventType;
import com.google.auth.oauth2.UserCredentials;
import com.google.rpc.Status;
import java.io.IOException;
import java.nio.ByteBuffer;
import java.util.ArrayList;
import java.util.List;
import org.json.JSONException;
public class AssistantActivity extends Activity implements Button.OnButtonEventListener {
private static final String TAG = AssistantActivity.class.getSimpleName();
/***
* Peripheral and drivers constants.
***/
private static final boolean AUDIO_USE_I2S_VOICEHAT_IF_AVAILABLE = false;
private static final int BUTTON_DEBOUNCE_DELAY_MS = 20;
/***
* Audio constants.
***/
private static final String PREF_CURRENT_VOLUME = "current_volume";
private static final int SAMPLE_RATE = 16000;
private static final int ENCODING = AudioFormat.ENCODING_PCM_16BIT;
private static final int DEFAULT_VOLUME = 100;
private static final AudioFormat AUDIO_FORMAT_STEREO =
new AudioFormat.Builder()
.setChannelMask(AudioFormat.CHANNEL_IN_STEREO)
.setEncoding(ENCODING)
.setSampleRate(SAMPLE_RATE)
.build();
/***
* Hardware peripherals.
***/
private VoiceHat mVoiceHat;
private Button mButton;
private Gpio mLed;
private UartDevice mUART;
private Handler mMainHandler;
/***
* List & adapter to store and display the history of Assistant Requests.
***/
private EmbeddedAssistant mEmbeddedAssistant;
private ArrayList<String> mAssistantRequests = new ArrayList<>();
private ArrayAdapter<String> mAssistantRequestsAdapter;
/***
* UART DEVICE NAME
***/
private static final String UART_DEVICE_NAME = "UART6";
/***
* Start of Google Home Code
***/
@Override
protected void onCreate(Bundle savedInstanceState) {
super.onCreate(savedInstanceState);
Log.i(TAG, "starting Google Home demo");
/*** Create GUI View for Google Home Demo ***/
setContentView(R.layout.activity_main);
ListView assistantRequestsListView = (ListView) findViewById(R.id.assistantRequestsListView);
mAssistantRequestsAdapter =
new ArrayAdapter<>(this, android.R.layout.simple_list_item_1,
mAssistantRequests);
assistantRequestsListView.setAdapter(mAssistantRequestsAdapter);
mMainHandler = new Handler(getMainLooper());
/*** Setup peripherals ***/
try {
if (AUDIO_USE_I2S_VOICEHAT_IF_AVAILABLE) {
PeripheralManagerService pioService = new PeripheralManagerService();
List<String> i2sDevices = pioService.getI2sDeviceList();
if (i2sDevices.size() > 0) {
try {
Log.i(TAG, "creating voice hat driver");
mVoiceHat = new VoiceHat(
BoardDefaults.getI2SDeviceForVoiceHat(),
BoardDefaults.getGPIOForVoiceHatTrigger(),
AUDIO_FORMAT_STEREO
);
mVoiceHat.registerAudioInputDriver();
mVoiceHat.registerAudioOutputDriver();
} catch (IllegalStateException e) {
Log.w(TAG, "Unsupported board, falling back on default audio device:", e);
}
}
}
mButton = new Button(BoardDefaults.getGPIOForButton(),
Button.LogicState.PRESSED_WHEN_LOW);
mButton.setDebounceDelay(BUTTON_DEBOUNCE_DELAY_MS);
mButton.setOnButtonEventListener(this);
PeripheralManagerService pioService = new PeripheralManagerService();
mLed = pioService.openGpio(BoardDefaults.getGPIOForLED());
mLed.setDirection(Gpio.DIRECTION_OUT_INITIALLY_LOW);
mLed.setActiveType(Gpio.ACTIVE_LOW);
/*** Setup UART Peripheral ***/
try {
PeripheralManagerService manager = new PeripheralManagerService();
mUART = manager.openUartDevice(UART_DEVICE_NAME);
} catch (IOException e) {
Log.w(TAG, "Unable to access UART device", e);
}
configureUartFrame(mUART);
} catch (IOException e) {
Log.e(TAG, "error configuring peripherals:", e);
return;
}
/*** Set volume from preferences ***/
SharedPreferences preferences = PreferenceManager.getDefaultSharedPreferences(this);
int initVolume = preferences.getInt(PREF_CURRENT_VOLUME, DEFAULT_VOLUME);
Log.i(TAG, "setting audio track volume to: " + initVolume);
/*** Verifying Credentials ***/
UserCredentials userCredentials = null;
try {
userCredentials =
EmbeddedAssistant.generateCredentials(this, R.raw.credentials);
} catch (IOException | JSONException e) {
Log.e(TAG, "error getting user credentials", e);
}
mEmbeddedAssistant = new EmbeddedAssistant.Builder()
.setCredentials(userCredentials)
.setAudioSampleRate(SAMPLE_RATE)
.setAudioVolume(initVolume)
.setRequestCallback(new RequestCallback() {
@Override
public void onRequestStart() {
Log.i(TAG, "starting assistant request, enable microphones");
}
@Override
public void onSpeechRecognition(String utterance) {
Log.i(TAG, "assistant request text: " + utterance);
try {
processSpeech(utterance);
} catch (IOException e) {
Log.i(TAG, "Can not process:" + utterance);
}
// mMainHandler.post(new Runnable() {
// @Override
// public void run() {
// mAssistantRequestsAdapter.add(utterance);
// }
// });
}
})
.setConversationCallback(new ConversationCallback() {
@Override
public void onConversationEvent(EventType eventType) {
Log.d(TAG, "converse response event: " + eventType);
}
@Override
public void onAudioSample(ByteBuffer audioSample) {
if (mLed != null) {
try {
mLed.setValue(!mLed.getValue());
} catch (IOException e) {
Log.w(TAG, "error toggling LED:", e);
}
}
}
@Override
public void onConversationError(Status error) {
Log.e(TAG, "converse response error: " + error);
}
@Override
public void onError(Throwable throwable) {
Log.e(TAG, "converse error:", throwable);
}
@Override
public void onVolumeChanged(int percentage) {
Log.i(TAG, "assistant volume changed: " + percentage);
// Update our shared preferences
SharedPreferences.Editor editor = PreferenceManager
.getDefaultSharedPreferences(AssistantActivity.this)
.edit();
editor.putInt(PREF_CURRENT_VOLUME, percentage);
editor.apply();
}
@Override
public void onConversationFinished() {
Log.i(TAG, "assistant conversation finished");
if (mLed != null) {
try {
mLed.setValue(false);
} catch (IOException e) {
Log.e(TAG, "error turning off LED:", e);
}
}
}
})
.build();
mEmbeddedAssistant.connect();
}
@Override
public void onButtonEvent(Button button, boolean pressed) {
try {
if (mLed != null) {
mLed.setValue(pressed);
}
} catch (IOException e) {
Log.d(TAG, "error toggling LED:", e);
}
if (pressed) {
mEmbeddedAssistant.startConversation();
}
}
@Override
protected void onDestroy() {
super.onDestroy();
Log.i(TAG, "destroying assistant demo");
if (mLed != null) {
try {
mLed.close();
} catch (IOException e) {
Log.w(TAG, "error closing LED", e);
}
mLed = null;
}
if (mButton != null) {
try {
mButton.close();
} catch (IOException e) {
Log.w(TAG, "error closing button", e);
}
mButton = null;
}
if (mVoiceHat != null) {
try {
mVoiceHat.unregisterAudioOutputDriver();
mVoiceHat.unregisterAudioInputDriver();
mVoiceHat.close();
} catch (IOException e) {
Log.w(TAG, "error closing voice hat driver", e);
}
mVoiceHat = null;
}
if (mUART != null) {
try {
mUART.close();
mUART = null;
} catch (IOException e) {
Log.w(TAG, "Unable to close UART device", e);
}
}
mEmbeddedAssistant.destroy();
}
public void configureUartFrame(UartDevice uart) throws IOException {
// Configure the UART port
uart.setBaudrate(9600);
uart.setDataSize(8);
uart.setParity(UartDevice.PARITY_NONE);
uart.setStopBits(1);
}
public void writeUartData(UartDevice uart, byte data) throws IOException {
byte[] buffer = {data};
int count = uart.write(buffer, buffer.length);
Log.d(TAG, "Wrote " + count + " bytes to peripheral");
}
/***
* Defines start byte and end byte to know when transmission is started and ended
***/
private static final byte START_BYTE = (byte) 56;
private static final byte END_BYTE = (byte) 40;
/***
* Defines different types of messages
***/
private static final byte LIGHT_MESSAGE = (byte) 01;
private static final byte DOOR_MESSAGE = (byte) 02;
private static final byte MODE_MESSAGE = (byte) 03;
/***
* Defines byte codes for various rooms
***/
private static final byte DINING_ROOM = (byte) 01;
private static final byte LIVING_ROOM = (byte) 02;
private static final byte FOYER_ROOM = (byte) 03;
private static final byte BED_ROOM = (byte) 04;
private static final byte OFFICE_ROOM = (byte) 05;
private static final byte ALL = (byte) 06;
/***
* Defines byte codes for different doors
***/
private static final byte FRONT_DOOR = (byte) 01;
private static final byte GARAGE_DOOR = (byte) 02;
/***
* Defines byte codes for various modes
***/
private static final byte DANCE_MODE = (byte) 01;
private static final byte CHRISTMAS_MODE = (byte) 02;
public void processSpeech(String utterance) throws IOException {
writeUartData(mUART, START_BYTE);
if (utterance.contains("light")) {
writeUartData(mUART, LIGHT_MESSAGE);
boolean found_room = false;
if (utterance.contains("dining")) {
writeUartData(mUART, DINING_ROOM);
found_room = true;
} else if (utterance.contains("living")) {
writeUartData(mUART, LIVING_ROOM);
found_room = true;
} else if (utterance.contains("foyer")) {
writeUartData(mUART, FOYER_ROOM);
found_room = true;
} else if (utterance.contains("bed")) {
writeUartData(mUART, BED_ROOM);
found_room = true;
} else if (utterance.contains("office")) {
writeUartData(mUART, OFFICE_ROOM);
found_room = true;
} else if (utterance.contains("all")) {
writeUartData(mUART, ALL);
found_room = true;
}
if (found_room) {
if (utterance.contains("red")) {
writeUartData(mUART, (byte) 1);
writeUartData(mUART, (byte) 0);
writeUartData(mUART, (byte) 0);
} else if (utterance.contains("green")) {
writeUartData(mUART, (byte) 0);
writeUartData(mUART, (byte) 1);
writeUartData(mUART, (byte) 0);
} else if (utterance.contains("blue")) {
writeUartData(mUART, (byte) 0);
writeUartData(mUART, (byte) 0);
writeUartData(mUART, (byte) 1);
} else if (utterance.contains("purple")) {
writeUartData(mUART, (byte) 1);
writeUartData(mUART, (byte) 0);
writeUartData(mUART, (byte) 1);
} else if (utterance.contains("yellow")) {
writeUartData(mUART, (byte) 1);
writeUartData(mUART, (byte) 1);
writeUartData(mUART, (byte) 0);
} else if (utterance.contains("on")) {
writeUartData(mUART, (byte) 1);
writeUartData(mUART, (byte) 1);
writeUartData(mUART, (byte) 1);
} else if (utterance.contains("off")) {
writeUartData(mUART, (byte) 0);
writeUartData(mUART, (byte) 0);
writeUartData(mUART, (byte) 0);
}
}
} else if (utterance.contains("door")) {
writeUartData(mUART, DOOR_MESSAGE);
writeUartData(mUART, FRONT_DOOR);
if (utterance.contains("open")) {
writeUartData(mUART, (byte) 1);
} else if (utterance.contains("close")) {
writeUartData(mUART, (byte) 0);
}
} else if (utterance.contains("mode")) {
writeUartData(mUART, MODE_MESSAGE);
if (utterance.contains("dance")) {
writeUartData(mUART, DANCE_MODE);
} else if (utterance.contains("christmas")) {
writeUartData(mUART, CHRISTMAS_MODE);
}
}
writeUartData(mUART, END_BYTE);
}
}
Tanner Smith
1 project • 0 followers
I am a Junior Electrical and Computer Engineer and Computer Science Minor at Rowan University.
Comments
