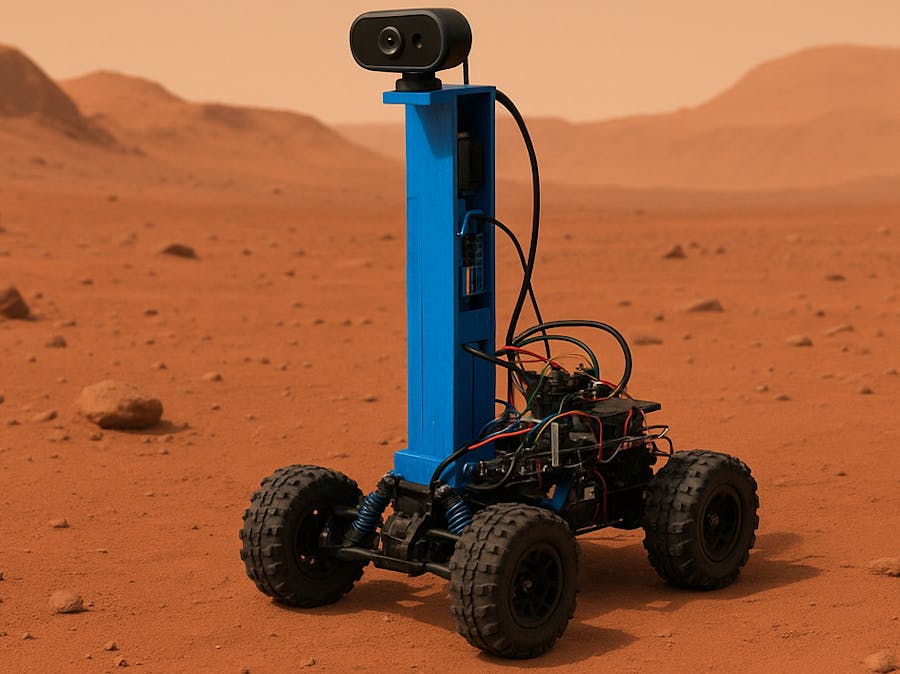

Skyrover

import cv2
import numpy as np
import matplotlib.pyplot as plt
import math
import sys
import time
import os
import RPi.GPIO as GPIO

# Create output directories for images and plots
OUTPUT_DIR = "output_images"
PLOTS_DIR = "plots"
if not os.path.exists(OUTPUT_DIR):
    os.makedirs(OUTPUT_DIR)
if not os.path.exists(PLOTS_DIR):
    os.makedirs(PLOTS_DIR)

# GPIO setup
GPIO.setmode(GPIO.BCM)

# Motor and servo setup
GPIO.setup(18, GPIO.OUT)  # Initializes GPIO 18 for motor
GPIO.setup(19, GPIO.OUT)  # Initializes GPIO 19 for steering

pwm_esc = GPIO.PWM(18, 50)  # Creates a PWM at GPIO 18 running at 50Hz
pwm_serv = GPIO.PWM(19, 50)  # Creates a PWM at GPIO 19 running at 50Hz

pwm_esc.start(7.5)  # Puts DC motor on neutral
pwm_serv.start(7.5)  # Sets servo motor straight

# Speed encoder setup
ENCODER_PIN = 6  # GPIO pin for the encoder's OUT pin
GPIO.setup(ENCODER_PIN, GPIO.IN)

# Constants for speed calculation
PULSES_PER_REVOLUTION = 20
WHEEL_CIRCUMFERENCE = 0.2
SPEED_CHANGE = 0.001
ENCODER_MAX_SPEED = 5.0
ENCODER_MIN_SPEED = 1.0

# Variables for speed encoder
last_activation_time = 0  # To store the time of the last encoder activation
current_speed_kmh = 0  # Current speed in km/h
speed_vals_kmh = []  # To store actual speed values for plotting

# Callback function to handle encoder activations and calculate speed
def encoder_callback(channel):
    global last_activation_time, current_speed_kmh
    current_time = time.time()
    # Skip the first activation since we need two timestamps
    if last_activation_time != 0:
        time_between_activations = current_time - last_activation_time
        if time_between_activations > 0:
            frequency = 1 / time_between_activations
            rpm = (frequency / PULSES_PER_REVOLUTION) * 60
            speed_mps = (rpm / 60) * WHEEL_CIRCUMFERENCE
            current_speed_kmh = speed_mps * 3.6

    last_activation_time = current_time

# Add event detection for the encoder
GPIO.add_event_detect(ENCODER_PIN, GPIO.FALLING, callback=encoder_callback, bouncetime=2)

# Camera
frame_width = 160
frame_height = 120
cam_idx = 0

# PD variables
kp = 0.08  # Proportional gain
kd = kp * 0.3  # Derivative gain

# Speed Values
zero_speed = 7.5  # Car is stopped
base_speed = 7.9  # Speed for middle ground
zero_turn = 7.5  # Neutral steering

# Turn threshold for stop-and-turn
turn_threshold = 1.5  # Increased to reduce stops (was 1.2)
turn_wait_time = 0.3  # Wait time for turns

# Max number of loop
max_ticks = 4000

def reset_car():
    # Set speed to zero and steering to neutral
    pwm_esc.ChangeDutyCycle(7.5)
    pwm_serv.ChangeDutyCycle(7.5)

def start_car():
    # Set speed to base speed and steering to neutral
    print("Car ready")
    pwm_esc.ChangeDutyCycle(base_speed)
    pwm_serv.ChangeDutyCycle(7.5)

def wait(wait_time):
    # Wait for a period of time
    start_time = time.perf_counter()  # Start
    end_time = start_time + wait_time  # End
    # Loop until finished
    while (time.perf_counter() < end_time):
        pass
    return

def detect_edges(frame):
    # Detect the blue lines
    hsv = cv2.cvtColor(frame, cv2.COLOR_BGR2HSV)
    lower_blue = np.array([90, 50, 50], dtype="uint8")
    upper_blue = np.array([130, 255, 255], dtype="uint8")
    # Make mask
    mask = cv2.inRange(hsv, lower_blue, upper_blue)
    # Get edges
    edges = cv2.Canny(mask, 50, 100)
    return edges

def region_of_interest(edges):
    # Find region to look at
    height, width = edges.shape
    mask = np.zeros_like(edges)

    # Only focus lower half of the screen
    polygon = np.array([[
        (0, height),
        (0, height / 2),
        (width, height / 2),
        (width, height),
    ]], np.int32)

    cv2.fillPoly(mask, polygon, 255)

    # Get region to look at
    cropped_edges = cv2.bitwise_and(edges, mask)
    return cropped_edges

def detect_line_segments(cropped_edges):
    # Find line segments
    rho = 1
    theta = np.pi / 180
    min_threshold = 10

    # Get lines
    line_segments = cv2.HoughLinesP(cropped_edges, rho, theta, min_threshold,
                                    np.array([]), minLineLength=5, maxLineGap=150)
    return line_segments

def average_slope_intercept(frame, line_segments):
    # Finding slope of the line
    lane_lines = []
    if line_segments is None:
        print("No line segments detected")
        return lane_lines

    # Set boundaries
    height, width, _ = frame.shape
    left_fit = []
    right_fit = []
    boundary = 1 / 3
    left_region_boundary = width * (1 - boundary)
    right_region_boundary = width * boundary

    # Go through line segments and get line of best fit
    for line_segment in line_segments:
        for x1, y1, x2, y2 in line_segment:
            if x1 == x2:
                continue
            fit = np.polyfit((x1, x2), (y1, y2), 1)
            slope = (y2 - y1) / (x2 - x1)
            intercept = y1 - (slope * x1)
            if slope < 0:
                if x1 < left_region_boundary and x2 < left_region_boundary:
                    left_fit.append((slope, intercept))
            else:
                if x1 > right_region_boundary and x2 > right_region_boundary:
                    right_fit.append((slope, intercept))

    # Take average line of best fit
    left_fit_average = np.average(left_fit, axis=0)
    if len(left_fit) > 0:
        lane_lines.append(make_points(frame, left_fit_average))
    right_fit_average = np.average(right_fit, axis=0)
    if len(right_fit) > 0:
        lane_lines.append(make_points(frame, right_fit_average))
    return lane_lines

def make_points(frame, line):
    # For getting visual of lines
    height, width, _ = frame.shape
    slope, intercept = line
    y1 = height  # Bottom of the frame
    y2 = int(y1 / 2)  # Make points from middle of the frame down
    if slope == 0:
        slope = 0.1
    x1 = int((y1 - intercept) / slope)
    x2 = int((y2 - intercept) / slope)
    return [[x1, y1, x2, y2]]

def display_lines(frame, lines, line_color=(0, 255, 0), line_width=6):
    # Get visual of lines
    line_image = np.zeros_like(frame)
    if lines is not None:
        for line in lines:
            for x1, y1, x2, y2 in line:
                cv2.line(line_image, (x1, y1), (x2, y2), line_color, line_width)
    line_image = cv2.addWeighted(frame, 0.8, line_image, 1, 1)
    return line_image

def display_heading_line(frame, steering_angle, line_color=(0, 0, 255), line_width=5):
    # Show a heading line
    heading_image = np.zeros_like(frame)
    height, width, _ = frame.shape
    steering_angle_radian = steering_angle / 180.0 * math.pi
    x1 = int(width / 2)
    y1 = height
    x2 = int(x1 - height / 2 / math.tan(steering_angle_radian))
    y2 = int(height / 2)
    cv2.line(heading_image, (x1, y1), (x2, y2), line_color, line_width)
    heading_image = cv2.addWeighted(frame, 0.8, heading_image, 1, 1)
    return heading_image

def get_steering_angle(frame, lane_lines):
    # Get the angle to steer towards
    height, width, _ = frame.shape
    if len(lane_lines) == 2:
        _, _, left_x2, _ = lane_lines[0][0]
        _, _, right_x2, _ = lane_lines[1][0]
        mid = int(width / 2)
        x_offset = (left_x2 + right_x2) / 2 - mid
        y_offset = int(height / 2)
    elif len(lane_lines) == 1:
        x1, _, x2, _ = lane_lines[0][0]
        x_offset = x2 - x1
        y_offset = int(height / 2)
    elif len(lane_lines) == 0:
        x_offset = 0
        y_offset = int(height / 2)
    angle_to_mid_radian = math.atan(x_offset / y_offset)
    angle_to_mid_deg = int(angle_to_mid_radian * 180.0 / math.pi)
    steering_angle = angle_to_mid_deg + 90
    return steering_angle

def manage_speed(curr_speed):
    # Adjust the speed based on the speed encoder
    global current_speed_kmh
    speed_adjustment = 0  # Default: no speed change
    if current_speed_kmh > ENCODER_MAX_SPEED:  # Too fast
        speed_adjustment = -SPEED_CHANGE  # Reduce speed
    elif current_speed_kmh < ENCODER_MIN_SPEED:  # Too slow
        speed_adjustment = SPEED_CHANGE  # Increase speed
    return speed_adjustment

def plot_pd(p_vals, d_vals, error, show_img=False):
    # Plot the proportional, derivative, and error
    fig, ax1 = plt.subplots()
    t_ax = np.arange(len(p_vals))
    ax1.plot(t_ax, p_vals, '-', label="P values")
    ax1.plot(t_ax, d_vals, '-', label="D values")
    ax2 = ax1.twinx()
    ax2.plot(t_ax, error, '--r', label="Error")
    ax1.set_xlabel("Frames")
    ax1.set_ylabel("PD Value")
    ax2.set_ylim(-90, 90)
    ax2.set_ylabel("Error Value")
    plt.title("PD Values over time")
    fig.legend()
    fig.tight_layout()
    plt.savefig(os.path.join(PLOTS_DIR, "pd_plot.png"))
    if show_img:
        plt.show()
    plt.clf()

def plot_pwm(speed_vals, turn_vals, speed_vals_kmh, error, show_img=False):
    # Plot the speed, steering, and error
    fig, ax1 = plt.subplots()
    t_ax = np.arange(len(speed_vals))
    ax1.plot(t_ax, speed_vals, '-', label="Speed Duty Cycle")
    ax1.plot(t_ax, turn_vals, '-', label="Steering Duty Cycle")
    ax2 = ax1.twinx()
    ax2.plot(t_ax, error / np.max(error), '--r', label="Error")
    ax1.set_xlabel("Frames")
    ax1.set_ylabel("Duty Cycle")
    ax2.set_ylabel("Percent Error Value")
    plt.title("Speed, Steering, and Error vs. Time")
    fig.legend()
    plt.savefig(os.path.join(PLOTS_DIR, "voltage_plot.png"))
    if show_img:
        plt.show()
    plt.clf()

def isRedFloorVisible(image):
    # Detects whether or not the majority of a color on the screen is a particular color
    hsv_img = cv2.cvtColor(image, cv2.COLOR_BGR2HSV)
    cv2.imwrite(os.path.join(OUTPUT_DIR, "redfloor.jpg"), hsv_img)
    percentage = 25
    lower_red1 = np.array([0, 40, 60], dtype="uint8")
    upper_red1 = np.array([10, 255, 255], dtype="uint8")
    lower_red2 = np.array([170, 40, 60], dtype="uint8")
    upper_red2 = np.array([180, 255, 255], dtype="uint8")
    mask1 = cv2.inRange(hsv_img, lower_red1, upper_red1)
    mask2 = cv2.inRange(hsv_img, lower_red2, upper_red2)
    mask = cv2.bitwise_or(mask1, mask2)
    output = cv2.bitwise_and(hsv_img, hsv_img, mask=mask)
    cv2.imwrite(os.path.join(OUTPUT_DIR, "redfloormask.jpg"), output)
    percentage_detected = np.count_nonzero(mask) * 100 / np.size(mask)
    result = percentage < percentage_detected
    if result:
        print(percentage_detected)
    return result, output

def main():
    lastTime = 0
    lastError = 0
    SecondStopTick = 0

    # Arrays for making the  graphs
    p_vals = []  # Proportional
    d_vals = []  # Derivative
    err_vals = []  # Error
    speed_vals = []  # Speed values
    steer_vals = []  # Steering values

    # Set up video
    video = cv2.VideoCapture(cam_idx)
    video.set(cv2.CAP_PROP_FRAME_WIDTH, frame_width)
    video.set(cv2.CAP_PROP_FRAME_HEIGHT, frame_height)

    try:
        # Start car
        start_car()
        curr_speed = base_speed
        counter = 0

        passedFirstStopSign = False
        while counter < max_ticks:
            print(f"Counter: {counter}, Speed: {curr_speed}, Actual Speed: {current_speed_kmh:.2f} km/h")
            # Manage video
            ret, original_frame = video.read()
            if not ret:
                print("Failed to capture frame")
                break

            frame = cv2.resize(original_frame, (160, 120))

            # Process the frame to determine the desired steering angle
            edges = detect_edges(frame)
            # Save edges every 10 frames
            if counter % 10 == 0:
                cv2.imwrite(os.path.join(OUTPUT_DIR, f"edges_{counter}.jpg"), edges)
                cv2.imwrite(os.path.join(OUTPUT_DIR, f"frame_{counter}.jpg"), frame)  # Save original frame
            roi = region_of_interest(edges)
            line_segments = detect_line_segments(roi)
            lane_lines = average_slope_intercept(frame, line_segments)
            lane_lines_image = display_lines(frame, lane_lines)
            if counter % 10 == 0:
                cv2.imwrite(os.path.join(OUTPUT_DIR, f"lanes_{counter}.jpg"), lane_lines_image)  # Save lane lines
            steering_angle = get_steering_angle(frame, lane_lines)
            heading_image = display_heading_line(lane_lines_image, steering_angle)

            # Calculate changes for PD
            now = time.time()
            dt = now - lastTime if now - lastTime > 0 else 0.001  # Prevent division by zero
            deviation = steering_angle - 90

            # PD Code
            error = deviation
            base_turn = 7.5
            proportional = kp * error
            derivative = kd * (error - lastError) / dt

            # Take values for graphs
            p_vals.append(proportional)
            d_vals.append(derivative)
            err_vals.append(error)
            speed_vals.append(curr_speed)
            speed_vals_kmh.append(current_speed_kmh)

            # Determine actual turn to do
            turn_amt = base_turn + proportional + derivative
            # Clamp turn_amt to the desired range (6 to 9)
            turn_amt = max(6.0, min(9.0, turn_amt))
            steer_vals.append(turn_amt)

            # Print output every 10 frames
            if counter % 10 == 0:
                print(f"Steering_angle: {steering_angle}, Error: {error}, Turn_amt: {turn_amt}")

            # Stop-and-turn logic
            if abs(turn_amt - zero_turn) > turn_threshold:
                # Significant turn: stop, turn, then resume
                print(f"Stopping to turn: turn_amt={turn_amt}, steering_angle={steering_angle}")
                #pwm_esc.ChangeDutyCycle(zero_speed)
                pwm_esc.ChangeDutyCycle(7.6)
                pwm_serv.ChangeDutyCycle(turn_amt)
                wait(turn_wait_time)
                pwm_esc.ChangeDutyCycle(curr_speed)
            else:
                # Minor turn: steer while moving
                pwm_esc.ChangeDutyCycle(curr_speed)
                pwm_serv.ChangeDutyCycle(turn_amt)

            # Speed encoding: adjust speed based on encoder readings
            if counter % 3 == 0:  # Check every 3 ticks
                speed_adjustment = manage_speed(curr_speed)
                temp_speed = curr_speed + speed_adjustment
                temp_speed = max(7.5, min(8.5, temp_speed))
                if temp_speed != curr_speed:
                    curr_speed = temp_speed
                    pwm_esc.ChangeDutyCycle(curr_speed)

            # Stop if sees the red box
            if counter % 20 == 0:  # Check every 20 ticks to reduce processing
                if not passedFirstStopSign:
                    isStopSign, floorSight = isRedFloorVisible(frame)
                    if isStopSign:
                        print("First red box detected! Stopping for 5 seconds...")
                        pwm_esc.ChangeDutyCycle(zero_speed)  # Stop the car
                        wait(5)  # Wait for 5 seconds
                        print("Resuming after 5 seconds...")
                        passedFirstStopSign = True
                        SecondStopTick = counter
                        pwm_esc.ChangeDutyCycle(curr_speed)  # Resume moving
                # Stopping permanently if second red box detected
                elif passedFirstStopSign and counter > SecondStopTick + 100:
                    isStopSign, _ = isRedFloorVisible(frame)
                    if isStopSign:
                        print("Second red box detected! Stopping permanently...")
                        pwm_esc.ChangeDutyCycle(zero_speed)  # Stop the car
                        break  # Exit the loop to end the script

            wait(0.023)

            lastTime = now
            lastError = error
            counter += 1

    # Reset car and close everything
    reset_car()
    video.release()

    # Save plots
    plot_pd(p_vals, d_vals, err_vals)
    plot_pwm(speed_vals, steer_vals, speed_vals_kmh, err_vals)

    print("dimensions")
    print(speed_vals)
    print(steer_vals)
    print(err_vals)

if __name__ == "__main__":
    main()
