Concept:
This project envisions an intelligent building automation system that moves beyond simple logging to active, adaptive control. The "Edge Environmental Sentinel" is a distributed system designed to monitor environmental conditions (temperature, humidity, air quality, motion) and secure access points across multiple building zones.
Value Proposition:
Unlike traditional systems that rely heavily on cloud processing, this solution leverages the processing power of modern NXP MCUs to perform "edge intelligence." The system adapts to occupancy and environmental hazards in real-time, optimizing HVAC and lighting for energy efficiency while maintaining secure access control.
Core Innovation:

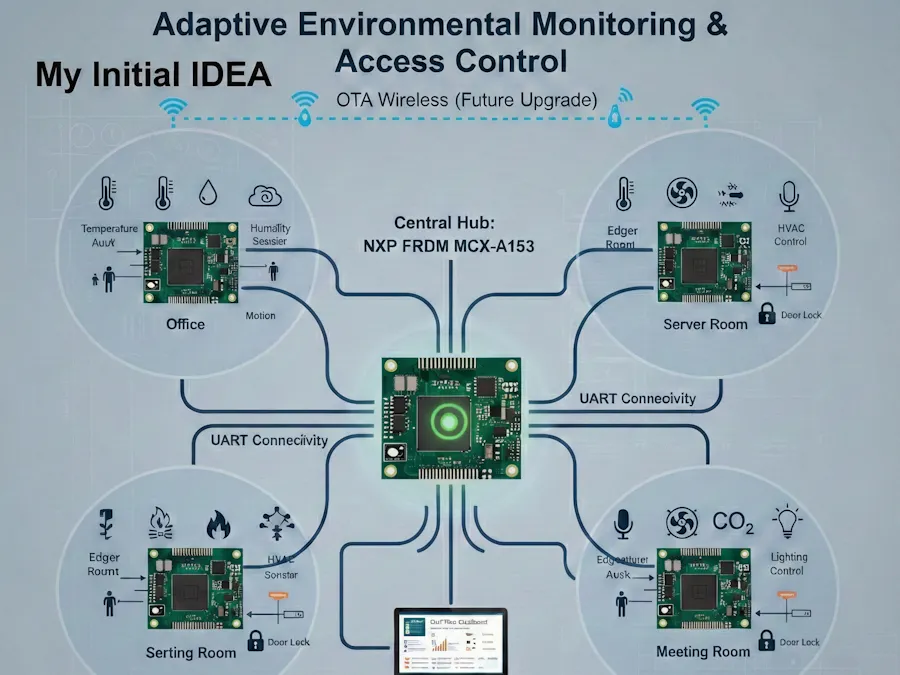

Distributed Intelligence: Uses a Hub-and-Spoke architecture where edge nodes perform local sensing and the central hub manages global logic.
Sustainability: Focuses on energy optimization through intelligent automation.
Security: Integrates secure authentication for access control with environmental safety checks (e.g., preventing access to hazardous zones).
2. Functional SpecificationUser Experience:
Real-Time Dashboard: Users can view live data from specific building zones via a central terminal or remote dashboard.
Automated Alerts: The system triggers visible (RGB LED) and digital alerts for anomalies like unauthorized motion, sudden temperature spikes, or poor air quality.
Access Control: Users present credentials (RFID/Biometric) at access points; the system grants entry only if security and environmental safety criteria are met.
System Functions:
Sensing: Continuous monitoring of temperature, humidity, light, and motion in distributed zones.
Aggregation: Edge nodes transmit formatted sensor payloads to the Central Hub.
Analysis: The Hub compares data against adaptive thresholds to detect anomalies.
Action: Triggers relays for HVAC/lighting and manages door locks based on logic states.
3. Technical SpecificationHardware Architecture:
Central Hub:NXP FRDM-MCX-A153
Role: Main coordinator. Handles data aggregation, logic processing, and cloud connectivity.
Specs: ARM Cortex-M33 @ 96 MHz, compact form factor, low power.
Edge Nodes:NXP FRDM-MCX-N236
Role: Distributed sensing.
Specs: ARM Cortex-M33 @ 150 MHz, Built-in Sensors (3-axis accelerometer, light sensor, digital mic), FlexIO for LCD, Camera header.
Connectivity:
Current: Wired UART (for reliable protocol testing).
Upgrade Path: Wi-Fi (via ESP32 co-processor) or LoRa (via Meshtastic/Wio Tracker modules) for OTA communication.
Software Stack:
IDE: NXP MCUXpresso IDE (v25.6+).
SDK: MCUXpresso SDK for MCX A and MCX N series.
Drivers: LPUART (communication), I2C/SPI (external sensors), GPIO (relays/LEDs).
Protocols: Custom serial framing for Hub-Node communication; potentially MQTT for cloud uplink.
Schematics (Conceptual Interconnects):
Edge Node (MCX N236)
I2C_SDA/SCL $\rightarrow$ External Air Quality Sensor (e.g., SGP30).
UART_TX/RX $\rightarrow$ Central Hub (or Wireless Module).
GPIO $\rightarrow$ Status LED (Green=Good, Red=Alert).
Central Hub (MCX A153):
UART_RX $\rightarrow$ From Edge Nodes.
UART_TX $\rightarrow$ To Serial Terminal / Cloud Gateway.
GPIO $\rightarrow$ Relay Driver Circuit (for Door Lock/HVAC).
4. ImplementationSetup & Configuration:
Toolchain: Install MCUXpresso IDE and fetch SDKs for FRDM-MCXA153 and FRDM-MCXN236
Hardware Verification: Connect boards via USB-C. Verify CMSIS-DAP debuggers are detected and power LEDs are green.
Sensor Test: Flash the lpadc_temperature_measurement example to the MCX N236 to verify onboard sensor readings.
Code Example: Edge Node Data Packet (C)
This snippet demonstrates formatting sensor data into a structured payload for transmission to the Hub.
C
#include "fsl_uart.h"
#include "fsl_lpadc.h"
// Define packet structure
typedef struct {
uint8_t nodeId;
float temperature;
float lightLevel;
uint8_t status; // 0=OK, 1=Alert
} SensorPacket;
void SendSensorData(UART_Type *base, uint8_t nodeId) {
SensorPacket packet;
packet.nodeId = nodeId;
// Placeholder: Replace with actual sensor read functions
packet.temperature = ReadTempSensor();
packet.lightLevel = ReadLightSensor();
// Simple logic: Alert if temp > 30C
packet.status = (packet.temperature > 30.0f) ? 1 : 0;
// Send data structure as raw bytes over UART
UART_WriteBlocking(base, (uint8_t *)&packet, sizeof(packet));
}Code Example: Hub Data Parsing (C)
C
void ProcessIncomingData(uint8_t *buffer) {
SensorPacket *packet = (SensorPacket *)buffer;
PRINTF("Node ID: %d | Temp: %.2f | Status: %s\r\n",
packet->nodeId,
packet->temperature,
packet->status ? "ALERT" : "NORMAL");
if(packet->status == 1) {
ActivateCoolingSystem(); // Trigger Relay GPIO
}
}Validation Strategy:
Unit Testing: Verify individual sensor accuracy against a reference thermometer/lux meter.
Communication Test: Connect Edge Node UART TX to Hub UART RX. Send dummy payloads and verify the Hub prints correct values to the serial console.
Failure Mode Analysis: Simulate a sensor failure (disconnect wire) and ensure the system reports an error rather than freezing.
Environmental Stress: Place Edge Node in varied conditions (e.g., near a heat source) to verify adaptive logic triggers the cooling relay.
Added Task: NXP Hardware Recommendations (DevKit HQ)To elevate this project for the "Best of 2025" competition, incorporating additional NXP hardware can demonstrate scalability and advanced feature usage. Based on the DevKit HQ catalog, the following boards are recommended:
1. Advanced Vision & Voice (Edge AI):
Board:NXP i.MX RT1170 EVK
Why: The MCX N236 has a camera header, but the RT1170 is a powerhouse for "Face Recognition" access control. It can act as a high-end "Super Edge Node" that performs secure biometric authentication before sending a "Grant Access" signal to your Hub.
Application: Replace simple RFID access with secure face unlock using NXP's eIQ machine learning software.
2. Voice Control Shield:
Board:NXP SLN-ALEXA-IOT(or similar Voice/Audio development kit)
Why: Adds hands-free control to your system. Users could speak commands like "System, report Zone 1 status" or "Override lighting."
3. Sensor Expansion:
Board:FRDM-STBC-AGM01(Sensor Toolbox)
Why: A dedicated sensor shield that stacks directly onto your FRDM boards. It provides high-precision 9-axis sensing (Gyro/Accel/Mag), allowing your system to detect structural vibrations or door tampering with much higher fidelity than the built-in accelerometer alone.
4. Secure Element:
Board:OM-SE050ARD
Why: For a "Smart Access Control" project, security is paramount. This Arduino-compatible shield adds an EdgeLock secure element to hardware-encrypt your access logs and credentials, significantly boosting the "Professional" appeal of your contest entry.
