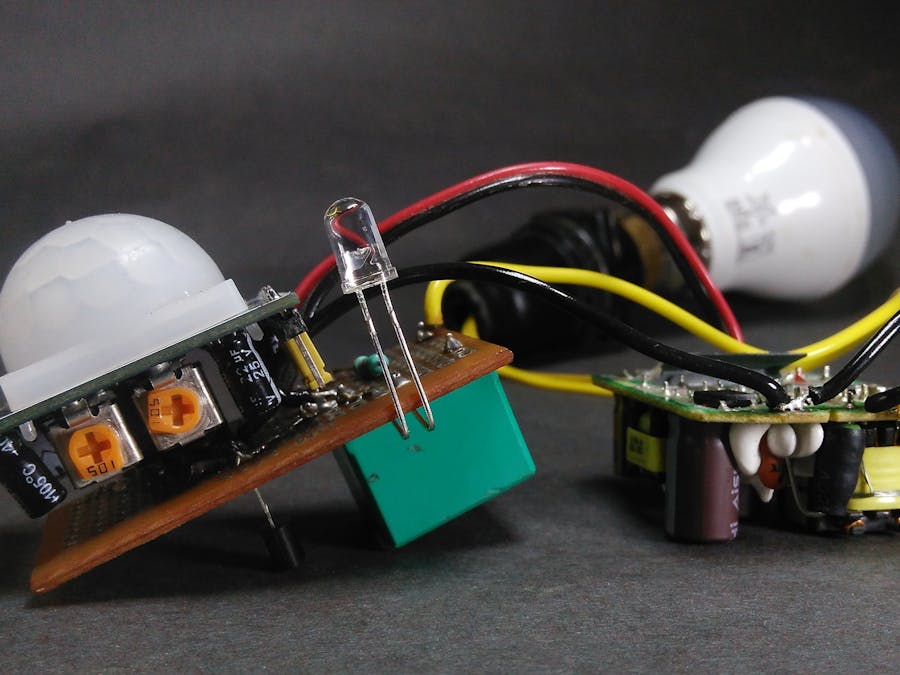

Motion Activated Lamp Switch

This is a PIR sensor-based automatic lamp switch.

BeginnerFull instructions provided30 minutes1,127
Motion Activated Lamp Switch

Things used in this project

Hardware components

PIR Sensor, 7 m
PIR Sensor, 7 m
×1
Signal Relay, 5 VDC
Signal Relay, 5 VDC
×1
General Purpose Transistor NPN
General Purpose Transistor NPN
×1
Resistor 1k ohm
Resistor 1k ohm
×1
Resistor 221 ohm
Resistor 221 ohm
×1
5 mm LED: Red
5 mm LED: Red
×1
5V 2.5A Switching Power Supply
Digilent 5V 2.5A Switching Power Supply
×1
