Arduino Calculator with Lcd I2C

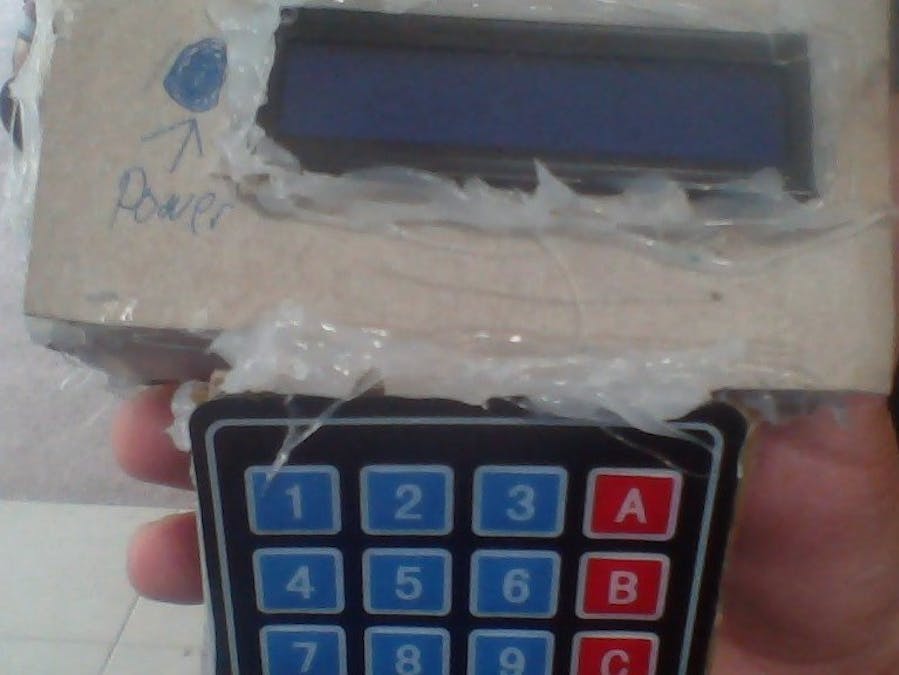

Compact Arduino Calculator with keypad and you can take it on the go!!!

IntermediateFull instructions provided4,518
Arduino Calculator with Lcd I2C

Things used in this project

Hardware components

Arduino UNO
Arduino UNO
×1
4x4 keypad
×1
Alphanumeric LCD, 16 x 2
Alphanumeric LCD, 16 x 2
×1
I2C 16x2 Arduino LCD Display Module
DFRobot I2C 16x2 Arduino LCD Display Module
×1
Male/Female Jumper Wires
Male/Female Jumper Wires
×4
Jumper wires (generic)
Jumper wires (generic)
×8

Software apps and online services

Arduino IDE
Arduino IDE

Story

Read more

Code

Here is the code

C/C++
#include <LiquidCrystal_I2C.h>
#include <Keypad.h> //Header file for Keypad from https://github.com/Chris--A/Keypad

const byte ROWS = 4; // Four rows
const byte COLS = 4; // Four columns

// Define the Keymap
char keys[ROWS][COLS] = {

  {'1','2','3','A'},

  {'4','5','6','B'},

  {'7','8','9','C'},

  {'*','0','#','D'}

};

byte rowPins[ROWS] = { 0, 1, 2, 3 };// Connect keypad ROW0, ROW1, ROW2 and ROW3 to these Arduino pins.
byte colPins[COLS] = { 4, 5, 6, 7 }; // Connect keypad COL0, COL1 and COL2 to these Arduino pins.

Keypad kpd = Keypad( makeKeymap(keys), rowPins, colPins, ROWS, COLS ); //  Create the Keypad

const int rs = 8, en = 9, d4 = 10, d5 = 11, d6 = 12, d7 = 13; //Pins to which LCD is connected
LiquidCrystal_I2C lcd(0x27, 16, 2);

 long Num1,Num2,Number;
 char key,action;
 boolean result = false;

void setup() {
  lcd.begin(); //We are using a 16*2 LCD display
  lcd.print("Calculator Ready"); //Display a intro message
  lcd.setCursor(0, 1);   // set the cursor to column 0, line 1
  lcd.print("A=+ B=- C=* D=/"); //Display a intro message

   delay(6000); //Wait for display to show info
    lcd.clear(); //Then clean it
}

void loop() {

key = kpd.getKey(); //storing pressed key value in a char

if (key!=NO_KEY)
DetectButtons();

if (result==true)
CalculateResult();

DisplayResult();
}

void DetectButtons()
{
     lcd.clear(); //Then clean it
    if (key=='*') //If cancel Button is pressed
    {Serial.println ("Button Cancel"); Number=Num1=Num2=0; result=false;}

     if (key == '1') //If Button 1 is pressed
    {Serial.println ("Button 1");
    if (Number==0)
    Number=1;
    else
    Number = (Number*10) + 1; //Pressed twice
    }

     if (key == '4') //If Button 4 is pressed
    {Serial.println ("Button 4");
    if (Number==0)
    Number=4;
    else
    Number = (Number*10) + 4; //Pressed twice
    }

     if (key == '7') //If Button 7 is pressed
    {Serial.println ("Button 7");
    if (Number==0)
    Number=7;
    else
    Number = (Number*10) + 7; //Pressed twice
    }


    if (key == '0')
    {Serial.println ("Button 0"); //Button 0 is Pressed
    if (Number==0)
    Number=0;
    else
    Number = (Number*10) + 0; //Pressed twice
    }

     if (key == '2') //Button 2 is Pressed
    {Serial.println ("Button 2");
     if (Number==0)
    Number=2;
    else
    Number = (Number*10) + 2; //Pressed twice
    }

     if (key == '5')
    {Serial.println ("Button 5");
     if (Number==0)
    Number=5;
    else
    Number = (Number*10) + 5; //Pressed twice
    }

     if (key == '8')
    {Serial.println ("Button 8");
     if (Number==0)
    Number=8;
    else
    Number = (Number*10) + 8; //Pressed twice
    }


    if (key == '#')
    {Serial.println ("Button Equal");
    Num2=Number;
    result = true;
    }

     if (key == '3')
    {Serial.println ("Button 3");
     if (Number==0)
    Number=3;
    else
    Number = (Number*10) + 3; //Pressed twice
    }

     if (key == '6')
    {Serial.println ("Button 6");
    if (Number==0)
    Number=6;
    else
    Number = (Number*10) + 6; //Pressed twice
    }

     if (key == '9')
    {Serial.println ("Button 9");
    if (Number==0)
    Number=9;
    else
    Number = (Number*10) + 9; //Pressed twice
    }

      if (key == 'A' || key == 'B' || key == 'C' || key == 'D') //Detecting Buttons on Column 4
  {
    Num1 = Number;
    Number =0;
    if (key == 'A')
    {Serial.println ("Addition"); action = '+';}
     if (key == 'B')
    {Serial.println ("Subtraction"); action = '-'; }
     if (key == 'C')
    {Serial.println ("Multiplication"); action = '*';}
     if (key == 'D')
    {Serial.println ("Division"); action = '/';}

    delay(100);
  }

}

void CalculateResult()
{
  if (action=='+')
    Number = Num1+Num2;

  if (action=='-')
    Number = Num1-Num2;

  if (action=='*')
    Number = Num1*Num2;

  if (action=='/')
    Number = Num1/Num2;
}

void DisplayResult()
{
  lcd.setCursor(0, 0);   // set the cursor to column 0, line 1
  lcd.print(Num1); lcd.print(action); lcd.print(Num2);

  if (result==true)
  {lcd.print(" ="); lcd.print(Number);} //Display the result

  lcd.setCursor(0, 1);   // set the cursor to column 0, line 1
  lcd.print(Number); //Display the result
}
