DIY Sign-To-Speech Glove

The Problem

This past trimester, I've been working through the Embedded

Systems unit at Deakin University, School of IT (_Unit SIT210_).

One of our final assignments asked us to create an embedded system

to solve a real world problem. One problem that I was interested in

was reducing the communication barrier between those that use sign

language and those that don't understand it. My motivation for

choosing this problem was largely because of how interesting the

domain is. The most popular solution seems to be sign-to-speech

gloves which convert detected hand signs into audible speech.

However the solutions available on the market either have low

availability, or have an expensive price. For my project, I

wanted to create a sign-to-speech glove that has a focus on low

costs and being DIY friendly.

Hardware

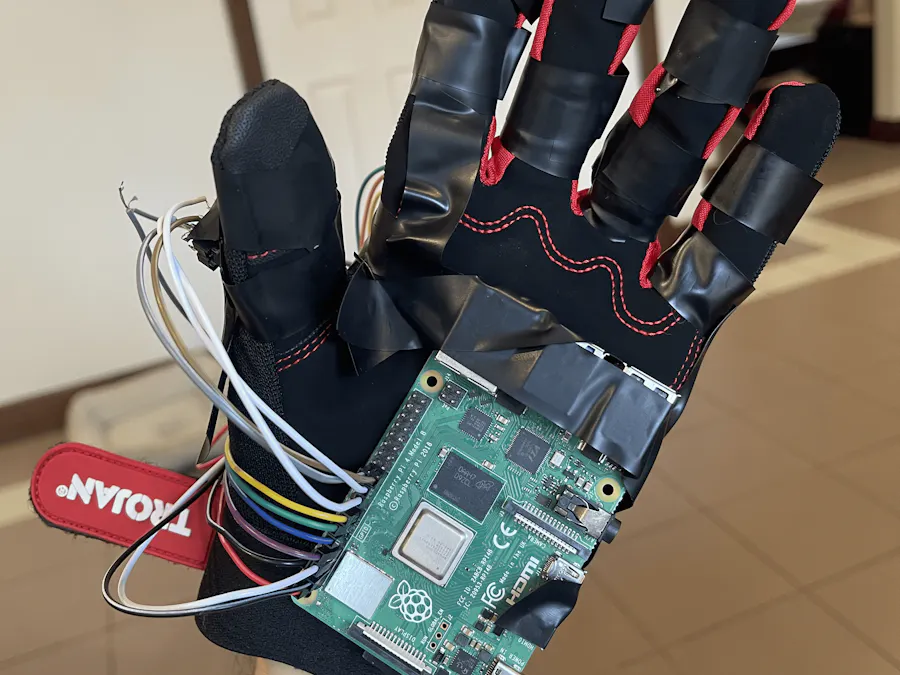

Due to time and budget constraints, I was only able to create 1 glove,

however it still has most of the functionality that I was aiming for.

The solution I ended up creating involved a lot of wiring. To get

started, you'll need the following:

• Raspberry Pi 4 (_or a better model_)
• Lots of jumper wires
• 9x 2.2" flex sensors
• 9x 47k #sym.Omega resistors
• HC4067 16-Channel Multiplexer
• MCP3008 8 Channel 10 Bit ADC DIP16
• USB Speaker
• A glove
• An external battery + USB-C cable

For each flex sensor, place one across each knuckle of the glove

and another

across the proximal interphalangeal joint (PIP joint) of the index

finger, middle finger, ring finger, and pinky finger on the glove.

The reason

the thumb doesn't get an extra flex sensor is because the flex

sensors are too long to cover just it's PIP joint. For each of these

flex sensors, connect one end to a 3.3V and the other end into a

pull-up resistor circuit (_using 47k #sym.Omega resistors_). It does

not matter which end is connected to which.

You should have 9 wires from each flex sensor which will vary it's

voltage depending on how much the flex sensors are bent. However we

can't connect these up to the Raspberry Pi just yet since these are

_analog_ and the RPi only accepts _digital_. To solve this, we connect

each wire into a channel on the HC4065 multiplexer, which will then

connect to an analog-to-digital converter, which then connects to the

RPi. I used channels 7-15 on my multiplexer, connected to the

following flex sensors:

• CH7 -> Pinky MCP
• CH8 -> Pinky PIP
• CH9 -> Ring MCP
• CH10 -> Ring PIP
• CH11 -> Middle MCP
• CH12 -> Middle PIP
• CH13 -> Index MCP
• CH14 -> Index PIP
• CH15 -> Thumb

Then connect the output to CH7 on the Analog-to-Digital converter,

and ADS0, ADS1, ADS2, and ADS3 to the RPi pins 7, 11, 13, and 15

respectively.

On the MCP3008 ADC, connect CLK, D_OUT, D_IN and CS to the

respective RPi pins 23, 21, 19 and 24. Now we can use the SPI protocol

and the address pins to read a digital binary number representing each

flex sensor output.

Finally, the easiest connections to make is plugging in the USB

speaker into one of the USB slots on the RPi 4, as well as the

external battery powering the RPi through a long USB-C cable. Once

everything is connected up, I strongly recommend gluing everything

into place on the glove using a fabric glue apart from the battery,

which should instead go into the user's pocket while they're using

the glove.

Software

The software I created for this is a Rust program and is available

here.

It includes an easy nix flake that will include all needed

dependencies for you. If you haven't installed nix, you can do so

using the installer developed by Determinate Systems.

Sensors

I've separated all the code pertaining to interacting with the

flex sensors into it's own sensors crate. Most importantly, this

exposes a Sensor struct that helps abstract away implementation

details such as the SPI protocol.

use rppal::gpio::{Gpio, OutputPin};
use rppal::spi::{Bus, Mode, SlaveSelect, Spi};

/// Abstraction over the connected flex sensors
pub struct Sensors {
    spi: Spi,
    ads0: OutputPin,
    ads1: OutputPin,
    ads2: OutputPin,
    ads3: OutputPin,
}


impl Sensors {
    /// Create a new Sensors struct which requires GPIO and SPI access
    pub fn new() -> Result<Self, Box<dyn Error>> {
        let gpio = Gpio::new()?;

        let ads0 = gpio.get(ADS0_PIN)?.into_output();
        let ads1 = gpio.get(ADS1_PIN)?.into_output();
        let ads2 = gpio.get(ADS2_PIN)?.into_output();
        let ads3 = gpio.get(ADS3_PIN)?.into_output();

        let spi = Spi::new(Bus::Spi0, SlaveSelect::Ss0, 1_000_000, Mode::Mode0)?;

        Ok(Self {
            spi,
            ads0,
            ads1,
            ads2,
            ads3,
        })
    }
}

When the sensor struct is created, it sets up the SPI protocol and

and access to the GPIO pins.

Now we can create a method that returns the output of each flex

sensor

impl Sensors {
    /// Read the output value of the connected flex sensors
    pub fn read(&mut self) -> Result<[u16; 9], Box<dyn Error>> {
        let mut all_readings: [u16; 9] = [0; 9];
        for i in 0..9 {
            // We want to read multiplexer channels C7 to C15
            let channel = i + 7;

            if channel & 0b0001 != 0 {
                self.ads0.set_high();
            } else {
                self.ads0.set_low();
            }
            if channel & 0b0010 != 0 {
                self.ads1.set_high();
            } else {
                self.ads1.set_low();
            }
            if channel & 0b0100 != 0 {
                self.ads2.set_high();
            } else {
                self.ads2.set_low();
            }
            if channel & 0b1000 != 0 {
                self.ads3.set_high();
            } else {
                self.ads3.set_low();
            }

            // Delay to give the multiplexer time to switch channels
            thread::sleep(Duration::from_micros(10));

            // Read from the mutliplexer via SPI
            // start bit, mode bit, channel bits (3 bits), padding, dummy byte (keeps clock pulsing)
            let tx_buffer: [u8; 3] = [0x01, 0xF0, 0x00];
            let mut rx_buffer: [u8; 3] = [0; 3];

            self.spi.transfer(&mut rx_buffer, &tx_buffer)?;

            // Result is 10 bits across the last 2 bytes
            let reading: u16 = (((rx_buffer[1] as u16) & 0x03) << 8) | (rx_buffer[2] as u16);
            all_readings[i] = reading;
        }

        Ok(all_readings)
    }
}

Hand Signs

The next crate I made contained a representation of a hand's current

position.

/// The status of a phalanx (finger segment)
#[derive(Clone, Copy, Debug)]
pub enum PhalanxStatus {
    /// Represents a straight phalanx
    Neutral,
    /// Represents a bent phalanx
    Bent,
}

/// Representation of a hand position
#[derive(Clone, Copy, Debug)]
pub struct HandSign {
    pub pinky_mcp: PhalanxStatus,
    pub pinky_pip: PhalanxStatus,
    pub ring_mcp: PhalanxStatus,
    pub ring_pip: PhalanxStatus,
    pub middle_mcp: PhalanxStatus,
    pub middle_pip: PhalanxStatus,
    pub index_mcp: PhalanxStatus,
    pub index_pip: PhalanxStatus,
    pub thumb: PhalanxStatus,
}

The `HandSign` represents a sign by if the MCP or PIP joint of each

finger is curved or bent. This is a fairly binary representation

because flex sensor readings are extremely noisy and prone to

'drifting' which makes them difficult to get accurate readings.

Hand

This crate is the largest in the application, and converts the raw

flex sensor readings into detected hand signs.

/// The state of a users hand and their current sign
pub struct Hand {
    sensors: Sensors,
    sensor_history: [[u16; SENSOR_HISTORY_LENGTH]; 9],
    time_since_update: Instant,
    time_since_prev_update: Instant,
    pub current_sign: HandSign,
    pub bendtime_info: Option<([f32; 9], Instant)>,
    word_to_sign: HashMap<String, HandSign>,
}

When a Hand struct is newly created, there is some necessary setup we

need to do first. Because the flex sensors are fairly noisy, we

need to keep a history of each raw flex sensor value so we can take an

average and have a smoother reading. We also need to keep track of

some time keeping values so we can calculate the acceleration of each

phalanx. The Hand::new() function takes care of initializing

these values.

impl Hand {
    /// Creates a new Hand struct
    pub fn new(word_to_sign: HashMap<String, HandSign>) -> Self {
        let mut sensors = Sensors::new().expect("should be able to initialize sensors");

        let time_since_prev_update = Instant::now();
        let mut sensor_history = [[0_u16; SENSOR_HISTORY_LENGTH]; 9];
        for history_index in 0..SENSOR_HISTORY_LENGTH {
            let current_sensor_output =
                sensors.read().expect("should be able to read from sensors");

            for phalanx_index in 0..9 {
                sensor_history[phalanx_index][history_index] = current_sensor_output[phalanx_index];
            }
        }
        let time_since_update = Instant::now();

        Hand {
            sensors,
            sensor_history,
            time_since_update,
            time_since_prev_update,
            current_sign: HandSign::neutral_position(),
            bendtime_info: None,
            word_to_sign,
        }
    }
}

The below 2 methods, get_finger_positions() and

get_finger_accelerations() is what the main logic for calculating

the current hand sign is based on. Both of these methods do not

mutate the Hand struct, they just retrieve from it. The values they

output will likely change after their state is updated through the

update() method, which will be discussed later.

impl Hand {
    /// Return the current position of each finger segment, represented by an array of f32
    /// 0.0 means neutral, 1.0 means curled
    fn get_finger_positions(&self) -> [f32; 9] {
        let average_finger_positions: [f32; 9] = self.sensor_history.map(|phalanx_history| {
            let phalanx_history = phalanx_history.iter().map(|x| *x as f32);
            let sum: f32 = phalanx_history.take(SENSOR_AVERAGE_WINDOW).sum();
            let mean = sum / (SENSOR_AVERAGE_WINDOW as f32);
            mean
        });

        average_finger_positions
    }

    /// Return the current acceleration of each finger segment as an array of f32
    /// 0.0 means neutral, 1.0 means curled
    pub fn get_finger_accelerations(&self) -> [f32; 9] {
        let average_finger_positions = self.get_finger_positions();

        let prev_average_finger_positions: [f32; 9] = self.sensor_history.map(|phalanx_history| {
            let phalanx_history = phalanx_history.iter().map(|x| *x as f32);
            let sum: f32 = phalanx_history.skip(1).take(SENSOR_AVERAGE_WINDOW).sum();
            let mean = sum / (SENSOR_AVERAGE_WINDOW as f32);
            mean
        });

        let change_in_time = (self.time_since_update - self.time_since_prev_update).as_secs_f32();

        let finger_accelerations: [f32; 9] = average_finger_positions
            .into_iter()
            .zip(prev_average_finger_positions)
            .map(|(final_pos, initial_pos)| (final_pos - initial_pos) / change_in_time)
            .collect::<Vec<f32>>()
            .try_into()
            .expect("num of items should not have changed");

        finger_accelerations
    }
}

The `update()` method is fairly complicated, but starts off with

updating the current flex sensor history and the recorded time since

the `update()` method was last called

impl Hand {
    /// Processes the current flex sensors inputs and returns a word from
    /// the given handsign dictionary, if a handsign has been created
    pub fn update(&mut self) -> Option<String> {
        self.time_since_prev_update = self.time_since_update;

        let current_sensor_output = self
            .sensors
            .read()
            .expect("should be able to read from sensors");

        let sensor_history = &mut self.sensor_history;
        for phalanx_index in 0..9 {
            sensor_history[phalanx_index].rotate_right(1);
            sensor_history[phalanx_index][0] = current_sensor_output[phalanx_index];
        }

        self.time_since_update = Instant::now();
        ...
    }
}

Then, we calculate each finger acceleration. If a finger segment

is travelling

10 units/second in the clenching direction,

then that phalanx is considered

'Bent'. If it is travelling 10 units/second in the neutral position,

then that phalanx is considered 'Neutral'. If it is neither, then the

previously calculated phalanx state is used.

Additionally, if any of the fingers are considered bent, then keep

track of how long each finger has been bent for.

impl Hand {
    pub fn update(&mut self) -> Option<String> {
        ...
        let finger_accelerations = self.get_finger_accelerations();
        let finger_changes: [Option<PhalanxStatus>; 9] = finger_accelerations.map(|x|
        {
            if x > 5.0 {
                Some(PhalanxStatus::Neutral)
            } else if x < -5.0 {
                Some(PhalanxStatus::Bent)
            } else {
                None
            }
        });

        if self.current_sign.as_bendtime().iter().any(|x| *x > 0.0) {
            let deltatime = (self.time_since_update - self.time_since_prev_update).as_secs_f32();

            let (mut bendtime, bendtime_start) = match self.bendtime_info {
                Some((bendtime, bendtime_start)) => (bendtime, bendtime_start),
                None => ([0.0; 9], self.time_since_update),
            };

            let current_sign = self.current_sign.as_bendtime();

            bendtime
                .iter_mut()
                .enumerate()
                .filter(|&(i, _)| current_sign[i] == 1.0)
                .for_each(|(_, x)| *x += deltatime);

            self.bendtime_info = Some((bendtime, bendtime_start));
        }
        ...
    }
}

Now we have all the information we need to predict if the user is

currently making a handsign. If the user has _just_ put their hand

back into a neutral state, then we look at how long each finger

segment was bent for and we compare it to the `word_to_sign`

dictionary that the `Hand` struct was built with. If there are any

signs that have more than 90% similiarity, then the one with the

strongest similarity is returned from this function. If none pass

this criteria, then nothing is returned.

impl Hand {
    pub fn update(&mut self) -> Option<String> {
        ...
        let mut detected_word: Option<String> = None;

        if self.current_sign.as_bendtime().iter().all(|x| *x == 0.0) {
            if let Some((bendtime, bendtime_start)) = self.bendtime_info {
                let bendtime_duration = (self.time_since_update - bendtime_start).as_secs_f32();
                let adjusted_bendtime: [f32; 9] = bendtime
                    .iter()
                    .map(|x| x / bendtime_duration)
                    .collect::<Vec<f32>>()
                    .try_into()
                    .expect("should have the same length iterator");

                let word_similarities: HashMap<String, f32> = self
                    .word_to_sign
                    .iter()
                    .map(|(word, sign)| {
                        (word.clone(), sign.similarity_to_bendtime(adjusted_bendtime))
                    })
                    .collect();

                detected_word = word_similarities
                    .into_iter()
                    .filter(|&(_, similarity)| similarity > SIMILARITY_THRESHOLD)
                    .max_by(|&(_, a), &(_, b)| a.total_cmp(&b))
                    .map(|(word, _)| word);

                self.bendtime_info = None;

                println!("action finished!");
            }
        }

        self.apply_finger_changes(&finger_changes);

        detected_word
    }
}

App

The `app` crate is the entrypoint to the program, and makes sure

that the detected word from the `Hand` struct will be spoken over

text to speech. For text to speech, we are using the `piper_rs` crate

for the text to speech model, alongside the `rodio` crate for

managing audio playback

First, we initialize the TTS Piper model, which should be found in

the `model/` directory of the project.

// Create a separate thread to process text-to-speech,
// and use the main thread to detect and process hand movements
fn main() -> Result<(), Box<dyn Error>> {
    println!("Starting sensor readings (Press Ctrl+C to quit)...");

    let config_path = Path::new("./model/voice.onnx.json");
    let onnx_path = Path::new("./model/voice.onnx");

    println!("Initializing Piper TTS...");
    let mut piper = Piper::new(onnx_path, config_path).expect("Failed to initialize Piper model)");
    println!("Model loaded successfully!");
    ...
}

After the TTS model has successfully been loaded, we create a

sender and receiver channel, and give the receiver channel to a

new thread. This channel will be used to send words to this thread,

which will be responsible for outputting text to speech audio. We

want to run this on a separate thread so it doesn't block the

processing of the flex sensors. If a deaf user was using this glove,

it would be frustrating if they started a new sign but it wasn't

processed because the glove is currently speaking, which the user

wouldn't be able to know.

fn main() -> Result<(), Box<dyn Error>> {
    ...
    let (tx, rx) = mpsc::channel::<String>();

    // Text-to-speech thread
    thread::spawn(move || {
        // Get the default device audio output stream
        let (_stream, handle) = match OutputStream::try_default() {
            Ok(v) => {
                println!("tts: audio device opened");
                v
            }
            Err(e) => {
                eprintln!("tts: failed to open audio device: {}", e);
                return;
            }
        };
        // Create a handle to the default audio output
        let sink = match Sink::try_new(&handle) {
            Ok(s) => {
                println!("tts: sink created");
                s
            }
            Err(e) => {
                eprintln!("tts: failed to create sink: {}", e);
                return;
            }
        };

        // Constantly process incoming words
        for word in rx {
            println!("tts: received word: '{}'", word);

            match piper.create(&word, false, None, None, None, None) {
                Ok((samples, sample_rate)) => {
                    println!(
                        "tts: synthesized {} samples at {}Hz",
                        samples.len(),
                        sample_rate
                    );
                    let buffer = SamplesBuffer::new(1, sample_rate, samples);
                    sink.append(buffer);
                    sink.sleep_until_end();
                    println!("tts: playback finished");
                }
                Err(e) => eprintln!("tts: synthesis error: {:?}", e),
            }
        }
    });
    ...
}

The rest of the main function is straight forward. We construct a

very basic word-to-sign dictionary with 3 phrases, and then use the

main thread to constantly process the the flex sensors. Whenever a

word is detected and returned from the `Hand` struct, it is sent

to the TTS thread so that it can be spoken.

fn main() -> Result<(), Box<dyn Error>> {
    ...
    let mut word_to_sign: HashMap<String, HandSign> = HashMap::new();

    word_to_sign.insert("hello how are you".to_string(), PEACE_SIGN);
    word_to_sign.insert("where is the bathroom".to_string(), ROCK_SIGN);
    word_to_sign.insert("i need assistance".to_string(), MIDDLE_BENT);

    let mut hand = Hand::new(word_to_sign);

    loop {
        thread::sleep(Duration::from_millis(40));

        if let Some(word) = hand.update() {
            println!("main: detected word: '{}'", word);
            if let Err(e) = tx.send(word) {
                eprintln!("main: channel send failed: {}", e);
            }
        }
    }
}

Reflection

This project started with the desire to make 2 high quality gloves

that seamlessly interact with eachother to understand what signs

you're making and translate it to audible speech. However in

retrospect, it was a very ambitious goal given my available time and

budget. I'm still very happy with what I made however, and it's

thankfully

revealed that my flex sensor approach is not the approach that

a fully functional pair of sign-to-speech gloves should go in if they

want to be accurate.

I've also had more time to think about the problem that these gloves

were targeted at solving. What I originally thought would be the

best outcome for this project would be a way to create high-quality,

cheap sign-to-speech gloves that are widely accessible. However this

would actually cause various sign languages to be learnt _less_, since

the gloves can be used as a crutch. I believe a better purpose for

these gloves would be for people who aren't familiar with sign

language to use them as a self-teaching tool, allowing them to

catch any slip-ups in their sign language while they are trying to

communicate with others in that language.
