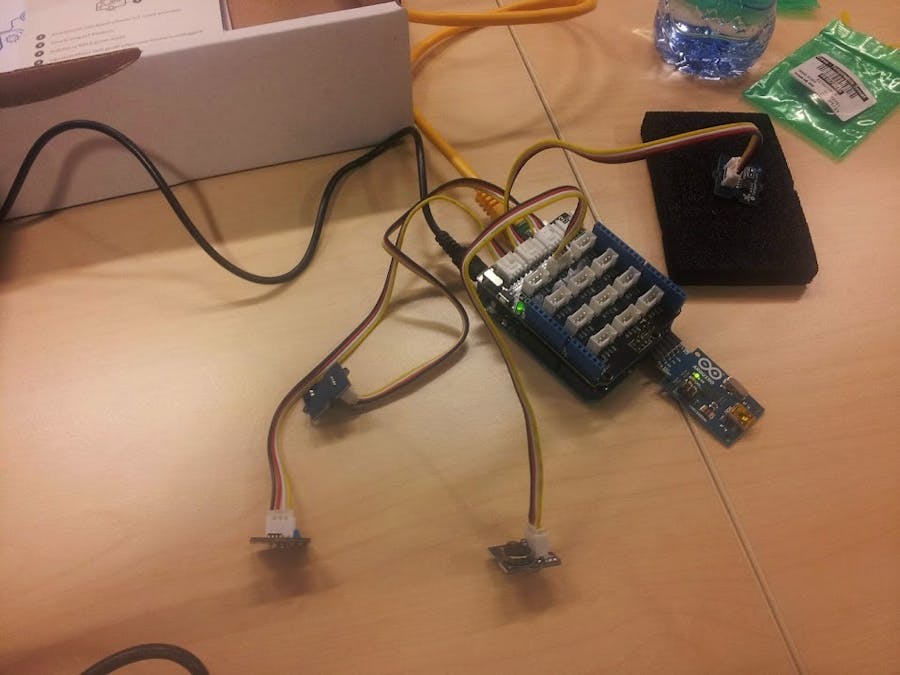

Automation of solar screen

#include <Ethernet.h>

#include <EthernetClient.h>



#include <PubSubClient.h>

#include <math.h>

#include <ATT_IOT.h>

#include <SPI.h>                //required to have support for signed/unsigned long type.



/*

  AllThingsTalk Makers Arduino Example



  ### Instructions



  1. Setup the Arduino hardware

    - USB2Serial

    - Grove kit shield

    - Potentiometer to A0

    - Led light to D8

  2. Add 'allthingstalk_arduino_standard_lib' library to your Arduino Environment. [Try this guide](http://arduino.cc/en/Guide/Libraries)

  3. Fill in the missing strings (deviceId, clientId, clientKey, mac) and optionally change/add the sensor & actuator names, ids, descriptions, types

     For extra actuators, make certain to extend the callback code at the end of the sketch.

  4. Upload the sketch



  ### Troubleshooting



  1. 'Device' type is reported to be missing.

  - Make sure to properly add the arduino/libraries/allthingstalk_arduino_standard_lib/ library

  2. No data is showing up in the cloudapp

  - Make certain that the data type you used to create the asset is the expected data type. Ex, when you define the asset as 'int', don't send strings or boolean values.

*/



char deviceId[] = "x1ahpNLZkN36AzCOrTv8bT6";

char clientId[] = "eldpoort";

char clientKey[] = "nqaahjiluad";



ATTDevice Device(deviceId, clientId, clientKey);            //create the object that provides the connection to the cloud to manager the device.

char httpServer[] = "api.smartliving.io";                  	// HTTP API Server host

char* mqttServer = "broker.smartliving.io";



int tempInside = 0;                                            // Analog 0 is the input pin + identifies the asset on the cloud platform

int tempOutside = 1;                                            // Analog 1 is the input pin + identifies the asset on the cloud platform

int lightOutside = 2;                                            // Analog 2 is the input pin + identifies the asset on the cloud platform

int ledPin = 8;                                             // Pin 8 is the LED output pin + identifies the asset on the cloud platform



//required for the device

void callback(char* topic, byte* payload, unsigned int length);

EthernetClient ethClient;

PubSubClient pubSub(mqttServer, 1883, callback, ethClient);



void setup()

{

  pinMode(tempInside, INPUT);                                  // initialize the digital pin as an input

  pinMode(tempOutside, INPUT);                                  // initialize the digital pin as an input

  pinMode(lightOutside, INPUT);                                  // initialize the digital pin as an input

  pinMode(ledPin, OUTPUT);                                  // initialize the digital pin as an output

  Serial.begin(9600);                                   	// init serial link for debugging



  byte mac[] = {0x90, 0xA2, 0xDA, 0x0E, 0x40, 0xB7};        // Adapt to your Arduino MAC Address

  if (Ethernet.begin(mac) == 0)                             // Initialize the Ethernet connection:

  {

    Serial.println(F("DHCP failed,end"));

    while(true);                                    		//we failed to connect, halt execution here.

  }

  delay(1000);                                          	//give the Ethernet shield a second to initialize:



  if(Device.Connect(&ethClient, httpServer))                //connect the device with the IOT platform.

  {

    //Device.AddAsset(knobPin, "knob", "rotary switch",false, "int");

    Device.AddAsset(tempInside, "TempInside", "Inside temperature",false, "int");

    Device.AddAsset(tempOutside, "TempOutside", "Outside temperature",false, "int");

    Device.AddAsset(lightOutside, "LightOutside", "Outside ligh intensity",false, "int");

    Device.AddAsset(ledPin, "led", "light emitting iode", true, "bool");

    Device.Subscribe(pubSub);                               // make certain that we can receive message from the iot platform (activate mqtt)

  }

  else

    while(true);                                            //can't set up the device on the cloud, can't continue, so put the app in an ethernal loop so it doesn't do anything else anymore.

}



unsigned long time;                                 		//only send every x amount of time.

float prevVal, prevVal2, prevVal3 =0;

void loop()

{

  unsigned long curTime = millis();

  if (curTime > (time + 1000))                          	// publish light reading every 1 seconds

  {

    float tempRead = analogRead(tempInside);           // read from light sensor (photocell)

    float tempRead2 = analogRead(tempOutside);           // read from light sensor (photocell)

    float lightRead = analogRead(lightOutside);           // read from light sensor (photocell)



    if(prevVal != tempRead){

      Device.Send(String((int)tempRead), tempInside);

      prevVal = tempRead;

    }

    if(prevVal2 != tempRead2){



      Device.Send(String((int)tempRead2), tempOutside);

      prevVal2 = tempRead2;

    }

    if(prevVal3 != lightRead){

      Device.Send(String((int)lightRead), lightOutside);

      prevVal3 = lightRead;

    }

    time = curTime;

  }

  Device.Process();

}





// Callback function: handles messages that were sent from the iot platform to this device.

void callback(char* topic, byte* payload, unsigned int length)

{

  String msgString;

  {                                                     //put this in a sub block, so any unused memory can be freed as soon as possible, required to save mem while sending data

    char message_buff[length + 1];                      //need to copy over the payload so that we can add a /0 terminator, this can then be wrapped inside a string for easy manipulation.

    strncpy(message_buff, (char*)payload, length);      //copy over the data

    message_buff[length] = '\0';                        //make certain that it ends with a null



    msgString = String(message_buff);

    msgString.toLowerCase();                            //to make certain that our comparison later on works ok (it could be that a 'True' or 'False' was sent)

  }

  int* idOut = NULL;

  {                                                     //put this in a sub block, so any unused memory can be freed as soon as possible, required to save mem while sending data

    int pinNr = Device.GetPinNr(topic, strlen(topic));



    Serial.print("Payload: ");                          //show some debugging.

    Serial.println(msgString);

    Serial.print("topic: ");

    Serial.println(topic);



    if (pinNr == ledPin)

    {

      if (msgString == "false") {

        digitalWrite(ledPin, LOW);                      //change the led

        idOut = &ledPin;

      }

      else if (msgString == "true") {

        digitalWrite(ledPin, HIGH);

        idOut = &ledPin;

      }

    }

  }

  if(idOut != NULL)                                     //also let the iot platform know that the operation was succesful: give it some feedback. This also allows the iot to update the GUI's correctly & run scenarios.

    Device.Send(msgString, *idOut);

}
