TI SensorTag to SAP Cloud Platform IoT Services

Connect your TI SensorTag to the IoT Services of the SAP Cloud Platform.

EasyProtip1 hour607
TI SensorTag to SAP Cloud Platform IoT Services

Things used in this project

Story

Read more

Code

Code snippet #1

Plain text
/* 	sensorTag IR Temperature sensor example
*  Craig Cmehil, SAP SE (c) 2015
*/

/* Choose the proper HTTP or HTTPS, SAP Cloud Platformrequires HTTPS */
var http = require('https');

var SensorTag = require('sensortag');
var lv_temp;
var lv_humid;
var lv_deviceid = "";
var DEBUG_VALUE = true;
var xtimestamp;
var date = new Date();
var time = date.getTime ();

// SAP Cloud Platform connection details
var portIoT = 443;
var pathIoT = '/com.sap.iotservices.mms/v1/api/http/data/';
var hostIoT = 'iotmmsXXXXXXXXXXtrial.hanatrial.ondemand.com';
var authStrIoT = 'Bearer XXXXXXXXXXXX';
var deviceId = 'XXXXXX-XXXX-XXXX-XXXX-XXXXXXXXX';
var messageTypeID = 'XXXXXXXXXXXX';

var options = {
    host: hostIoT,
  port: portIoT,
    path: pathIoT + deviceId,
    agent: false,
    headers: {
       'Authorization': authStrIoT,
       'Content-Type': 'application/json;charset=utf-8',
	 'Accept': '*/*'
    },
    method: 'POST',
};

/***************************************************************/
/* Coding to access TI SensorTag and values of various sensors */
/***************************************************************/

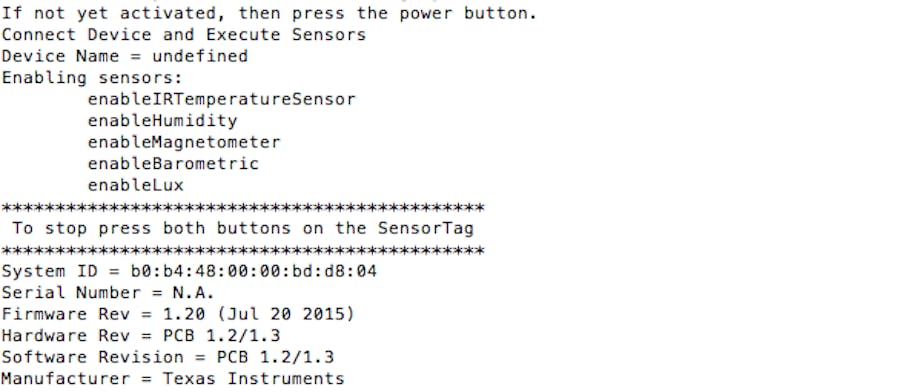

console.log("If not yet activated, then press the power button.");
SensorTag.discover(function(tag) {
tag.on('disconnect', function() {
	console.log('disconnected!');
	process.exit(0);
});

function connectExecute() {
	console.log('Connect Device and Execute Sensors');
	tag.connectAndSetUp(enableSensors);
}

function enableSensors() {
	/* Read device specifics */
	tag.readDeviceName(function(error, deviceName) {
		console.log('Device Name = ' + deviceName);
	});
	tag.readSystemId(function(error, systemId) {
		console.log('System ID = ' + systemId);
		lv_deviceid = systemId;
	});
	tag.readSerialNumber(function(error, serialNumber) {
		console.log('Serial Number = ' + serialNumber);
	});
	tag.readFirmwareRevision(function(error, firmwareRevision) {
		console.log('Firmware Rev = ' + firmwareRevision);
	});
	tag.readHardwareRevision(function(error, hardwareRevision) {
		console.log('Hardware Rev = ' + hardwareRevision);
	});
	tag.readHardwareRevision(function(error, softwareRevision) {
		console.log('Software Revision = ' + softwareRevision);
	});
	tag.readManufacturerName(function(error, manufacturerName) {
		console.log('Manufacturer = ' + manufacturerName);
	});
	/* Enable Sensors */
	console.log("Enabling sensors:");
	console.log('\tenableIRTemperatureSensor');
	tag.enableIrTemperature(notifyMe);
	console.log('\tenableHumidity');
	tag.enableHumidity(notifyMe);
	console.log("*********************************************");
	console.log(" To stop press both buttons on the SensorTag ");
	console.log("*********************************************");
}

function notifyMe() {
	tag.notifySimpleKey(listenForButton);
	setImmediate(function loop () {
		tag.readIrTemperature(function(error, objectTemperature, ambientTemperature){
      		lv_obj = objectTemperature.toFixed(1);
      		lv_ambient = ambientTemperature.toFixed(1);
    		});
		tag.readHumidity(function(error, temperature, humidity) {
			lv_temp = temperature.toFixed(1);
			lv_humid = humidity.toFixed(1);
		});
		if(DEBUG_VALUE)
			console.log("Sending Data: " + lv_deviceid + " " + lv_temp + " " + lv_humid);
		setSensorData(lv_temp, lv_humid);
		setTimeout(loop, 10000);
	});
  }

function listenForButton() {
	tag.on('simpleKeyChange', function(left, right) {
		if (left && right) {
			tag.disconnect();
		}
   });
}

connectExecute();
});

/******************************************************************/
/* FUNCTION to get Temperature from the Sensor & update into HANA */
/******************************************************************/
function setSensorData(lv_temp,lv_humid){
date = new Date();
  time =date.getTime();

var data = {
	"mode":"sync",
	"messageType": messageTypeID,
	"messages": [{
		"timestamp": time,
		"temperature": lv_temp,
		"humidity": lv_humid
	}]
  };
var strData = JSON.stringify(data);
if(DEBUG_VALUE)
	console.log("Data: " + strData);
if(strData.length > 46){
	if(DEBUG_VALUE)
		console.log("Sending Data to server");
	/* Process HTTP or HTTPS request */
	options.agent = new http.Agent(options);
	var request_callback = function(response) {
		var body = '';
		response.on('data', function (data) {
			body += data;
		});
		response.on('end', function () {
			if(DEBUG_VALUE)
				console.log("REQUEST END:", response.statusCode);
		});
		response.on('error', function(e) {
			console.error(e);
		});
	}
	var request = http.request(options, request_callback);
	request.on('error', function(e) {
		console.error(e);
	});
	request.write(strData);
	request.end();
}else{
	if(DEBUG_VALUE)
		console.log("Incomplete Data");
}
}

Code snippet #2

Plain text
/* 	sensorTag IR Temperature sensor example
*  Craig Cmehil, SAP SE (c) 2015
*/

/* Choose the proper HTTP or HTTPS, SAP Cloud Platformrequires HTTPS */
var http = require('https');

var SensorTag = require('sensortag');
var lv_temp;
var lv_humid;
var lv_deviceid = "";
var DEBUG_VALUE = true;
var xtimestamp;
var date = new Date();
var time = date.getTime ();

// SAP Cloud Platform connection details
var portIoT = 443;
var pathIoT = '/com.sap.iotservices.mms/v1/api/http/data/';
var hostIoT = 'iotmmsXXXXXXXXXXtrial.hanatrial.ondemand.com';
var authStrIoT = 'Bearer XXXXXXXXXXXX';
var deviceId = 'XXXXXX-XXXX-XXXX-XXXX-XXXXXXXXX';
var messageTypeID = 'XXXXXXXXXXXX';

var options = {
    host: hostIoT,
  port: portIoT,
    path: pathIoT + deviceId,
    agent: false,
    headers: {
       'Authorization': authStrIoT,
       'Content-Type': 'application/json;charset=utf-8',
	 'Accept': '*/*'
    },
    method: 'POST',
};

/***************************************************************/
/* Coding to access TI SensorTag and values of various sensors */
/***************************************************************/

console.log("If not yet activated, then press the power button.");
SensorTag.discover(function(tag) {
tag.on('disconnect', function() {
	console.log('disconnected!');
	process.exit(0);
});

function connectExecute() {
	console.log('Connect Device and Execute Sensors');
	tag.connectAndSetUp(enableSensors);
}

function enableSensors() {
	/* Read device specifics */
	tag.readDeviceName(function(error, deviceName) {
		console.log('Device Name = ' + deviceName);
	});
	tag.readSystemId(function(error, systemId) {
		console.log('System ID = ' + systemId);
		lv_deviceid = systemId;
	});
	tag.readSerialNumber(function(error, serialNumber) {
		console.log('Serial Number = ' + serialNumber);
	});
	tag.readFirmwareRevision(function(error, firmwareRevision) {
		console.log('Firmware Rev = ' + firmwareRevision);
	});
	tag.readHardwareRevision(function(error, hardwareRevision) {
		console.log('Hardware Rev = ' + hardwareRevision);
	});
	tag.readHardwareRevision(function(error, softwareRevision) {
		console.log('Software Revision = ' + softwareRevision);
	});
	tag.readManufacturerName(function(error, manufacturerName) {
		console.log('Manufacturer = ' + manufacturerName);
	});
	/* Enable Sensors */
	console.log("Enabling sensors:");
	console.log('\tenableIRTemperatureSensor');
	tag.enableIrTemperature(notifyMe);
	console.log('\tenableHumidity');
	tag.enableHumidity(notifyMe);
	console.log("*********************************************");
	console.log(" To stop press both buttons on the SensorTag ");
	console.log("*********************************************");
}

function notifyMe() {
	tag.notifySimpleKey(listenForButton);
	setImmediate(function loop () {
		tag.readIrTemperature(function(error, objectTemperature, ambientTemperature){
      		lv_obj = objectTemperature.toFixed(1);
      		lv_ambient = ambientTemperature.toFixed(1);
    		});
		tag.readHumidity(function(error, temperature, humidity) {
			lv_temp = temperature.toFixed(1);
			lv_humid = humidity.toFixed(1);
		});
		if(DEBUG_VALUE)
			console.log("Sending Data: " + lv_deviceid + " " + lv_temp + " " + lv_humid);
		setSensorData(lv_temp, lv_humid);
		setTimeout(loop, 10000);
	});
  }

function listenForButton() {
	tag.on('simpleKeyChange', function(left, right) {
		if (left && right) {
			tag.disconnect();
		}
   });
}

connectExecute();
});

/******************************************************************/
/* FUNCTION to get Temperature from the Sensor & update into HANA */
/******************************************************************/
function setSensorData(lv_temp,lv_humid){
date = new Date();
  time =date.getTime();

var data = {
	"mode":"sync",
	"messageType": messageTypeID,
	"messages": [{
		"timestamp": time,
		"temperature": lv_temp,
		"humidity": lv_humid
	}]
  };
var strData = JSON.stringify(data);
if(DEBUG_VALUE)
	console.log("Data: " + strData);
if(strData.length > 46){
	if(DEBUG_VALUE)
		console.log("Sending Data to server");
	/* Process HTTP or HTTPS request */
	options.agent = new http.Agent(options);
	var request_callback = function(response) {
		var body = '';
		response.on('data', function (data) {
			body += data;
		});
		response.on('end', function () {
			if(DEBUG_VALUE)
				console.log("REQUEST END:", response.statusCode);
		});
		response.on('error', function(e) {
			console.error(e);
		});
	}
	var request = http.request(options, request_callback);
	request.on('error', function(e) {
		console.error(e);
	});
	request.write(strData);
	request.end();
}else{
	if(DEBUG_VALUE)
		console.log("Incomplete Data");
}
}
