Story:

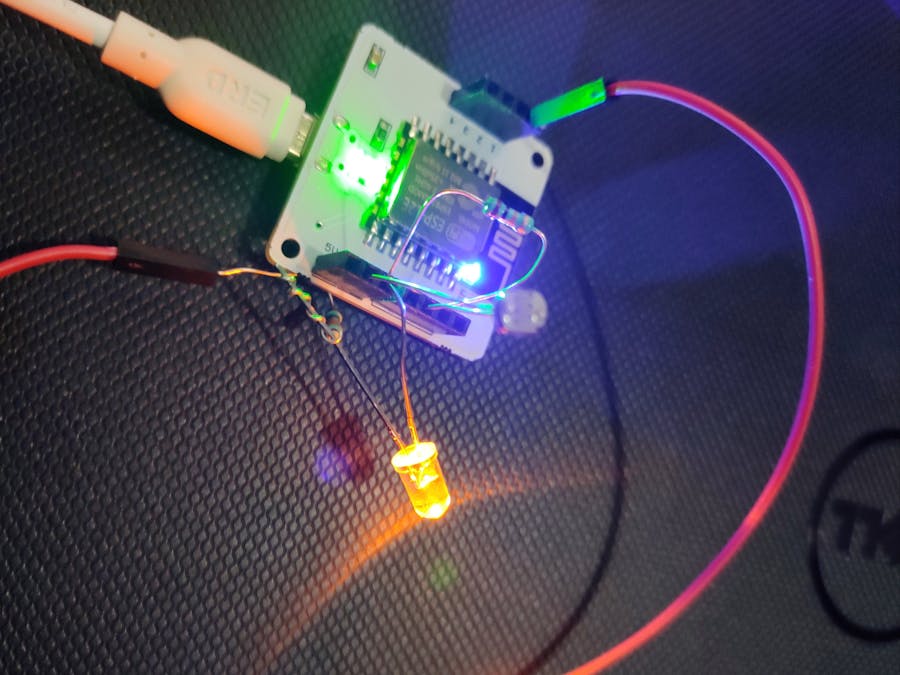

Introduction: The main objective of this project is to change the brightness of LED based on the light available in the room. When the room becomes dark intensity of LED increases correspondingly and when the LED is off the light available in room is max. Project also contains LDR which is used to read light intensity available in the room. Based on the values read intensity of LED changes. When the input value of LED is either maximum or minimum then an email alert is sent indicating the status of LED.
2.CIRCUIT CONNECTIONS:
● Step 1: Insert one lead of the LDR into the Bolt Module's 3v3 Pin.
● Step 2: Insert other lead of the LDR into the A0 pin
● Step 3: Insert one leg of the 10k Ohm resistor into the GND pin
● Step 4: Insert the other leg of the resistor also into the A0 pin
●Step 5: Take one leg of the resistor and wrap it around the longer leg of the LED i.e positive leg.
● Step 6: Insert the negative leg of the LED into the ground pin of the Bolt.
● Step 7: Insert the other leg of the resistor in digital pin 1 of the Bolt using connecting wire.
