The Material manufactured in Industry are Check through camera whether it's Good or Bad. To Check that the Ni Vision Builder AI is used to train Image sets and then the status is send to the Labview and NI Data Dashboard using Shared Variable, OPC.

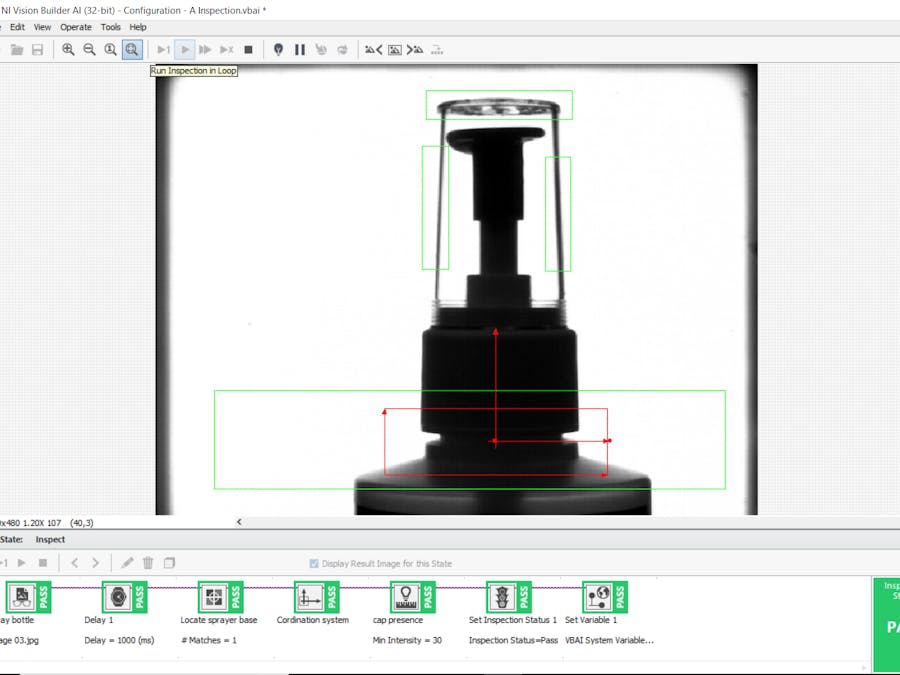

The image set of the material should be inspected is uploaded on the VBAI main window. The chance of the defect of the material should be known according to that the program should be done on the VBAI. For example here the sprayer bottle is checked for the presence of the cap on its top.If the cap is missed the material is defect I result. The region of interest is draw on three side by using color intensity the presence of the cap can be identified.
The VBAI is linked with labview and NI data dashboard for user interface for the the global variable is created in the VBAI by using OPC server and client it is linked with labview and data dashboard.
Here labview is used to send a data to data dashboard and do some calculation to find(Total number of material, Number of good material, Number of bad material).These are some program done through labview and it send every data to dashboard.
The data dashboard is application developed by NI to monitor the data through shared variable and web server. It is supported to the android and IOS. Here the Number of bad material is send to dashboard by integer and boolean.
