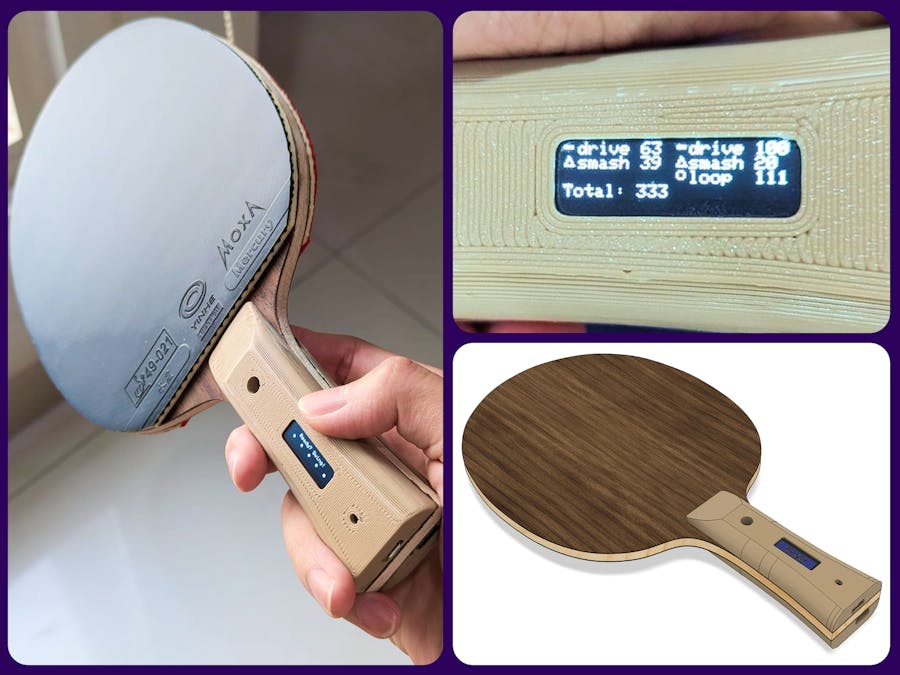

Smart Table Tennis Bat with Live Analytics

#!/usr/bin/env python3
"""
Table Tennis Data Collector - USB Serial Version
Collects continuous IMU data from Arduino via USB serial connection at 50Hz.

Requirements:
- pyserial (pip install pyserial)
- Arduino Nano 33 BLE Sense Rev2 connected via USB

Author: TT Data Collection System
"""

import serial
import serial.tools.list_ports
import time
import sys
import os
import threading
from datetime import datetime

class TTDataCollector:
    def __init__(self):
        self.serial_conn = None
        self.recording = False
        self.samples_collected = 0
        self.csv_file = None
        self.start_time = None
        self.stop_recording = False

    def find_arduino(self):
        """Scan for Arduino on serial ports"""
        print(" Scanning for Arduino...")

        # Get list of available ports
        ports = serial.tools.list_ports.comports()
        arduino_ports = []

        for port in ports:
            # Look for Arduino-like devices
            if any(keyword in port.description.lower() for keyword in ['arduino', 'nano', 'usb serial']):
                arduino_ports.append(port.device)
            elif 'cu.usbmodem' in port.device or 'ttyACM' in port.device:
                arduino_ports.append(port.device)

        if not arduino_ports:
            print(" No Arduino found. Please check connection.")
            return None

        # Try to connect to each potential Arduino
        for port in arduino_ports:
            try:
                print(f" Trying {port}...")
                ser = serial.Serial(port, 115200, timeout=2)
                time.sleep(3)  # Wait for Arduino to initialize

                # Clear any existing data in buffer
                ser.flushInput()

                # Send a test command to see if Arduino responds
                ser.write(b"TEST\n")
                time.sleep(0.5)

                # Check for any response (Arduino might send READY again or respond to TEST)
                response_received = False
                for attempt in range(10):  # Try for 5 seconds
                    if ser.in_waiting > 0:
                        try:
                            response = ser.readline().decode().strip()
                            print(f" Arduino response: '{response}'")
                            if response in ["READY", "STARTED", "STOPPED"] or "TT" in response:
                                print(f" Arduino connected on {port}")
                                return ser
                            response_received = True
                        except:
                            pass
                    time.sleep(0.5)

                if not response_received:
                    print(f" No response from {port}")

                ser.close()

            except Exception as e:
                print(f" Failed to connect to {port}: {e}")
                continue

        print(" No Arduino found with correct firmware.")
        return None

    def get_filename(self):
        """Get filename from user input"""
        while True:
            filename = input("\n Enter filename (e.g., FHdrive.csv): ").strip()

            if not filename:
                print(" Please enter a filename.")
                continue

            if not filename.endswith('.csv'):
                filename += '.csv'

            # Check if file exists
            if os.path.exists(filename):
                overwrite = input(f"  File {filename} exists. Overwrite? (y/n): ").strip().lower()
                if overwrite != 'y':
                    continue

            return filename

    def start_recording(self, filename):
        """Start recording session"""
        try:
            # Open CSV file
            self.csv_file = open(filename, 'w')
            self.csv_file.write("Timestamp,AccelX,AccelY,AccelZ,GyroX,GyroY,GyroZ\n")
            self.csv_file.flush()

            # Clear any pending data in serial buffer
            self.serial_conn.flushInput()
            time.sleep(0.1)

            # Send START command to Arduino
            self.serial_conn.write(b"START\n")

            # Wait for Arduino acknowledgment (be more tolerant)
            max_attempts = 10
            for attempt in range(max_attempts):
                try:
                    response = self.serial_conn.readline().decode().strip()
                    print(f" Arduino response: '{response}'")

                    if response == "STARTED":
                        print(" Arduino confirmed START")
                        break
                    elif response == "READY":
                        print(" Got READY, sending START again...")
                        self.serial_conn.write(b"START\n")
                    elif response == "":
                        print(" No response, retrying...")
                        self.serial_conn.write(b"START\n")

                except Exception as e:
                    print(f" Communication error: {e}")

                time.sleep(0.5)

                if attempt == max_attempts - 1:
                    print(" Failed to get START confirmation from Arduino")
                    return False

            self.recording = True
            self.samples_collected = 0
            self.start_time = time.time()
            self.stop_recording = False

            print(f" Recording started - {filename}")
            print(" Press 'q' + ENTER to stop recording")
            print("  Max recording time: 2 minutes")
            print("-" * 50)

            return True

        except Exception as e:
            print(f" Failed to start recording: {e}")
            return False

    def stop_recording_session(self):
        """Stop recording session"""
        if not self.recording:
            return

        try:
            # Send STOP command to Arduino
            self.serial_conn.write(b"STOP\n")

            # Wait for Arduino acknowledgment
            response = self.serial_conn.readline().decode().strip()
            if response == "STOPPED":
                print("\n Arduino stopped successfully")

            self.recording = False

            # Close CSV file
            if self.csv_file:
                self.csv_file.close()
                self.csv_file = None

            elapsed_time = time.time() - self.start_time
            print(f" Recording completed!")
            print(f" Samples collected: {self.samples_collected}")
            print(f"  Duration: {elapsed_time:.1f} seconds")
            print(f" Average sample rate: {self.samples_collected/elapsed_time:.1f} Hz")

        except Exception as e:
            print(f" Error stopping recording: {e}")

    def data_collection_thread(self):
        """Thread for collecting data from Arduino"""
        max_duration = 120  # 2 minutes in seconds (yields ~6,000 samples at 50Hz)

        while self.recording and not self.stop_recording:
            try:
                # Check for timeout
                elapsed = time.time() - self.start_time
                if elapsed >= max_duration:
                    print(f"\n Maximum recording time ({max_duration/60:.1f} minutes) reached!")
                    self.stop_recording = True
                    break

                # Read data from Arduino
                if self.serial_conn.in_waiting > 0:
                    line = self.serial_conn.readline().decode().strip()

                    # Skip empty lines and command responses
                    if not line or line in ['READY', 'STARTED', 'STOPPED']:
                        continue

                    # Write to CSV file
                    self.csv_file.write(line + '\n')
                    self.csv_file.flush()  # Ensure data is written immediately

                    self.samples_collected += 1

                    # Update display every 100 samples
                    if self.samples_collected % 100 == 0:
                        elapsed = time.time() - self.start_time
                        rate = self.samples_collected / elapsed if elapsed > 0 else 0
                        print(f" Samples: {self.samples_collected:,} | Time: {elapsed:.1f}s | Rate: {rate:.1f} Hz", end='\r')

                time.sleep(0.001)  # Small delay to prevent busy waiting

            except Exception as e:
                print(f"\n Error during data collection: {e}")
                break

        # Stop recording
        self.stop_recording_session()

    def user_input_thread(self):
        """Thread for handling user input"""
        while self.recording:
            try:
                user_input = input().strip().lower()
                if user_input == 'q':
                    print("\n Stopping recording...")
                    self.stop_recording = True
                    break
            except EOFError:
                break
            except KeyboardInterrupt:
                print("\n Stopping recording...")
                self.stop_recording = True
                break

    def run_session(self):
        """Run a single recording session"""
        filename = self.get_filename()

        if not self.start_recording(filename):
            return False

        # Start data collection thread
        data_thread = threading.Thread(target=self.data_collection_thread)
        data_thread.daemon = True
        data_thread.start()

        # Start user input thread
        input_thread = threading.Thread(target=self.user_input_thread)
        input_thread.daemon = True
        input_thread.start()

        # Wait for threads to complete
        data_thread.join()

        return True

    def run(self):
        """Main program loop"""
        print(" Table Tennis Data Collector v2.0")
        print("=" * 50)

        # Find and connect to Arduino
        self.serial_conn = self.find_arduino()
        if not self.serial_conn:
            return

        try:
            while True:
                print("\n" + "=" * 50)
                print(" Main Menu:")
                print("1. Start new recording session")
                print("2. Quit")

                choice = input("\nEnter choice (1-2): ").strip()

                if choice == '1':
                    self.run_session()

                elif choice == '2':
                    print(" Goodbye!")
                    break

                else:
                    print(" Invalid choice. Please enter 1 or 2.")

        except KeyboardInterrupt:
            print("\n\n Program interrupted by user")

        finally:
            if self.recording:
                self.stop_recording_session()

            if self.serial_conn and self.serial_conn.is_open:
                self.serial_conn.close()
                print(" Serial connection closed")

def main():
    """Main entry point"""
    collector = TTDataCollector()
    collector.run()

if __name__ == "__main__":
    main()

<!DOCTYPE html>
<html lang="en">
<head>
    <meta charset="UTF-8">
    <meta name="viewport" content="width=device-width, initial-scale=1.0">
    <title>TT Stroke Collector</title>
    <script src="https://cdnjs.cloudflare.com/ajax/libs/jszip/3.10.1/jszip.min.js"></script>
    <style>
        * {
            margin: 0;
            padding: 0;
            box-sizing: border-box;
        }

        body {
            font-family: -apple-system, BlinkMacSystemFont, 'Segoe UI', Roboto, sans-serif;
            background: linear-gradient(135deg, #667eea 0%, #764ba2 100%);
            min-height: 100vh;
            padding: 20px;
            color: white;
        }

        .container {
            max-width: 400px;
            margin: 0 auto;
            background: rgba(255, 255, 255, 0.1);
            backdrop-filter: blur(10px);
            border-radius: 20px;
            padding: 30px;
            box-shadow: 0 8px 32px rgba(0, 0, 0, 0.1);
        }

        h1 {
            text-align: center;
            margin-bottom: 30px;
            font-size: 24px;
            font-weight: 700;
        }

        .input-group {
            margin-bottom: 25px;
        }

        label {
            display: block;
            margin-bottom: 8px;
            font-weight: 600;
            font-size: 16px;
        }

        input[type="text"] {
            width: 100%;
            padding: 15px;
            font-size: 16px;
            border: none;
            border-radius: 12px;
            background: rgba(255, 255, 255, 0.9);
            color: #333;
        }

        input[type="text"]:focus {
            outline: none;
            box-shadow: 0 0 0 3px rgba(255, 255, 255, 0.3);
        }

        .button {
            width: 100%;
            padding: 18px;
            font-size: 18px;
            font-weight: 600;
            border: none;
            border-radius: 12px;
            cursor: pointer;
            margin-bottom: 15px;
            transition: all 0.3s ease;
            touch-action: manipulation;
        }

        .btn-primary {
            background: #4CAF50;
            color: white;
        }

        .btn-primary:hover:not(:disabled) {
            background: #45a049;
            transform: translateY(-2px);
        }

        .btn-secondary {
            background: #2196F3;
            color: white;
        }

        .btn-secondary:hover:not(:disabled) {
            background: #1976D2;
            transform: translateY(-2px);
        }

        .btn-danger {
            background: #f44336;
            color: white;
        }

        .btn-danger:hover:not(:disabled) {
            background: #d32f2f;
            transform: translateY(-2px);
        }

        .button:disabled {
            background: #ccc;
            cursor: not-allowed;
            transform: none;
        }

        .status-panel {
            background: rgba(255, 255, 255, 0.1);
            border-radius: 12px;
            padding: 20px;
            margin-bottom: 20px;
            text-align: center;
        }

        .status-item {
            margin-bottom: 15px;
        }

        .status-item:last-child {
            margin-bottom: 0;
        }

        .status-label {
            font-size: 14px;
            opacity: 0.8;
            margin-bottom: 5px;
        }

        .status-value {
            font-size: 24px;
            font-weight: 700;
        }

        .connection-status {
            padding: 10px;
            border-radius: 8px;
            margin-bottom: 20px;
            text-align: center;
            font-weight: 600;
        }

        .status-disconnected {
            background: rgba(244, 67, 54, 0.2);
            border: 1px solid rgba(244, 67, 54, 0.5);
        }

        .status-connected {
            background: rgba(76, 175, 80, 0.2);
            border: 1px solid rgba(76, 175, 80, 0.5);
        }

        .status-connecting {
            background: rgba(255, 193, 7, 0.2);
            border: 1px solid rgba(255, 193, 7, 0.5);
        }

        .log {
            background: rgba(0, 0, 0, 0.3);
            border-radius: 8px;
            padding: 15px;
            max-height: 200px;
            overflow-y: auto;
            font-family: monospace;
            font-size: 12px;
            margin-top: 20px;
        }

        .log-entry {
            margin-bottom: 5px;
            opacity: 0.9;
        }

        .swing-animation {
            animation: pulse 0.5s ease-in-out;
        }

        @keyframes pulse {
            0% { transform: scale(1); }
            50% { transform: scale(1.05); }
            100% { transform: scale(1); }
        }

        .hidden {
            display: none;
        }

        @media (max-width: 480px) {
            .container {
                padding: 20px;
                margin: 10px;
            }

            h1 {
                font-size: 20px;
            }

            .button {
                padding: 16px;
                font-size: 16px;
            }
        }
    </style>
</head>
<body>
    <div class="container">
        <h1> TT Stroke Collector</h1>

        <div class="connection-status status-disconnected" id="connectionStatus">
            Disconnected
        </div>

        <div class="input-group">
            <label for="strokeType">Stroke Type:</label>
            <input type="text" id="strokeType" placeholder="e.g., FHdrive, BHchop, FHsmash" value="">
        </div>

        <button class="button btn-primary" id="connectBtn" onclick="connectToDevice()">
            Connect to Arduino
        </button>

        <div id="sessionPanel" class="hidden">
            <div class="status-panel">
                <div class="status-item">
                    <div class="status-label">Current Stroke</div>
                    <div class="status-value" id="currentStroke">-</div>
                </div>
                <div class="status-item">
                    <div class="status-label">Swings Collected</div>
                    <div class="status-value" id="swingCount">0</div>
                </div>
                <div class="status-item">
                    <div class="status-label">Session Time</div>
                    <div class="status-value" id="sessionTime">00:00</div>
                </div>
            </div>

            <button class="button btn-secondary" id="downloadBtn" onclick="downloadSwings()" disabled>
                Download CSV Files
            </button>

            <button class="button btn-danger" id="resetBtn" onclick="resetSession()">
                Reset Session
            </button>
        </div>

        <div class="log" id="logContainer">
            <div class="log-entry">Ready to connect...</div>
        </div>
    </div>

    <script>
        // Global variables
        let bleDevice = null;
        let bleCharacteristic = null;
        let isConnected = false;
        let sessionStartTime = null;
        let sessionTimer = null;
        let swingData = [];
        let currentSwingBuffer = '';
        let swingCount = 0;

        // Logging function
        function log(message) {
            const logContainer = document.getElementById('logContainer');
            const entry = document.createElement('div');
            entry.className = 'log-entry';
            entry.textContent = `${new Date().toLocaleTimeString()}: ${message}`;
            logContainer.appendChild(entry);
            logContainer.scrollTop = logContainer.scrollHeight;
        }

        // Update connection status
        function updateConnectionStatus(status) {
            const statusEl = document.getElementById('connectionStatus');
            statusEl.className = 'connection-status';

            switch(status) {
                case 'connected':
                    statusEl.className += ' status-connected';
                    statusEl.textContent = 'Connected to Arduino';
                    break;
                case 'connecting':
                    statusEl.className += ' status-connecting';
                    statusEl.textContent = 'Connecting...';
                    break;
                case 'disconnected':
                default:
                    statusEl.className += ' status-disconnected';
                    statusEl.textContent = 'Disconnected';
                    break;
            }
        }

        // Start session timer
        function startSessionTimer() {
            sessionStartTime = Date.now();
            sessionTimer = setInterval(() => {
                const elapsed = Math.floor((Date.now() - sessionStartTime) / 1000);
                const minutes = Math.floor(elapsed / 60);
                const seconds = elapsed % 60;
                document.getElementById('sessionTime').textContent =
                    `${minutes.toString().padStart(2, '0')}:${seconds.toString().padStart(2, '0')}`;
            }, 1000);
        }

        // Stop session timer
        function stopSessionTimer() {
            if (sessionTimer) {
                clearInterval(sessionTimer);
                sessionTimer = null;
            }
        }

        // Connect to BLE device
        async function connectToDevice() {
            const strokeType = document.getElementById('strokeType').value.trim();
            if (!strokeType) {
                alert('Please enter a stroke type first!');
                return;
            }

            try {
                updateConnectionStatus('connecting');
                log('Scanning for TT-Stroke-Collector...');

                bleDevice = await navigator.bluetooth.requestDevice({
                    filters: [{ name: 'TT-Stroke-Collector' }],
                    optionalServices: ['12345678-1234-1234-1234-123456789abc']
                });

                log('Device found, connecting...');
                const server = await bleDevice.gatt.connect();

                log('Getting service...');
                const service = await server.getPrimaryService('12345678-1234-1234-1234-123456789abc');

                log('Getting characteristic...');
                bleCharacteristic = await service.getCharacteristic('87654321-4321-4321-4321-cba987654321');

                // Set up notifications
                await bleCharacteristic.startNotifications();
                bleCharacteristic.addEventListener('characteristicvaluechanged', handleDataReceived);

                // Set up disconnect handler
                bleDevice.addEventListener('gattserverdisconnected', handleDisconnection);

                isConnected = true;
                updateConnectionStatus('connected');
                log('Connected successfully!');

                // Start session
                startSession();

            } catch (error) {
                log(`Connection failed: ${error.message}`);
                updateConnectionStatus('disconnected');
                isConnected = false;
            }
        }

        // Handle data received from Arduino
        function handleDataReceived(event) {
            const decoder = new TextDecoder();
            const data = decoder.decode(event.target.value);

            if (data === 'END_SWING') {
                // Process complete swing data
                processSwingData();
                currentSwingBuffer = '';
            } else {
                // Accumulate data chunks
                currentSwingBuffer += data;
            }
        }

        // Process complete swing data (new compact format)
        function processSwingData() {
            try {
                const lines = currentSwingBuffer.trim().split('\n');
                if (lines.length < 2) {
                    log('Error: Incomplete swing data received');
                    return;
                }

                // Parse header: swingNumber|timestamp|
                const headerParts = lines[0].split('|');
                const swingNumber = parseInt(headerParts[0]);
                const timestamp = parseInt(headerParts[1]);

                log(`Processing swing #${swingNumber}`);

                // Parse CSV data lines
                const csvData = [];
                for (let i = 1; i < lines.length; i++) {
                    const line = lines[i].trim();
                    if (line && !line.includes('|')) { // Skip header and empty lines
                        const values = line.split(',');
                        if (values.length === 7) {
                            csvData.push(values.map(v => parseFloat(v)));
                        }
                    }
                }

                if (csvData.length === 0) {
                    log('Error: No valid CSV data found in swing');
                    return;
                }

                // Fill timestamp gaps if needed
                const refinedCsv = refineTimestamps(csvData);

                // Convert to CSV format
                const csvString = convertArrayToCSV(refinedCsv);
                swingData.push({
                    number: swingNumber,
                    csv: csvString,
                    timestamp: timestamp
                });

                // Update UI
                swingCount = swingData.length;
                document.getElementById('swingCount').textContent = swingCount;
                document.getElementById('swingCount').classList.add('swing-animation');
                setTimeout(() => {
                    document.getElementById('swingCount').classList.remove('swing-animation');
                }, 500);

                // Enable download if we have data
                document.getElementById('downloadBtn').disabled = false;

                log(`Swing processed. Total: ${swingCount} (${csvData.length} samples)`);

            } catch (error) {
                log(`Error processing swing data: ${error.message}`);
                // Don't throw error, just log and continue
            }
        }

        // Refine timestamps - fill gaps and ensure 10ms intervals
        function refineTimestamps(csvData) {
            if (csvData.length === 0) return csvData;

            const refined = [];
            const expectedSamples = 25; // 500ms / 20ms

            // Sort by timestamp to handle any out-of-order data
            csvData.sort((a, b) => a[0] - b[0]);

            for (let i = 0; i < expectedSamples; i++) {
                const expectedTime = i * 20; // 0, 10, 20, ... 490ms

                // Find closest actual sample
                let closestIndex = 0;
                let closestDiff = Math.abs(csvData[0][0] - expectedTime);

                for (let j = 1; j < csvData.length; j++) {
                    const diff = Math.abs(csvData[j][0] - expectedTime);
                    if (diff < closestDiff) {
                        closestDiff = diff;
                        closestIndex = j;
                    }
                }

                // Use closest sample but fix timestamp
                const sample = [...csvData[closestIndex]];
                sample[0] = expectedTime; // Fix timestamp
                refined.push(sample);
            }

            return refined;
        }

        // Convert array data to CSV string
        function convertArrayToCSV(csvData) {
            let csv = 'Timestamp,AccelX,AccelY,AccelZ,GyroX,GyroY,GyroZ\n';

            csvData.forEach(sample => {
                csv += sample.join(',') + '\n';
            });

            return csv;
        }

        // Start session
        function startSession() {
            const strokeType = document.getElementById('strokeType').value.trim();
            document.getElementById('currentStroke').textContent = strokeType;
            document.getElementById('sessionPanel').classList.remove('hidden');
            document.getElementById('connectBtn').disabled = true;
            document.getElementById('strokeType').disabled = true;

            // Reset counters
            swingData = [];
            swingCount = 0;
            document.getElementById('swingCount').textContent = '0';
            document.getElementById('downloadBtn').disabled = true;

            startSessionTimer();
            log(`Session started for: ${strokeType}`);
        }

        // Handle disconnection
        function handleDisconnection() {
            isConnected = false;
            updateConnectionStatus('disconnected');
            log('Device disconnected');
            stopSessionTimer();
        }

        // Download swing data as zip file
        async function downloadSwings() {
            if (swingData.length === 0) {
                alert('No swing data to download!');
                return;
            }

            const strokeType = document.getElementById('strokeType').value.trim();
            log(`Creating zip file for ${swingData.length} swings...`);

            try {
                const zip = new JSZip();

                // Add each swing as a separate CSV file
                swingData.forEach((swing, index) => {
                    const filename = `${strokeType}${(index + 1).toString().padStart(4, '0')}.csv`;
                    zip.file(filename, swing.csv);
                });

                // Generate zip file
                const content = await zip.generateAsync({type: 'blob'});

                // Create download link
                const url = URL.createObjectURL(content);
                const a = document.createElement('a');
                a.href = url;
                a.download = `${strokeType}.zip`;
                document.body.appendChild(a);
                a.click();
                document.body.removeChild(a);
                URL.revokeObjectURL(url);

                log(`Downloaded: ${strokeType}.zip (${swingData.length} files)`);

            } catch (error) {
                log(`Download failed: ${error.message}`);
                alert('Download failed. Please try again.');
            }
        }

        // Reset session
        function resetSession() {
            if (confirm('Reset session and clear all data?')) {
                // Disconnect if connected
                if (isConnected && bleDevice) {
                    bleDevice.gatt.disconnect();
                }

                // Reset UI
                isConnected = false;
                updateConnectionStatus('disconnected');
                document.getElementById('sessionPanel').classList.add('hidden');
                document.getElementById('connectBtn').disabled = false;
                document.getElementById('strokeType').disabled = false;
                document.getElementById('strokeType').value = '';
                document.getElementById('currentStroke').textContent = '-';
                document.getElementById('swingCount').textContent = '0';
                document.getElementById('sessionTime').textContent = '00:00';

                // Clear data
                swingData = [];
                swingCount = 0;
                currentSwingBuffer = '';

                stopSessionTimer();
                log('Session reset');
            }
        }

        // Check for Web Bluetooth support
        window.addEventListener('load', () => {
            if (!navigator.bluetooth) {
                alert('Web Bluetooth is not supported. Please use Chrome on Android or enable experimental features.');
                log('Web Bluetooth not supported');
            } else {
                log('Web Bluetooth supported - ready to connect');
            }
        });
    </script>
</body>
</html>
