I was in high school when I first used a Hewlett Packard RPN (reverse Polish notation) calculator, the HP 15C. I preferred this format for solving math problems, because you enter the 2 operands first and then the math operation. This removes the necessity of parenthesis. For example, 4 + 5 = would be 4 ENTER 5 + (both use 4 keypresses, but RPN removes the need to press the = key). Today, to get an RPN scientific calculator, you either need to buy a used one on eBay for $100 or more, or buy a modern day "clone", for $180 to $300..

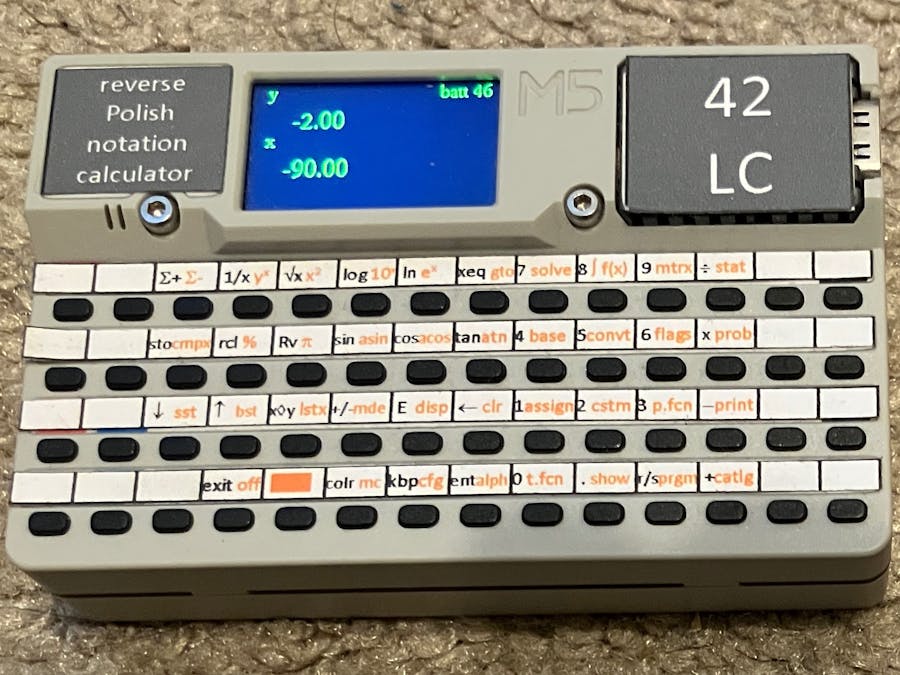

At a Maker Faire, I saw the M5Stack Cardputer selling for $30 and thought it would be the ideal platform to build a RPN calculator on, such as the HP 42S. After using Microsoft Word to make an overlay and coding in Arduino (over 7, 000 lines of code), I was able to make a working model. Which led to the birth of the 42LC (LC stands for low cost). There are some limitations, such as the small size, and the firmware is at an alpha stage (for a complete list of features/issues and overlay template see the 42LC Github webpage at https://github.com/riker2072/42LC ), but it's easy to update the firmware using a standard USB-C cable and a Windows PC or Mac computer.
There is also the 10LC for those who want a slightly simpler RPN calculator. See https://www.hackster.io/ron-t/low-cost-10lc-rpn-calculator-64d03c
There is also the 32LC that has a subset of the 42LC functions, but still can solve equations and do integrations. See https://www.hackster.io/ron-t/low-cost-32lc-rpn-calculator-3eff39
42LC code
C/C++To build and upload the code to the M5Stack Cardputer, first get the Arduino IDE at https://www.arduino.cc/en/software/
To setup Arduino to work with the M5Stack Cardputer, the first step is to follow the Arduino board management guidelines at:
https://docs.m5stack.com/en/arduino/arduino_board
The next step is to add the cardputer library. See https://docs.m5stack.com/en/arduino/m5cardputer/program
You can try uploading the display example before creating a new project that uses the source code below. Make sure you have the correct board and port settings in the Tools pulldown menu.
To setup Arduino to work with the M5Stack Cardputer, the first step is to follow the Arduino board management guidelines at:
https://docs.m5stack.com/en/arduino/arduino_board
The next step is to add the cardputer library. See https://docs.m5stack.com/en/arduino/m5cardputer/program
You can try uploading the display example before creating a new project that uses the source code below. Make sure you have the correct board and port settings in the Tools pulldown menu.
/** 42LC calculator
copyright R. Tanikawa 2025
v. 0.8
*/
#include "M5Cardputer.h"
#include "math.h"
#include "SD.h"
#include <Complex.h>
_Complex double compa,compb,compc;
char menuz[230][20]={"deg","rad","grad","","rect","polar","size","quiet","cres","rres","key","lclb",
"new","inv","det","tran","simq","edit","dot","cross","uvec","dim","index","editn",
"stoij","rclij","stoel","rclel","putm","getm","fix","sci","eng","all","rdx.","rdx,",
"sum+","sum","mean","wmn","sdev","cfit","allsum","linsum","","","sumreg","sumrg?",
"fcstx","fcsty","slope","yint","corr","modl","linf","logf","expf","pwrf","","best",
"a..f","hexm","decm","octm","binm","logic","and","or","xor","not","bit?","rotxy",
">deg",">rad",">hr",">hms",">rec",">pol","ip","fp","rnd","abs","sign","mod",
"sf","cf","fs?","fc?","fs?c","fc?c","comb","perm","n!","gam","ran","seed",
"lbl","rtn","input","view","aview","xeq","x?0","x?y","prom","pse","isg","dse",
"aip","xtoa","agra","pixel","beep","tone","mvar","varm","getk","menu","keyg","keyx",
"x=0?","x!=0","x<0?","x>0?","x<=0?","x>=0?","x=y?","x!=y?","x<y?","x>y?","x<=y?","x>=y?",
"prsum","prp","prv","prst","pra","prx","prusr","list","adv","prlcd","","delay",
"pon","poff","","man","norm","trace","sum+","1/x","sqrt","log","ln","xeq",
"clsum","clp","clv","clst","cla","clx","clrg","del","clky","cllcd","clmn","clall",
"<-","old","^","v","goto","->","A","B","C","D","E","F",
"llim","ulim","acc","","","integ","mata","matb","matx","","fnrm","mtnum",
"sinh","cosh","tanh","asinh","acosh","atanh","save","load","mtnum","pcount","","",
"aleng","arot","ashf","cpx?","posa","rnrm","r^","input ind","","","",""}; //34
int nextmenu[40]={1,0,3,4,2,5,7,8,9,6,
11,10,13,12,14,15,17,18,19,16,
21,20,23,24,22,25,27,26,28,29,
30,31,34,35,35,32};
int lastmenu[40]={1,0,4,2,3,5,9,6,7,8,
11,10,13,12,14,15,19,16,17,18,
21,20,24,22,23,25,27,26,28,29,
30,31,35,35,32,34};
int temparry[20];
int tonez[10]={330,440,494,554,587,659,740,831,880,1109};
int flags[4]={0,0,0,0};
char alpham[45][10]={"abcde","fghi","jklm","nopq","rstuv","wxyz","A","B","C","D","E","",
"F","G","H","I","","","J","K","L","M","","",
"N","O","P","Q","","","R","S","T","U","V","",
"W","X","Y","Z","",""};
char cmds[100][20]={"sum+","1/x","Sqrt","LOG","LN","XEQ","7","8","9","/",
"STO","RCL","RLDN","SIN","COS","TAN","4","5","6","x",
"SST","BST","x<>y","CHS","E","BSP","1","2","3","-",
"","EXIT","shift","","","ENTER","0",".","R/S","+",
"sum-","Y^X","X^2","10^X","e^X","GTO","","","","",
"CMPX","%","PI","ASIN","ACOS","ATAN","","","","",
"SST","BST","LASTx","","","","","","","",
"","OFF","","","","ALPHA","INPUT","SHOW","PRGM","VIEW",
"SINH","COSH","TANH","ASINH","ACOSH","ATANH"};
char stotbl[200][10];
char lbltbl[200][10];
int addrtbl[200];
char smenu[6][10];
int indexes[6];
char numstr[20];
char *chptr;
//char alphas[35]="234567WERTYUSDFG890IOPJKLNM,.;[-";
int alphas[35]={0,1,2,3,4,5,10,11,12,13,14,15,21,22,23,24,6,7,8,16,17,18,26,27,28,36,37,38,39,29,19,9};
int sizes[24]={4,3,3,4,2,2,2,4,3,2,
3,2,4,4,3,4,2,5,5,2, 2,3,6};
double stats[6];
double matx[10][10][10];
double prognums[100];
int mtrow[10];
int mtcol[10];
int rtnstack[100];
int rtnloc=0;
int prognumcount=0; // loc for prognums to store
int storenum=0;
double ulim=0;
double llim=0;
double accur=0.01;
double cnum=0;
int matnum=0; //indexed matrix
int mati,matj;
int progcount=0; //loc of curr used program
int cmode=0; // rec/polar complex mode
int mtnum=0; // curr available matrix to use
int solveaddr;
int lastkey=0;
int alphamode=0;
int basem=10;
int basenum=0;
int cmdd=0;
int intsolv=0;
int menunum=-1;
int tones=0; // beep mode
double mults=0;
double rnums=0.3857162904;
int colr=0; // color for display
int mcolr=0; // color for menus
int fontz=0; // font num - unused for 42LC
int keys;
int expp=0;
double num=0;
double num1=0;
int shifts=0;
int ans=0;
double stos[200]={0,0,0,0,0,0,0,0,0,0,0,0};
double stos2[200];
int stotype[200];
int pc=0;
int beeps=0;
int pgm[1500];
//int pgm1[102];
int mode=0;
int decm=0;
int gotos=0;
int scientif=0;
int scidigs=0;
int signs=1;
int idles=0;
int codes1=0;
double slope=0;
double intc=0;
int angles=0;
int gotosflag=0;
double lastx=0;
double lastx2=0;
int lastxtype=0;
int stoper=0;
int secs=0;
int dispFlag=0;
int solvemode=0;
int fnum=0;
int solvar=0;
//int zz=c_sqrt(3);
// 1=normal shift, 2=sto 3=rcl 5=exp 6=exp2 7=gto1 8=gto2 9=fix 10=sci 11=eng
double stacks[4]={0,0,0,0};
double stacks2[4]={0,0,0,0};
int dtype[4]={0,0,0,0}; //0=num, 1=complex, 2=matrix
char strs[100];
char alphastr[100]="";
//char keyz[42]="234567890-wertyuiop[asdfghjkl;@zxcvbnm,. ";
char keyz[46]="234567890-wertyuiop[asdfghjkl;@zxcvbnm,. ";
int fixs=5;
void clearPgm() {
int i;
for (i=0; i<20; ++i) //20
pgm[i*100]=5100;
/* for (i=0; i<26; ++i)
pgm[100+50*i]=4000+i;
pgm[0]=38; */
}
void clearDsp() {
M5Cardputer.Display.fillRect(0,0,240,135,BLACK);
}
double tohms(double a) {
int i;
double fp,temp;
long a1;
int minutes;
double seconds;
int divs;
Serial.println(a*3600);
// temp=fmod(fp,fp);
seconds=3600.0*modf(a,&temp);
// divs=(int)a;
//seconds=(int)((a*3600.0)-(3600.0*divs)+0.5);
// (int)(a*3600.0)(int)(a*3600) % 3600;
Serial.println(seconds);
// a1=(int)a;
// fp=a-a1;
//Serial.println("%f",fp);
// seconds=fp*3600;
minutes=(int)(seconds/60);
seconds=fmod(seconds,60);
// seconds=(int)(60*((60*fp)-(int)(60*fp)));
return temp+(minutes/100.0)+(seconds/10000.0);
}
double tohours(double a) {
int minutes;
double seconds,temp;
long a1;
double fp;
fp=a*100.0;
seconds=modf(fp,&temp)/36.0;
// a1=10000*a;
// seconds=(int)a1 % 100;
// a1=a1/100;
minutes=fmod(temp,100.0);
/* fp=a-a1;
minutes=(int)(fp*100);
fp=fp*100;
seconds=(int)((fp-minutes)*100); */
Serial.println(minutes);
Serial.println(seconds);
modf(a,&temp);
return temp+(minutes/60.0)+(seconds);
}
void bstring(int nums,char *strs) {
int ndig;
int i;
ndig=0;
if (nums>0) {
ndig=int(1+log(nums)/log(2));
} else {
ndig=32;
}
/* if (nums==1)
strcpy(strs,"1");
else */
if (ndig==0) {
strcpy(strs,"0");
} else {
for (i=0; i<ndig; ++i) {
if (1<<(ndig-i-1) & nums)
strs[i]='1';
else
strs[i]='0';
}
strs[ndig]=0;
}
}
void solves(int addr) { //secant solver method
double x0=-8;
double x1=0;
double e=0.000000001;
int N=20;
int step=0;
double x=0;
double f0;
double f1;
double x2;
double f2;
int count=0;
//delay(1000);
Serial.println(solvar);
x0=stacks[0];
x1=stacks[1];
intsolv=1;
if (x0==x1) {
x1+=15.0;
x0-=30.0;
}
solvemode=1;
// mode=2;
while (count<50) {
count++;
x=x0;
pc=addr;
// Serial.println(x);
stos[solvar]=x;
mode=2;
runProgram();
// Serial.println(num);
f0=num;
x=x1;
Serial.println(x);
pc=addr;
stos[solvar]=x;
mode=2;
runProgram();
// Serial.println(stacks[0]);
f1=num;
if (f0==f1) {
intsolv=0;
solvemode=0;
//M5Cardputer.Display.clear();
clearDsp();
// M5Cardputer.Display.fillRect(0,0,240,135,BLACK);
M5Cardputer.Display.setTextFont(&fonts::FreeSerif12pt7b);
M5Cardputer.Display.drawString("Error: g1=g2",15,90);
// Serial.println("Math error");
mode=0;
return;
}
x2=(x0*f1-x1*f0)/(f1-f0);
x0=x1;
x1=x2;
stos[solvar]=x2;
pc=addr;
// mode=2;
runProgram();
// Serial.println(num);
f2=num;
//Serial.println(f0);
step = step + 1;
if (step > N) {
intsolv=0;
clearDsp();
// M5Cardputer.Display.clear();
M5Cardputer.Display.setTextFont(&fonts::FreeSerif12pt7b);
M5Cardputer.Display.drawString("not convergent",15,90);
// Serial.println("no convergence");
solvemode=0;
mode=0;
return;
}
if (fabs(f2)<=e)
break;
}
// Serial.println(x2);
intsolv=0;
if (count==50) {
// M5Cardputer.Display.clear();
clearDsp();
M5Cardputer.Display.setTextFont(&fonts::FreeSerif12pt7b);
M5Cardputer.Display.drawString("solution not found",15,90);
} else {
num=x2;
stacks[0]=num;
ans=1;
dispNum(num);
}
mode=0;
solvemode=0;
return;
}
void integrate(){
long int n,i;
double a,b,h,x,sum=0,integ;
double fa,fb;
char msg[20];
intsolv=1;
if (scientif)
n=int(pow(10,(scidigs+3)/2));
else
n=int(pow(10,(fixs+3)/2));
//n=10;
Serial.println(n);
if ((n % 2)!=0)
n+=1;
//n=100;
//a=stacks[1];
//b=stacks[0];
a=llim;
b=ulim;
Serial.println(n);
Serial.println(solveaddr);
Serial.println(solvar);
Serial.println(a);
Serial.println(b);
h=abs(b-a)/n;
for(i=1;i<n;i++){
if ((i%10000)==0) {
sprintf(msg,"integrating %d",i/10000);
clearDsp();
// M5Cardputer.Display.clear();
M5Cardputer.Display.drawString(msg,15,40);
}
/* M5Cardputer.update();
if(M5Cardputer.Keyboard.isChange()) {
mode=0;
ans=1;
stacks[0]=num;
break;
} */
x=a+i*h;
if(i%2==0){
pc=solveaddr;
stos[solvar]=x;
// mode=2;
runProgram();
// Serial.println(num);
sum=sum+2*num;
}
else{
pc=solveaddr;
stos[solvar]=x;
// mode=2;
runProgram();
// Serial.println(num);
sum=sum+4*num;
}
}
pc=solveaddr;
stos[solvar]=a;
// mode=2;
runProgram();
fa=num;
pc=solveaddr;
stos[solvar]=b;
// mode=2;
runProgram();
intsolv=0;
fb=num;
integ=(h/3)*(fa+fb+sum);
/*Print the answer */
Serial.println(integ);
num=integ;
dispNum(num);
// text(toString(integral),5,5);
}
double facts(float a) {
double prod=1.0;
int i;
for (i=(int)a; i>1; --i)
prod=prod*i;
return prod;
}
void rolldown(){
double temp;
int i;
temp=num;
stacks[0]=stacks[1];
stacks[1]=stacks[2];
stacks[2]=stacks[3];
stacks[3]=temp;
temp=stacks2[0];
stacks2[0]=stacks2[1];
stacks2[1]=stacks2[2];
stacks2[2]=stacks2[3];
stacks2[3]=temp;
i=dtype[0];
dtype[0]=dtype[1];
dtype[1]=dtype[2];
dtype[2]=dtype[3];
dtype[3]=i;
dispNum(stacks[0]);
num=stacks[0];
ans=1;
}
void pushx(double val){
// if (dtype[0]==1) {
stacks[3]=stacks[2];
stacks[2]=stacks[1];
// }
if (dtype[0]==1) {
stacks[1]=stacks[0];
} else {
stacks[1]=val;
stacks[0]=val;
}
stacks2[3]=stacks2[2];
stacks2[2]=stacks2[1];
stacks2[1]=stacks2[0];
// stacks2[0]=0;
dtype[3]=dtype[2];
dtype[2]=dtype[1];
dtype[1]=dtype[0];
// dtype[0]=0;
}
void stacklift(double val){
stacks[3]=stacks[2];
stacks[2]=stacks[1];
stacks[1]=stacks[0];
stacks[0]=val;
stacks2[3]=stacks2[2];
stacks2[2]=stacks2[1];
stacks2[1]=stacks2[0];
stacks2[0]=0;
dtype[3]=dtype[2];
dtype[2]=dtype[1];
dtype[1]=dtype[0];
dtype[0]=0;
}
void popx(){
stacks[1]=stacks[2];
stacks[2]=stacks[3];
stacks2[1]=stacks2[2];
stacks2[2]=stacks2[3];
dtype[1]=dtype[2];
dtype[2]=dtype[3];
}
void clearReg(){
int i;
for (i=100; i<200; ++i) {
stos[i]=0;
stos2[i]=0;
stotype[i]=0;
stotbl[i][0]=0;
}
/* for (i=0; i<4; ++i) {
stacks[i]=0;
stacks2[i]=0;
dtype[i]=0;
} */
num=0;
dispNum(0);
ans=1;
}
void setup() {
int i;
char strs1[]=". ";
char xx;
numstr[0]=0;
//Complex c1(10.0, -2.0);
// lgamma(3.14);
Serial.begin(9600);
sprintf(strs1,"%05x",-1234);
// bstring(32767,strs1);
Serial.println(strs1);
i=M5Cardputer.Power.getBatteryLevel();
Serial.println(i);
i=M5Cardputer.Power.getBatteryVoltage();
Serial.println(i);
for (i=0; i<100; ++i) {
stotbl[i][0]=0;
lbltbl[i][0]=0;
}
auto cfg = M5.config();
M5Cardputer.begin(cfg, true);
M5Cardputer.Display.setRotation(1);
M5Cardputer.Display.setTextColor(GREEN);
M5Cardputer.Display.setTextDatum(middle_left);
M5Cardputer.Display.setTextFont(&fonts::FreeSerifBold18pt7b);
M5Cardputer.Display.setTextSize(1);
M5Cardputer.Display.drawString("42LC calculator",
2,
M5Cardputer.Display.height() / 2);
M5Cardputer.Display.setTextFont(&fonts::FreeSerif9pt7b);
M5Cardputer.Display.drawString("ver. 0.8",100,90);
pgm[0]=5100;
pgm[1]=5200;
fileReads();
//pgm[10]=5200;
fileReads1();
num=stacks[0];
// dispNum(num);
ans=1;
fileReads2();
fileReads3();
fileReads4();
dispNum(num);
}
void fileWrites() { //program
int i;
char strs1[]=" ";
buildfilename(strs,'a');
SD.begin();
File files=SD.open(strs,FILE_WRITE);
if (files==NULL) {
SD.end();
return;
}
for (i=0; i<1500; ++i) { //1500
sprintf(strs1,"%d",pgm[i]);
files.println(strs1);
delay(1); }
files.close();
SD.end();
}
void fileWrites1() {
int i;
char strs1[]=" ";
buildfilename(strs,'b');
SD.begin();
File files=SD.open(strs,FILE_WRITE);
if (files==NULL) {
SD.end();
return;
}
for (i=0; i<100; ++i) {
sprintf(strs1,"%e",stos[i]);
files.println(strs1); }
for (i=0; i<4; ++i) {
sprintf(strs1,"%e",stacks[i]);
files.println(strs1); }
for (i=0; i<4; ++i) {
sprintf(strs1,"%e",stacks2[i]);
files.println(strs1); }
for (i=0; i<4; ++i) {
sprintf(strs1,"%d",dtype[i]);
files.println(strs1); }
sprintf(strs1,"%d",fixs);
files.println(strs1);
sprintf(strs1,"%d",scientif);
files.println(strs1);
sprintf(strs1,"%d",scidigs);
files.println(strs1);
sprintf(strs1,"%d",fontz);
files.println(strs1);
sprintf(strs1,"%d",beeps);
files.println(strs1);
sprintf(strs1,"%d",colr);
files.println(strs1);
// more vars
sprintf(strs1,"%d",mcolr);
files.println(strs1);
sprintf(strs1,"%d",prognumcount);
files.println(strs1);
sprintf(strs1,"%d",progcount);
files.println(strs1);
sprintf(strs1,"%d",cmode);
files.println(strs1);
sprintf(strs1,"%d",mtnum);
files.println(strs1);
files.close();
SD.end();
//fixs,scientif,scidigs,fontz,beeps,colr
}
void fileWrites2() { //stotbl, prognums
int i;
char strs1[]=" ";
buildfilename(strs,'c');
SD.begin();
File files=SD.open(strs,FILE_WRITE);
if (files==NULL) {
SD.end();
return;
}
for (i=0; i<100; ++i) {
if (stotbl[i][0]==0)
files.println("$");
else
files.println(stotbl[i]);
}
for (i=0; i<100; ++i) {
sprintf(strs1,"%e",prognums[i]);
files.println(strs1);
}
files.close();
SD.end();
//fixs,scientif,scidigs,fontz,beeps,colr
}
void fileWrites3() { //lbltbl
int i;
char strs1[]=" ";
buildfilename(strs,'d');
SD.begin();
File files=SD.open(strs,FILE_WRITE);
if (files==NULL) {
SD.end();
return;
}
for (i=0; i<100; ++i) {
if (lbltbl[i][0]==0)
files.println("$");
else
files.println(lbltbl[i]);
}
for (i=0; i<100; ++i) {
sprintf(strs1,"%d",addrtbl[i]);
files.println(strs1);
}
files.close();
SD.end();
//fixs,scientif,scidigs,fontz,beeps,colr
}
void fileWrites4() { //matrix
int i,j,k;
char strs1[]=" ";
buildfilename(strs,'e');
SD.begin();
File files=SD.open(strs,FILE_WRITE);
if (files==NULL) {
SD.end();
return;
}
for (i=0; i<10; ++i)
for (j=0; j<10; ++j)
for (k=0; k<10; ++k) {
sprintf(strs1,"%e",matx[i][j][k]);
files.println(strs1);
}
for (i=0; i<10; ++i) {
sprintf(strs1,"%d",mtrow[i]);
files.println(strs1);
}
for (i=0; i<10; ++i) {
sprintf(strs1,"%d",mtcol[i]);
files.println(strs1);
}
files.close();
SD.end();
}
void buildfilename(char *fname,char filetype) {
char ch1,ch2,ch3;
if ((storenum<0) || (storenum>99))
storenum=0;
ch1='0'+int(storenum/10);
ch2='0'+(storenum % 10);
ch3=filetype;
sprintf(fname,"/test42%c%c%c.txt",ch3,ch1,ch2);
}
void fileReads() { //pgm
int xx;
int i,j,k;
char strs[]=" ";
j=0;
k=0;
SD.begin();
buildfilename(strs,'a');
Serial.println(strs);
File files=SD.open(strs,FILE_READ);
if (files==NULL)
return;
for (i=0; i<8000; ++i) {
xx=files.read();
// Serial.println(xx);
if (xx==-1)
break;
if (xx!=13) {
strs[j]=xx;
j+=1;
}else{
xx=files.read();
// Serial.println(xx);
strs[j]=0;
pgm[k]=atoi(strs);
// Serial.println(strs);
k+=1;
if (k>1499)
break;
j=0;
}
// delay(1);
}
Serial.println("k");
Serial.println(k);
files.close();
SD.end();
for (i=0; i<15; ++i)
rescanlbl(i*100);
}
void fileReads1() { //stores reg
int xx;
int i,j,k;
char strs[]=" ";
int stackmode=0;
j=0;
k=0;
buildfilename(strs,'b');
SD.begin();
File files=SD.open(strs,FILE_READ);
if (files==NULL)
return;
for (i=0; i<2600; ++i) {
xx=files.read();
// Serial.println(xx);
if (xx==-1)
break;
if (xx!=13) {
strs[j]=xx;
j+=1;
}else{
xx=files.read();
// Serial.println(xx);
strs[j]=0;
if (stackmode==0)
sscanf(strs,"%lf",&stos[k]);
else if (stackmode==1)
if (k<4)
sscanf(strs,"%lf",&stacks[k]);
else if (k<8)
sscanf(strs,"%lf",&stacks2[k-4]);
else if (k<12)
sscanf(strs,"%d",&dtype[k-8]);
else {
sscanf(strs,"%d",&temparry[k-12]);
}
// stos[k]=atof(strs);
// Serial.println(strs);
k+=1;
if (k==100) {
stackmode=1;
k=0;
}
j=0;
}
// delay(1);
}
files.close();
SD.end();
storeitems();
}
void storeitems() {
fixs=temparry[0];
scientif=temparry[1];
scidigs=temparry[2];
fontz=temparry[3];
beeps=temparry[4];
colr=temparry[5];
mcolr=temparry[6];
prognumcount=temparry[7];
progcount=temparry[8];
cmode=temparry[9];
mtnum=temparry[10];
if (colr==0)
M5Cardputer.Display.setTextColor(GREEN);
else if (colr==1)
M5Cardputer.Display.setTextColor(RED);
else if (colr==2)
M5Cardputer.Display.setTextColor(WHITE);
}
void fileReads2() { //stores
int xx;
int i,j,k;
char strs[]=" ";
int stackmode=0;
int readmode=0;
j=0;
k=0;
buildfilename(strs,'c');
SD.begin();
File files=SD.open(strs,FILE_READ);
if (files==NULL)
return;
for (i=0; i<8600; ++i) {
xx=files.read();
// Serial.println(xx);
if (xx==-1)
break;
if (xx!=13) {
strs[j]=xx;
j+=1;
}else{
xx=files.read(); //read newln
// Serial.println(xx);
strs[j]=0;
if (readmode==0) {
sscanf(strs,"%s",&stotbl[k]);
if (stotbl[k][0]=='$')
stotbl[k][0]=0;
} else {
sscanf(strs,"%lf",&prognums[k]);
}
// stos[k]=atof(strs);
// Serial.println(strs);
k+=1;
if (k==100) {
k=0;
readmode=1;
}
j=0;
} //else
// delay(1);
} //for
files.close();
SD.end();
}
void fileReads3() {
int xx;
int i,j,k;
char strs[]=" ";
int stackmode=0;
int count;
j=0;
k=0;
buildfilename(strs,'d');
SD.begin();
File files=SD.open(strs,FILE_READ);
if (files==NULL)
return;
for (i=0; i<3600; ++i) {
xx=files.read();
// Serial.println(xx);
if (xx==-1)
break;
if (xx!=13) {
strs[j]=xx;
j+=1;
}else{
xx=files.read(); //read newln
// Serial.println(xx);
strs[j]=0;
if (stackmode==0) {
sscanf(strs,"%s",&lbltbl[k]);
if (lbltbl[k][0]=='$')
lbltbl[k][0]=0;
} else {
sscanf(strs,"%d",&addrtbl[k]);
}
// stos[k]=atof(strs);
// Serial.println(strs);
k+=1;
if (k==100) {
...
This file has been truncated, please download it to see its full contents.
Comments
