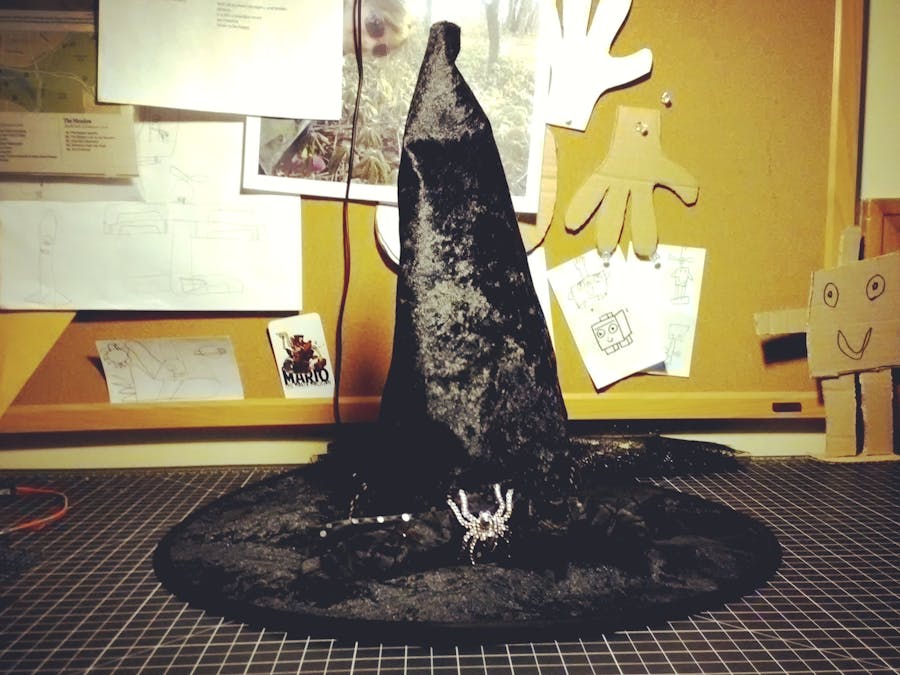

Enchanted Halloween Witches Hat

When my daughter was a witch for Halloween, she wanted her costume to stand out a little from the other witches out there. To do this, we added a little magic to her costume by attaching Adafruit Sewable NeoPixels to her cloak for lighting effects and added a little animation to her hat using a cheap Towerpro SG90 servo.

Between the two enhancements, it was the hat that received the most amount of comments, so I wanted to share it as a quick and easy enhancement to your childs Halloween costume.

Step 1 - Extend the servo horn

In order to get the amount of throw needed to wiggle the hat, I needed to extend the length of the servo horn. I did this by quickly molding some thermal-morph plastic to the horn. You'll see that as the very roughly formed red extension attached to the horn in the pictures below.

Step 2 - Create the servo harness

To attach the servo to the hat, I cut a small strip of plastic canvas, which is available at any craft store.

Then I cut a rectangular hole for the servo and held it in place with a little hot glue.

Finally, on each end of the plastic canvas, I attached a strip of self-adhesive Velcro. The other half of the Velcro was attached inside the hat. (pictured below)

Step 3 - Attach the servo harness to the hat

I attached the servo harness by turning the hat inside-out and adhering the self-adhesive Velcro strips about 2/3rds the way up the hat. Then I attach the horn of the servo to the hat using a safety pin.

Step 4 - Putting it all together

After the servo was attached to that hat, I ran the wire down from the hat to a pocket inside the cloak that contained the Espruino micro controller and battery pack. I also ended up using a little pillow stuffing in the top of the hat to give it a little more rigidity when it's being worn.

Some final thoughts

As you can see from the video, the program had three variations on the wiggle. The first was a quick back and forth that reminded me of a happy puppy tail. The second was a slower back and forth which had a sort of "care free" feel to it. The last version moved slower in one direction, then quickly back which reminded me of how a cat's tail moves when it's annoyed.

I found it interesting how by simply playing with the speed of the servos swing, you could almost achieve different "emotions" from the hat.
