Monitoring Vehicle CAN Data Over OBD-II with Blues Notecard

Every time that wonderful little "check engine" light illuminates in my car's dashboard, I'm reminded there's a whole conversation happening under the hood that I may (or may not) want to know about.

Modern vehicles are constantly chattering on the CAN bus, just waiting for us to read diagnostic data, and the OBD-II port is an underutilized front-row seat to the party:

For this Hackster project, I wanted a small device that could:

• Attach to any vehicle's standard OBD-II port.
• Monitor CAN traffic and query standard OBD-II PIDs (i.e. codes used to request diagnostic/sensor data from a vehicle).
• Read the brake pedal state from a 12V brake signal (you'll understand why later on...).
• Sync data over cellular to populate a cloud dashboard with diagnostic data.

This was also the first IoT project I strictly "vibe coded", meaning I let Claude Code write all the code (and fix the bugs) based on a set of instructions I wrote. To improve Claude's ability to properly use the Blues Notecard, I integrated the Blues MCP server: Blues Expert.

This turned out to be arguably the only sane way to do it, because "just read some CAN data and send it over cellular" quickly turned into timing, power, debouncing, thresholds, and what exactly counts as "pressed" anyway?

Me literally debugging in the car (actually...me telling Claude what to debug!):

What I Was Trying to Detect (and Why)

The "headline" feature was simple: read diagnostic signals from the car and sync that data with the cloud. However, I also wanted to actually trigger an alert if both the brake and accelerator are pressed at the same time.

Why? Funny you should ask. Turns out a close relative of mine blew out their brakes by accidentally pressing both simultaneously. $4000 says that's a bad thing.

This ended up being a nice forcing function for me: in this project we have to solve brake input, throttle input, CAN/OBD reading reliability, and cloud reporting. And yes, this also collects periodic vehicle diagnostics (e.g. speed, RPM, coolant temp, etc.) on a specific cadence, because once you've got access to the bus, it's hard not to ask for a little more.

Hardware: Simple Stack, Car-Friendly Power

The hardware choices were very intentional: I wanted "durable enough for a car, " but still very much in the prototype-friendly world.

Here's a top-down look at the hardware. Yes the wiring for this was...difficult.

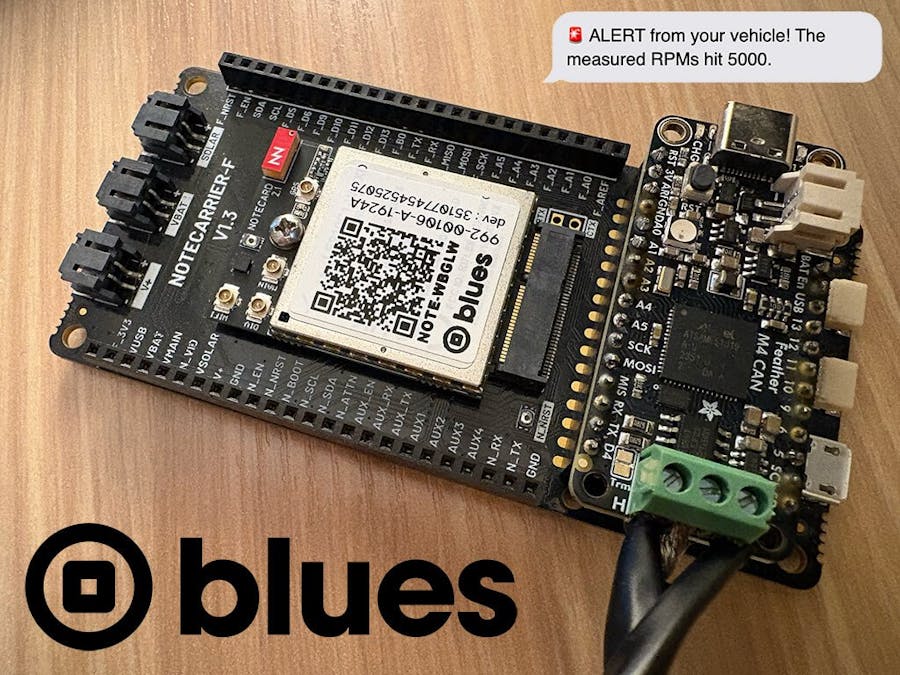

At the center is an Adafruit Feather M4 CAN Express as the host MCU. It gives you the ability to read diagnostic data over CAN without a pile of external parts.

For cellular connectivity, I used a Blues Notecard on a Notecarier F (which are both also available via a Blues Starter Kit). I like this combo because the Notecarrier acts as a base/development board and the cloud path ends up boring in the best possible way: your MCU creates JSON payloads of arbitrary data, the Notecard handles getting it out of the vehicle, and the Blues cloud service called Notehub is there waiting to receive the data.

Next was how to power this thing. Power in vehicles is its own hobby, so I tried to keep it as simple as possible:

• Vehicle 12V --> fused cigarette lighter plug --> 12V-to-5V buck converter.
• That 5V then feeds the Notecarrier F when the car is running.
• A LiPo battery, also attached to the Notecarrier F, keeps the system alive for testing or brief off-power moments (and a nice side effect is the vehicle 5V will charge the LiPo).

As for the brake signal, this was the trickiest part. Most vehicles give you a 12V brake line that's HIGH when the brake is pressed (whether tapped directly or via a fuse). Microcontrollers do not enjoy 12V, so I used a DFRobot 12V-to-3.3V level converter and brought that into a GPIO pin (D10 in firmware).

Finally, there's a big obvious red LED that lights up when any alert conditions are met (e.g. the aforementioned simultaneous brake/throttle engagement).

The Firmware: Built in Phases

The firmware was structured around five distinct phases of development:

• Diagnostics via CAN Collect a set of PIDs every 30 seconds and queue them for periodic sync.
• Throttle detection: Poll throttle position on a very tight cadence.
• Brake detection: Read a stable brake state with proper debouncing.
• Alerting: Light an LED and send a cloud event immediately when brake AND throttle pressed.

That sounds neat and tidy, but the real story is what happens inside those phases.

NOTE: The entire firmware sketch is available in this GitHub gist.

Diagnostics: Snapshot Every 30 Seconds

Every 30 seconds, the firmware kicks off a diagnostic "collection cycle." It steps through a list of standard Mode 01 PIDs that should be universal for modern vehicles and stores the results. Your mileage may vary (pun intended):

• Vehicle speed (0x0D)
• Engine RPM (0x0C)
• Throttle position (0x11)
• Calculated engine load (0x04)
• Fuel level (0x2F)
• MAF (0x10)
• Intake air temp (0x0F)
• Coolant temp (0x05)
• Ambient air temp (0x46)
• Control module voltage (0x42)

Because OBD responses can be flaky (or slow, or you might simply miss one), each PID request has a timeout. If a PID times out, the cycle keeps moving.

Here is an abbreviated JSON section from an example diagnostics.qo JSON event (a.k.a. a Note in Blues speak):

{
  "event": "8ea216d6-ced1-8eb0-bcef-22db59d7a840",
  "when": 1766870612,
  "file": "diagnostics.qo",
  "body": {
    "ambient_temp_c": 11,
    "coolant_temp_c": 95,
    "fuel_pct": 69,
    "intake_temp_c": 67,
    "maf_gs": 2,
    "rpm": 1388,
    "throttle_pct": 13,
    "voltage": 14.16
  },
  "session": "a468d9dc-e10c-485e-9cd5-4a2fdcc6f1ee",
  "transport": "cell:lte:fdd",
  ...
}

Once the cycle finishes, the firmware queues a single event, but it doesn't force an immediate sync as it relies on the Notecard's periodic outbound sync settings:

J *req = notecard.newRequest("hub.set");
if (req)
{
  JAddStringToObject(req, "product", PRODUCT_UID);
  JAddStringToObject(req, "mode", "periodic");
  JAddNumberToObject(req, "outbound", 30); // Sync every 30 minutes
  JAddNumberToObject(req, "inbound", 60);  // Check inbound hourly

  if (!notecard.sendRequest(req))
  {
    Serial.println("[Notecard] hub.set FAILED");
    return false;
  }
}

Reading Throttle Without Lying to Yourself

Throttle position from OBD-II (PID 0x11) gives a percentage-ish value. In practice, you'll see a baseline that isn't always exactly 0% at idle, and it can vary by vehicle. Instead of hard-coding "pressed means > 10%" and calling it a day, the firmware keeps a dynamic baseline:

When the throttle is not considered pressed, it updates a moving average baseline. Then, a press is detected when current throttle is some margin above baseline. Finally, a release uses a slightly different threshold so it doesn't chatter.

currentThrottlePosition = (data[3] * 100) / 255; // Convert to percentage

// Dynamic baseline with hysteresis to prevent oscillation
uint8_t pressThreshold = throttleBaseline + THROTTLE_PRESS_MARGIN;
uint8_t releaseThreshold = throttleBaseline + THROTTLE_RELEASE_MARGIN;

// Hysteresis: different thresholds for press vs release
if (!throttlePressed)
{
  // Currently released - need to exceed press threshold to become pressed
  throttlePressed = (currentThrottlePosition >= pressThreshold) &&
                    (currentThrottlePosition >= THROTTLE_ABSOLUTE_MIN);
}
else
{
  // Currently pressed - need to drop TO or BELOW release threshold to become released
  throttlePressed = (currentThrottlePosition > releaseThreshold) &&
                    (currentThrottlePosition >= THROTTLE_ABSOLUTE_MIN);
}

// Update baseline when NOT pressed (we're at idle)
// Use exponential moving average: baseline = 0.95 * baseline + 0.05 * current
if (!throttlePressed)
{
  throttleBaseline = (throttleBaseline * 95 + currentThrottlePosition * 5) / 100;
}

if (!collectingDiagnostics)
{
  // Only print during normal throttle polling
  if (throttlePressed != lastThrottlePressedState)
  {
    lastThrottlePressedState = throttlePressed;
    Serial.print("[Throttle] ");
    Serial.print(throttlePressed ? "PRESSED" : "RELEASED");
    Serial.print(" (");
    Serial.print(currentThrottlePosition);
    Serial.print("%, baseline:");
    Serial.print(throttleBaseline);
    Serial.println("%)");
  }
}

This is one of those little details that makes the difference between "works on my bench" and "works in a car". In my case, throttle is polled about every 100ms, which is frequent enough to feel responsive.

Brake Press Detection

The brake input is a digital signal coming from a level-shifted 12V line. While you can use a posi-tap connector to tap into the 12V brake line in most any vehicle, I think it's easier to tap into the STOP brake light fuse (or whatever it may be labelled on your car). I accomplished this using an Add-a-Circuit Fuse Tap. Again, it's still a physical switch in a real environment, so debouncing matters.

The firmware performs standard pattern of when the reading changes, reset a debounce timer and then only accept the new state if it stays stable for DEBOUNCE_MS.

// Real brake input from D10
bool reading = digitalRead(PIN_BRAKE_INPUT);

// Debounce
if (reading != lastBrakeReading)
{
  lastBrakeDebounceTime = millis();
}

if ((millis() - lastBrakeDebounceTime) > DEBOUNCE_MS)
{
  if (reading != brakePressed)
  {
    brakePressed = reading;
    Serial.print("[Brake] ");
    Serial.println(brakePressed ? "PRESSED (12V detected)" : "RELEASED");
  }
}

lastBrakeReading = reading;

The Alert: LED + Immediate Cloud Event Sync

When both conditions are true (brake pressed AND throttle pressed), the device:

• Turns on the attached Red LED.
• Prints a very LOUD message to serial (for testing purposes).
• Syncs an additional "alert" Note with the cloud via the Blues Notecard.

There's also a cool down timer so you don't spam alerts if someone holds both pedals down for a few seconds. The first alert can fire immediately after boot, which is a small but useful touch when you're testing.

Here is an abbreviated chunk of JSON from an example alerts.qo Note:

{
  "event": "762c7d9f-7f1f-8d77-bbac-cd4b0f1653e9",
  "when": 1766870690,
  "file": "alerts.qo",
  "body": {
    "alert": "brake_and_accelerator",
    "brake_pressed": true,
    "throttle_percent": 16
  },
  "session": "d38dd1da-f725-4afe-973d-1ca12daac589",
  "transport": "cell:lte:fdd",
  ...
}

Power Management: Idle on Battery, Active on Main Power

You probably don't want to keep the CAN transceiver and everything else running full-time on a small LiPo. So, the firmware periodically checks power state by asking the Notecard for what voltage it's receiving via its card.voltage API. Based on a threshold, it decides:

• Main power present? Assume regular operation when >= 5.0V.
• Battery-only? Enter a basic low-power-ish idle mode when < 5.0V.

Idle mode here is intentionally pretty simple as the CAN is shut down cleanly, the transceiver is put in standby, the CAN boost is disabled, the LED is turned off, and the loop just delays and returns. The MCU stays alive and responsive (and the watchdog is still running), but it stops doing some of the power-hungry parts. Not to mention, the Blues Notecard is meant to stay powered as it idles at a mere ~8-18uA!

When main power comes back, it re-enables CAN and resumes normal operation. This is not "deep sleep, " but it's a very pragmatic middle ground for a prototype that lives in a car.

The Cloud Piece

I'm intentionally glossing over what is the most impactful part of this project, and that's the cloud integration. With those diagnostics.qo Notes being synced every 30 minutes with Notehub, I can set up a Notehub Route to send my data to a cloud dashboard (yes, fully vibe-coded as well with Claude 😅):

Imagine the possibilities when tracking data from all of your vehicles or even fleets of cars that need constant monitoring!

What Worked Well (and What I'd Do Next)

What I like about this build is that it's modular. Want more data? Add your own PIDs, or even better, make them remotely updatable using what Blues calls environment variables that can sync with your device from the cloud. Want to add immediate email, Slack, or SMS alerts? Use Notehub's built-in alerting system.Want to add GPS tracking? Use the Notecard's available on-board GPS.

If you're getting into vehicle data projects, an OBD-II + CAN monitor build is a great way to start. You'll touch embedded, automotive power, noisy I/O, and cloud reporting all in one device. Again, you can access the full code in this GitHub gist.
