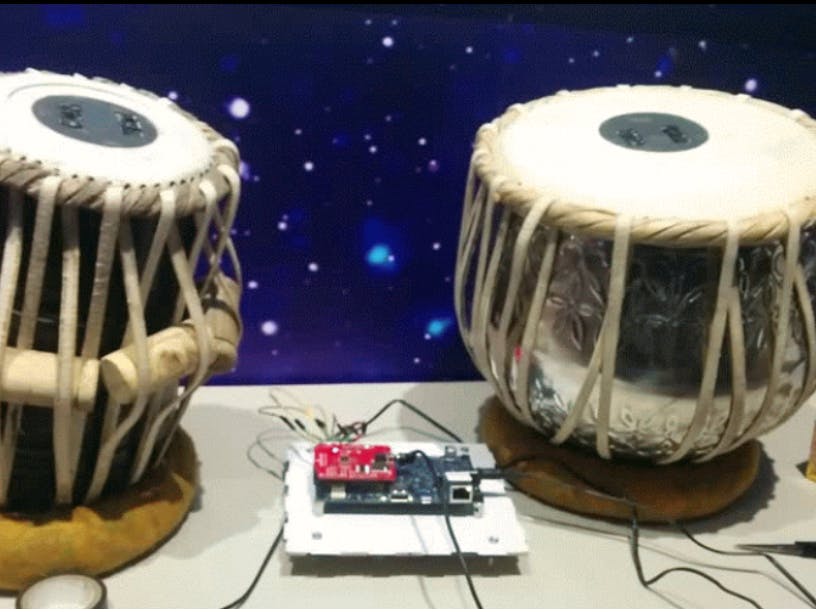

Virtual Tabla powered by Intel Galileo

#include <SPI.h>
#include <SD.h>

#define SENSOR_1 A0
#define SENSOR_2 A1
#define SENSOR_3 A2
#define SENSOR_4 A3

#define THRESHOLD 400

#define CHUNK_SIZE 32
#define PAGE_SIZE 4096

//Create the variables to be used by SdFat Library
File track;

//This is the name of the file on the microSD card you would like to play
//Stick with normal 8.3 nomeclature. All lower-case works well.
//Note: you must name the tracks on the SD card with 001, 002, 003, etc.
//For example, the code is expecting to play 'track002.mp3', not track2.mp3.
char trackName[] = "track001.mp3";
int trackNumber = 1;

char errorMsg[100]; //This is a generic array used for sprintf of error messages

#define TRUE  0
#define FALSE  1

//MP3 Player Shield pin mapping. See the schematic
#define MP3_XCS 6 //Control Chip Select Pin (for accessing SPI Control/Status registers)
#define MP3_XDCS 7 //Data Chip Select / BSYNC Pin
#define MP3_DREQ 2 //Data Request Pin: Player asks for more data
#define MP3_RESET 8 //Reset is active low
//Remember you have to edit the Sd2PinMap.h of the sdfatlib library to correct control the SD card.

//VS10xx SCI Registers
#define SCI_MODE 0x00
#define SCI_STATUS 0x01
#define SCI_BASS 0x02
#define SCI_CLOCKF 0x03
#define SCI_DECODE_TIME 0x04
#define SCI_AUDATA 0x05
#define SCI_WRAM 0x06
#define SCI_WRAMADDR 0x07
#define SCI_HDAT0 0x08
#define SCI_HDAT1 0x09
#define SCI_AIADDR 0x0A
#define SCI_VOL 0x0B
#define SCI_AICTRL0 0x0C
#define SCI_AICTRL1 0x0D
#define SCI_AICTRL2 0x0E
#define SCI_AICTRL3 0x0F

//Synth
#define notes_len_max 8
#define num_sounds 49

int sequence[notes_len_max];
int curr_sound_num;

int num_notes=notes_len_max;
float last_note_length=1;

void setup() {
  pinMode(MP3_DREQ, INPUT);
  pinMode(MP3_XCS, OUTPUT);
  pinMode(MP3_XDCS, OUTPUT);
  pinMode(MP3_RESET, OUTPUT);

  pinMode(4, OUTPUT);
  digitalWrite(4, LOW);

  digitalWrite(MP3_XCS, HIGH); //Deselect Control
  digitalWrite(MP3_XDCS, HIGH); //Deselect Data
  digitalWrite(MP3_RESET, LOW); //Put VS1053 into hardware reset

  Serial.begin(9600); //Use serial for debugging

  //Serial.println("Type any character to start");
  //while (Serial.read() <= 0) {}

  Serial.println("MP3 Testing");

  if (!SD.begin(0)) {
    Serial.println("Card failed, or not present");
    // don't do anything more:
    return;
  }
  Serial.println("SD card initialized.");

  //From page 12 of datasheet, max SCI reads are CLKI/7. Input clock is 12.288MHz.
  //Internal clock multiplier is 1.0x after power up.
  //Therefore, max SPI speed is 1.75MHz. We will use 1MHz to be safe.
  SPI.begin();
  SPI.setClockDivider(SPI_CLOCK_DIV16); //Set SPI bus speed to 1MHz (16MHz / 16 = 1MHz)
  SPI.transfer(0xFF); //Throw a dummy byte at the bus
  //Initialize VS1053 chip
  delay(10);
  digitalWrite(MP3_RESET, HIGH); //Bring up VS1053
  //delay(10); //We don't need this delay because any register changes will check for a high DREQ

  //Mp3SetVolume(20, 20); //Set initial volume (20 = -10dB) LOUD
  Mp3SetVolume(40, 40); //Set initial volume (20 = -10dB) Manageable
  //Mp3SetVolume(80, 80); //Set initial volume (20 = -10dB) More quiet

  //Let's check the status of the VS1053
  int MP3Mode = Mp3ReadRegister(SCI_MODE);
  int MP3Status = Mp3ReadRegister(SCI_STATUS);
  int MP3Clock = Mp3ReadRegister(SCI_CLOCKF);

  Serial.print("SCI_Mode (0x4800) = 0x");
  Serial.println(MP3Mode, HEX);

  Serial.print("SCI_Status (0x48) = 0x");
  Serial.println(MP3Status, HEX);

  int vsVersion = (MP3Status >> 4) & 0x000F; //Mask out only the four version bits
  Serial.print("VS Version (VS1053 is 4) = ");
  Serial.println(vsVersion, DEC); //The 1053B should respond with 4. VS1001 = 0, VS1011 = 1, VS1002 = 2, VS1003 = 3

  Serial.print("SCI_ClockF = 0x");
  Serial.println(MP3Clock, HEX);

  //Now that we have the VS1053 up and running, increase the internal clock multiplier and up our SPI rate
  Mp3WriteRegister(SCI_CLOCKF, 0x60, 0x00); //Set multiplier to 3.0x

  //From page 12 of datasheet, max SCI reads are CLKI/7. Input clock is 12.288MHz.
  //Internal clock multiplier is now 3x.
  //Therefore, max SPI speed is 5MHz. 4MHz will be safe.
  SPI.setClockDivider(SPI_CLOCK_DIV4); //Set SPI bus speed to 4MHz (16MHz / 4 = 4MHz)

  MP3Clock = Mp3ReadRegister(SCI_CLOCKF);
  Serial.print("SCI_ClockF = 0x");
  Serial.println(MP3Clock, HEX);

  //MP3 IC setup complete

  // Define Sensors as INPUT
  pinMode(SENSOR_1, INPUT);
  pinMode(SENSOR_2, INPUT);
  pinMode(SENSOR_3, INPUT);
  pinMode(SENSOR_4, INPUT);
}

void loop(){

  // Read Sensor Values
  boolean value_1 = analogRead(SENSOR_1) >= THRESHOLD ? HIGH : LOW;
  boolean value_2 = analogRead(SENSOR_2) >= THRESHOLD ? HIGH : LOW;
  boolean value_3 = analogRead(SENSOR_3) >= THRESHOLD ? HIGH : LOW;
  boolean value_4 = analogRead(SENSOR_4) >= THRESHOLD ? HIGH : LOW;

  if(( value_1 == HIGH || value_2 == HIGH) && ( value_3 == LOW && value_4 == LOW))
  {
    playMP3("track001.mp3");
  }
  else if(( value_1 == HIGH && value_2 == HIGH) && ( value_3 == LOW && value_4 == LOW))
  {
    playMP3("track002.mp3");
  }
  else if(( value_1 == LOW && value_2 == LOW) && ( value_3 == HIGH || value_4 == HIGH))
  {
    playMP3("track005.mp3");
  }
  else if(( value_1 == LOW && value_2 == LOW) && ( value_3 == HIGH && value_4 == HIGH))
  {
    playMP3("track006.mp3");
  }
  else if(( value_1 == HIGH || value_2 == HIGH) && ( value_3 == HIGH || value_4 == HIGH))
  {
    playMP3("track008.mp3");
  }


}


//PlayMP3 pulls 32 byte chunks from the SD card and throws them at the VS1053
//We monitor the DREQ (data request pin). If it goes low then we determine if
//we need new data or not. If yes, pull new from SD card. Then throw the data
//at the VS1053 until it is full.
void playMP3(char* fileName) {

  uint8_t *mp3DataBuffer;
  int offset = 0;
  uint32_t size;

  //Serial.println("Start MP3 decoding");

  // open the file. note that only one file can be open at a time,
  // so you have to close this one before opening another.
  File track = SD.open(fileName, FILE_READ);
  if (!track)
  {
    //Serial.print(fileName);
    //Serial.println(" not found");
    // don't do anything more:
    return;
  }

   size = track.size();

   mp3DataBuffer = (uint8_t *)malloc(size);
   if (!mp3DataBuffer)
   {
      //Serial.println("Failed to alloc mem for data buffer");
      return;
   }
  //Serial.println("Track open");

  offset = 0;
  while (offset < size)
  {
    int nbytes = size - offset;
    int ret;

    /* Read no more than one page at a time */
    if (nbytes > PAGE_SIZE)
      nbytes = PAGE_SIZE;

    ret = track.read(mp3DataBuffer+offset, nbytes);
    if (ret < 0)
    {
      //Serial.print("Failed to read file, error: ");
      //Serial.println(ret);
      return;
    }

    offset += ret;
  }

   //Serial.print("Read whole file, size is: ");
   //Serial.println(size);

  /* Start feeding data to the VS1053 */
  offset  = 0;
  digitalWrite(MP3_XDCS, LOW); //Select Data
  while(offset < size && !getCommand()) {
    //Once DREQ is released (high) we now feed 32 bytes of data to the VS1053 from our SD read buffer
    while(!digitalRead(MP3_DREQ));

    SPI.transferBuffer(mp3DataBuffer + offset, NULL, (size - offset) > CHUNK_SIZE ? CHUNK_SIZE : size - offset); // Send SPI bytes
    offset += CHUNK_SIZE;

    //getSynthInput();
  }
  digitalWrite(MP3_XDCS, HIGH); //Deselect Data

  while(!digitalRead(MP3_DREQ)) ; //Wait for DREQ to go high indicating transfer is complete

  digitalWrite(MP3_XDCS, HIGH); //Deselect Data

  track.close(); //Close out this track
  free(mp3DataBuffer);

  //sprintf(errorMsg, "Track %s done!", fileName);
  //Serial.println(errorMsg);
}

//Write to VS10xx register
//SCI: Data transfers are always 16bit. When a new SCI operation comes in
//DREQ goes low. We then have to wait for DREQ to go high again.
void Mp3WriteRegister(unsigned char addressbyte, unsigned char highbyte, unsigned char lowbyte){
  while(!digitalRead(MP3_DREQ)) ; //Wait for DREQ to go high indicating IC is available
  digitalWrite(MP3_XCS, LOW); //Select control

  //SCI consists of instruction byte, address byte, and 16-bit data word.
  SPI.transfer(0x02); //Write instruction
  SPI.transfer(addressbyte);
  SPI.transfer(highbyte);
  SPI.transfer(lowbyte);
  while(!digitalRead(MP3_DREQ)) ; //Wait for DREQ to go high indicating command is complete
  digitalWrite(MP3_XCS, HIGH); //Deselect Control
}

//Read the 16-bit value of a VS10xx register
unsigned int Mp3ReadRegister (unsigned char addressbyte){
  while(!digitalRead(MP3_DREQ)) ; //Wait for DREQ to go high indicating IC is available
  digitalWrite(MP3_XCS, LOW); //Select control

  //SCI consists of instruction byte, address byte, and 16-bit data word.
  SPI.transfer(0x03);  //Read instruction
  SPI.transfer(addressbyte);

  char response1 = SPI.transfer(0xFF); //Read the first byte
  while(!digitalRead(MP3_DREQ)) ; //Wait for DREQ to go high indicating command is complete
  char response2 = SPI.transfer(0xFF); //Read the second byte
  while(!digitalRead(MP3_DREQ)) ; //Wait for DREQ to go high indicating command is complete

  digitalWrite(MP3_XCS, HIGH); //Deselect Control

  int resultvalue = response1 << 8;
  resultvalue |= response2;
  return resultvalue;
}

//Set VS10xx Volume Register
void Mp3SetVolume(unsigned char leftchannel, unsigned char rightchannel){
  Mp3WriteRegister(SCI_VOL, leftchannel, rightchannel);
}

char getCommand(){
  return false;//this function is disabled

  if(Serial.available()){
    byte b=Serial.read();
    if(b=='s')
      return true;
    else
      return false;
  }
}
