Predator Tri-Laser Targeting System

Have you ever wanted to build a robotic sentry that doesn't just trigger when someone walks by, but actively tracks them like a radar system?

In this project, we are building an autonomous "Predator-style" targeting system using a Raspberry Pi Pico W. Unlike simple motion-activated toys, this system uses a 3-Zone PIR motion array to detect a target's general direction, then initiates a precision ultrasonic radar sweep to find the exact center of the object's mass. Once locked, it fires up a cinematic, sequencing tri-laser array.

It’s an excellent project for exploring multi-sensor integration, logic level shifting, and autonomous state-machine coding in MicroPython.

Step 1: The Sensor Array and Physical Assembly

The secret to this system's tracking ability is the physical arrangement of the PIR sensors. Standard PIR sensors have a wide field of view (~110°). If placed flat next to each other, their vision overlaps too much.

• Print the Base: Use a 3D-printed hexagonal or curved base.
• Mount the Sensors: Mount the three PIR sensors pointing outward:
• Left Sensor angled at 45°
• Center Sensor pointing straight ahead at 90°
• Right Sensor angled at 135°
• Mount the Servos: Attach the Pan servo to the base, and mount the Tilt servo on top of the Pan horn.

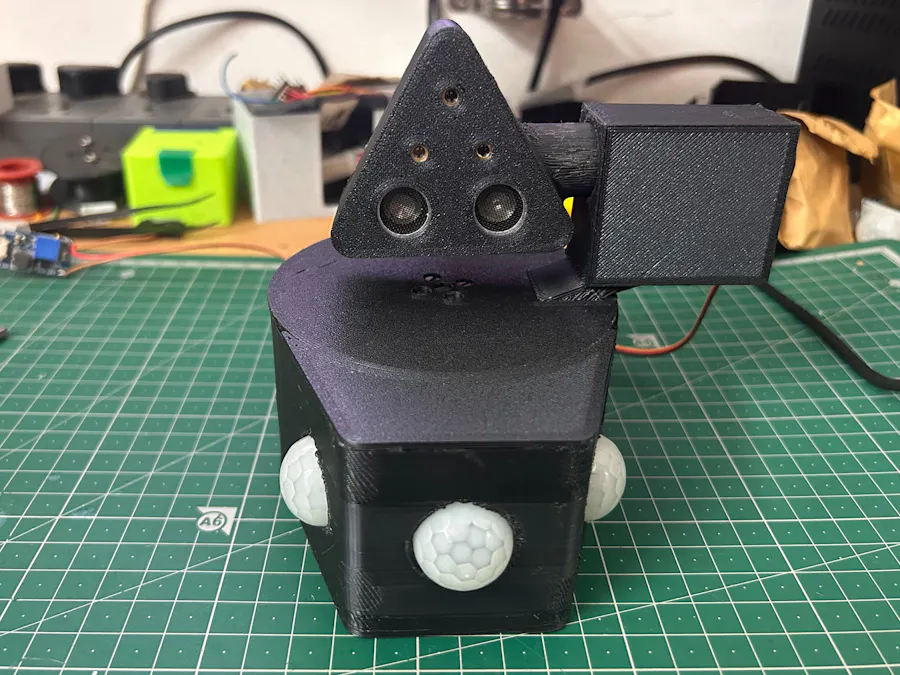

• Attach the "Head": Mount the HC-SR04 Ultrasonic sensor and the three HW-493 lasers (in a triangle formation) to the Tilt servo.

Step 2: Pro-Tip: Skip the 3D Printing Headache With JustWay

As any maker knows, 3D printing complex parts like this turret housing can be a battle against the elements. Between high humidity affecting filament quality and warping due to temperature shifts in the room, it's common to see abnormalities—stringing, layer shifts, or brittle walls—that can ruin a 10-hour print.

If you want to skip the trial-and-error and get a professional, battle-ready finish for your Predator turret, I highly recommend using JustWay.

They offer a true "Upload and Forget" experience:

• Zero Failed Prints: No more waking up to a "spaghetti" mess on your build plate.
• No Constant Checking: You don't have to babysit your printer for the first five layers.
• High-End Materials: Get access to industrial-grade resins and SLS nylon that are much tougher than standard home-printed PLA.
• No Post-Processing Headache: They handle the support removal and surface finishing, so your turret looks like a retail product straight out of the box.

Whether you're building a prototype for a startup or a high-quality prop for your channel, using a professional service like JustWay lets you focus on the coding and electronics instead of troubleshooting a temperamental 3D printer.

Step 3: Wiring and Power Distribution

We are mixing 3.3V logic (the Pico) with 5V sensors (the HC-SR04). Do not plug the HC-SR04 directly into the Pico’s GPIO pins, or you will fry the board. We use a Logic Level Shifter to safely step the voltage down.

Power Routing:

• Tie ALL Ground (GND) wires together.
• Connect the VCC of the Servos, PIRs, and HC-SR04 to the 5V VBUS pin of the Pico (or an external 5V rail).
• Connect the LV pin of the Level Shifter and the VCC of the Lasers to the 3.3V (3V3) pin.

Data Pinout (Pico GPIO):

• PIR Sensors: Left -> GP12 | Center -> GP13 | Right -> GP14
• Servos: Pan -> GP15 | Tilt -> GP18
• Lasers: Top -> GP19 | Left -> GP20 | Right -> GP21
• Ultrasonic: Trig -> Level Shifter -> GP17 | Echo -> Level Shifter -> GP16

Step 4: Tuning the Hardware

Before writing any code, you must tune the hardware. Look at the back of your HC-SR501 PIR sensors; you will see two orange potentiometers (knobs).

• Time Delay (Left Knob): Turn this all the way counter-clockwise. This ensures the sensor resets quickly after motion stops, allowing the robot to track fast-moving targets.
• Sensitivity (Right Knob): Leave this in the middle for a ~3 to 4-meter detection range.

Step 5: Understanding the Code Architecture

The software driving this robot is written in MicroPython. It operates as a "State Machine" with three distinct phases:

• Sentry Mode (Idle): The servos sit at $90^\circ$ (dead center). The Pico rapidly polls the three PIR sensors.
• Active Radar Sweep (Hunting): When a PIR triggers, the turret snaps to that specific quadrant (e.g., if the Left PIR triggers, it scans the $10^\circ-90^\circ$ area). It moves the pan servo $3^\circ$ at a time, pinging the ultrasonic sensor. It records the angle where the object begins and where it ends, then calculates the exact mathematical center. It then repeats this process vertically.
• Acquisition (Locked): Once the exact X and Y coordinates are found, it triggers a dramatic, sequencing laser animation, holds the lock for 3 seconds, and then reassesses the perimeter.

Step 6: The MicroPython Code

Flash this code to your Raspberry Pi Pico W using Thonny. Save it as main.py so it runs automatically on boot.

https://github.com/jeevan8232/predator_laser_targeting.git

Step 7: Power Up and Test

When you plug the Pico in, allow about 30–60 seconds for the PIR sensors to calibrate to the ambient room temperature. Do not stand directly in front of the robot during this time.

Once it's ready, walk into one of the three zones. You should see the turret immediately snap to your sector, sweep back and forth to find your center of mass, and execute the final cinematic laser lock-on!
