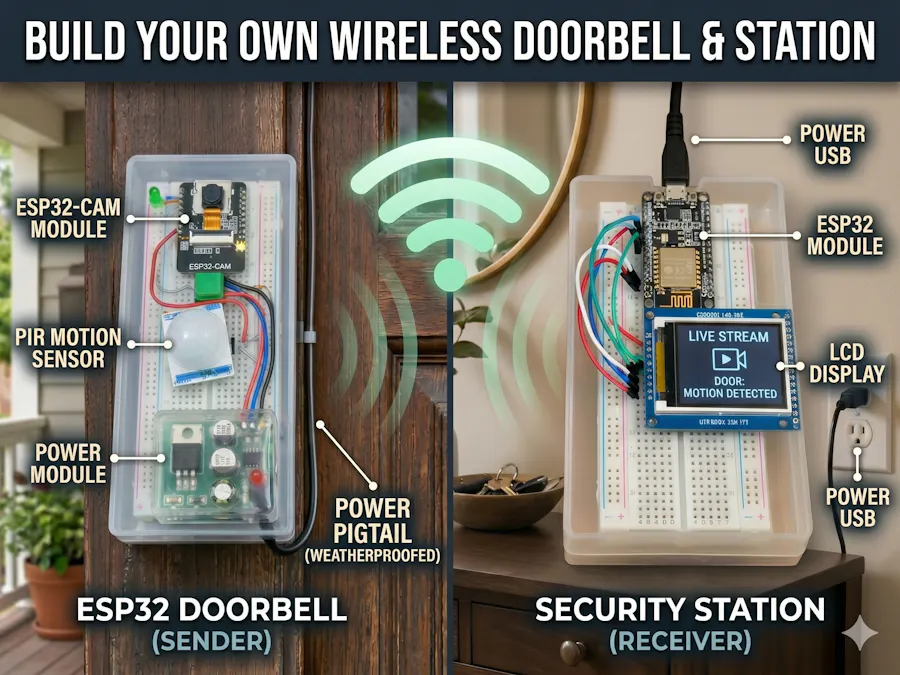

ESP32-CAM Smartdoor with Security Station

Using WIFI, the camera module streams to a local server. A second device then fetches these frames and projects them to a display.

IntermediateFull instructions provided2 hours92

ESP32-CAM Smartdoor with Security Station

Things used in this project

Hardware components

Espressif ESP8266 ESP-12E

M5Stack ESP32 Camera Module Development Board

STR7735 128*160 LCD Display

PIR Motion Sensor (generic)

Power Supply Module

Just a generic buck/boost convertor that provides 5V and 3.3V, given a DC input of (9v - 12v).

Software apps and online services

Arduino IDE

Hand tools and fabrication machines

Soldering iron (generic)

Story

I built my own wireless doorbell and security monitor from scratch using Wifi to communicate. When the doorbell button is pressed or if the PIR sensor detects motion at the door, the camera module instantly transmits a signal to my security station (receiver), which updates the LCD in real time. You can also view the feed at any time in the mobile app (NTFY).Things to change in code: You need to add your Wi-Fi name and password to the code before flashing to either controller. You need to change the NTFY_TOPIC to something unique. You also need the camera module's unique ID. This will appear in the serial console after the code has been flashed on the camera module. Demo:

For the mobile app: 1) Get the NTFY app 2) Add a new subscription and enter the same name as the one you gave in the Camera Module code 3) Notification will appear on your device with the option to view live feed. 4) From the app, you can also enable the flashlight, motion detector, and alarm features.

/*
 * ============================================================
 *  DIY Smart Doorbell    ESP32-CAM (AI-Thinker)
 * ============================================================
 *  Pin assignments
 *    GPIO 12  Doorbell button   (3.3V via button  GPIO12, internal pull-down)
 *    GPIO  2  PIR motion sensor (active HIGH on motion)
 *    GPIO  4  Flash LED         (app-controlled flashlight + stunlock strobe)
 *    GPIO 15  Event indicator   (blinks on button / motion)
 *
 *  Network endpoints
 *    Port 80  HTTP  web UI, snapshot, controls, /event polling
 *    Port 81  TCP   dedicated MJPEG stream task for the display unit
 *                    (raw socket so it never blocks port 80)
 *
 *  Push notifications via ntfy.sh (free, no account).
 *  Install the ntfy app and subscribe to your NTFY_TOPIC.
 *
 *   GPIO 12 is a boot-strapping pin. Keep button NOT pressed
 *    (GPIO12 LOW via internal pull-down) during boot.
 *   GPIO 2 is also a boot-strapping pin. Most PIR modules
 *    output LOW at idle, so this is fine  but if the module
 *    outputs HIGH at boot, the ESP32 will fail to boot. If
 *    that happens, move PIR to GPIO 13 instead.
 * ============================================================
 */

#include "esp_camera.h"
#include <WiFi.h>
#include "esp_http_server.h"
#include <HTTPClient.h>
#include <lwip/sockets.h>

//  User config
#define WIFI_SSID       "WIFI-NAME"
#define WIFI_PASSWORD   "WIFI-PASSWORD"

#define NTFY_TOPIC      "squid"      // change to your UNIQUE  ntfy topic

#define BUTTON_COOLDOWN_S    5        // min seconds between button alerts
#define MOTION_COOLDOWN_S   10        // min seconds between motion alerts
#define PIR_WARMUP_S        30        // ignore PIR for first 30s after boot
                                       // (sensor needs to settle  false triggers
                                       //  during this window are normal)
//

// AI-Thinker pin map
#define PWDN_GPIO_NUM   32
#define RESET_GPIO_NUM  -1
#define XCLK_GPIO_NUM    0
#define SIOD_GPIO_NUM   26
#define SIOC_GPIO_NUM   27
#define Y9_GPIO_NUM     35
#define Y8_GPIO_NUM     34
#define Y7_GPIO_NUM     39
#define Y6_GPIO_NUM     36
#define Y5_GPIO_NUM     21
#define Y4_GPIO_NUM     19
#define Y3_GPIO_NUM     18
#define Y2_GPIO_NUM      5
#define VSYNC_GPIO_NUM  25
#define HREF_GPIO_NUM   23
#define PCLK_GPIO_NUM   22

#define BUTTON_PIN     12
#define PIR_PIN         2
#define FLASH_PIN       4
#define EVENT_LED_PIN  15

#define STREAM_PORT     81
#define STREAM_BOUNDARY "mjpeg_boundary_esp32"
#define CONTENT_TYPE_STREAM \
  "multipart/x-mixed-replace;boundary=" STREAM_BOUNDARY

//  ISR flags
volatile bool g_buttonFlag = false;
volatile bool g_motionFlag = false;
unsigned long g_lastButtonMs = 0;
unsigned long g_lastMotionMs = 0;
unsigned long g_bootMs       = 0;     // set once in setup()  for PIR warmup

httpd_handle_t g_httpServer = NULL;

//  Last event (polled by display unit)
String        g_lastEventType = "none";
unsigned long g_lastEventTs   = 0;

//  App-controlled state
bool g_ledOn         = false;
bool g_motionEnabled = true;
bool g_videoFlipped  = true;

//  Stunlock task
#define STUNLOCK_TIMEOUT_S  60
#define STUNLOCK_ON_MS      40
#define STUNLOCK_OFF_MS     40

volatile bool g_stunlockActive = false;
TaskHandle_t  g_stunlockTask   = NULL;

void stunlockTaskFn(void*) {
  unsigned long t = millis();
  while (g_stunlockActive) {
    digitalWrite(FLASH_PIN, HIGH); vTaskDelay(pdMS_TO_TICKS(STUNLOCK_ON_MS));
    digitalWrite(FLASH_PIN, LOW);  vTaskDelay(pdMS_TO_TICKS(STUNLOCK_OFF_MS));
    if (millis() - t >= (unsigned long)STUNLOCK_TIMEOUT_S * 1000UL)
      g_stunlockActive = false;
  }
  digitalWrite(FLASH_PIN, g_ledOn ? HIGH : LOW);
  g_stunlockTask = NULL;
  vTaskDelete(NULL);
}

//  Interrupts
void IRAM_ATTR onButtonPress() { g_buttonFlag = true; }
void IRAM_ATTR onMotion()      { g_motionFlag = true; }

void blinkFlash(int n = 2) {
  for (int i = 0; i < n; i++) {
    digitalWrite(EVENT_LED_PIN, HIGH); delay(120);
    digitalWrite(EVENT_LED_PIN, LOW);  delay(80);
  }
}

//  ntfy.sh notification
void sendNotification(const char* title, const char* body,
                      const char* tags,  const char* priority) {
  if (WiFi.status() != WL_CONNECTED) return;
  String camURL = "http://" + WiFi.localIP().toString() + "/";
  HTTPClient http;
  http.begin("https://ntfy.sh/" + String(NTFY_TOPIC));
  http.addHeader("Content-Type", "text/plain");
  http.addHeader("Title",    title);
  http.addHeader("Tags",     tags);
  http.addHeader("Priority", priority);
  http.addHeader("Actions",  "view, View Live Feed, " + camURL + ", clear=true");
  int code = http.POST(body);
  http.end();
  Serial.printf("[ntfy] HTTP %d\n", code);
}

//
//  Port-81 QQVGA MJPEG stream task
//
//  Runs on a dedicated FreeRTOS task with a raw BSD socket, so
//  the long-running stream loop never touches the HTTP server
//  on port 80.  One display client at a time; on disconnect the
//  camera resolution is restored.
//
static bool sendAll(int fd, const void* data, size_t len) {
  const char* p = (const char*)data;
  while (len > 0) {
    int n = send(fd, p, len, 0);
    if (n <= 0) return false;
    p += n; len -= n;
  }
  return true;
}

void qqStreamTask(void*) {
  int serverFd = socket(AF_INET, SOCK_STREAM, 0);
  if (serverFd < 0) { vTaskDelete(NULL); return; }

  int opt = 1;
  setsockopt(serverFd, SOL_SOCKET, SO_REUSEADDR, &opt, sizeof(opt));

  struct sockaddr_in addr = {};
  addr.sin_family      = AF_INET;
  addr.sin_addr.s_addr = INADDR_ANY;
  addr.sin_port        = htons(STREAM_PORT);

  if (bind(serverFd, (struct sockaddr*)&addr, sizeof(addr)) < 0 ||
      listen(serverFd, 1) < 0) {
    Serial.println("[qqstream] bind/listen failed");
    close(serverFd); vTaskDelete(NULL); return;
  }
  Serial.printf("[qqstream] Listening on port %d\n", STREAM_PORT);

  while (true) {
    int clientFd = accept(serverFd, NULL, NULL);
    if (clientFd < 0) { vTaskDelay(pdMS_TO_TICKS(100)); continue; }
    Serial.println("[qqstream] Display connected");

    // 2 s recv timeout, 3 s send timeout
    struct timeval rcv = { .tv_sec = 2, .tv_usec = 0 };
    struct timeval snd = { .tv_sec = 3, .tv_usec = 0 };
    setsockopt(clientFd, SOL_SOCKET, SO_RCVTIMEO, &rcv, sizeof(rcv));
    setsockopt(clientFd, SOL_SOCKET, SO_SNDTIMEO, &snd, sizeof(snd));

    //  Drain HTTP request (read in chunks until \r\n\r\n)
    {
      char  rbuf[512];
      int   total = 0;
      while (total < (int)sizeof(rbuf) - 1) {
        int n = recv(clientFd, rbuf + total, sizeof(rbuf) - 1 - total, 0);
        if (n <= 0) break;
        total += n; rbuf[total] = 0;
        if (strstr(rbuf, "\r\n\r\n")) break;
      }
    }

    //  Send HTTP response headers
    const char* hdr =
      "HTTP/1.1 200 OK\r\n"
      "Content-Type: multipart/x-mixed-replace;boundary=" STREAM_BOUNDARY "\r\n"
      "Access-Control-Allow-Origin: *\r\n"
      "Cache-Control: no-cache, no-store\r\n"
      "Connection: close\r\n\r\n";
    if (!sendAll(clientFd, hdr, strlen(hdr))) {
      close(clientFd); continue;
    }

    //  Switch to QQVGA for the duration of the connection
    sensor_t*   s    = esp_camera_sensor_get();
    framesize_t prev = (framesize_t)s->status.framesize;
    s->set_framesize(s, FRAMESIZE_QQVGA);

    //  Stream frames until client disconnects
    char partHdr[80];
    bool ok = true;
    while (ok) {
      camera_fb_t* fb = esp_camera_fb_get();
      if (!fb) { vTaskDelay(pdMS_TO_TICKS(10)); continue; }

      uint8_t* jpgBuf = fb->buf;
      size_t   jpgLen = fb->len;
      uint8_t* tmpBuf = nullptr;

      if (fb->format != PIXFORMAT_JPEG) {
        bool conv = frame2jpg(fb, 80, &tmpBuf, &jpgLen);
        esp_camera_fb_return(fb); fb = nullptr;
        if (!conv) break;
        jpgBuf = tmpBuf;
      }

      const char* boundary = "\r\n--" STREAM_BOUNDARY "\r\n";
      int hLen = snprintf(partHdr, sizeof(partHdr),
                          "Content-Type: image/jpeg\r\n"
                          "Content-Length: %u\r\n\r\n", jpgLen);

      ok = sendAll(clientFd, boundary, strlen(boundary)) &&
           sendAll(clientFd, partHdr,  hLen)             &&
           sendAll(clientFd, jpgBuf,   jpgLen);

      if (fb)     esp_camera_fb_return(fb);
      if (tmpBuf) free(tmpBuf);
    }

    s->set_framesize(s, prev);
    close(clientFd);
    Serial.println("[qqstream] Display disconnected");
  }

  close(serverFd);
  vTaskDelete(NULL);
}

//
//  HTTP handlers (port 80)
//
static esp_err_t streamHandler(httpd_req_t* req) {
  httpd_resp_set_type(req, CONTENT_TYPE_STREAM);
  httpd_resp_set_hdr(req, "Access-Control-Allow-Origin", "*");
  httpd_resp_set_hdr(req, "Cache-Control", "no-cache, no-store");
  char partHeader[64];
  while (true) {
    camera_fb_t* fb = esp_camera_fb_get();
    if (!fb) break;
    uint8_t* jpgBuf = fb->buf; size_t jpgLen = fb->len;
    uint8_t* tmpBuf = nullptr;
    if (fb->format != PIXFORMAT_JPEG) {
      bool c = frame2jpg(fb, 80, &tmpBuf, &jpgLen);
      esp_camera_fb_return(fb); fb = nullptr;
      if (!c) break; jpgBuf = tmpBuf;
    }
    esp_err_t res = httpd_resp_send_chunk(req, "\r\n--" STREAM_BOUNDARY "\r\n",
                      strlen("\r\n--" STREAM_BOUNDARY "\r\n"));
    int hLen = snprintf(partHeader, sizeof(partHeader),
                        "Content-Type: image/jpeg\r\nContent-Length: %u\r\n\r\n", jpgLen);
    if (res == ESP_OK) res = httpd_resp_send_chunk(req, partHeader, hLen);
    if (res == ESP_OK) res = httpd_resp_send_chunk(req, (const char*)jpgBuf, jpgLen);
    if (fb)     esp_camera_fb_return(fb);
    if (tmpBuf) free(tmpBuf);
    if (res != ESP_OK) break;
  }
  httpd_resp_send_chunk(req, nullptr, 0);
  return ESP_OK;
}

static esp_err_t snapshotHandler(httpd_req_t* req) {
  camera_fb_t* fb = esp_camera_fb_get();
  if (!fb) { httpd_resp_send_500(req); return ESP_FAIL; }
  httpd_resp_set_type(req, "image/jpeg");
  httpd_resp_set_hdr(req, "Access-Control-Allow-Origin", "*");
  httpd_resp_set_hdr(req, "Cache-Control", "no-cache");
  esp_err_t res = httpd_resp_send(req, (const char*)fb->buf, fb->len);
  esp_camera_fb_return(fb); return res;
}

static esp_err_t thumbHandler(httpd_req_t* req) {
  sensor_t* s = esp_camera_sensor_get();
  framesize_t prev = (framesize_t)s->status.framesize;
  s->set_framesize(s, FRAMESIZE_QQVGA);
  camera_fb_t* fb = esp_camera_fb_get();
  s->set_framesize(s, prev);
  if (!fb) { httpd_resp_send_500(req); return ESP_FAIL; }
  httpd_resp_set_type(req, "image/jpeg");
  httpd_resp_set_hdr(req, "Access-Control-Allow-Origin", "*");
  httpd_resp_set_hdr(req, "Cache-Control", "no-cache");
  esp_err_t res = httpd_resp_send(req, (const char*)fb->buf, fb->len);
  esp_camera_fb_return(fb); return res;
}

static esp_err_t eventHandler(httpd_req_t* req) {
  String json = "{\"type\":\"" + g_lastEventType + "\",\"ts\":" + String(g_lastEventTs) + "}";
  httpd_resp_set_type(req, "application/json");
  httpd_resp_set_hdr(req, "Access-Control-Allow-Origin", "*");
  httpd_resp_send(req, json.c_str(), json.length()); return ESP_OK;
}

static esp_err_t ledHandler(httpd_req_t* req) {
  char buf[12] = {};
  if (httpd_req_get_url_query_str(req, buf, sizeof(buf)) == ESP_OK) {
    g_ledOn = strstr(buf, "on=1");
    digitalWrite(FLASH_PIN, g_ledOn ? HIGH : LOW);
  }
  httpd_resp_set_type(req, "application/json");
  httpd_resp_set_hdr(req, "Access-Control-Allow-Origin", "*");
  String r = String("{\"led\":") + (g_ledOn ? "true" : "false") + "}";
  httpd_resp_send(req, r.c_str(), r.length()); return ESP_OK;
}

static esp_err_t motionHandler(httpd_req_t* req) {
  char buf[12] = {};
  if (httpd_req_get_url_query_str(req, buf, sizeof(buf)) == ESP_OK)
    g_motionEnabled = strstr(buf, "on=1");
  httpd_resp_set_type(req, "application/json");
  httpd_resp_set_hdr(req, "Access-Control-Allow-Origin", "*");
  String r = String("{\"motion\":") + (g_motionEnabled ? "true" : "false") + "}";
  httpd_resp_send(req, r.c_str(), r.length()); return ESP_OK;
}

static esp_err_t stunlockHandler(httpd_req_t* req) {
  char buf[12] = {};
  if (httpd_req_get_url_query_str(req, buf, sizeof(buf)) == ESP_OK) {
    bool on = strstr(buf, "on=1");
    if (on && !g_stunlockActive) {
      g_stunlockActive = true;
      xTaskCreate(stunlockTaskFn, "stunlock", 2048, NULL, 2, &g_stunlockTask);
    } else if (!on) g_stunlockActive = false;
  }
  httpd_resp_set_type(req, "application/json");
  httpd_resp_set_hdr(req, "Access-Control-Allow-Origin", "*");
  String r = String("{\"stunlock\":") + (g_stunlockActive ? "true" : "false") + "}";
  httpd_resp_send(req, r.c_str(), r.length()); return ESP_OK;
}

static esp_err_t flipHandler(httpd_req_t* req) {
  char buf[12] = {};
  if (httpd_req_get_url_query_str(req, buf, sizeof(buf)) == ESP_OK) {
    g_videoFlipped = strstr(buf, "on=1");
    sensor_t* s = esp_camera_sensor_get();
    s->set_vflip(s,   g_videoFlipped ? 1 : 0);
    s->set_hmirror(s, g_videoFlipped ? 1 : 0);
  }
  httpd_resp_set_type(req, "application/json");
  httpd_resp_set_hdr(req, "Access-Control-Allow-Origin", "*");
  String r = String("{\"flip\":") + (g_videoFlipped ? "true" : "false") + "}";
  httpd_resp_send(req, r.c_str(), r.length()); return ESP_OK;
}

static esp_err_t statusHandler(httpd_req_t* req) {
  httpd_resp_set_type(req, "application/json");
  httpd_resp_set_hdr(req, "Access-Control-Allow-Origin", "*");
  String r = String("{\"led\":")  + (g_ledOn         ? "true" : "false") +
             ",\"motion\":"       + (g_motionEnabled  ? "true" : "false") +
             ",\"flip\":"         + (g_videoFlipped   ? "true" : "false") +
             ",\"stunlock\":"     + (g_stunlockActive ? "true" : "false") + "}";
  httpd_resp_send(req, r.c_str(), r.length()); return ESP_OK;
}

static esp_err_t indexHandler(httpd_req_t* req) {
  const char* html = R"rawhtml(<!DOCTYPE html>
<html lang="en">
<head>
<meta charset="UTF-8">
<meta name="viewport" content="width=device-width,initial-scale=1,viewport-fit=cover">
<meta name="apple-mobile-web-app-capable" content="yes">
<meta name="apple-mobile-web-app-status-bar-style" content="black">
<title>Doorbell</title>
<style>
*{box-sizing:border-box;margin:0;padding:0}
:root{--bg:#0a0a0a;--card:#131313;--card2:#191919;--border:#222;--text:#f0ede8;--sub:#5a5855;--green:#22c55e;--amber:#f59e0b;--red:#ef4444}
body{background:var(--bg);color:var(--text);font-family:-apple-system,BlinkMacSystemFont,'Segoe UI',sans-serif;min-height:100dvh;display:flex;flex-direction:column}
header{display:flex;align-items:center;justify-content:space-between;padding:16px 20px 14px;border-bottom:1px solid var(--border)}
.logo{font-size:15px;font-weight:600;letter-spacing:-.02em;display:flex;align-items:center;gap:8px}
.logo-icon{width:28px;height:28px;background:var(--card2);border:1px solid var(--border);border-radius:8px;display:flex;align-items:center;justify-content:center;font-size:14px}
.badge{display:flex;align-items:center;gap:6px;font-size:12px;color:var(--sub);background:var(--card);padding:5px 10px;border-radius:20px;border:1px solid var(--border)}
.dot{width:6px;height:6px;border-radius:50%;background:var(--sub);transition:background .3s,box-shadow .3s}
.dot.live{background:var(--green);box-shadow:0 0 8px #22c55e55}
.dot.err{background:var(--red)}
.feed-wrap{flex:1;background:#000;display:flex;align-items:center;justify-content:center;position:relative;min-height:180px}
#feed{width:100%;max-height:56dvh;object-fit:contain;display:none}
.overlay{position:absolute;inset:0;display:flex;flex-direction:column;align-items:center;justify-content:center;gap:10px}
.overlay.hidden{display:none}
.ov-icon{font-size:28px;opacity:.25}
.ov-msg{font-size:13px;color:var(--sub)}
.fps-tag{position:absolute;bottom:10px;right:10px;background:rgba(0,0,0,.65);color:var(--sub);font-size:10px;font-family:monospace;padding:3px 8px;border-radius:20px;display:none}
.panel{padding:14px 16px;display:flex;flex-direction:column;gap:8px;border-top:1px solid var(--border)}
.row{display:flex;align-items:center;justify-content:space-between;background:var(--card);border:1px solid var(--border);border-radius:14px;padding:14px 16px}
.row-left{display:flex;align-items:center;gap:12px}
.ri{font-size:18px;width:34px;height:34px;background:var(--card2);border:1px solid var(--border);border-radius:10px;display:flex;align-items:center;justify-content:center}
.rl{font-size:14px;font-weight:500}
.rs{font-size:11px;color:var(--sub);margin-top:2px}
.tog{position:relative;width:46px;height:26px;flex-shrink:0;cursor:pointer}
.tog input{opacity:0;width:0;height:0;position:absolute}
.ttrack{position:absolute;inset:0;background:#252525;border-radius:13px;transition:background .2s;border:1px solid var(--border)}
.ttrack::before{content:'';position:absolute;width:20px;height:20px;background:#fff;border-radius:50%;top:2px;left:2px;transition:transform .2s;box-shadow:0 1px 4px rgba(0,0,0,.5)}
.tog-led input:checked~.ttrack{background:var(--amber);border-color:var(--amber)}
.tog-mot input:checked~.ttrack{background:var(--green);border-color:var(--green)}
.tog-flip input:checked~.ttrack{background:var(--blue,#3b82f6);border-color:var(--blue,#3b82f6)}
.tog input:checked~.ttrack::before{transform:translateX(20px)}
.actions{display:flex;gap:8px;padding:0 16px 24px}
.btn{flex:1;padding:14px 0;background:var(--card);border:1px solid var(--border);border-radius:14px;color:var(--text);font-size:14px;font-weight:500;cursor:pointer;display:flex;align-items:center;justify-content:center;gap:7px;transition:background .15s}
.btn:active{background:var(--card2)}
.sep{height:1px;background:var(--border);margin:0 16px}
.stunlock-wrap{padding:12px 16px 24px}
.stunlock-btn{width:100%;padding:16px;border-radius:14px;border:1px solid #3a1515;background:#1a0a0a;color:#f87171;font-size:15px;font-weight:600;cursor:pointer;letter-spacing:.01em;transition:background .15s,border-color .15s,color .15s;display:flex;align-items:center;justify-content:center;gap:8px}
.stunlock-btn:active{background:#2a1010}
.stunlock-btn.active{background:#7f1d1d;border-color:#ef4444;color:#fca5a5;animation:pulse-red 1s ease-in-out infinite}
@keyframes pulse-red{0%,100%{box-shadow:0 0 0 0 #ef444430}50%{box-shadow:0 0 0 8px #ef444400}}
</style>
</head>
<body>
<header>
  <div class='logo'><div class='logo-icon'></div>Doorbell Cam</div>
  <div class='badge'><span id='st'>Offline</span><span class='dot' id='dot'></span></div>
</header>
<div class='feed-wrap'>
  <img id='feed' alt=''>
  <div class='overlay' id='ov'><div class='ov-icon'></div><div class='ov-msg' id='ovm'>Connecting</div></div>
  <div class='fps-tag' id='fps'></div>
</div>
<div class='panel'>
  <div class='row'>
    <div class='row-left'><div class='ri'></div><div><div class='rl'>Flashlight</div><div class='rs' id='ls'>Off</div></div></div>
    <label class='tog tog-led'><input type='checkbox' id='lc' onchange='setLed(this.checked)'><span class='ttrack'></span></label>
  </div>
  <div class='row'>
    <div class='row-left'><div class='ri'></div><div><div class='rl'>Motion sensor</div><div class='rs' id='ms'>Enabled</div></div></div>
    <label class='tog tog-mot'><input type='checkbox' id='mc' checked onchange='setMot(this.checked)'><span class='ttrack'></span></label>
  </div>
  <div class='row'>
    <div class='row-left'><div class='ri'></div><div><div class='rl'>Flip video</div><div class='rs' id='fs'>Normal</div></div></div>
    <label class='tog tog-flip'><input type='checkbox' id='fc' onchange='setFlip(this.checked)'><span class='ttrack'></span></label>
  </div>
</div>
<div class='sep'></div>
<div class='actions'><button class='btn' onclick='snap()'> Snapshot</button></div>
<div class='sep'></div>
<div class='stunlock-wrap'>
  <button class='stunlock-btn' id='slbtn' onclick='toggleStunlock()'> Stunlock</button>
</div>
<script>
const F=document.getElementById('feed'),D=document.getElementById('dot'),
  S=document.getElementById('st'),O=document.getElementById('ov'),
  OM=document.getElementById('ovm'),FP=document.getElementById('fps');
let run=true,lu=null,fr=0,ft=Date.now(),er=0;
async function tick(){
  if(!run)return;
  try{
    const r=await fetch('/snapshot?t='+Date.now(),{cache:'no-store'});
    if(!r.ok)throw 0;
    const u=URL.createObjectURL(await r.blob());
    F.src=u;F.style.display='block';O.classList.add('hidden');
    if(lu)URL.revokeObjectURL(lu);lu=u;er=0;
    D.className='dot live';S.textContent='Live';FP.style.display='block';fr++;
    const n=Date.now();if(n-ft>=1000){FP.textContent=fr+' fps';fr=0;ft=n;}
  }catch(e){
    er++;D.className='dot err';S.textContent='Offline';O.classList.remove('hidden');
    F.style.display='none';OM.textContent=er>3?'Camera unreachable':'Reconnecting';
    await new Promise(r=>setTimeout(r,1500));
  }
  requestAnimationFrame(tick);
}
tick();
async function setLed(v){document.getElementById('ls').textContent=v?'On':'Off';await fetch('/led?on='+(v?1:0));}
async function setMot(v){document.getElementById('ms').textContent=v?'Enabled':'Disabled';await fetch('/motion?on='+(v?1:0));}
async function setFlip(v){document.getElementById('fs').textContent=v?'Flipped 180':'Normal';await fetch('/flip?on='+(v?1:0));}
let slActive=false;
async function toggleStunlock(){slActive=!slActive;updateStunlockBtn(slActive);await fetch('/stunlock?on='+(slActive?1:0));}
function updateStunlockBtn(on){
  const b=document.getElementById('slbtn');
  b.textContent=on?' Stop stunlock':' Stunlock';
  b.classList.toggle('active',on);slActive=on;
}
async function snap(){
  try{const r=await fetch('/snapshot?t='+Date.now(),{cache:'no-store'});
  const u=URL.createObjectURL(await r.blob());
  const a=document.createElement('a');a.href=u;a.download='doorbell-'+Date.now()+'.jpg';a.click();
  setTimeout(()=>URL.revokeObjectURL(u),3000);}catch(e){alert('Failed: '+e);}
}
fetch('/status').then(r=>r.json()).then(d=>{
  document.getElementById('lc').checked=d.led;document.getElementById('mc').checked=d.motion;
  document.getElementById('fc').checked=d.flip||false;
  document.getElementById('ls').textContent=d.led?'On':'Off';
  document.getElementById('ms').textContent=d.motion?'Enabled':'Disabled';
  document.getElementById('fs').textContent=d.flip?'Flipped 180':'Normal';
  if(d.stunlock)updateStunlockBtn(true);
}).catch(()=>{});
document.addEventListener('visibilitychange',()=>{run=!document.hidden;if(run)tick();});
</script>
</body>
</html>)rawhtml";
  httpd_resp_set_type(req, "text/html");
  httpd_resp_send(req, html, strlen(html));
  return ESP_OK;
}

void startServer() {
  httpd_config_t cfg  = HTTPD_DEFAULT_CONFIG();
  cfg.server_port      = 80;
  cfg.max_uri_handlers = 12;

  const httpd_uri_t routes[] = {
    { "/",         HTTP_GET, indexHandler,    nullptr },
    { "/stream",   HTTP_GET, streamHandler,   nullptr },
    { "/snapshot", HTTP_GET, snapshotHandler, nullptr },
    { "/thumb",    HTTP_GET, thumbHandler,    nullptr },
    { "/event",    HTTP_GET, eventHandler,    nullptr },
    { "/led",      HTTP_GET, ledHandler,      nullptr },
    { "/motion",   HTTP_GET, motionHandler,   nullptr },
    { "/flip",     HTTP_GET, flipHandler,     nullptr },
    { "/stunlock", HTTP_GET, stunlockHandler, nullptr },
    { "/status",   HTTP_GET, statusHandler,   nullptr },
  };

  if (httpd_start(&g_httpServer, &cfg) == ESP_OK) {
    for (const auto& r : routes)
      httpd_register_uri_handler(g_httpServer, &r);
    Serial.println("[server] HTTP server started on port 80");
  } else {
    Serial.println("[server] Failed to start HTTP server!");
  }
}

//
//  setup()
//
void setup() {
  Serial.begin(115200);
  Serial.println("\n[boot] Starting up");

  //  Output pins
  pinMode(FLASH_PIN,     OUTPUT); digitalWrite(FLASH_PIN,     LOW);
  pinMode(EVENT_LED_PIN, OUTPUT); digitalWrite(EVENT_LED_PIN, LOW);

  //  Button: GPIO12 with internal pull-down
  pinMode(BUTTON_PIN, INPUT_PULLDOWN);
  attachInterrupt(digitalPinToInterrupt(BUTTON_PIN), onButtonPress, RISING);

  //  PIR motion sensor on GPIO2
  // No pull resistor  the PIR module drives the line actively.
  // Will start triggering interrupts immediately, but loop()
  // ignores them for the first PIR_WARMUP_S seconds while the
  // sensor's pyroelectric element settles.
  pinMode(PIR_PIN, INPUT);
  attachInterrupt(digitalPinToInterrupt(PIR_PIN), onMotion, RISING);

  //  Camera
  camera_config_t camCfg = {};
  camCfg.ledc_channel = LEDC_CHANNEL_0; camCfg.ledc_timer = LEDC_TIMER_0;
  camCfg.pin_d0 = Y2_GPIO_NUM; camCfg.pin_d1 = Y3_GPIO_NUM;
  camCfg.pin_d2 = Y4_GPIO_NUM; camCfg.pin_d3 = Y5_GPIO_NUM;
  camCfg.pin_d4 = Y6_GPIO_NUM; camCfg.pin_d5 = Y7_GPIO_NUM;
  camCfg.pin_d6 = Y8_GPIO_NUM; camCfg.pin_d7 = Y9_GPIO_NUM;
  camCfg.pin_xclk     = XCLK_GPIO_NUM; camCfg.pin_pclk     = PCLK_GPIO_NUM;
  camCfg.pin_vsync    = VSYNC_GPIO_NUM; camCfg.pin_href    = HREF_GPIO_NUM;
  camCfg.pin_sscb_sda = SIOD_GPIO_NUM;  camCfg.pin_sscb_scl = SIOC_GPIO_NUM;
  camCfg.pin_pwdn     = PWDN_GPIO_NUM;  camCfg.pin_reset    = RESET_GPIO_NUM;
  camCfg.xclk_freq_hz = 20000000;
  camCfg.pixel_format = PIXFORMAT_JPEG;

  if (psramFound()) {
    camCfg.frame_size = FRAMESIZE_VGA; camCfg.jpeg_quality = 12; camCfg.fb_count = 2;
    Serial.println("[cam] PSRAM  VGA");
  } else {
    camCfg.frame_size = FRAMESIZE_QVGA; camCfg.jpeg_quality = 15; camCfg.fb_count = 1;
    Serial.println("[cam] No PSRAM  QVGA");
  }

  if (esp_camera_init(&camCfg) != ESP_OK) {
    Serial.println("[cam] Init failed");
    while (true) { blinkFlash(5); delay(1000); }
  }
  Serial.println("[cam] Camera ready");

  sensor_t* s = esp_camera_sensor_get();
  s->set_brightness(s, 1);
  s->set_saturation(s, 0);
  s->set_gainceiling(s, (gainceiling_t)4);
  s->set_vflip(s,   g_videoFlipped ? 1 : 0);
  s->set_hmirror(s, g_videoFlipped ? 1 : 0);

  //  WiFi
  WiFi.begin(WIFI_SSID, WIFI_PASSWORD);
  Serial.print("[wifi] Connecting");
  int retries = 0;
  while (WiFi.status() != WL_CONNECTED && retries < 30) {
    delay(500); Serial.print("."); retries++;
  }

  if (WiFi.status() == WL_CONNECTED) {
    Serial.printf("\n[wifi] IP: %s\n", WiFi.localIP().toString().c_str());
    Serial.printf("   Web UI:  http://%s/\n",   WiFi.localIP().toString().c_str());
    Serial.printf("   Display: %s:%d\n",        WiFi.localIP().toString().c_str(), STREAM_PORT);
    Serial.printf("   PIR warm-up: %d seconds\n\n", PIR_WARMUP_S);
    blinkFlash(3);
    startServer();
    xTaskCreate(qqStreamTask, "qqstream", 4096, NULL, 2, NULL);
  } else {
    Serial.println("\n[wifi] Failed");
    while (true) { blinkFlash(10); delay(2000); }
  }

  // Mark boot time AFTER WiFi connect so PIR warm-up starts now,
  // not back when setup() began (which could be mid-WiFi-connect).
  g_bootMs = millis();
  // Discard any stray PIR triggers that fired during init.
  g_motionFlag = false;
}

//
//  loop()
//
void loop() {
  unsigned long now = millis();

  //  Doorbell button
  if (g_buttonFlag) {
    g_buttonFlag = false;
    unsigned long e = (now - g_lastButtonMs) / 1000UL;
    if (e >= BUTTON_COOLDOWN_S || g_lastButtonMs == 0) {
      g_lastButtonMs  = now;
      g_lastEventType = "button";
      g_lastEventTs   = now;
      Serial.println("[event] Doorbell pressed");
      blinkFlash(2);
      sendNotification("Doorbell", "Someone is at the door!", "bell", "high");
    } else {
      Serial.printf("[event] Button  cooldown (%lus left)\n",
                    (unsigned long)BUTTON_COOLDOWN_S - e);
    }
  }

  //  PIR motion
  if (g_motionFlag) {
    g_motionFlag = false;

    // Warm-up period  discard early triggers while sensor settles
    if (now - g_bootMs < (unsigned long)PIR_WARMUP_S * 1000UL) {
      unsigned long left = (unsigned long)PIR_WARMUP_S - (now - g_bootMs) / 1000UL;
      Serial.printf("[motion] Ignored  PIR warming up (%lus left)\n", left);
    }
    else if (!g_motionEnabled) {
      // Disabled from the app  silently ignore
    }
    else {
      unsigned long e = (now - g_lastMotionMs) / 1000UL;
      if (e >= MOTION_COOLDOWN_S || g_lastMotionMs == 0) {
        g_lastMotionMs  = now;
        g_lastEventType = "motion";
        g_lastEventTs   = now;
        Serial.println("[event] Motion detected");
        blinkFlash(1);
        sendNotification("Motion Alert", "Motion detected at the door", "eyes", "default");
      } else {
        Serial.printf("[event] Motion  cooldown (%lus left)\n",
                      (unsigned long)MOTION_COOLDOWN_S - e);
      }
    }
  }

  //  WiFi watchdog
  if (WiFi.status() != WL_CONNECTED) {
    Serial.println("[wifi] Lost  reconnecting");
    WiFi.reconnect();
    delay(5000);
  }

  delay(10);
}

/*
 * ============================================================
 *  DIY Smart Doorbell  Display Unit (ESP-12E + ST7735)
 * ============================================================
 *  Wiring (NodeMCU  ST7735, all hardware SPI)
 *    Pin 1 RST  D1 (GPIO5)
 *    Pin 2 CS   D8 (GPIO15)
 *    Pin 3 D/C  D2 (GPIO4)
 *    Pin 4 DIN  D7 (GPIO13)
 *    Pin 5 CLK  D5 (GPIO14)
 *    Pin 6 VCC  3.3V
 *    Pin 7 BL   3.3V
 *    Pin 8 GND  GND
 *
 *  Libraries (Arduino Library Manager)
 *    - TFT_eSPI     by Bodmer
 *    - TJpg_Decoder by Bodmer
 *    - ArduinoJson  by Benoit Blanchon (v6)
 *
 *  TFT_eSPI/User_Setup.h must contain:
 *    #define ST7735_DRIVER
 *    #define TFT_WIDTH  128
 *    #define TFT_HEIGHT 160
 *    #define ST7735_BLACKTAB
 *    #define TFT_CS   15
 *    #define TFT_DC    4
 *    #define TFT_RST   5
 *    #define TFT_MOSI 13
 *    #define TFT_SCLK 14
 *    #define SPI_FREQUENCY  40000000
 *
 *  How it works
 *    - Live feed: persistent TCP connection to camera port 81.
 *      The camera streams MJPEG with Content-Length on each
 *      frame; we parse Content-Length and read exactly that
 *      many bytes per JPEG.  No reconnect overhead per frame.
 *    - Events:    short HTTP GET /event on port 80 every 600 ms.
 *      When a new event timestamp appears, a coloured banner
 *      shows on top of the feed for 5 seconds.
 * ============================================================
 */

#include <ESP8266WiFi.h>
#include <WiFiClient.h>
#include <TFT_eSPI.h>
#include <TJpg_Decoder.h>
#include <ArduinoJson.h>

//  Config
#define WIFI_SSID     "WIFI-NAME"       // change this
#define WIFI_PASSWORD "WIFI-PASSWORD"   // change this
#define CAM_IP        "10.231.1.30"     // paste this from the camera module   // code. It will appear in Serial Console.
//

// Display layout (landscape: 160128)
#define DISP_W   160
#define DISP_H   128
#define IMG_H    120   // QQVGA frame height  leaves 8 px for status bar
#define BAR_Y    120

// QQVGA JPEG at quality 12 is 37 KB.  12 KB is a safe ceiling.
#define MAX_JPEG  12288

#define LABEL_MS  5000   // event banner duration on screen

#define EVENT_INTERVAL_MS  600   // how often to poll /event

// Colours (RGB565)
#define C_BLACK   0x0000
#define C_GREEN   0x07E0
#define C_RED     0xF800
#define C_ORANGE  0xFD20
#define C_CYAN    0x07FF
#define C_DGRAY   0x39E7

//  Globals
TFT_eSPI    tft;
WiFiClient  g_stream;                 // persistent stream socket  port 81
static uint8_t frameBuf[MAX_JPEG];    // static, reused every frame

// State
unsigned long g_lastEventTs   = 0;
String        g_lastEventType = "";
bool          g_labelOn       = false;
unsigned long g_labelAt       = 0;

unsigned long g_lastCheck     = 0;
int           g_frames        = 0;
int           g_fps           = 0;
unsigned long g_lastFpsMs     = 0;
bool          g_live          = false;

//  TJpgDec block-draw callback
bool tftBlock(int16_t x, int16_t y, uint16_t w, uint16_t h, uint16_t* bmp) {
  if (y >= IMG_H) return false;
  tft.pushImage(x, y, w, h, bmp);
  return true;
}

//  Status bar
void drawBar() {
  tft.fillRect(0, BAR_Y, DISP_W, DISP_H - BAR_Y, C_BLACK);
  tft.setTextSize(1);
  if (!g_live) {
    tft.setTextColor(C_RED);
    tft.setCursor(3, BAR_Y + 1);
    tft.print("No signal");
    return;
  }
  tft.setTextColor(C_GREEN);
  tft.setCursor(3, BAR_Y + 1);
  tft.print("LIVE");
  if (g_fps > 0) {
    tft.setTextColor(C_DGRAY);
    String s = String(g_fps) + " fps";
    tft.setCursor(DISP_W - (int)s.length() * 6 - 2, BAR_Y + 1);
    tft.print(s);
  }
}

//  Event banner over top of frame
void drawLabel() {
  uint16_t col = (g_lastEventType == "button") ? C_ORANGE : C_CYAN;
  tft.fillRect(0, 0, DISP_W, 13, col);
  tft.setTextColor(C_BLACK);
  tft.setTextSize(1);
  tft.setCursor(4, 3);
  tft.print(g_lastEventType == "button" ? "  DOORBELL!" : "  MOTION!");
}

//  Centred "offline" message
void showOffline(const char* msg) {
  tft.fillRect(0, 0, DISP_W, IMG_H, C_BLACK);
  tft.setTextColor(C_DGRAY);
  tft.setTextSize(1);
  int cx = (DISP_W - (int)strlen(msg) * 6) / 2;
  tft.setCursor(max(0, cx), IMG_H / 2 - 4);
  tft.print(msg);
}

//
//  /event polling (port 80, short-lived connection)
//
void checkEvent() {
  WiFiClient ec;
  if (!ec.connect(CAM_IP, 80)) return;
  ec.setTimeout(1500);
  ec.print(
    "GET /event HTTP/1.1\r\n"
    "Host: " CAM_IP "\r\n"
    "Connection: close\r\n\r\n"
  );

  // Skip response headers (read until blank line)
  char line[128];
  while (ec.connected() || ec.available()) {
    int n = ec.readBytesUntil('\n', line, sizeof(line) - 1);
    if (n <= 1) break;     // blank line (\r only, after stripping)
  }

  // Read JSON body
  String body = "";
  unsigned long t = millis();
  while ((ec.connected() || ec.available()) && millis() - t < 800) {
    while (ec.available()) body += (char)ec.read();
    yield();
  }
  ec.stop();
  if (!body.length()) return;

  StaticJsonDocument<96> doc;
  if (deserializeJson(doc, body)) return;
  unsigned long ts   = doc["ts"].as<unsigned long>();
  String        type = doc["type"].as<String>();

  if (ts && ts != g_lastEventTs && type != "none") {
    g_lastEventTs   = ts;
    g_lastEventType = type;
    g_labelOn       = true;
    g_labelAt       = millis();
    drawLabel();
    Serial.printf("[event] %s ts=%lu\n", type.c_str(), ts);
  }
}

//
//  Connect to port 81 and consume the HTTP response headers.
//
bool connectStream() {
  g_stream.stop();
  Serial.println("[stream] Connecting to port 81...");

  if (!g_stream.connect(CAM_IP, 81)) {
    Serial.println("[stream] TCP connect failed");
    return false;
  }
  g_stream.setTimeout(5000);
  g_stream.print(
    "GET / HTTP/1.1\r\n"
    "Host: " CAM_IP "\r\n"
    "Connection: keep-alive\r\n\r\n"
  );

  // Discard HTTP response headers up to and including the blank line
  char line[128];
  unsigned long t = millis();
  while (millis() - t < 6000) {
    int n = g_stream.readBytesUntil('\n', line, sizeof(line) - 1);
    if (n == 0 && !g_stream.connected()) {
      Serial.println("[stream] Disconnected during header read");
      return false;
    }
    line[n] = 0;
    if (n > 0 && line[n - 1] == '\r') line[--n] = 0;
    if (n == 0) {
      Serial.println("[stream] Stream open");
      return true;
    }
  }

  Serial.println("[stream] Header read timed out");
  g_stream.stop();
  return false;
}

//
//  MJPEG stream loop  Content-Length parser
//
//  Each MJPEG part:
//    \r\n--boundary\r\n
//    Content-Type: image/jpeg\r\n
//    Content-Length: NNNN\r\n
//    \r\n
//    [NNNN bytes of JPEG]
//
//  Read header lines until blank (extracting Content-Length),
//  then readBytes() exactly that many bytes  readBytes blocks
//  on ESP8266 until the buffer is full or timeout.
//
void runStream() {
  char line[128];
  g_stream.setTimeout(5000);

  while (g_stream.connected() || g_stream.available()) {

    // Event polling + label expiry between frames
    unsigned long now = millis();
    if (now - g_lastCheck >= EVENT_INTERVAL_MS) {
      g_lastCheck = now;
      checkEvent();
    }
    if (g_labelOn && millis() - g_labelAt >= LABEL_MS) g_labelOn = false;

    //  Read part headers, find Content-Length
    int contentLen = -1;
    while (true) {
      int n = g_stream.readBytesUntil('\n', line, sizeof(line) - 1);
      if (n == 0 && !g_stream.connected()) goto done;
      line[n] = 0;
      if (n > 0 && line[n - 1] == '\r') line[--n] = 0;
      if (n == 0) break;   // blank line  end of part headers

      if (n > 15 && strncasecmp(line, "Content-Length:", 15) == 0) {
        contentLen = atoi(line + 15);
      }
    }

    // No Content-Length on this "part" (e.g. the leading \r\n
    // before a boundary line)  skip and read the next set.
    if (contentLen <= 0 || contentLen > MAX_JPEG) {
      yield();
      continue;
    }

    //  Read exactly contentLen bytes of JPEG
    int got = g_stream.readBytes(frameBuf, contentLen);
    if (got != contentLen) {
      Serial.printf("[stream] Short read %d/%d\n", got, contentLen);
      break;
    }

    //  Decode  display
    if (TJpgDec.drawJpg(0, 0, frameBuf, got) == 0) {
      if (g_labelOn) drawLabel();   // re-stamp banner over fresh frame

      g_frames++;
      now = millis();
      if (now - g_lastFpsMs >= 1000) {
        g_fps       = g_frames;
        g_frames    = 0;
        g_lastFpsMs = now;
        g_live      = true;
        drawBar();
      } else if (!g_live) {
        g_live = true;
        drawBar();
      }
    }

    yield();
  }

done:
  Serial.println("[stream] Stream ended");
  g_live = false;
  drawBar();
}

//
//  setup()
//
void setup() {
  Serial.begin(115200);
  Serial.println("\n[boot] Display unit starting");

  tft.init();
  tft.setRotation(3);          // landscape; switch to 1 if image is upside-down
  tft.fillScreen(C_BLACK);

  TJpgDec.setJpgScale(1);      // 1:1  QQVGA 160120 fits 160-wide display
  TJpgDec.setSwapBytes(true);  // RGB565 byte-swap required on ESP8266
  TJpgDec.setCallback(tftBlock);

  tft.setTextColor(C_DGRAY);
  tft.setTextSize(1);
  tft.setCursor(20, 56);
  tft.print("Connecting WiFi...");

  WiFi.mode(WIFI_STA);
  WiFi.begin(WIFI_SSID, WIFI_PASSWORD);
  int tries = 0;
  while (WiFi.status() != WL_CONNECTED && tries < 40) {
    delay(500); Serial.print("."); tries++;
  }

  if (WiFi.status() != WL_CONNECTED) {
    tft.fillScreen(C_BLACK);
    tft.setTextColor(C_RED);
    tft.setCursor(10, 56);
    tft.print("WiFi failed!");
    Serial.println("\n[wifi] Failed");
    while (true) delay(1000);
  }

  Serial.printf("\n[wifi] Connected: %s\n", WiFi.localIP().toString().c_str());

  tft.fillScreen(C_BLACK);
  tft.setTextColor(C_GREEN);
  tft.setCursor(20, 44);
  tft.print("Connected!");
  tft.setTextColor(C_DGRAY);
  tft.setCursor(4, 60);
  tft.print(WiFi.localIP().toString());
  tft.setCursor(4, 76);
  tft.print("Cam: " CAM_IP);
  tft.setCursor(4, 92);
  tft.print("Stream: port 81");
  delay(1500);

  tft.fillScreen(C_BLACK);
  showOffline("Connecting...");
  drawBar();
}

//
//  loop()
//
void loop() {
  if (WiFi.status() != WL_CONNECTED) {
    g_live = false;
    g_stream.stop();
    showOffline("WiFi lost...");
    drawBar();
    WiFi.reconnect();
    delay(4000);
    return;
  }

  showOffline("Connecting...");
  drawBar();

  if (connectStream()) {
    runStream();        // blocks until stream drops
  } else {
    delay(3000);        // wait before retry
  }
}
