SmartEase

A toilet system designed to give elderly easy access and detects their day to day health factors

IntermediateFull instructions provided3 hours52

Things used in this project

Hardware components

M5Stack Mini RFID Unit RC522 Module Sensor

SG90 Micro-servo motor

M5Stack I2C Hub 1 to 6 Expansion TCA9548A Module

M5Stack Light Unit with Photo-resistance

M5Stack ENV II Unit with Temperature Humidity Air Pressure Sensor

M5Stack FIRE IoT Development Kit (PSRAM 2.0)

Software apps and online services

UiFlow

Story

Our project uses the RFID unit to detect the user's pass to open the automated door, then the ENV II unit checks the user's bodyweight and temperature (built into the toilet seat). The user is then prompted with his/her weight and temperature, alerting them if they are overweight or having a fever. If the user's weight is over 90kg, the display will alert them that they are overweight. If the user's body temperature is above 37.5 degrees celsius, they are then prompted to see if they would like to schedule a doctor's appointment. The Light unit checks how hydrated the user is by detecting how much light passes through the user's urine, as the more concentrated the urine is, lesser light will pass through, so if less than 500 Lux is detected, the display will prompt the user to drink more water.

RFID, Servo Motor, ENVII

Light Unit

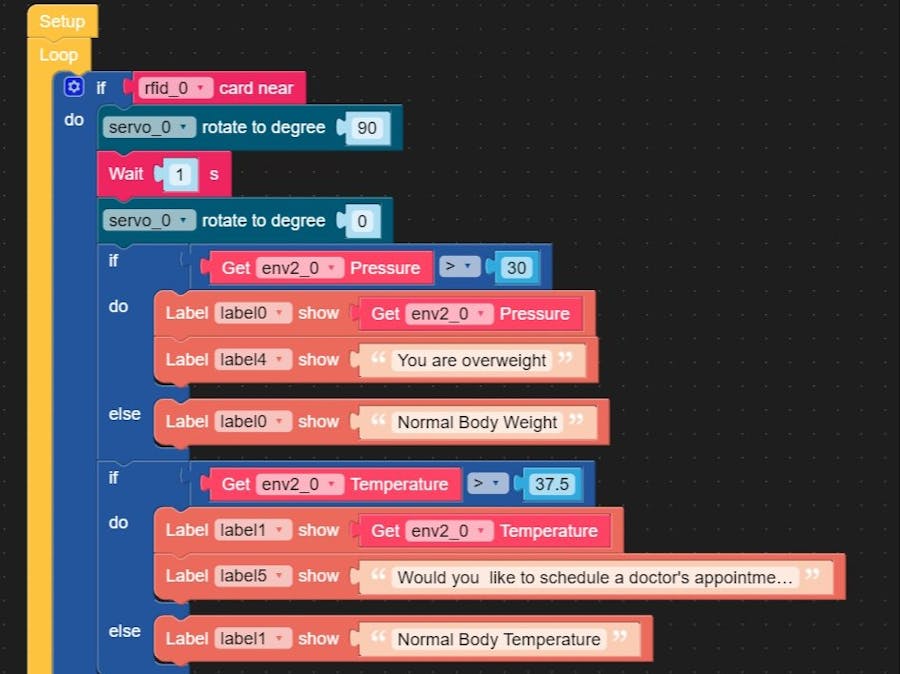

from m5stack import *
from m5ui import *
from uiflow import *
import time
import unit

setScreenColor(0x222222)
pahub_0 = unit.get(unit.PAHUB, unit.PORTA)
env2_0 = unit.get(unit.ENV2, unit.PAHUB1)
rfid_0 = unit.get(unit.RFID, unit.PAHUB0)
servo_0 = unit.get(unit.SERVO, unit.PORTB)






label0 = M5TextBox(121, 0, "Text", lcd.FONT_DejaVu18, 0xFFFFFF, rotate=0)
label1 = M5TextBox(139, 97, "Text", lcd.FONT_DejaVu18, 0xFFFFFF, rotate=0)
label2 = M5TextBox(18, 0, "Weight:", lcd.FONT_DejaVu18, 0xFFFFFF, rotate=0)
label3 = M5TextBox(10, 97, "Body Temp:", lcd.FONT_DejaVu18, 0xFFFFFF, rotate=0)
label4 = M5TextBox(18, 34, ".", lcd.FONT_Default, 0xFFFFFF, rotate=0)
label5 = M5TextBox(18, 128, ".", lcd.FONT_Default, 0xFFFFFF, rotate=0)


while True:
  if rfid_0.isCardOn():
    servo_0.write_angle(90)
    wait(1)
    servo_0.write_angle(0)
    if (env2_0.pressure) > 30:
      label0.setText(str(env2_0.pressure))
      label4.setText('You are overweight')
    else:
      label0.setText('Normal Body Weight')
    if (env2_0.temperature) > 37.5:
      label1.setText(str(env2_0.temperature))
      label5.setText("Would you  like to schedule a doctor's appointment?")
    else:
      label1.setText('Normal Body Temperature')
  if rfid_0.isCardOn():
    servo_0.write_angle(90)
    wait(1)
    servo_0.write_angle(0)
  wait_ms(2)
