Augmented Glasses

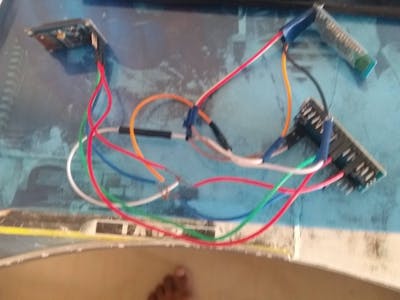

Since Spiderman : Far From Home was released, I was working on this project. But it never worked. Then after one year, I had the idea of continuing the project. Then I started working on the project. Unfortunately, my Arduino stopped working. Since I still haven't got a new board yet, I cant show the working model. But I can show the wired version. Even though it doesn't have many of the components, here it is:

The glass consists of two parts:

1. The glass itself

2. The battery pack

You can refer to schematics for the full circuit. First we will build the glass.

This is the glass circuit. To connect the battery pack, connect the USB mini-B to the Arduino Nano's port. But before connecting the pack, upload the code.

I am giving a step by step guide to make the circuit. But first we will ready the components. Most of the wires have to be cut and joined together.

First we will cut the USB mini-B into half like this.

Then we have to prepare two wires like this:

Now we can start building. If you are very good at electronics, then you can skip this.

First we will build the glass circuit.

Now we are done with the glass circuit. Now we will make the battery pack.

Wire the circuit in this order and upload the code.
