Reuben Ong
Published © GPL3+

Ultimate Security Home

This project has a smart door with two-factor authentication, a smart garage with car-plate authentication, and live CCTV footage.

ExpertFull instructions provided8 hours1,468

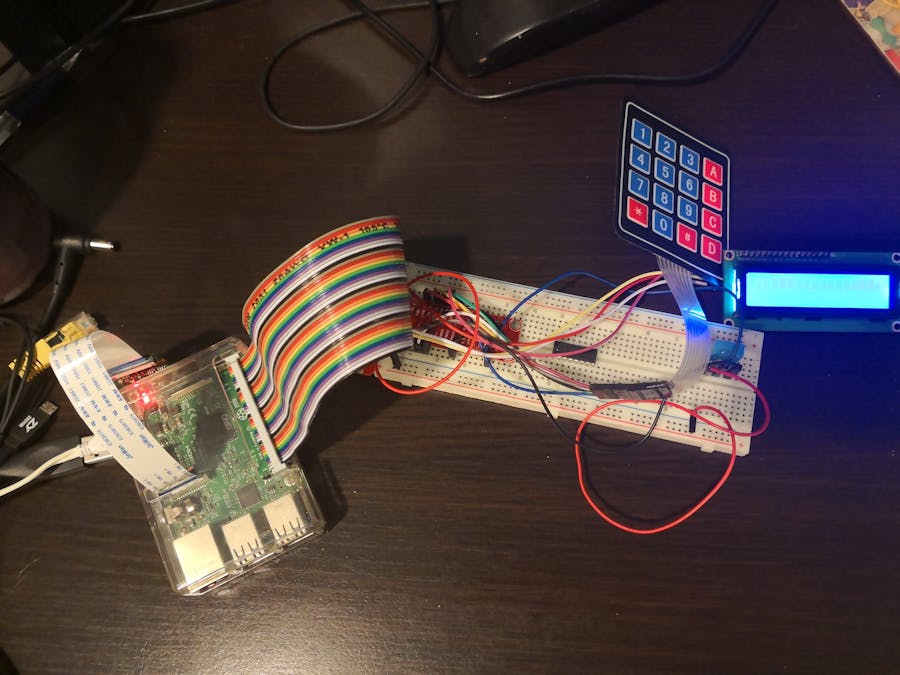

Ultimate Security Home

Things used in this project

Story

Read more

Custom parts and enclosures

Tutorial Document

This is the tutorial document for all the steps that were taken for the project to get up and running.

Schematics

Smart Door Fritzing

This is the Fritzing Diagram for the Smart Door.

Smart Garage Fritzing

This is the Fritzing Diagram for the Smart Garage.

Code

snapshot.py

Python
This is the python file that takes a photo of the person's face and uploads it to the DynamoDB database.
from time import gmtime, strftime
from picamera import PiCamera
import json as simplejson
import time
import os
import boto3

def takePhoto(userName):

    count = 5
    camera = PiCamera()
    camera.vflip = True
    camera.hflip = True
    directory = os.path.dirname(os.path.realpath(__file__)) + '/' + 'face'
    if not os.path.exists(directory):
        os.makedirs(directory)

    print '[+] A photo will be taken in 5 seconds...'

    for i in range(count):
        print (count - i)
        time.sleep(1)

    milli = int(round(time.time() * 1000))
    image1 = '{0}/image_{1}.jpg'.format(directory, milli)
    camera.capture(image1)
    print 'Your image was saved to %s' % image1
    camera.close()

    print('[+] Adding Image to Container')

    client = boto3.client('rekognition')
    with open(image1, 'rb') as image:
        response = client.index_faces(Image={'Bytes': image.read()}, CollectionId='home', ExternalImageId=userName, DetectionAttributes=['ALL'])

    print('[+] Finish Uploading Image to Container')



def deletePhoto(userName):
    client = boto3.client('rekognition')
    print('[+] Deleting Face from Container')
    #response = client.delete_faces(CollectionId='home', FaceIds=[args.id])
    response = client.delete_faces(CollectionId='home', FaceIds=['d3c239cd-b279-4506-b6f2-509465b8733d'])
    print('[+] Finish Deleting Image from Container')



aws_keypad.py

Python
This is the code for the keypad. This code will run the aws_faceRecognition.py file and if the face is not recorded in the database, a photo will be taken of the person's face and be sent to the person via Telegram. They keypad will also take in 4-pin inputs, and if the threshold( number of times allowed for wrong input) has been hit, a new pin will be generated and sent to the person's email.
from AWSIoTPythonSDK.MQTTLib import AWSIoTMQTTClient
from boto3.dynamodb.conditions import Key, Attr
from rpi_lcd import LCD
from time import sleep
from picamera import PiCamera
import RPi.GPIO as GPIO
import time
import random
import boto3
import telepot

###################################################################################################
# Custom MQTT message callback
def customCallback(client, userdata, message):
    print("Received a new message: ")
    print(message.payload)
    print("from topic: ")
    print(message.topic)
    print("--------------\n\n")

def telegrambot(): # Telegram Bot to receive image from RaspberryPi

    camera = PiCamera()
    print("Telegram Bot")
    my_bot_token = ''
    bot = telepot.Bot(my_bot_token)
    camera.capture('/home/pi/Desktop/Assignment2/image1.jpg')
    bot.sendPhoto(chat_id=414346130, photo=open('/home/pi/Desktop/Assignment2/image1.jpg', 'rb'))
    print('Capture Intruder Image')
    camera.close()
    print("End of Telegram Bot")


host = ""
rootCAPath = "certificates/rootca.pem"
certificatePath = "certificates/certificate.pem.crt"
privateKeyPath = "certificates/private.pem.key"

print("-----------------------------------------------------------")
print("[+] First Authentication: KeyPad")

my_rpi = AWSIoTMQTTClient("basicPubSub")
my_rpi.configureEndpoint(host, 8883)
my_rpi.configureCredentials(rootCAPath, privateKeyPath, certificatePath)

my_rpi.configureOfflinePublishQueueing(-1)  # Infinite offline Publish queueing
my_rpi.configureDrainingFrequency(2)  # Draining: 2 Hz
my_rpi.configureConnectDisconnectTimeout(10)  # 10 sec
my_rpi.configureMQTTOperationTimeout(5)  # 5 sec

# Connect and subscribe to AWS IoT
my_rpi.connect()
my_rpi.subscribe("ush/keypad/pin", 1, customCallback)
sleep(2)

###############################################################################################

dynamodb = boto3.resource('dynamodb', region_name='us-west-2')
table = dynamodb.Table('ush_pin')
#opendoor = 0
response = table.query(
    KeyConditionExpression=Key('deviceid').eq('deviceid_bryantay'))

for i in response['Items']:
    opendoor = i['pin']
    dbThreshold = i['threshhold']
    print("[+] Pin fom Database is " + str(opendoor))
    print("[+] Threshold is " + dbThreshold)

#################################################################################################

GPIO.setmode(GPIO.BOARD)
GPIO.setwarnings(False)

MATRIX = [[1,2,3,'A'],
     [4,5,6,'B'],
     [7,8,9,'C'],
     ['*',0,'#','D']]

ROW = [7,11,13,15]
COL = [12,16,18,22]

lcd = LCD()
threshhold = 0

keypress = ""
feature = False


for j in range(4):
    GPIO.setup(COL[j], GPIO.OUT)
    GPIO.output(COL[j], 1)

for i in range(4):
    GPIO.setup(ROW[i], GPIO.IN, pull_up_down = GPIO.PUD_UP)

print("[+] KeyPad Program Starting:")
try:
    while(True):

        for j in range(4):
            GPIO.output(COL[j],0)

            lcd.text('4-Pin Password', 1)

            for i in range(4):
                if GPIO.input(ROW[i]) == 0:
                    print MATRIX[i][j]

                    keypress = keypress + str(MATRIX[i][j])

                    lcd.text(str(keypress), 2)

                    if len(keypress) == 4:
                                if keypress == str(opendoor): ## Authenticated

                                    print("<Correct 4-Pin Password>")

                                    lcd.clear()
                                    lcd.text('Access Granted', 1)
                                    time.sleep(3)
                                    lcd.clear()

                                    ## Facial Recognition
                                    import aws_faceRecognition # Hop on into next file


                                else: # Error
                                    print("<Incorrect 4-Pin Password>")

                                    lcd.text('Wrong Pin.', 1)
                                    lcd.text('Please try again.',2)
                                    time.sleep(3)
                                    lcd.clear()
                                    keypress ="" ## reset string
                                    threshhold+=1
                                    print("number of threshhold " + str(threshhold))
                                    print("number of database threshhold " + str(dbThreshold))
                                    if str(threshhold) == str(dbThreshold):
                                        print("[-] Maximum Number of Threshhold hits.")
                                        telegrambot()
                                        lcd.text("WARNING!",1)
                                        lcd.text("DOOR LOCKED",2)
                                        time.sleep(3)


                                         #  Generate 4-pin Nnumber
                                        newpin = random.randint(1111,9999)
                                        print("[+] New Pin is " + str(newpin))

                                        lcd.text("PIN RESET", 1)
                                        lcd.text("Key in new Pin", 2)
                                        time.sleep(5)
                                        lcd.clear()

                                        # Update into Database
                                        table.update_item(
                                            Key={
                                            'deviceid': 'deviceid_bryantay'
                                            },
                                            UpdateExpression='SET pin = :val1',
                                            ExpressionAttributeValues={
                                            ':val1': newpin
                                            }
                                            )
                                        opendoor = newpin
                                        ##stringSent = 'The New Pin is ' + opendoor
                                        ## Sent Pin to the person's phone number
                                        my_rpi.publish("ush/keypad/pin", opendoor, 1)
                                        print("[+] Sending OTP to Email")

                    while(GPIO.input(ROW[i]) == 0):
                        pass

            GPIO.output(COL[j],1)
except:
    GPIO.cleanup()

aws_temperature.py

Python
This is also run after the 2 factor authentication has been passed. It will record temperature and upload the data into the DynamoDB database.
# Import SDK packages
from AWSIoTPythonSDK.MQTTLib import AWSIoTMQTTClient
import time
from time import sleep,gmtime, strftime
import Adafruit_DHT
import json
import datetime as datetime
from rpi_lcd import LCD



pin = 26

# Custom MQTT message callback
def customCallback(client, userdata, message):
	print("Received a new message: ")
	print(message.payload)
	print("from topic: ")
	print(message.topic)
	print("--------------\n\n")

host = ""
rootCAPath = "certificates/rootca.pem"
certificatePath = "certificates/certificate.pem.crt"
privateKeyPath = "certificates/private.pem.key"

my_rpi = AWSIoTMQTTClient("basicPubSub")
my_rpi.configureEndpoint(host, 8883)
my_rpi.configureCredentials(rootCAPath, privateKeyPath, certificatePath)

my_rpi.configureOfflinePublishQueueing(-1)  # Infinite offline Publish queueing
my_rpi.configureDrainingFrequency(2)  # Draining: 2 Hz
my_rpi.configureConnectDisconnectTimeout(10)  # 10 sec
my_rpi.configureMQTTOperationTimeout(5)  # 5 sec

print("-----------------------------------------------------------")
print("[+] Smart Home: Recording Temperature")


# Connect and subscribe to AWS IoT
my_rpi.connect()
my_rpi.subscribe("ush/sensors/temperature", 1, customCallback)
sleep(2)

lcd = LCD()

lcd.text('Smart Home v2 ', 1)
# Publish to the same topic in a loop forever
while True:

	message = {}

	humidity, temperature = Adafruit_DHT.read_retry(11, pin)
	print("[+] Temperature recorded " + str(temperature))
	now = datetime.datetime.now()

	lcd.text('Temperature :', 1)
	lcd.text(str(temperature), 2)
	time.sleep(2)

	message["deviceid"] = 'deviceID_bryan'
	message["datetimeid"] = now.isoformat()
	message["temperature"] =  temperature
	my_rpi.publish("ush/sensors/temperature", json.dumps(message), 1)
	sleep(5)

garage.py

Python
This is the code that utilises AWS Rekognition to detect and authorise car-plates.
import RPi.GPIO as GPIO
import numpy as np
import cv2
from openalpr import Alpr
import time
import json
from rpi_lcd import LCD

import boto3
from boto3.dynamodb.conditions import Key, Attr

GPIO.setmode(GPIO.BCM)

GPIO.setup(26, GPIO.IN, pull_up_down=GPIO.PUD_UP)




# Import SDK packages
from AWSIoTPythonSDK.MQTTLib import AWSIoTMQTTClient
from time import sleep

#intialise LCD
lcd = LCD()

# Custom MQTT message callback
def customCallback(client, userdata, message):
	print("Received a new message: ")
	print(message.payload)
	print("from topic: ")
	print(message.topic)
	print("--------------\n\n")

host = "certificates/"
rootCAPath = "certificates/rootca.pem"
certificatePath = "certificates/certificate.pem.crt"
privateKeyPath = "certificates/private.pem.key"

my_rpi = AWSIoTMQTTClient("basicPubSub")
my_rpi.configureEndpoint(host, 8883)
my_rpi.configureCredentials(rootCAPath, privateKeyPath, certificatePath)

my_rpi.configureOfflinePublishQueueing(-1)  # Infinite offline Publish queueing
my_rpi.configureDrainingFrequency(2)  # Draining: 2 Hz
my_rpi.configureConnectDisconnectTimeout(10)  # 10 sec
my_rpi.configureMQTTOperationTimeout(5)  # 5 sec

# Connect and subscribe to AWS IoT
my_rpi.connect()
my_rpi.subscribe("ush/carplate", 1, customCallback)
sleep(1)




alpr = Alpr("sg", "openalpr.conf", "runtime_data")
if not alpr.is_loaded():
    print("Error loading OpenALPR")
    sys.exit(1)

alpr.set_top_n(1)
alpr.set_default_region("sg")

from picamera import PiCamera
from time import sleep

camera = PiCamera()
camera.resolution = (800, 600)


message = {}




def is_authorise_carplate(carplate):
        dynamodb = boto3.resource('dynamodb', region_name='us-west-2')
        table = dynamodb.Table('ush_authorise_carplate')

        response = table.scan()

        items = response['Items']


        for i in response['Items']:
            if(i['carplate'] == carplate):
                lcd.text('Welcome '+carplate,1)
                return "Yes"
        lcd.text('Unauthorised',1)
        lcd.text('License plate',2)
        sleep(2)
        return "No"


while True:

    #intialise last confidence variable
    last_confidence = 0

    button = GPIO.input(26)
    if button:
        print("Alerted")
        sleep(3)
        camera.capture('img.jpg')
        #my_rpi.publish("sensors/test", str("test"), 1)



        results = alpr.recognize_file("img.jpg")

        i = 0

        for plate in results['results']:
            i += 1
            print("Plate #%d" % i)
            print("   %12s %12s" % ("Plate", "Confidence"))
            for candidate in plate['candidates']:

                prefix = "-"
                if candidate['matches_template']:
                    prefix = "*"
                print("  %s %12s%12f" % (prefix, candidate['plate'], candidate['confidence']))
                if candidate['confidence'] > last_confidence:
                    message["carplate"] = candidate['plate']
                last_confidence = candidate['confidence']


            else:
                break;


        # check whether there is even a lisence plate being detect
        if last_confidence is not 0:
            message["timestamp"] = time.strftime("%d-%b-%Y %H:%M:%S")
            message["authorisation"] = is_authorise_carplate(message["carplate"])
            my_rpi.publish("ush/carplate", json.dumps(message), 1)
        else:
            lcd.text("No license plate detected",1)
            print ("no license plate detected")

        sleep(4)
        lcd.clear()





alpr.unload()

openalpr.conf

XML
This is the config file for the openalpr that was used in the garage.py file
; Specify the path to the runtime data directory
runtime_dir = runtime_data


ocr_img_size_percent = 1.33333333
state_id_img_size_percent = 2.0

; Calibrating your camera improves detection accuracy in cases where vehicle plates are captured at a steep angle
; Use the openalpr-utils-calibrate utility to calibrate your fixed camera to adjust for an angle
; Once done, update the prewarp config with the values obtained from the tool
prewarp =

; detection will ignore plates that are too large.  This is a good efficiency technique to use if the
; plates are going to be a fixed distance away from the camera (e.g., you will never see plates that fill
; up the entire image
max_plate_width_percent = 100
max_plate_height_percent = 100

; detection_iteration_increase is the percentage that the LBP frame increases each iteration.
; It must be greater than 1.0.  A value of 1.01 means increase by 1%, 1.10 increases it by 10% each time.
; So a 1% increase would be ~10x slower than 10% to process, but it has a higher chance of landing
; directly on the plate and getting a strong detection
detection_iteration_increase = 1.1

; The minimum detection strength determines how sure the detection algorithm must be before signaling that
; a plate region exists.  Technically this corresponds to LBP nearest neighbors (e.g., how many detections
; are clustered around the same area).  For example, 2 = very lenient, 9 = very strict.
detection_strictness = 3

; The detection doesn't necessarily need an extremely high resolution image in order to detect plates
; Using a smaller input image should still find the plates and will do it faster
; Tweaking the max_detection_input values will resize the input image if it is larger than these sizes
; max_detection_input_width/height are specified in pixels
max_detection_input_width = 1280
max_detection_input_height = 720

; detector is the technique used to find license plate regions in an image.  Value can be set to
; lbpcpu    - default LBP-based detector uses the system CPU
; lbpgpu    - LBP-based detector that uses Nvidia GPU to increase recognition speed.
; lbpopencl - LBP-based detector that uses OpenCL GPU to increase recognition speed.  Requires OpenCV 3.0
; morphcpu  - Experimental detector that detects white rectangles in an image.  Does not require training.
detector = lbpcpu

; If set to true, all results must match a postprocess text pattern if a pattern is available.
; If not, the result is disqualified.
must_match_pattern = 0

; Bypasses plate detection.  If this is set to 1, the library assumes that each region provided is a likely plate area.
skip_detection = 0

; Specifies the full path to an image file that constrains the detection area.  Only the plate regions allowed through the mask
; will be analyzed.  The mask image must match the resolution of your image to be analyzed.  The mask is black and white.
; Black areas will be ignored, white areas will be searched.  An empty value means no mask (scan the entire image)
detection_mask_image =

; OpenALPR can scan the same image multiple times with different randomization.  Setting this to a value larger than
; 1 may increase accuracy, but will increase processing time linearly (e.g., analysis_count = 3 is 3x slower)
analysis_count = 1

; OpenALPR detects high-contrast plate crops and uses an alternative edge detection technique.  Setting this to 0.0
; would classify  ALL images as high-contrast, setting it to 1.0 would classify no images as high-contrast.
contrast_detection_threshold = 0.3

max_plate_angle_degrees = 15

ocr_min_font_point = 6

; Minimum OCR confidence percent to consider.
postprocess_min_confidence = 65

; Any OCR character lower than this will also add an equally likely
; chance that the character is incorrect and will be skipped.  Value is a confidence percent
postprocess_confidence_skip_level = 80


debug_general         = 0
debug_timing          = 0
debug_detector        = 0
debug_prewarp         = 0
debug_state_id        = 0
debug_plate_lines     = 0
debug_plate_corners   = 0
debug_char_segment    = 0
debug_char_analysis   = 0
debug_color_filter    = 0
debug_ocr             = 0
debug_postprocess     = 0
debug_show_images     = 0
debug_pause_on_frame  = 0

app.py

Python
This is the Flask server app that was used in the assignment
from flask import Flask,render_template, jsonify, redirect, url_for, request,session,Response
from snapshot import takePhoto, deletePhoto ## Bryan
from functools import wraps
import string
import random
import sys
import logging
import os
import boto3
import time
from boto3.dynamodb.conditions import Key, Attr
import dynamodb
import jsonconverter as jsonc
from camera_pi import Camera

logging.basicConfig(level=logging.DEBUG)

app = Flask(__name__)



# generate random session key
def rng_generator(size=6, chars=string.ascii_uppercase + string.digits):
	return ''.join(random.choice(chars) for _ in range(size))
app.secret_key = rng_generator()

#Prevent force browsing
def login_required(f):
	@wraps(f)
	def wrap(*args, **kwargs):
	    if 'logged_in' in session:
	        return f(*args, **kwargs)
	    else:
	        return redirect(url_for('login'))
	return wrap

#Login
@app.route('/login', methods=['GET', 'POST'])
def login():
	error = None
	try:
		dynamodb = boto3.resource('dynamodb', region_name='us-west-2')
		table = dynamodb.Table('ush_login')
		response = table.scan()
		items = response['Items']

		if request.method == 'POST':
			for i in items:
				if request.form['password'] == i['password'] and request.form['username'] == i['username']:
					session['logged_in'] = True
					return redirect(url_for('homepage'))
				else:
					error = 'wrong username or password'
					return redirect(url_for('login'),error=error)

	except Exception as e:
		print(e)
	return render_template('login.html', error=error)

# Logout
@app.route('/logout')
@login_required
def logout():
    session.pop('logged_in', None)
    return redirect(url_for('login'))





@app.route('/changepassword',methods=['GET','POST'])
@login_required
def changepw():
	try:
		formpassword = request.form['password']
		dynamodb = boto3.resource('dynamodb', region_name='us-west-2')
		table = dynamodb.Table('ush_login')

		table.update_item(
 Key={
        'username': 'admin'
    },
    UpdateExpression='SET password = :val1',
    ExpressionAttributeValues={

        ':val1': formpassword
    }
)

		session.pop('logged_in',None)
		return redirect(url_for('login'))
	except Exception as e:
		print(e)

	return render_template('changepassword.html')








@app.route('/settings')
@login_required
def settings():
	return render_template('settings.html')



@app.route('/garage')
@login_required
def garage():
	data = []
	dynamodb = boto3.resource('dynamodb', region_name='us-west-2')
	table = dynamodb.Table('ush_carplate')
	response = table.scan()
	items = response['Items']
	for i in response['Items']:
		data.append(tuple(i.values()))

	return render_template('garage.html',data=data)


#live camera stream for garage
def gen(camera):
    """Video streaming generator function."""
    while True:
        frame = camera.get_frame()
        yield (b'--frame\r\n'
               b'Content-Type: image/jpeg\r\n\r\n' + frame + b'\r\n')


@app.route('/video_feed')
@login_required
def video_feed():
    """Video streaming route. Put this in the src attribute of an img tag."""
    return Response(gen(Camera()),
                    mimetype='multipart/x-mixed-replace; boundary=frame')


@app.route('/lisenceplate')
@login_required
def lisenceplate():
	data = []
	dynamodb = boto3.resource('dynamodb', region_name='us-west-2')
	table = dynamodb.Table('ush_authorise_carplate')
	response = table.scan()
	items = response['Items']
	for i in response['Items']:
		data.append(tuple(i.values()))

	return render_template('lisenceplate.html',data=data)


#insert, update and update authorisation lp table
@app.route('/lisenceplate', methods=['GET', 'POST'])
@login_required
def insertupdatelp():
	dynamodb = boto3.resource('dynamodb', region_name='us-west-2')
	table = dynamodb.Table('ush_authorise_carplate')


	formcurrentlisenceplate = request.form['currentLP']
	formlisenceplate = request.form['insertLP']
	formdeletelisenceplate = request.form['deleteLP']

	if formdeletelisenceplate != "null":
		table.delete_item(
		Key={

				'carplate': formdeletelisenceplate
		},

		)


	if formcurrentlisenceplate != "null":
		table.delete_item(
		Key={

				'carplate': formcurrentlisenceplate
		},

		)


	if formlisenceplate != "null" or formcurrentlisenceplate != "null":
		table.update_item(
	    Key={
	        'carplate': formlisenceplate
	    },
	   UpdateExpression='SET authorisedate = :val1',
	    ExpressionAttributeValues={
	        ':val1': time.strftime("%d-%b-%Y %H:%M:%S")
	    }
		)


	return redirect(url_for('lisenceplate'))






@app.route("/homepage")
@login_required
def homepage():
	return render_template("homepage.html")

@app.route('/homepage', methods=['POST','GET'])
@login_required
def index():
    if request.method == 'POST' or request.method == 'GET':
        try:
            data = {'chart_data': jsonc.data_to_json(dynamodb.get_data_from_dynamodb()),
             'title': "IOT Data"}
            print data
            return jsonify(data)
        except:
            import sys
            print 'error'
            print(sys.exc_info()[0])
            print(sys.exc_info()[1])


@app.route('/changeKeypad')
@login_required
def keypadpassword():
    return render_template('changekeypad.html')

@app.route("/changeKeypad",methods=['GET','POST'])
@login_required
def modifyKeypad():
    keypadpassword = request.form['password']
    try:
        ## Update Database
        import boto3

        #dynamodb = boto3.resource('dynamodb')
        dynamodb = boto3.resource('dynamodb', region_name='us-west-2')
        table = dynamodb.Table('ush_pin')

        table.update_item(
            Key={
            'deviceid': 'deviceid_bryantay'
            },
            UpdateExpression='SET pin = :val1',
            ExpressionAttributeValues={
            ':val1': keypadpassword
            }
            )
        return(redirect(url_for('settings')))

    except Exception as e:
        print(e)


@app.route('/changeThreshold')
@login_required
def Threshold():
    return render_template('changethreshold.html')

@app.route("/changeThreshold",methods=['GET','POST'])
@login_required
def modifyThreshold():
    threshold = request.form['password']
    try:
        ## Update Database
        import boto3

        #dynamodb = boto3.resource('dynamodb')
        dynamodb = boto3.resource('dynamodb', region_name='us-west-2')
        table = dynamodb.Table('ush_pin')

        table.update_item(
            Key={
            'deviceid': 'deviceid_bryantay'
            },
            UpdateExpression='SET threshhold = :val1',
            ExpressionAttributeValues={
            ':val1': threshold
            }
            )
        return(redirect(url_for('settings')))

    except Exception as e:
        print(e)

@app.route('/registerFace')
@login_required
def registerFace():
    return render_template('registerFace.html')

@app.route("/registerFace",methods=['GET','POST'])
@login_required
def registeringFace():

    userName = request.form['username']

    takePhoto(userName)

    return(redirect(url_for('settings')))

if __name__ == '__main__':
	app.run(debug=True, host='0.0.0.0',threaded=True)

camera_pi.py

Python
This is the python file that is responsible for the live-streaming
import time
import io
import threading
import picamera


class Camera(object):
    thread = None  # background thread that reads frames from camera
    frame = None  # current frame is stored here by background thread
    last_access = 0  # time of last client access to the camera

    def initialize(self):
        if Camera.thread is None:
            # start background frame thread
            Camera.thread = threading.Thread(target=self._thread)
            Camera.thread.start()

            # wait until frames start to be available
            while self.frame is None:
                time.sleep(0)

    def get_frame(self):
        Camera.last_access = time.time()
        self.initialize()
        return self.frame

    @classmethod
    def _thread(cls):
        with picamera.PiCamera() as camera:
            # camera setup
            camera.resolution = (800, 600)
            camera.hflip = True
            camera.vflip = True

            # let camera warm up
            camera.start_preview()
            time.sleep(2)

            stream = io.BytesIO()
            for foo in camera.capture_continuous(stream, 'jpeg',
                                                 use_video_port=True):
                # store frame
                stream.seek(0)
                cls.frame = stream.read()

                # reset stream for next frame
                stream.seek(0)
                stream.truncate()

                # if there hasn't been any clients asking for frames in
                # the last 10 seconds stop the thread
                if time.time() - cls.last_access > 10:
                    break
        cls.thread = None

dynamodb.py

Python
This is the file that retrieves data from DynamoDB
def get_data_from_dynamodb():
    try:
        import boto3
        from boto3.dynamodb.conditions import Key, Attr

        dynamodb = boto3.resource('dynamodb', region_name='us-west-2')
        table = dynamodb.Table('ush_temp')

        startdate = '2019-02-92T'
        response = table.query(
            KeyConditionExpression=Key('deviceid').eq('deviceID_bryan')
        )

        items = response['Items']
        n=5 # limit to last 10 items
        data = items[:n]
        data_reversed = data[::-1]
        return data_reversed
    except:
        import sys
        print(sys.exc_info()[0])
        print(sys.exc_info()[1])


if __name__ == "__main__":
    query_data_from_dynamodb()

aws_faceRecognition.py

Python
This is the code for the face recognition through AWS Rekognition.
#!/usr/bin/env python
from rpi_lcd import LCD
from picamera import PiCamera
import time
import os

import boto3 as b3
from argparse import ArgumentParser
from time import gmtime, strftime


###################################################################################

print("-----------------------------------------------------------")
print("[+] Second Authentication: Facial Recognition")

lcd = LCD()
## Take a Photo
print("[+] Starting to take a photo..")
count = 5
camera = PiCamera()
camera.vflip = True
camera.hflip = True
directory = '/home/pi/Desktop/Assignment2/pi-detector/faces'

if not os.path.exists(directory):
    os.makedirs(directory)

print '[+] A photo will be taken in 5 seconds...'

lcd.text('Scanning for ', 1)
lcd.text('nearby faces...', 2)
time.sleep(5)

##image = '{0}/image_{1}.jpg'.format(directory, milli)
image = '{0}/image.jpg'.format(directory)
camera.capture(image)
print 'Your image was saved to %s' % image

camera.close()
###################################################################################


def get_client():
    return b3.client('rekognition')


def check_face(client, file):
    face_detected = False
    with open(file, 'rb') as image:
        response = client.detect_faces(Image={'Bytes': image.read()})
        if (not response['FaceDetails']):
            face_detected = False
        else:
            face_detected = True

    return face_detected, response

def check_matches(client, file, collection):
    face_matches = False
    with open(file, 'rb') as image:
        response = client.search_faces_by_image(CollectionId=collection, Image={'Bytes': image.read()}, MaxFaces=1, FaceMatchThreshold=85)
        if (not response['FaceMatches']):
            face_matches = False
        else:
            face_matches = True

    return face_matches, response


client = get_client()

capturedImage = "/home/pi/Desktop/Assignment2/pi-detector/faces/image.jpg"
collection = "home"

print '[+] Running face checks against image...'
result, resp = check_face(client, capturedImage)

## Checks Recognition

if (result):
	print '[+] Face(s) detected with %r confidence...' % (round(resp['FaceDetails'][0]['Confidence'], 2))
	print '[+] Checking for a face match...'
	resu, res = check_matches(client, capturedImage, collection)

	if (resu):
		print '[+] Identity matched %s with %r similarity and %r confidence...' % (res['FaceMatches'][0]['Face']['ExternalImageId'], round(res['FaceMatches'][0]['Similarity'], 1), round(res['FaceMatches'][0]['Face']['Confidence'], 2))
		lcd.text('Door Opened!', 1)
		lcd.text('Welcome, '+ res['FaceMatches'][0]['Face']['ExternalImageId'] , 2)
		time.sleep(5)
		lcd.clear()

		import aws_temperature
	else:
		print '[-] No face matches detected...'
		lcd.text('Access Denied!', 1)
		lcd.text('No face matches detected...', 2)
		time.sleep(3)
		lcd.clear()
		exit()
else:
    print "[-] No faces detected..."
    lcd.text('Access Denied!', 1)
    lcd.text('No face detected...', 2)
    time.sleep(3)
    lcd.clear()
    exit()

jsonconverter.py

Python
Converts data into JSON format
from decimal import Decimal
import json
import datetime
import numpy

class GenericEncoder(json.JSONEncoder):

    def default(self, obj):
        if isinstance(obj, numpy.generic):
            return numpy.asscalar(obj)
        elif isinstance(obj, Decimal):
            return str(obj)
        elif isinstance(obj, datetime.datetime):
            return obj.strftime('%Y-%m-%d %H:%M:%S')
        elif isinstance(obj, Decimal):
            return float(obj)
        else:
            return json.JSONEncoder.default(self, obj)

def data_to_json(data):
    json_data = json.dumps(data,cls=GenericEncoder)
    print(json_data)
    return json_data

Credits

Reuben Ong

Reuben Ong

1 project • 1 follower

Comments
