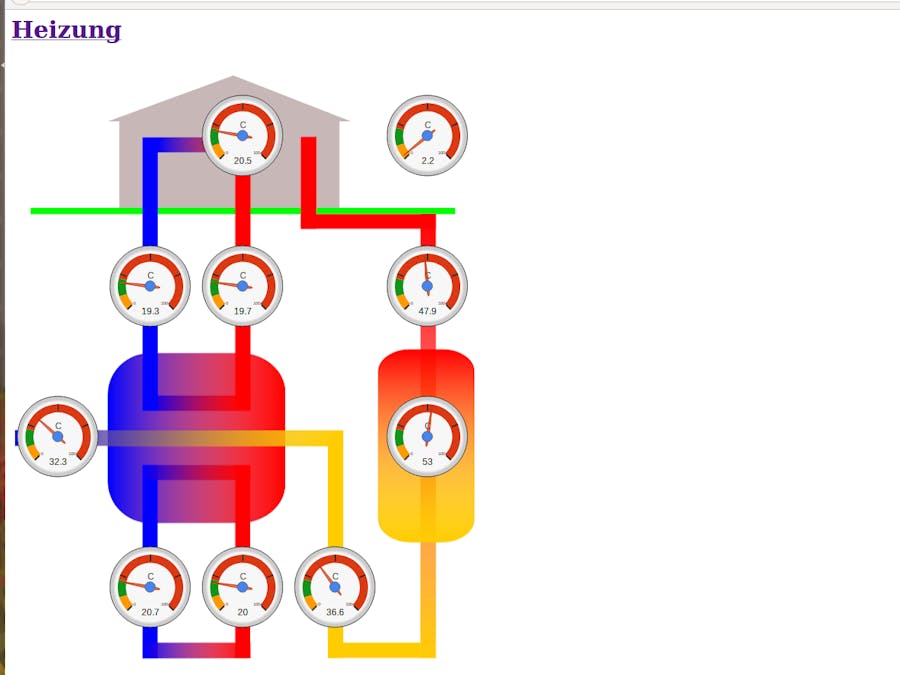

Temperature Control

Temperature control of heating with Arduino Uno Wifi, Arduino Uno, SD Shield, and Google Chart and perhaps an Alexa Interface.

AdvancedFull instructions providedOver 4 days8,083
Temperature Control

Things used in this project

Hardware components

Microcontroller board, Uno Wi-Fi, A000133, ATmega328P, A000133, Arduino
×1
Arduino UNO
Arduino UNO
×1
SD-Karten-Shield, 103030005, Seeed Studio
×1
NTC-Widerstand Perle 30 kOhm, B57551G1303F005, EPCOS
×1
Android device
Android device
×1

Software apps and online services

Android Studio
Android Studio
Arduino IDE
Arduino IDE
google charts

Story

Read more

Schematics

Schema

Schema

Code

arduino uno wifi

Arduino
arduino uno wifi
#include <WiFiLink.h>
#include <WiFiUdp.h>
const int NTP_PACKET_SIZE = 48; // NTP time stamp is in the first 48 bytes of the message
byte packetBuffer[50]; //buffer to hold incoming and outgoing packets
char ssid[] = "xxxxT";      //  your network SSID (name)
char pass[] = "xxxx";   // your network passwo
int keyIndex = 0;                 // your network key Index number (needed only for WEP)
String url = "";
unsigned long timeOut = 0;
unsigned long sTime = 0;
long timeSendData = -60000;

int status = WL_IDLE_STATUS;
WiFiUDP Udp;
WiFiServer server(80);
WiFiClient client;



void setup() {
  pinMode(2, OUTPUT);
  digitalWrite(2, HIGH);
  delay(2000);
  Serial.begin(38400);      // initialize serial communication
  delay(1000);


  //Check if communication with the wifi module has been established
  if (WiFi.status() == WL_NO_WIFI_MODULE_COMM) {
    Serial.println("Communication with WiFi module not established.");
    while (true); // don't continue:
  }

  // attempt to connect to Wifi network:
  while ( status != WL_CONNECTED) {
    Serial.print("Connect to Network : ");
    Serial.println(ssid);                   // print the network name (SSID);

    // Connect to WPA/WPA2 network. Change this line if using open or WEP network:
    status = WiFi.begin(ssid, pass);
    // wait 10 seconds for connection:
    delay(5000);
  }
  Serial.print("UnixTime  :");
  sTime = setTime();
  while (sTime < 1504716686) {
    Serial.println(getTime());
    delay(1000);
    sTime = setTime();
  }
  Serial.println(getTime());
  Udp.stop();
  digitalWrite(2, LOW);
  delay(1000);
  digitalWrite(2, HIGH);
  server.begin();                           // start the web server on port 80
  printWifiStatus();                        // you're connected now, so print out the status
  timeOut = millis();
}


void loop() {
  dooWeb();
  doSendData();
}

void doSendData() {
  if ((millis() - timeSendData) > 60000) {
    timeSendData = millis() ;
    Serial.print("DATA,");
    Serial.print(getTime());
    Serial.print(",");
    for (int analogPin = 0; analogPin < 4; analogPin++) {
      int sensor = analogRead(analogPin);
      Serial.print(intToTemp(sensor));
      Serial.print(",");
    }
    Serial.print("#");
  }
}

void dooWeb() {
  WiFiClient client = server.available();   // listen for incoming clients
  if (client) {                             // if you get a client,
    Serial.println("new client");           // print a message out the serial port
    String currentLine = "";                // make a String to hold incoming data from the client
    while (client.connected()) {            // loop while the client's connected
      if (client.available()) {             // if there's bytes to read from the client,
        char c = client.read();             // read a byte, then
        // Serial.write(c);                    // print it out the serial monitor
        if (c == '\n') {                    // if the byte is a newline character

          // if the current line is blank, you got two newline characters in a row.
          // that's the end of the client HTTP request, so send a response:
          if (currentLine.length() == 0) {
            // HTTP headers always start with a response code (e.g. HTTP/1.1 200 OK)
            // and a content-type so the client knows what's coming, then a blank line:
            client.println("HTTP/1.1 200 OK");
            client.println("Connection: close");
            client.println("Accept-Ranges: bytes");
            client.print("Content-type:");
            if (url.endsWith("jpg") ) client.println("image/jpg");
            else if (url.endsWith("ico") ) client.println("image/ico");
            else if (url.endsWith("png") ) client.println("image/png");
            else if (url.endsWith("svg") ) client.println("image/svg+xml");
            else client.println("text/html");
            client.println();
            if (url.endsWith("/?")) {
              for (int analogPin = 0; analogPin < 4; analogPin++) {
                int sensor = analogRead(analogPin);
                client.print(String(intToTemp(sensor), 1));
                client.print(",");
              }
            }
            // the content of the HTTP response follows the header:
            while (Serial.available() > 0) Serial.read();
            Serial.println(url + "#");
            timeOut = millis();
            String buffer = "";
            size_t cnt = 50;
            while ((millis() - timeOut) < 10000) {
              if (Serial.available() > 0) {
                timeOut = millis();
                char c = Serial.read();
                buffer.concat(c);
                if (buffer.length() > 8)buffer.remove(0, 1);
                if (buffer.endsWith("PUT")) {
                  buffer.replace("PUT", "");
                  buffer.remove(0, buffer.indexOf("#") + 1);
                  cnt = buffer.toInt();
                  size_t i = 0;
                  while ((millis() - timeOut) < 10000) {
                    if (Serial.available() >= cnt) {
                      i = Serial.readBytes(packetBuffer, cnt);
                      int clst = client.status();
                      if (clst == 4) {
                        client.write(packetBuffer, i);
                        if (i == 50) {
                          Serial.print("NEXT");
                          timeOut = millis();
                        }
                        break;
                      } else {
                        Serial.println("client.status :" + String(clst));
                        while (Serial.available() > 0) {
                          Serial.read();
                        }
                        client.stop();
                        client = false;
                        delay(100);
                        return;
                      }
                    }
                  }
                }
              }
              if (cnt != 50) break;
            }

            // The HTTP response ends with another blank line:
            client.println();
            // break out of the while loop:
            break;
          }
          else {      // if you got a newline, then clear currentLine:
            currentLine = "";
          }
        }
        else if (c != '\r') {    // if you got anything else but a carriage return character,
          if (currentLine.startsWith("GET") or currentLine.length() < 4 ) {
            currentLine += c;      // add it to the end of the currentLine
          }
        }

        if (currentLine.endsWith("HTTP/1.1")) {
          url =  currentLine;
          url.replace(" HTTP/1.1", "");
        }

      }
    }
    client.stop();
    Serial.println("client disonnected");
    delay(10);
  }
}


void printWifiStatus() {
  // print the SSID of the network you're attached to:
  Serial.print("SSID: ");
  Serial.println(WiFi.SSID());
}

unsigned long getTime() {
  if (sTime == 0) {
    sTime = getTime();
  }
  return sTime + millis() / 1000;
}

float intToTemp(int x) {
  x = 1023 - x;
  float result;
  result = -9.01865E-13 * x * x * x * x * x + 2.47090E-09 * x * x * x * x - 2.74511E-6 * x * x * x + 1.55555E-3 * x * x - 5.40551E-1 * x + 1.22271E2;
  return result;
}

unsigned long setTime() {
  unsigned int localPort = 2390;      // local port to listen for UDP packets

  Udp.begin(localPort);

  sendNTPpacket( packetBuffer, NTP_PACKET_SIZE); // send an NTP packet to a time server
  delay(500);
  if ( Udp.parsePacket() ) {
    // We've received a packet, read the data from it
    Udp.read(packetBuffer, NTP_PACKET_SIZE); // read the packet into the buffer
    Serial.write(packetBuffer, NTP_PACKET_SIZE);
    Serial.println();

    //the timestamp starts at byte 40 of the received packet and is four bytes,
    // or two words, long. First, esxtract the two words:
    unsigned long highWord = word(packetBuffer[40], packetBuffer[41]);
    unsigned long lowWord = word(packetBuffer[42], packetBuffer[43]);
    // combine the four bytes (two words) into a long integer
    // this is NTP time (seconds since Jan 1 1900):
    unsigned long secsSince1900 = highWord << 16 | lowWord;

    // Unix time starts on Jan 1 1970. In seconds, that's 2208988800:
    const unsigned long seventyYears = 2208988800UL;
    // subtract seventy years:
    unsigned long epoch = secsSince1900 - seventyYears;
    // print Unix time:
    return (epoch );
  }
}
unsigned long sendNTPpacket(  uint8_t *packetBuffer, const int NTP_PACKET_SIZE) {


  //Serial.println("1");
  // set all bytes in the buffer to 0
  memset(packetBuffer, 0, NTP_PACKET_SIZE);
  // Initialize values needed to form NTP request
  // (see URL above for details on the packets)
  //Serial.println("2");
  packetBuffer[0] = 0b11100011;   // LI, Version, Mode
  packetBuffer[1] = 0;     // Stratum, or type of clock
  packetBuffer[2] = 6;     // Polling Interval
  packetBuffer[3] = 0xEC;  // Peer Clock Precision
  // 8 bytes of zero for Root Delay & Root Dispersion
  packetBuffer[12]  = 49;
  packetBuffer[13]  = 0x4E;
  packetBuffer[14]  = 49;
  packetBuffer[15]  = 52;

  //Serial.println("3");

  // all NTP fields have been given values, now
  // you can send a packet requesting a timestamp:
  char adr[] = "ch.pool.ntp.org";
  Udp.beginPacket(adr, 123); //NTP requests are to port 123
  //Serial.println("4");
  Udp.write(packetBuffer, NTP_PACKET_SIZE);
  //Serial.println("5");
  Udp.endPacket();
  //Serial.println("6");
}

arduino uno mit SD Card

Arduino
arduino uno mit SD Card
#include <SPI.h>
#include <SD.h>

const int chipSelect = 4;
const char ETX = '#'; // Char(3);
byte packetBuffer[50];
float temper[10];
String temperStr;
String inputStr = "";
boolean isData = false;
boolean isGet = false;
boolean isFilename = false;
String filename = "";
char empfaenger = "";
File file;
char input ;
String in;
uint32_t timeOut = 0;
int index = 0;
long quad = -738000;
uint32_t aTime = 0;
String more = "";
File ff;
File root;

void setup() {
  // Open serial communications and wait for port to open:
  Serial.begin(38400);
  // see if the card is present and can be initialized:
  if (!SD.begin(chipSelect)) {
    // don't do anything more:
    return;
  }

  timeOut = millis();
}

String unixtToString(uint32_t t, bool sommer = false) {
  uint32_t tt = t;
  uint32_t wochentag = ((t + 345600) % (604800)) / 86400;
  t += 3600;
  int data [6] = {0, 0, 0, 0, 0, 0};
  data[5] = t % 60; //sek
  t = t / 60;
  data[4] = t % 60; //min
  t = t / 60;
  data[3] = t % 24; //h
  t = t / 24;
  data[0] = t / 365 + 1970; // Year
  data[2] = t % 365;
  uint32_t  ly;
  for (ly = 1972; ly < data[0]; ly += 4) {
    if (!(ly % 100) && (ly % 400)) continue;
    --data[2];
  }
  if (data[2] < 0) data[2] += 365, --data[0];
  static int const dm[2][12] = {
    { 31, 28, 31, 30, 31, 30, 31, 31, 30, 31, 30, 31},
    { 31, 29, 31, 30, 31, 30, 31, 31, 30, 31, 30, 31}
  };
  ly = (data[0] == ly) ? 1 : 0;
  while (data[2] >= dm[ly][data[1]]) data[2] -= dm[ly][data[1]++];
  if (!sommer) {
    if (data[1] > 2 && data[1] < 9) sommer = true;
    if ((data[1] == 2) && (31 - data[2] + wochentag < 7) && (wochentag > 0))sommer = true;
    if ((data[1] == 2) && (31 - data[2] + wochentag < 7) && (wochentag == 0) && (data[3] > 1))sommer = true;
    if ((data[1] == 9) && (31 - data[2] + wochentag > 7))sommer = true;
    if ((data[1] == 9) && (31 - data[2] + wochentag < 7) && (wochentag == 0) && (data[3] < 2)) sommer = true;
    if (sommer) {
      tt += 3600;
      return unixtToString(tt, true);
    }
  }
  ++data[2]; //day
  ++data[1]; //mont
  return
    String(data[0]) + "-"
    + (data[1] <= 9 ? "0" + String(data[1]) : String(data[1])) + "-"
    + (data[2] <= 9 ? "0" + String(data[2]) : String(data[2])) + "T"
    + (data[3] <= 9 ? "0" + String(data[3]) : String(data[3])) + ":"
    + (data[4] <= 9 ? "0" + String(data[4]) : String(data[4])) + ":"
    + (data[5] <= 9 ? "0" + String(data[5]) : String(data[5]));
}

void safeQuadData() {
  if ((millis() - quad) > 900000) {
    String d = unixtToString(aTime);
    d = d.substring(0, 10);
    d.replace("-", "");
    String f = "/dat/" + String(d) + ".TXT";
    file = SD.open(f, FILE_WRITE);
    file.print(unixtToString(aTime));
    file.print(",");
    for (int i = 0; i < 10; i++) {
      if (i < 9) {
        file.print( String(temper[i], 1) + ",");
      } else {
        file.println(  String(temper[i], 1) );
      }
    }
    quad = millis();
    timeOut = millis();
    file.close();
  }
}

boolean doSendData() {
  boolean fileclose = false;
  long sizeToSend = 0;
  if (more.length() > 0) {
    sizeToSend = more.length();
  } else {
    sizeToSend = file.size() - file.position();
    if (sizeToSend >= 50) {
      sizeToSend = 50;
    } else {
      fileclose = true;
    }
  }
  Serial.print("#" + String(sizeToSend) + "PUT");
  timeOut = millis();
  int i = 0;
  if (more.length() > 0) {
    Serial.print(more);
    more = "";
  } else {
    while (millis() - timeOut < 10000) {
      i = file.read(packetBuffer, sizeToSend);
      Serial.write(packetBuffer, i);
      sizeToSend = sizeToSend - i;
      if (sizeToSend == 0) {
        break;
      }
    }
    if (fileclose) {
      file.close();
    }
  }
  return   false;
}

float intToTemp(int x) {
  x = 1023 - x;
  float result;
  result = -9.01865E-13 * x * x * x * x * x + 2.47090E-09 * x * x * x * x - 2.74511E-6 * x * x * x + 1.55555E-3 * x * x - 5.40551E-1 * x + 1.22271E2;
  return result;
}

boolean doGet(char in) {
  if (in != ETX ) {
    filename = filename + in;
  } else  if (SD.exists(filename)) {
    file = SD.open(filename, FILE_READ);
    doSendData();
    filename = "";
  }  else if (filename.endsWith( "/" ) ) {
    file = SD.open("/index.htm", FILE_READ);
    doSendData();
    filename = "";
  } else if (filename.endsWith( "/?" ) ) {
    String send = "";
    for (int i = 0; i < 6; i++) {
      if (i < 5) {
        send = send + String(intToTemp(analogRead(i)), 1) + ",";
      } else {
        send = send + String(intToTemp(analogRead(i)), 1)  ;
      }
    }
    Serial.print("#" + String(send.length()) + "PUT");
    Serial.print(send);
    filename = "";
  }  else if (filename.endsWith( "?" ) ) {
    String pin = filename.substring(filename.length() - 2, filename.length() - 1);
    String temp = String(intToTemp(analogRead(pin.toInt())));
    String send = String(temp);
    Serial.print("#" + String(send.length()) + "PUT");
    Serial.print(send.substring(0, 50));
    filename = "";
  } else if (filename.endsWith( "DIR" ) ) {
    if (SD.exists("LIST.TXT")) {
      SD.remove("LIST.TXT");
    }
    ff = SD.open("LIST.TXT", FILE_WRITE);
    root = SD.open("DAT/");
    while (true) {
      File entry =  root.openNextFile();
      if (! entry) {
        // no more files
        break;
      }
      ff.print(entry.name());
      ff.print(",");
      entry.close();
    }
    ff.close();
    delay(10);
    file = SD.open("LIST.TXT", FILE_READ);
    doSendData();
    filename = "";
  }
  return (in != ETX );
}

boolean doData(char in) {
  if (in != ETX) {
    if (isFilename ) {
      file.write(in);
      temperStr.concat(in);
      if (temperStr.length() > 8) {
        temperStr.remove(0, 1);
      }
      if (temperStr.endsWith(",")) {
        temperStr.remove(",");
        temper[index] = temperStr.toFloat();
        temperStr = "";
        index++;
      }
    } else {
      if (in == ',') {
        aTime = filename.toInt();
        String d = unixtToString(aTime);
        d = d.substring(0, 10);
        d.replace("-", "");
        String f = "/data/" + String(d) + ".TXT";
        file = SD.open(f, FILE_WRITE);
        isFilename = true;
        file.print(unixtToString(aTime ) +  in);
      }
      filename = filename + in;
    }
  } else {
    for (int analogPin = 0; analogPin < 6; analogPin++) {
      int sensor = analogRead(analogPin);
      file.print(intToTemp(sensor));
      if (analogPin < 5) {
        file.print(",");
      } else {
        file.println("");
      }
      temper[index] = intToTemp(sensor);
      index++;
    }
    index = 0;
    isFilename = false;
    filename = "";
    file.close();
  }
  return  in != ETX;
}


void serialEvent() {
  timeOut = millis();
  if (Serial.available() > 0 ) {
    input = Serial.read();
    if ( !(isGet or isData )) {
      inputStr.concat(input);
      if (inputStr.length() > 6) {
        inputStr.remove(0, 1);
      }
      if (inputStr.endsWith("GET ") ) {
        isGet = true;
      }
      if (inputStr.endsWith("DATA,") ) {
        isData = true;
      }
      if (inputStr.endsWith("NEXT") ) {
        doSendData();
      }
    } else {
      if (isGet )isGet = doGet(input);
      if (isData)isData = doData(input);
    }
  }
}
void loop() {
  if (millis() - timeOut > 10000) {
    isGet = false;
    isData = false;
    isFilename = false;
    filename = "";
    timeOut = millis();
  }
  safeQuadData();
}

SD Card File with html Chart

JavaScript
<html>
    <head>
        <script type="text/javascript" src="https://www.gstatic.com/charts/loader.js"></script>
        <script type="text/javascript" src="https://ajax.googleapis.com/ajax/libs/jquery/1.11.3/jquery.min.js"></script>
        <script src="https://ajax.googleapis.com/ajax/libs/angularjs/1.6.4/angular.min.js"></script>
        <script type="text/javascript">

            google.charts.load('current', {'packages': ['corechart', "calendar"]});
            google.charts.setOnLoadCallback(drawChartLine);
            google.charts.setOnLoadCallback(drawChart);



            var d = new Date();
            var dat = "dat/" + d.getFullYear() + ((d.getMonth() < 9) ? "0" : "") + (d.getMonth() + 1) + ((d.getDate() < 10) ? "0" : "") + (d.getDate()) + ".TXT";
            var app = angular.module('myApp', []);


            function drawChartLine() {
                var chart = new google.visualization.LineChart(document.getElementById('chart_div'));

                var data = new google.visualization.DataTable();
                data.addColumn('datetime', 'Day Time');
                data.addColumn('number', "Heiz. Vorl");
                data.addColumn('number', "Heiz. Rueckl");
                data.addColumn('number', "Brauch Wasser");
                data.addColumn('number', "Boiler Wasser");
                data.addColumn('number', "Wasser vor WP");
                data.addColumn('number', "Wasser nach WP");
                data.addColumn('number', "E. Sond. Vorl");
                data.addColumn('number', "E. Sond. Rueckl");
                data.addColumn('number', "Wohnung");
                data.addColumn('number', "Aussen");

                var options = {'title': 'Heizungstemperaturen vom ' + ((d.getDate() < 10) ? "0" : "") + d.getDate() + "." + ((d.getMonth() < 9) ? "0" : "") + (d.getMonth() + 1) + "." + d.getFullYear(),
                    vAxis: {title: "Temperatur in Grad C",
                    },
                    hAxis: {
                        title: "Zeit in Stunden",
                        viewWindow: {
                            min: new Date(d.getFullYear(), d.getMonth(), d.getDate(), 0, 0),
                            max: new Date(d.getFullYear(), d.getMonth(), d.getDate(), 24, 00)
                        },
                    },
                    'width': "100%",
                    'height': 600};
                $.get(dat, function (csvString) {
                    var array = csvString.split("\n");
                    data.addRows(array.length);
                    for (i = 0; i < array.length; i++) {
                        var row = array[i].split(",");
                        var da = new Date();
                        da = new Date(row[0]);
                        data.setCell(i, 0, da);
                        for (x = 1; x < 11; x++) {
                            data.setCell(i, x, row[x]);
                        }
                    }
                    chart.draw(data, options);
                });
            }

            function drawChart() {
                var chart = new google.visualization.Calendar(document.getElementById('calendar_basic'));
                var array2 = [""];
                var datArray = [[new Date(), 1]];
                var dataTable = new google.visualization.DataTable();
                dataTable.addColumn({type: 'date', id: 'Date'});
                dataTable.addColumn({type: 'number', id: 'Day'});

                datArray[0] = [new Date(), 1];
                dataTable.addRows(datArray);

                var options = {
                    title: "Daten vorhanden",
                    height: 350
                };

                google.visualization.events.addListener(chart, 'select', function () {
                    var selection = chart.getSelection();
                    if (selection.length) {
                        var row = selection[0].row;
                        if (row) {
                            d = new Date(selection[0].date);
                            dat = "dat/" + d.getFullYear() + ((d.getMonth() < 9) ? "0" : "") + (d.getMonth() + 1) + ((d.getDate() < 10) ? "0" : "") + (d.getDate()) + ".TXT";
                            $.get(dat, function (csvString) {
                                drawChartLine();
                            });
                        }
                    }
                });

                $.get("DIR", function (csvString) {
                    csvString = csvString.substr(0, csvString.length - 2);

                    csvString = csvString.replace("2017119.TXT,", "20171109.TXT,");
                    array2 = csvString.split(",");
                    for (i = 0; i < array2.length; i++) {
                        array2[i] = array2[i].replace(".TXT", "");
                    }
                    dataTable = new google.visualization.DataTable();
                    dataTable.addColumn({type: 'date', id: 'Date'});
                    dataTable.addColumn({type: 'number', id: 'Day'});
                    lauf = 0;
                    for (i = 0; i < array2.length; i++) {
                        try {
                            var datums = new Date(array2[i].substr(0, 4), array2[i].substr(4, 2) - 1, array2[i].substr(6, 2));
                            if (datums.getFullYear() > 2016) {
                                datArray[lauf] = [datums, ((i % 2) === 0) ? 1 : -1];
                                lauf++;
                            }
                        } catch (err) {

                        }
                    }
                    dataTable.addRows(datArray);
                    chart.draw(dataTable, options);
                    $scope.names = array2;
                });
            }
        </script>
    </head>
    <body>
        <H1><a href="/">Heizung</a></H1>

        <div id="chart_div"></div>

        <div id="calendar_basic"></div>

    </body>
</html>

SD Card File with html index

JavaScript
SD Card File with html index
<html>
    <head>
        <style>
            .imgBG {
                position: absolute;
                z-index: -1;
                top: 0;
                left: 0;
                right: 0;
                bottom: 0;
                width: 100%;
                height: 100%;
            }
        </style>
        <script type="text/javascript" src="https://www.gstatic.com/charts/loader.js"></script>
        <script type="text/javascript">
            google.charts.load('current', {'packages': ['gauge']});
            google.charts.setOnLoadCallback(drawChart);
            var dat = [0.0, 0.0, 0.0, 0.0, 0.0, 0.0, 0.0, 0.0,0.0,0.0];

            function drawChart() {
                var data = [];
                var chart = [];
                loadXMLDoc()
                for (i = 0; i < 10; i++) {
                    data[i] = google.visualization.arrayToDataTable([['Label', 'Value'], ['C', dat[i]]]);
                }
                var options = {
                    width: 120, height: 120,
                    redFrom: 22, redTo: 100,
                    greenFrom: 10, greenTo: 22,
                    yellowFrom: 0, yellowTo: 10,
                    max: 100
                };
                for (i = 0; i < 10; i++) {
                    chart[i] = new google.visualization.Gauge(document.getElementById("chart_div" + (i + 1)));
                }
                for (i = 0; i < 10; i++) {
                    chart[i].draw(data[i], options);
                }
                setInterval(function () {
                    loadXMLDoc();
                }, 50000);


                function loadXMLDoc() {
                    var xhttp = new XMLHttpRequest();
                    xhttp.onreadystatechange = function () {
                        if (this.readyState === 4 && this.status === 200) {
                            var xx = this.responseText.split(",");
                            for (i = 0; i < 12; i++) {
                                dat[i] = parseFloat(xx[i]);
                            }
                            for (i = 0; i < 10; i++) {
                                data[i].setValue(0, 1, dat[i]);
                                chart[i].draw(data[i], options);
                            }
                        }
                    };
                    var a = "?";
                    xhttp.open("GET", a, true);
                    xhttp.send();
                }
            }
        </script>
    </head>
    <body>

    <H1><a href="tes.htm">Heizung</a>	</H1>
    <div style="width: 100%; height: 100%; "
        </div>
        <table style="background:url('Bild.svg') ; background-size: 100%;">
             <tr>
                <td>  </td>
                <td height="200"></div></td>
                <td><div id="chart_div1" style="width: 120px; height: 120px;"></div></td>
                <td></td>
                <td><div id="chart_div2" style="width: 120px; height: 120px;"></div></td>
            </tr>
            <tr>
                <td>  </td>
                <td height="200"><div id="chart_div3" style="width: 120px; height: 120px;"></div></td>
                <td><div id="chart_div4" style="width: 120px; height: 120px;"></div></td>
                <td></td>
                <td><div id="chart_div5" style="width: 120px; height: 120px;"></div></td>
            </tr>
            <tr>
                <td height="200"><div id="chart_div6" style="width: 120px; height: 120px;"></div></td>
                <td></td>
                <td></td>
                <td></td>
                <td><div id="chart_div7" style="width: 120px; height: 120px;"></div></td>
            </tr>
            <tr>
                <td height="200"> </td>
                <td><div id="chart_div8" style="width: 120px; height: 120px;"></div></td>
                <td><div id="chart_div9" style="width: 120px; height: 120px;"></div></td>
                <td><div id="chart_div10" style="width: 120px; height: 120px;"></div></td>
                <td></td>
        </table>

    </body>
</html>

Annunziata

Java
Code for a Android Application
package com.example.relleum.speechtotext;

import android.Manifest;
import android.content.Intent;
import android.content.pm.PackageManager;
import android.net.Uri;
import android.os.AsyncTask;
import android.os.Build;
import android.provider.Settings;
import android.speech.RecognitionListener;
import android.speech.RecognizerIntent;
import android.speech.SpeechRecognizer;
import android.speech.tts.TextToSpeech;
import android.support.v4.content.ContextCompat;
import android.support.v7.app.AppCompatActivity;
import android.os.Bundle;
import android.view.MotionEvent;
import android.view.View;
import android.widget.EditText;

import java.io.BufferedReader;
import java.io.FileInputStream;
import java.io.IOException;
import java.io.InputStream;
import java.io.InputStreamReader;
import java.net.MalformedURLException;
import java.net.URL;
import java.util.ArrayList;
import java.util.Locale;
import java.util.Random;

public class MainActivity extends AppCompatActivity {
    String text;
    EditText editText = null;
    TextToSpeech t1;

    @Override
    protected void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.activity_main);
        checkPermission();
        editText = findViewById(R.id.editText);
        final SpeechRecognizer mSpeechRecognizer = SpeechRecognizer.createSpeechRecognizer(this);

        final Intent mSpeechRecognizerIntent = new Intent(RecognizerIntent.ACTION_RECOGNIZE_SPEECH);
        mSpeechRecognizerIntent.putExtra(RecognizerIntent.EXTRA_LANGUAGE_MODEL,
                RecognizerIntent.LANGUAGE_MODEL_FREE_FORM);
        mSpeechRecognizerIntent.putExtra(RecognizerIntent.EXTRA_LANGUAGE,
                Locale.getDefault());

        mSpeechRecognizer.setRecognitionListener(new RecognitionListener() {
            @Override
            public void onReadyForSpeech(Bundle bundle) {

            }

            @Override
            public void onBeginningOfSpeech() {

            }

            @Override
            public void onRmsChanged(float v) {

            }

            @Override
            public void onBufferReceived(byte[] bytes) {

            }

            @Override
            public void onEndOfSpeech() {

            }

            @Override
            public void onError(int i) {

            }

            @Override
            public void onResults(Bundle bundle) {
                //getting all the matches
                ArrayList<String> matches = bundle
                        .getStringArrayList(SpeechRecognizer.RESULTS_RECOGNITION);

                //displaying the first match
                if (matches != null) {
                    text = matches.get(0);
                    editText.setText(text);
                    new RetrieveFeedTask().execute(text);
                }


            }

            @Override
            public void onPartialResults(Bundle bundle) {

            }

            @Override
            public void onEvent(int i, Bundle bundle) {

            }
        });

        t1 = new TextToSpeech(getApplicationContext(), new TextToSpeech.OnInitListener() {
            @Override
            public void onInit(int status) {
                if (status != TextToSpeech.ERROR) {
                    t1.setLanguage(Locale.GERMAN);
                }
            }
        });

        findViewById(R.id.button).setOnTouchListener(new View.OnTouchListener() {
            @Override
            public boolean onTouch(View view, MotionEvent motionEvent) {
                switch (motionEvent.getAction()) {
                    case MotionEvent.ACTION_UP:
                        mSpeechRecognizer.stopListening();
                        editText.setHint("Hier siehst du den Input");

                        break;

                    case MotionEvent.ACTION_DOWN:
                        mSpeechRecognizer.startListening(mSpeechRecognizerIntent);
                        editText.setText("");
                        editText.setHint("Hören...");
                        break;
                }
                return false;
            }
        });
    }


    private void checkPermission() {
        if (Build.VERSION.SDK_INT >= Build.VERSION_CODES.M) {
            if (!(ContextCompat.checkSelfPermission(this, Manifest.permission.RECORD_AUDIO) == PackageManager.PERMISSION_GRANTED)) {
                Intent intent = new Intent(Settings.ACTION_APPLICATION_DETAILS_SETTINGS,
                        Uri.parse("package:" + getPackageName()));
                startActivity(intent);
                finish();
            }
        }
    }


    class RetrieveFeedTask extends AsyncTask<String, Void, String> {

        private Exception exception;


        protected String doInBackground(String... dataA) {
            String data = dataA[0];
            String fullString = "";
            if (data.contains("Annunziata")) {
                URL url = null;
                try {
                    url = new URL("http", "192.168.1.110", "?");
                    InputStreamReader inputStreamReader = new InputStreamReader(url.openStream());
                    BufferedReader reader = new BufferedReader(inputStreamReader);
                    String line;
                    while ((line = reader.readLine()) != null) {
                        fullString += line;
                    }
                    reader.close();

                } catch (MalformedURLException e) {
                    e.printStackTrace();
                } catch (IOException e) {
                    e.printStackTrace();
                }

                if (data.contains("null")) {
                    fullString = fullString.split(",")[0];
                    return fullString;

                }
                if (data.contains("1")) {
                    fullString = fullString.split(",")[1];
                    return fullString;

                }
                if (data.contains("2")) {
                    fullString = fullString.split(",")[2];
                    return fullString;

                }
                if (data.contains("3")) {
                    fullString = fullString.split(",")[3];
                    return fullString;

                }
                if (data.contains("4")) {
                    fullString = fullString.split(",")[4];
                    return fullString;

                }
                if (data.contains("5")) {
                    fullString = fullString.split(",")[5];
                    return fullString;

                }
                if (data.contains("6")) {
                    fullString = fullString.split(",")[6];
                    return fullString;

                }
                if (data.contains("7")) {
                    fullString = fullString.split(",")[7];
                    return fullString;

                }
                if (data.contains("8") || data.contains("Wohnung")) {
                    fullString = fullString.split(",")[8];
                    return " in der Wohnung " + fullString;

                }
                if (data.contains("9") || data.contains("außen")) {
                    fullString = fullString.split(",")[9];
                    return " im freien " + fullString;

                }
                return data + "#";
            }
            if (data.contains("spieglein")){

                data="Frau Königin, Ihr seid die Schönste hier, Aber Schneewittchen ist tausendmal schöner als Ihr.";
                return data;
            }
            if (data.contains("Anlage")){
                data= "Der Potovoltaikertrag beträgt "+Modbus.getGesammtertrag()+ "Wattstunden";
                return data;
            }
            return data + "#";
        }

        protected void onPostExecute(String feed) {
            if (feed.contains("Königin") || feed.contains("Potovoltaikertrag") ){
                t1.speak(feed, TextToSpeech.QUEUE_FLUSH, null);
                return;
            }
            if (feed.endsWith("#")) {
                editText.setText(feed.replace('#', ' '));
                feed = antworttext2();
                t1.speak(feed, TextToSpeech.QUEUE_FLUSH, null);
                return;
            }
            editText.setText(feed);

            if (feed.length() > 0) {
                feed = "Die Temperatur beträgt" + feed + " Grad Celsius," + antworttext();
                t1.speak(feed, TextToSpeech.QUEUE_FLUSH, null);

            }
        }

        private String antworttext() {
            Random rnd = new Random();

            String ret = "";
            switch ((int) (rnd.nextFloat() * 4)) {
                case 0:
                    ret = " besten Dank für Ihre Nachfrage";
                    break;
                case 1:
                    ret = " es hat mich gefreut dir Auskunft zu geben";
                    break;
                case 2:
                    ret = " für weitere Fragen stehe ich gerne zur Verfügung";
                    break;
                case 3:
                    ret = " Es macht spass dir Auskunft zu geben";
                    break;
            }
            return ret;
        }

        private String antworttext2() {
            Random rnd = new Random();

            String ret = "";
            switch ((int) (rnd.nextFloat() * 5)) {
                case 0:
                    ret = " habe Frage nicht verstanden, Frage Annunziata";
                    break;
                case 1:
                    ret = " Bitte Frage wiederholen";
                    break;
                case 2:
                    ret = " Weiss leider keine Antwort auf deine Frage";
                    break;
                case 3:
                    ret = " das muoosch selber beantworta";
                    break;
                case 4:
                    ret = " Warum soll ich das wissen?";
                    break;
            }
            return ret;
        }


    }
}

Modbus

Java
Modbusanwendung für Sunny PV Portal
package com.example.relleum.speechtotext;

import java.io.BufferedOutputStream;
import java.io.DataInputStream;
import java.io.DataOutputStream;
import java.io.IOException;
import java.io.InputStream;
import java.io.InputStreamReader;
import java.io.OutputStream;
import java.io.OutputStreamWriter;
import java.net.InetAddress;
import java.net.MalformedURLException;
import java.net.Socket;
import java.net.URL;
import java.net.URLConnection;
import java.net.UnknownHostException;
import java.nio.ByteBuffer;
import java.nio.ByteOrder;

/**
 * Created by relleum on 10.12.17.
 */

public class Modbus {
    private InetAddress inetAddress;
    private  int port;
    private int transactionIdentifier=10;
    private int protocolIdentifier;
    private int messageLength;
    private int theUnitIdentifier=126;//126
    private int theFunctionCode;
    private int dataAddress;
    private int numberOfRegisters;

    Modbus(String aInetAdress, int aPort){
        try {
            inetAddress= InetAddress.getByName(aInetAdress);
            port=aPort;

        } catch (UnknownHostException e) {
            e.printStackTrace();
        }
    }

    public static String getGesammtertrag(){
        Modbus modbus= new Modbus("192.168.1.101",502);
        byte[] b=modbus.readData(40210,4);
        ByteBuffer byteBuffer= ByteBuffer.wrap(b);
        byteBuffer.asIntBuffer();
        byteBuffer.order(ByteOrder.BIG_ENDIAN);
        return Integer.toString(byteBuffer.getInt()*10);
    }

    public static void main(String [] args){


         System.out.println("Res read Data: "+ getGesammtertrag());

    }

    byte[] readData(int aStartingAddress,int aQuantityOfRegisters){
        aStartingAddress=aStartingAddress-1;
        ModbusRequest modbusRequest= new ModbusRequest();
        try {
            Socket socket= new Socket(inetAddress,port);
            DataInputStream dataInputStream= new DataInputStream(socket.getInputStream());
            DataOutputStream dataOutputStream= new DataOutputStream(socket.getOutputStream());
            byte[] bytes=new byte[12];
            // Transaction Identifier Hi
            bytes[0] = (byte) (0xff & (transactionIdentifier >> 8));
            //Transaction Identifier Lo
            bytes[1] = (byte) (0xff & transactionIdentifier);
            transactionIdentifier = transactionIdentifier > 127 ? 1 : transactionIdentifier + 1;
            transactionIdentifier++;
            //Protocol Identifier
            bytes[2] = 0;
            bytes[3] = 0;
            // Length
            short l = (short) (bytes.length - 7);
            bytes[4] = (byte) (0xff & (l >> 8));
            bytes[5] = (byte) (0xff & l);

            bytes[6] = (byte) (0xff & theUnitIdentifier);
            // Function Code
            bytes[7] = (byte) (0xff & 3);
            //Starting Address
            bytes[8] = (byte) (0xff & (aStartingAddress >> 8));
            bytes[9] = (byte) (0xff & aStartingAddress);
            //Quantity of Registers
            bytes[10] = (byte) (0xff & (aQuantityOfRegisters >> 8));
            bytes[11] = (byte) (0xff & aQuantityOfRegisters);
            dataOutputStream.write(bytes);
            System.out.println(bytes);
            for (int i = 0; i < bytes.length; i++) {
                System.out.print(bytes[i]);
                System.out.print(" ");

            }
            System.out.println();
            byte[] buffer=new byte[9];

            dataInputStream.readFully(buffer);
            System.out.println("TransactionIdentifier: "+modbusRequest.getTransactionIdentifier(buffer));
            System.out.println("ProtocolIdentifier:    "+modbusRequest.getProtocolIdentifier(buffer));
            System.out.println("Lenght:                "+modbusRequest.getLenght(buffer));
            System.out.println("Adress:                "+modbusRequest.getAdress( buffer));
            System.out.println("Funktion:                "+modbusRequest.getFunktion( buffer));
            System.out.println("Grösse:                "+modbusRequest.getGroesse( buffer));

            System.out.println();
            byte[] buf=new byte[modbusRequest.getGroesse(buffer)];
            dataInputStream.readFully(buf);
            for (int i = 0; i < buf.length; i++) {
                System.out.print(buf[i]);
                System.out.print(" ");

            }

            return buf;
        } catch (IOException e) {
            e.printStackTrace();
        }
        byte[] buffer=new byte[8];
        return buffer;
    }


    public class ModbusRequest {

        public  int getTransactionIdentifier(byte[] b) {
            return ((b[0] & 0xFF) << 8) | (b[1] & 0xFF);
        }

        public  int getProtocolIdentifier(byte[] b) {
            return ((b[2] & 0xFF) << 8) | (b[3] & 0xFF);
        }

        public  int getLenght(byte[] b) {

            return ((b[4] & 0xFF) << 8) | (b[5] & 0xFF);
        }

        public  int getAdress(byte[] b) {

            return (b[6] & 0xFF);
        }
        public  int getFunktion(byte[] b) {

            return (b[7] & 0xFF);
        }
        public  int getGroesse(byte[] b) {

            return (b[8] & 0xFF);
        }


    }

}

Credits

reteprelleum

reteprelleum

1 project • 4 followers

Comments
