Coolest Motion Detection Sensor Ever

Intro

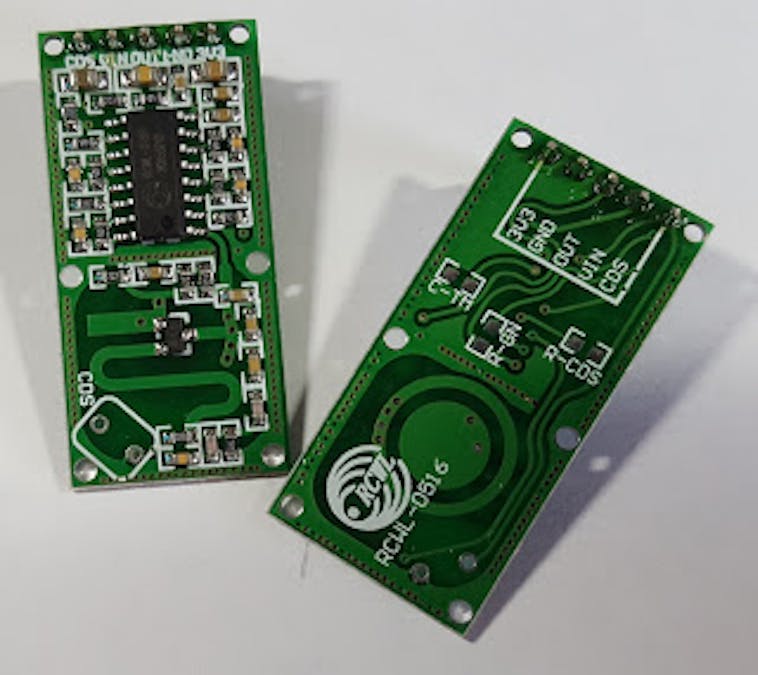

Ever want to build an alarm system? The RCWL-0516 is a human body motion detection sensor. A sensor that detects, through induction, human body movement. So it should only react if body movement is detected. Other moving objects should be ignored. How cool is that?

Wiring

Straight forward.

• GND => GND

• 5V => VIN

• D2 => OUT

Pin 3V3 on the RCWL-0516 is an output. And the CDS-pin you can attach a light sensor. I will cover it in a later video.

Videos

Wiring & Use

ESP & detection tests

Code

Seriously? You set the pin the RCWL-0516 is attached to as an input. And if you register a 'HIGH' signal, you do stuff. Watch the video. Coding is done in 2 minutes.

Q&A

Update 29-05-2017

This sensor seems to get quite a lot of attention. There are some questions that some of my viewers ask. Here is what I found out.

Q: Can you use the RCWL-0516 with an ESP8266? Or will you get random false positive results? A: I've done a short term test with the ESP8266 on a NodeMCU board. It seems to work just fine. The ESP greater Version 12-E is shielded and is FCC certified. So it should, by definition, not interfere with other electronics.  However, one viewer reported random false positive results on a long shot.

Q: Is the water in the human body responsible for the detection? A: Probably. I tested it with one empty and one water filled bottle. And even with a cat. And it seems that the bigger the object the further away it can be detected.

Q: Can it be mounted mobile to detect persons?  A: No. The sensor seems to be quite sensible to movement itself. Any movement of the sensor itself seems to trigger the output.

Q: Does the radiation of the sensor harm you in long term? A: No. The Sensor uses about 30 milliwatts (mW). The radiation output is limited to that value. That is far less than your smartphone emits.
