// Version 1.0.0 ALPHA - May 15 2020 - UniMatrix Technologies Coil Winder - rrichter@unimatrixtech.com.
// Please keep in mind that I'm quite busy and may take time before I answer my emails.

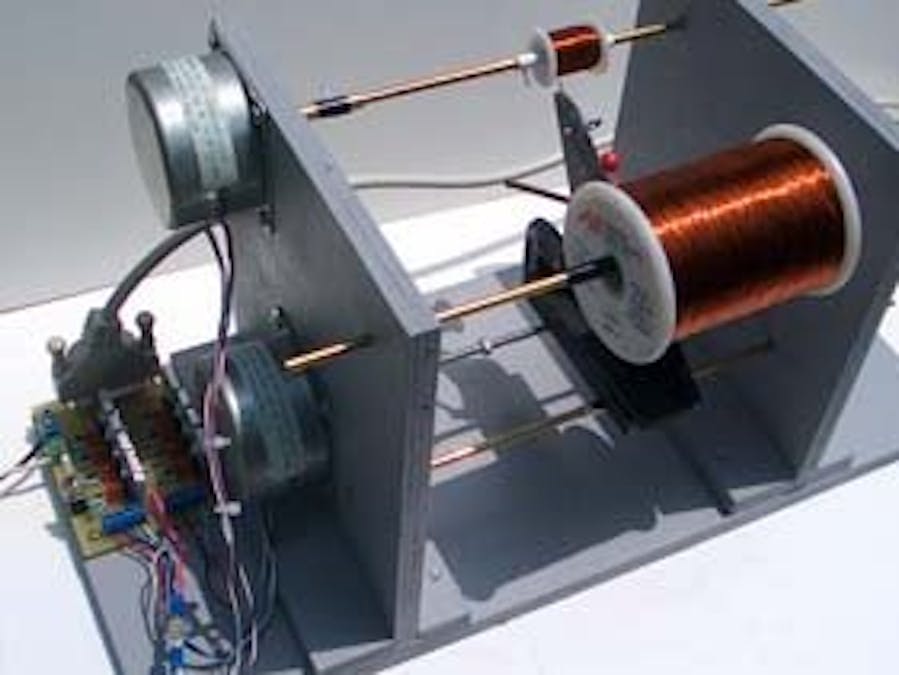

// Multi Size Wire Coil Winder
// NOT TESTED ON ACTUAL MACHINE - JUST THE MOTORS HAVE BEEN TESTED ********************************************
// This work is licensed under a Creative Commons Attribution-ShareAlike 3.0 Unported License.
// This is the Arduino side of the Coil Winder Project written by Ray Richter of Unimatrix Technologies
// The Widows side was written also by Ray Richter in C#.
// This Arduino code is ment to be used with 2 TB6600 stepper controlers and 2 Nema 17 stepper motors.
// The winder motor is a 1:1 ratio but can have up to 6400 steps per revolution or 0.05625 degrees of rotation per pulse.
// The carriage motor drives a 10/32(TPI) threaded rod and at 6400 pulses per rev gives a resolution of 0.0000048828".
// at 200 pulses per rev (the lowest step count) it gives a resolution of 0.00015625".
//If using metric - example:
//Threaded rod's pitch = 2 mm. This means that one revolution will move the nut 2 mm.
//Default stepping = 400 step/revolution.
// 400 step = 1 revolution = 8 mm linear motion. (4 start 2 mm pitch screw)
// 1 cm = 10 mm =>> 10/8 * 400 = 4000/8 = 500 steps are needed to move the nut by 1 cm.
#include <AccelStepper.h>
#include <MultiStepper.h>
#include <stdio.h> // for function sprintf
#include <EEPROM.h>
// Size of the incoming serial char array **** NOT OPTIMIZED ****
const byte numChars = 100;
// temporary array for use by strtok() function
char tempChars[numChars];
// variables to hold the parsed data
char receivedCommand[numChars] = {0};
// SET STEPPER TYPE and pins
AccelStepper winder(AccelStepper::DRIVER, 4, 5);;// pulses Digital D4 (CLK), direction Digital D5 (DIR) 1 = AccelStepper::DRIVER 2 pin setup for the TB6600 and similar
AccelStepper carriage(AccelStepper::DRIVER, 8, 9);; // pulses Digital D8 (CLK), direction Digital D9 (DIR) 1 = AccelStepper::DRIVER 2 pin setup for the TB6600 and similar
//User-defined values
// Variables used gobaly
bool BOLcarLeft = false; // Allow deny movig the carriage left
bool BOLcarRight = false; // Allow deny movig the carriage right
unsigned long carMax; // SETS Max carriage steps to the right
short carMin = 0; // SETS Max carriage steps to the left
long carTempPos = 1; // Temp variable for the carriage position
bool Coil_Build = false; // Allow/deny coil building
unsigned long curPosition_C; // The current carriage position
unsigned long curPosition_W = 0; // The current winder position
unsigned long Home_Position = 0; // The current carriage position BEFORE SETTING the HOME position
int inTempPos = 0; // Temp variable for the carriage position
unsigned int LayerCount = 0; // Count of the number of layers made
unsigned long limSwRight_Pos = 0; // Limit Switch Right Steps Position
unsigned long limSwLeft_Pos = 0; // Limit Switch Left Steps Position
int limSwtLeft = 11; // Pin number of the Left Limit Switch
int limSwtRight = 12; // Pin number of the Right Limit Switch
bool newData = false; // Whether or not there is new data from serial
long PulsesPerLayer_Winder = 0; // Pulses/Steps Per Layer Winder
char receivedChars[numChars]; // The received Characters Array
long receivedSteps = 0; // Number of steps
long receivedSpeed = 0; // Speed or Steps/second
long receivedAcceleration = 0; // Accel Rate Steps/second^2
bool runallowed = false; // runallowed flag
long StepCount = 0; // Count Winder steps for the ratio
int winder_direction = 1; // (= 1: positive direction), (= -1: negative direction) used with radBtnDir
unsigned int WindCount = 0; // Used for the Windings per layer counter
long windings_x = 0; // The number of total winder steps for a given coil
long WindCountTotal = 0; // Keeps track of the total windings made
//SETTINGS - These are sent once to set the coil specs ------------------------------------------------------------------------------------------------
//String unicodeString = StartS + Sts + "," + strPPR_WindingM + "," + dblPPR_C + "," + PPWind_C + "," + WPLayer + "," + STEP_RATIO + "," + PPLayer_C + "," + Speed + "," + Accel + "," + radBtnDir + "," + PPI + "," + EndS;
// or < S or C or t , 800 , 800 , 143 , 218 , 6 , 31174 , 650 , 400 , CW or CCW , 6400 , >
// In order of transmission.
String inType = ""; // Type of input
int PPR_WindingM = 0; // Winder Pulses per rev
int PPR_C = 0; // Carriage Pulses Per rev
float PPWind_C = 0; // Carriage Pulses Per Winding
float WPLayer = 0; // WINDINGS PER LAYER
float STEP_RATIO = 0; // Winder to Carriage stepper ratio
float PPLayer_C = 0; // Carriage steps per layer
int Speed = 0; // Speed Motors
int Accel = 0; // Acceleration
String radBtnDir = ""; // Direction
float PPI; //PULSEs PER INCH
long NWnum = 0; //Number of windings
int CalLayers = 0; //Number of layers
//-------------------------------------------------------------------------
//COMMANDS - These can be sent anytime INDIVIDUALLY SENT!
//Winder Motor Enable, Carriage Motor Enable, Left, Right, Pause, Continue, Wind_1_rev, Set_home, Start, Stop, Terminate/Clear, Status of positions
// Inorder of Received
int Lft; // Jog/move carriage Left until pause, stop, limit switch, or set home
int Rit; // Jog/move carriage Rightt until pause, stop, limit switch, or set home
int Pas; // Pause
int Con; // Continue
int W1r; // Wind_1_revolution
int Sth; // Set_home position, start of coil
int Str; // Start the build
int Stp; // Stop
int Clr; // Terminate/Clear zero-out everything but carriage position
int Sts; // Status of positions
//-------------------------------------------------------------------------------------
// STATUS / INDIACATORS - Sent when needed back to the computer(PC)
//indOUT, WME, CME, LED_left, LED_right, LED_paused, LED_H_set, W_PULSE, C_PULSE, WOWINDING, WOLAYER
//eg. I,100111,######,### this what is sent to PC
// In order of transmission.
String indOUT = "I"; // Indiacator data sent to the PC
String STSout = "S"; // Status data sent to the PC
String WME = "0"; // Winder Motor Enable
String CME = "0"; // Carriage Motor Enable
String LED_left = "0"; // The LED indiacators are either a "0" or a "1" and sent to the PC
String LED_right = "0"; //
String LED_paused = "0"; //
String LED_H_set = "0"; // Set home LED, sent to the PC
String W_PULSE = "0"; // Winder pulse count
String C_PULSE = "0"; // Carriage pulse count
char WOWINDING[10]; // Character array for Workin On Winding count
char WOLAYER[5]; // Character array for Workin On Layer count
//========================================================================================================================
void setup()
{
// EEPROM Locations and values:
// '0' position of Winder
// '4' position of Carriage
// '8' calculated value of carMax
// '12' Home_Position or start of the bobbin
// '16' limSwRight_Pos
// '20' limSwLeft_Pos
// '24' NWnum - Number of total windings
// initialize digital pin LED_BUILTIN as an output.
pinMode(LED_BUILTIN, OUTPUT); // Just for fun
pinMode(limSwtLeft, INPUT_PULLUP); // PIN D11 USING INTERNAL PULL-UPS
pinMode(limSwtRight, INPUT_PULLUP); // PIN D12 USING INTERNAL PULL-UPS
winder.setEnablePin(6); // D6 ENABLE WINDER
carriage.setEnablePin(10); // D10 ENABLE CARRIAGE
winder.setMaxSpeed(5000); //SPEED = Steps / second ***DEFAULT*** JUST ENCASE
winder.setAcceleration(650); //ACCELERATION = Steps /(second)^2 ***DEFAULT*** JUST ENCASE
winder.disableOutputs(); //disable outputs
carriage.setMaxSpeed(5000); //SPEED = Steps / second ***DEFAULT*** JUST ENCASE
carriage.setAcceleration(650); //ACCELERATION = Steps /(second)^2 ***DEFAULT*** JUST ENCASE
carriage.disableOutputs(); //disable outputs
unsigned int minWidth = 20;
winder.setMinPulseWidth(minWidth); // self explanitory
carriage.setMinPulseWidth(minWidth); // self explanitory
EEPROM.get(0, curPosition_W); // Get stored winder Position
winder.setCurrentPosition(curPosition_W); // Set winder Position
delay(20); // Give EEPROM time to do it's job
EEPROM.get(4, curPosition_C); // Get stored carriage Position
carriage.setCurrentPosition(curPosition_C); // Set carriage Position
delay(20);
EEPROM.get(8, carMax); // Get stored carMax Position
delay(20);
EEPROM.get(12, Home_Position);
delay(20);
EEPROM.get(16, limSwRight_Pos);
delay(20);
EEPROM.get(20, limSwLeft_Pos);
delay(20);
limSwRight_Pos = 179200; //++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++ TO BE REMOVED ONCE THE WINDER STAND IS BUILT
limSwLeft_Pos = 0; //++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++ TO BE REMOVED ONCE THE WINDER STAND IS BUILT
EEPROM.get(24, NWnum);
delay(20);
Serial.begin(115200);
while (!Serial)
{
; // wait for serial port to connect. Needed for native USB port only
}
}
// MAIN PROGRAM LOOP =======================================================================================================
void loop()
{
// Check for new serial coms
checkSerial();
// this temporary copy is necessary to protect the original data
// because strtok() replaces the commas with \0
if (newData == true)
{
strcpy(tempChars, receivedChars);
parseData();
newData = false;
}
//function to handle the motor
RunTheMotor();
}
//CHECKS to see if anything is in the receive buffer =======================================================================================================
void checkSerial()
{
static boolean recvInProgress = false;
static byte ndx = 0;
char startMarker = '<';
char endMarker = '>';
char rc;
// While the serial port is available and no work is being done
while (Serial.available() > 0 && newData == false) //
{
// Read the serial buffer
rc = Serial.read();
if (recvInProgress == true)
{
// Not at the end of the message
if (rc != endMarker)
{
// Store characters in the array
receivedChars[ndx] = rc;
ndx++;
if (ndx >= numChars)
{
ndx = numChars - 1;
}
}
else
{
receivedChars[ndx] = '\0'; // terminate the string
recvInProgress = false;
ndx = 0;
newData = true;
}
}
else if (rc == startMarker)
{
recvInProgress = true;
}
}
}
//PARSE RECEIVED DATA BY GROUP ====================================================================================================
void parseData()
{
// split the data into its parts
char * strtokIndx; // this is used by strtok() as an index
strtokIndx = strtok(tempChars,","); // get the first part - the string
strcpy(receivedCommand, strtokIndx); // copy it to message
inType = receivedCommand; //char to string
if(inType == "S") // SETTINGS GROUP
{
Parse_Type_S(); // Go to the parse settings function
newData = false; // Work is done
return; // Go back to the calling function
}
if(inType == "C") // COMMANDS GROUP
{
Parse_Type_C(); // Go to the parse commands function
newData = false; // Work is done
return; // Go back to the calling function
}
if(inType == "t") // COM TEST reply
{
Serial.println("CONNECTION IS GOOD");
newData = false;
return;
}
}
// splits the SETTINGS into its parts ===============================================================================================================================
void Parse_Type_S()
{
// this is used by strtok() as an index
char * strtokIndx;
strtokIndx = strtok(NULL, ","); // this continues where the previous call left off
// Winder Pulses per rev
PPR_WindingM = atoi(strtokIndx); // atoi convert this part to an integer
// Carriage Pulses Per rev
strtokIndx = strtok(NULL, ",");
PPR_C = atoi(strtokIndx); // atoi convert this part to an integer
// Carriage Pulses Per Winding
strtokIndx = strtok(NULL, ",");
PPWind_C = atof(strtokIndx); // atof convert this part to a float
// WINDINGS PER LAYER
strtokIndx = strtok(NULL, ",");
WPLayer = atof(strtokIndx); // atof convert this part to a float
// WINDER TO CARRIAGE RATIO
strtokIndx = strtok(NULL, ",");
STEP_RATIO = atof(strtokIndx); // atof convert this part to a float
// Carriage steps(Pulses) per layer
strtokIndx = strtok(NULL, ",");
PPLayer_C = atof(strtokIndx); // atof convert this part to a float
//Motor speed
strtokIndx = strtok(NULL, ",");
Speed = atoi(strtokIndx); // atoi convert this part to an integer
winder.setMaxSpeed(Speed); //set speed
carriage.setMaxSpeed(Speed); //set speed
//Motor Acceleration Rate
strtokIndx = strtok(NULL, ",");
Accel = atoi(strtokIndx); // atoi convert this part to an integer
winder.setAcceleration(Accel); //update the value of the variable
carriage.setAcceleration(Accel); //update the value of the variable
//Direction Control for the coil Winder
strtokIndx = strtok(NULL, ",");
radBtnDir = (strtokIndx); // convert this part to a string
if (radBtnDir == "0")
{
winder_direction = -1; // Move winder CCW
}
if (radBtnDir == "1")
{
winder_direction = 1; // Move winder CW
}
// Carriage Pulse Per Inch - USED to set the max width encase of limit switch failure >> Hopefully
strtokIndx = strtok(NULL, ",");
PPI = atof(strtokIndx);
carMax = 6 * PPI; // Set carMax for a 7" inch long winder shaft or the useful work area, this allows for 1" space for the limit switches
EEPROM.put(8, carMax); // Put or store the carMax Position
delay(20);
newData = false;
// Number of WINDINGS
strtokIndx = strtok(NULL, ",");
NWnum = atol(strtokIndx); // atol convert this part to a long
EEPROM.put(24, NWnum); // Put or store the Total Number of Windings (NWnum)
delay(20);
newData = false;
// Number of LAYERS
strtokIndx = strtok(NULL, ",");
CalLayers = atoi(strtokIndx); // atoi convert this part to an integer
EEPROM.put(28, CalLayers); // Put or store the Total number of Calculated Layers (CalLayers)
delay(20);
newData = false;
return;
}
// PARSE THE RECEIVED COMMANDS ===================================================================================================================================
void Parse_Type_C()
{
// split the COMMANDS into its parts
char * strtokIndx; // this is used by strtok() as an index
strtokIndx = strtok(NULL, ","); // this continues where the previous call left off
strcpy(receivedCommand, strtokIndx); // Split the bytes into an indexed array using the "," seperator
//LEFT JOG SETUP - move carriage Left until pause, stop, Limit Switches, or set home
if(strcmp(receivedCommand, "Lft") == 0)
{
winder.disableOutputs(); // disable winder
carriage.enableOutputs(); // disable carriage
EEPROM.get(4, curPosition_C); // Get stored carriage Position
carriage.setCurrentPosition(curPosition_C); // Set the carriage Current Position to curPosition_C value
carriage.moveTo(-carMin); // Move carriage to the negative/CCW rotation towards 0/carMin
carriage.setMaxSpeed(Speed);
carriage.setAcceleration(Accel); //5000
// Allow the carriage to move left ++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++ ADD IN THE LIMIT SWITCH
runallowed = true;
BOLcarLeft = true;
WME = "0";
CME = "1";
LED_left = "1";
LED_right = "0";
LED_paused = "0";
LED_H_set = "0";
Send_Status(); // Send the Status values to the PC **** Send_Status() is at the bottom of this code ****
Send_Progess(); // Send the Progess values to the PC **** Send_Progess() is at the bottom of this code ****
newData = false;
// Carriage is all the way LEFT - STOP IT
if (curPosition_C <= 0)
{
carriage.disableOutputs();
Serial.print("<= 0 carMin - Carriage is all the way LEFT");
Serial.println(carMax);
delay(50);
carriage.setCurrentPosition(0);
curPosition_C = carriage.currentPosition();
EEPROM.put(4, curPosition_C);
delay(20);
CME = "0";
LED_left = "0";
Send_Status();
// THE USB PORT NEEDS A BIT OF TIME TO TX THE DATA
delay(20);
Send_Progess();
delay(20);
BOLcarLeft = false;
newData = false;
return; // Return to main loop
}
else
{
return; // Return to main loop and allow the Carriage to move LEFT
}
return; // Return to main loop if we are here by mistake
}
//RIGHT JOG SETUP - move carriage Right until pause, stop, Limit Switches, or set home
if(strcmp(receivedCommand, "Rit") == 0)
{
winder.disableOutputs();
carriage.enableOutputs();
EEPROM.get(4, curPosition_C);
carriage.setCurrentPosition(curPosition_C);
carriage.moveTo(carMax);
carriage.setMaxSpeed(Speed);
carriage.setAcceleration(5000); //Accel
// Allow the carriage to move RIGHT ++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++ ADD IN THE LIMIT SWITCH
runallowed = true;
WME = "0";
CME = "1";
LED_left = "0";
LED_right = "1";
LED_paused = "0";
LED_H_set = "0";
Send_Status();
Send_Progess();
BOLcarLeft = false;
BOLcarRight = true;
newData = false;
runallowed == true;
// Carriage is all the way RIGHT - STOP IT
if (carriage.currentPosition() >= carMax)
{
carriage.disableOutputs();
Serial.println("Carriage is all the way RIGHT");
delay(20);
curPosition_C = carriage.currentPosition();
EEPROM.put(4, curPosition_C);
delay(20);
CME = "0";
LED_right = "0";
Send_Status();
delay(20);
Send_Progess();
delay(20);
newData = false;
return;
}
else
{
return;
}
return;
}
// Pause both motors
if(strcmp(receivedCommand, "Pas") == 0)
{
// Disable the motors
// Store there positions just encase we decide to cancel the build
winder.disableOutputs(); //disable outputs
carriage.disableOutputs(); //disable outputs
EEPROM.put(0, curPosition_W);
delay(20);
curPosition_C = carriage.currentPosition();
EEPROM.put(4, curPosition_C);
delay(20);
curPosition_W = winder.currentPosition();
LED_paused = "1";
Send_Status();
delay(20);
Send_Progess();
delay(20);
newData = false;
return;
}
// Continue - let the Motors conitue
if(strcmp(receivedCommand, "Con") == 0)
{
winder.enableOutputs();
carriage.enableOutputs();
LED_paused = "0";
Send_Status();
delay(20);
Send_Progess();
delay(20);
newData = false;
return;
}
// Wind 1 Revolution for 2 reasons, 1 last chance to align before buildig the coil, 2 tightens the wire on to the bobbin
if(strcmp(receivedCommand, "W1r") == 0)
{
StepCount = 0;
winder.enableOutputs();
carriage.enableOutputs();
// inTempPos = Direction multiplied by Pulses Per Revolution of Winder Motor which was calculated on the PC. Positive inTempPos (Position) is CW rotation
inTempPos = winder_direction * PPR_WindingM;
//Just encase the winder is not at 0
if (winder.currentPosition() > 0)
{
inTempPos = inTempPos + PPR_WindingM;
}
winder.moveTo(inTempPos); // Move 200, 800, or whatever steps per rev you setup in the PC
// Slow winding
winder.setMaxSpeed(250);
winder.setAcceleration(0);
// Set the speed of the carriage by using the calculated STEP_RATIO from the PC
inTempPos = Speed/STEP_RATIO;
carriage.setSpeed(inTempPos);
carriage.setAcceleration(Accel); // setAcceleration(Accel) doesn't work with setSpeed but, this doesn't both it
runallowed = true;
WME = "1";
CME = "1";
Send_Status();
delay(20);
Send_Progess();
delay(20);
// Call the Wind-1-rev function **** NOT USING THE RunTheMotor(); FUNCTION HERE ****
Wind1rev();
// New winder and carriage position
curPosition_W = winder.currentPosition();
curPosition_C = carriage.currentPosition();
EEPROM.put(0, curPosition_W); // Store new winder position
delay(20);
// Reset speed & accel vales
winder.setMaxSpeed(Speed); //set speed
carriage.setMaxSpeed(Speed); //set speed
winder.setAcceleration(Accel); //update the value of the variable
carriage.setAcceleration(Accel); //update the value of the variable
runallowed = false;
WME = "0";
CME = "0";
LED_left = "0";
LED_right = "0";
LED_paused = "0";
Send_Status();
Send_Progess();
newData = false;
return;
}
//HOME POSITION - Sets the start of coil position
if(strcmp(receivedCommand, "Sth") == 0)
{
winder.disableOutputs(); //disable outputs
carriage.disableOutputs(); //disable outputs
// Set the winder & carriage
curPosition_W = winder.currentPosition();
winder.setCurrentPosition(0);
Home_Position = carriage.currentPosition(); // carriage home position in real carriage position (steps), need to restore this value after coil is built
EEPROM.put(12, Home_Position);
delay(20);
carriage.setCurrentPosition(0); // Set current position to new "new home" or start of bobbin.
curPosition_C = carriage.currentPosition(); // Set the variable curPosition_C to the current position "new home" or start of bobbin.
EEPROM.put(0, curPosition_W); // Store winder position
delay(20);
EEPROM.put(4, curPosition_C); // Store carriage position
delay(20);
// Get things ready to wind 1 rev
WindCount = 0;
LayerCount = 0;
LED_H_set = 1;
WME = "0";
CME = "0";
LED_left = "0";
LED_right = "0";
LED_paused = "0";
Send_Status();
Send_Progess();
newData = false;
return;
}
//Start building the coil using values sent from the PC
if(strcmp(receivedCommand, "Str") == 0)
{
winder.enableOutputs();
carriage.enableOutputs();
Coil_Build = true;
runallowed = true;
WindCount = 1;
LayerCount = 1;
// The total winding count
WindCountTotal = 1;
// windings_x is the total steps needed to build the coil, (WPLayer) Windings Per Layer, (CalLayers) Total Layers Required, (PPR_WindingM) Winder Pulses per rev
// had to use the long() convert for this to work
windings_x = long(WPLayer) * winder_direction * long(CalLayers) * long(PPR_WindingM); //long(x)
PulsesPerLayer_Winder = long(WPLayer) * long(PPR_WindingM);
// I explained most of this earlier
winder.moveTo(windings_x);
winder.setMaxSpeed(Speed);
winder.setAcceleration(Accel); // 6000
// IT'S IMPORTANT THAT THE SEQUENCE BELOW IS IN THE RIGHT ORDER TO WORK *********************************************
carriage.moveTo(PPLayer_C); //PulsesPerLayer_Winder/STEP_RATIO
inTempPos = Speed/STEP_RATIO;
carriage.setSpeed(inTempPos);
carriage.setAcceleration(Accel); // 6000
WME = "1";
CME = "1";
LED_left = "1";
LED_right = "0";
LED_paused = "0";
Send_Status();
Send_Progess();
newData = false;
return;
}
// STOP - Disable the motors
if(strcmp(receivedCommand, "Stp") == 0)
{
runallowed = false;
winder.disableOutputs(); //disable outputs
carriage.disableOutputs(); //disable outputs
WME = "0";
CME = "0";
LED_left = "0";
LED_right = "0";
LED_paused = "0";
LED_H_set = "0";
Send_Progess();
newData = false;
return;
}
// TERMINATE/CLEAR - Sent form the TERMINATE BUTTON on the PC - Stop everything now and Reset Everything including positions except max and min limits
if(strcmp(receivedCommand, "Clr") == 0)
{
// Sets a new target position that causes the stepper to stop as quickly as possible, using the current speed and acceleration parameters.
// NOT THE SAME AS disableOutputs()
winder.stop(); //disable outputs
carriage.stop(); //disable outputs
WME = "0";
CME = "0";
LED_left = "0";
LED_right = "0";
LED_paused = "0";
LED_H_set = "0";
WindCount = 0;
LayerCount = 0;
WindCountTotal = 0;
winder.setCurrentPosition(0);
EEPROM.put(0, 0); //winder zeroed out
delay(20);
curPosition_W = 0;//Clear the bobbin start position
//restore the carriage.currentPosition to the saved True position **************************************
EEPROM.get(12, Home_Position);
delay(20);
curPosition_C = Home_Position;
carriage.setCurrentPosition(curPosition_C);
EEPROM.put(4, curPosition_C);
delay(20);
////////////////////////////////////////////////////////////////////////////////////////////////////////
EEPROM.put(24, 0); //Clear the total number of windings required - NWnum
delay(20);
Serial.print("Cleared ");
Serial.println(Clr);
delay(20);
Send_Status();
Send_Progess();
newData = false;
return;
}
// Status Call for Winder and Carriage Positions
if(strcmp(receivedCommand, "Sts") == 0)
{
Send_Status();
return;
}
// LIMIT SWITCHES - Call to Cycle Carriage motor RIGHT & LEFT to get the Limit Switches Positions. Called from PC.
if(strcmp(receivedCommand, "Cyc") == 0)
{
Cycle_LimitS();
return;
}
}
//========================================================================================================================================================================
//===============================================================================ROUTINES/FUNCTIONS=======================================================================
// BUILD the COIL from the calculated values from the PC
void Build_Coil()
{
winder.run();
carriage.runSpeed(); // I can use runSpeed for the carriage because the drive rod is 32 threads per inch or about 153,600 steps for 6" of travel at 800 steps per rev.
StepCount = StepCount + 1;
// The Winding counter
if (StepCount >= PPR_WindingM)
{
WindCount = WindCount + 1;
WindCountTotal = WindCountTotal + 1;
StepCount = 0;
}
// Have we made the number of windings for 1 LAYER, if yes reverse direction & and reset windings count
if(WindCount >= WPLayer && inTempPos > 0)
{
winder.disableOutputs(); //disable outputs
carriage.disableOutputs(); //disable outputs
WindCount = 0;
LayerCount = LayerCount + 1;
curPosition_W = winder.currentPosition();
curPosition_C = carriage.currentPosition();
LED_left = "0";
LED_right = "1";
Send_Status();
Send_Progess();
delay(1000); // a nice pause
winder.enableOutputs();
// IT'S IMPORTANT THAT THE SEQUENCE BELOW IS IN THE RIGHT ORDER TO WORK *********************************************
// seems to need this reset
carriage.moveTo(0);
inTempPos = Speed/STEP_RATIO;
carriage.setSpeed(-inTempPos);
carriage.enableOutputs();
return;
}
// Are we at the starting point of the coil, if yes reverse direction & and reset windings count
if(carriage.currentPosition() <= 0)
{
winder.disableOutputs();
carriage.disableOutputs();
WindCount = 0;
LayerCount = LayerCount + 1;
curPosition_W = winder.currentPosition();
curPosition_C = carriage.currentPosition();
LED_left = "1";
LED_right = "0";
Send_Status();
Send_Progess();
delay(1000);
winder.enableOutputs();
carriage.moveTo(PPLayer_C);
inTempPos = Speed/STEP_RATIO;
carriage.setSpeed(inTempPos);
carriage.enableOutputs();
return;
}
// Have we made the number of windings needed, if YES stop building and send carriage back to the start position if needed "GoHome() function"
if(WindCountTotal >= NWnum)
{
GoHome();
Serial.println("FINISHED BUILDING COIL ");
winder.disableOutputs(); //disable outputs
carriage.disableOutputs(); //disable outputs
runallowed = false;
BOLcarLeft == false;
BOLcarRight = false;
Coil_Build = false;
WME = "0";
CME = "0";
LED_left = "0";
LED_right = "0";
LED_paused = "0";
LED_H_set = "0";
curPosition_W = winder.currentPosition();
//restore the carriage.currentPosition to the saved True position **************************************
EEPROM.get(12, Home_Position);
delay(20);
curPosition_C = Home_Position;
carriage.setCurrentPosition(curPosition_C);
EEPROM.put(4, curPosition_C);
delay(20);
////////////////////////////////////////////////////////////////////////////////////////////////////////
Send_Status();
Send_Progess();
delay(1000);
return;
}
return;
}
// Move carriage Left until pause, stop, Limit Switch, or set home
void carLeft()
{
if (runallowed == true && (carriage.currentPosition() >= carMin)) //allow running - this allows entering the carriage.run() function.
{
checkSerial();
carriage.run();
// Check to see if the limit switch is closed, grounding the pin 11, once per step - STOP and store postion if low
if (digitalRead(limSwtLeft) == LOW)
{
// limit switch is closed
carriage.disableOutputs();
// Store Left Limit Position
limSwLeft_Pos = carriage.currentPosition();
EEPROM.get(20, limSwLeft_Pos);
delay(20);
// Store where we are
carriage.setCurrentPosition(0);
curPosition_C = carriage.currentPosition();
EEPROM.put(4, curPosition_C);
// Stop running
runallowed = false;
BOLcarLeft = false;
carMin = 0;
CME = "0";
LED_left = "0";
Send_Status();
Send_Progess();
Serial.println("carriage is at LEFT ZERO " + carriage.currentPosition());
delay(20);
}
}
else
{
// Are we at the new 0 location, if so stop and set position
if(carriage.currentPosition() <= carMin)
{
carriage.disableOutputs();
carMin = 0;
CME = "0";
LED_left = "0";
carriage.setCurrentPosition(0);
curPosition_C = 0;
EEPROM.put(4, curPosition_C);
delay(20);
Send_Status();
Send_Progess();
Serial.println("carriage is at LEFT ZERO " + carriage.currentPosition());
delay(20);
}
else
{
// Just encase we got here by mistake
runallowed = false;
BOLcarLeft = false;
//carriage.stop();
carriage.disableOutputs();
CME = "0";
LED_left = "0";
Serial.println("Outputs Disabled RUN NOT ALLOWED");
delay(20);
Send_Status();
delay(20);
Send_Progess();
delay(20);
}
}
}
// move carriage Right until pause, stop, limit Switch, or set home =============================================================================
// SAME AS THE carLEFT FUNCTION - EXCEPT OTHER DIRECTION
void carRight()
{
if (runallowed == true && (carriage.currentPosition() <= carMax)) //allow running - this allows entering the carriage.run() function.
{
checkSerial();
carriage.run();
if (digitalRead(limSwtRight) == LOW)
{
// limit switch is closed - STOP and store postion if pin 12 is low
carriage.disableOutputs();
runallowed = false;
BOLcarRight = false;
limSwRight_Pos = carriage.currentPosition();
EEPROM.put(16, limSwRight_Pos);
delay(20);
runallowed = false;
CME = "0";
LED_right = "0";
curPosition_C = limSwRight_Pos; //carriage.currentPosition();
EEPROM.put(4, curPosition_C);
delay(20);
Send_Status();
Send_Progess();
}
}
else
{
if(carriage.currentPosition() >= carMax)
{
runallowed = false;
BOLcarRight = false;
carriage.disableOutputs();
Serial.println("carriage is at carMax");
delay(20);
CME = "0";
LED_right = "0";
curPosition_C = carMax;
EEPROM.put(4, curPosition_C);
delay(20);
Send_Status();
Send_Progess();
}
else
{
runallowed = false;
BOLcarRight = false;
//carriage.stop();
carriage.disableOutputs();
CME = "0";
LED_right = "0";
curPosition_C = carriage.currentPosition();
EEPROM.put(4, curPosition_C);
delay(20);
Serial.println("Outputs Disabled RUN NOT ALLOWED");
delay(20);
Send_Status();
Send_Progess();
}
}
}
//function for RUNNING the motors - CALLED FROM MAIN LOOP ==========================================================================================
void RunTheMotor()
{
if (runallowed == true)
{
checkSerial();
if (BOLcarLeft == true && carriage.currentPosition() > limSwLeft_Pos)
{
//step the motor LEFT (this will step the motor by 1 step at each loop)
carLeft();
return;
}
if (BOLcarRight == true && carriage.currentPosition() < limSwRight_Pos)
{
//step the motor RIGHT (this will step the motor by 1 step at each loop)
carRight();
return;
}
if(Coil_Build = true)
{
Build_Coil();
}
if (BOLcarLeft == false && BOLcarRight == false)
{
return;
}
}
//program enters this part if the runallowed is FALSE, we do not do anything
else
{
runallowed = false;
BOLcarLeft == false;
BOLcarRight = false;
winder.disableOutputs(); //disable outputs
carriage.disableOutputs(); //disable outputs
return;
}
}
// Sends the Carriage to the Home Position when coil is done ================================================================================================
void GoHome()
{
for(int i = 0; i <= 5; i++) // Just for fun
{
digitalWrite(LED_BUILTIN, HIGH); // turn the LED on (HIGH is the voltage level) ************ FOR FEEDBACK TO PC USE ***************
delay(500); // wait for a second
digitalWrite(LED_BUILTIN, LOW); // turn the LED off by making the voltage LOW
delay(500); // wait for a second ************ FOR FEEDBACK TO PC USE ***************
}
if (carriage.currentPosition() == 0)
{
Serial.println("We are at the home position.");
winder.disableOutputs(); //disable power
carriage.disableOutputs(); //disable power
WME = "0";
CME = "0";
runallowed = false;
Send_Status();
Send_Progess();
}
else
{
winder.disableOutputs(); //disable power
carriage.setMaxSpeed(400); //set speed manually to 400. In this project 400 is 400 step/sec = 1 rev/sec.
carriage.enableOutputs(); //enable pins
WME = "0";
CME = "1";
carriage.moveTo(0); //set abolute distance to move
CME = "0";
Send_Status();
Send_Progess();
}
}
// Winds 1 winding on the bobbin ============================================================================================
void Wind1rev()
{
if (runallowed == false)
{
winder.disableOutputs();
carriage.disableOutputs();
Serial.println("Outputs Disabled RUN NOT ALLOWED");
WME = "0";
CME = "0";
WindCount = 0;
LayerCount = 0;
Send_Status();
Send_Progess();
return;
}
if (runallowed == true)
{
Send_Progess();
do
{
winder.run();
StepCount = StepCount + 1;
if (StepCount >= STEP_RATIO)
{
carriage.move(carTempPos);
carriage.runSpeed();
carTempPos = carTempPos + 1;
StepCount = 0;
}
if(winder.currentPosition() == inTempPos)
{
runallowed == false;
winder.disableOutputs();
carriage.disableOutputs();
carTempPos = 0;
WME = "0";
CME = "0";
curPosition_W = winder.currentPosition();
EEPROM.put(0, curPosition_W);
delay(20);
curPosition_C = carriage.currentPosition();
EEPROM.put(4, curPosition_C);
delay(20);
WindCount = WindCount + 1;
WindCountTotal = WindCountTotal + 1;
LayerCount = 1;
Send_Status();
Send_Progess();
delay(500);
break;
}
} while(winder.currentPosition() != inTempPos);
return;
}
}
//Cycles the Carriage to find the Limit Switches and store their position values ==========================================================================
void Cycle_LimitS()
{
{
winder.disableOutputs();
carriage.enableOutputs();
// Get the carriage position
EEPROM.get(4, curPosition_C);
carriage.setCurrentPosition(curPosition_C);
// Are we at less than Max right, if so move to Max right
if (curPosition_C <= carMax)
{
carriage.moveTo(carMax);
carriage.setMaxSpeed(Speed);
carriage.setAcceleration(Accel);
WME = "0";
CME = "1";
LED_left = "0";
LED_right = "1";
LED_paused = "0";
LED_H_set = "0";
Send_Status();
Send_Progess();
// LOOP - Run the carriage to the right until carMax or the limit switch closes
while(curPosition_C <= carMax)
{
carriage.run();
if (digitalRead(limSwtRight) == LOW)
{ // limit switch is closed
carriage.disableOutputs();
limSwRight_Pos = 1;
carMax = carriage.currentPosition();
EEPROM.put(8, carMax);
delay(20);
break;
}
}
// Store MAX RIGHT position
limSwRight_Pos = carMax;
EEPROM.put(16, limSwRight_Pos);
delay(20);
curPosition_C = carriage.currentPosition();
EEPROM.put(4, curPosition_C);
delay(20);
CME = "0";
LED_right = "0";
Send_Status();
Send_Progess();
Serial.println("Carriage is at RIGHT LIMIT");
delay(1000);
}
else
// We are at MAX RIGHT already
{
Serial.println("Carriage is all the way RIGHT");
delay(20);
curPosition_C = carriage.currentPosition();
delay(20);
carriage.disableOutputs();
EEPROM.put(4, curPosition_C);
delay(20);
CME = "0";
LED_right = "0";
Send_Status();
Send_Progess();
}
delay(500); // A little pause before changing directions
// move left to carriage limit left limit or to carMin
if (digitalRead(limSwtRight) == LOW)
{
EEPROM.get(4, curPosition_C);
delay(20);
if (curPosition_C > 0)
{
carriage.enableOutputs();
carriage.setCurrentPosition(curPosition_C);
// The negative "-" changes MOTOR direction
carriage.moveTo(-carMin);
carriage.setMaxSpeed(Speed);
carriage.setAcceleration(Accel);
WME = "0";
CME = "1";
LED_left = "1";
LED_right = "0";
LED_paused = "0";
LED_H_set = "0";
Send_Status();
Send_Progess();
// LOOP - Run the carriage to the left until carMax or the limit switch closes
while(carriage.currentPosition() > 0)
{
carriage.run();
if (digitalRead(limSwtLeft) == LOW)
{ // limit switch is closed
limSwLeft_Pos = 1;
break;
}
}
// Store MAX LEFT position
carMin = carriage.currentPosition();
EEPROM.put(20, carMin);
delay(20);
carriage.setCurrentPosition(0);
curPosition_C = carriage.currentPosition();
EEPROM.put(4, curPosition_C);
delay(20);
CME = "0";
LED_left = "0";
Send_Status();
Send_Progess();
Serial.println("Carriage is at LEFT LIMIT");
delay(20);
}
else
{
// We are at MAX left already
carriage.setCurrentPosition(0);
curPosition_C = carriage.currentPosition();
EEPROM.put(4, curPosition_C);
delay(20);
CME = "0";
LED_left = "0";
Send_Status();
Send_Progess();
Serial.println("Carriage is all the way LEFT");
delay(20);
}
}
return;
}
}
//INDIACATORS ===========================================================================================================================
void Send_Progess()
{
//This is sent back to the PC
//WME, CME, LED_left, LED_right, LED_paused, LED_H_set, WOWINDING, WOLAYER
//eg. I,11100111,######,### this what is sent to PC
// + ',' + WME + ',' + CME + ',' + LED_left + ',' + LED_right + ',' + LED_paused + ',' + LED_H_set + ',' + WOWINDING + ',' + WOLAYER
//eg.I 1 0 1 0 0 0 000001 001 //18 characters
sprintf(WOWINDING, "%09d", WindCountTotal);
sprintf(WOLAYER, "%04d", LayerCount);
String dataout = (indOUT + WME + CME + LED_left + LED_right + LED_paused + LED_H_set + WOWINDING + WOLAYER); // + "\n"
Serial.println(dataout);
delay(20);
return;
}
// =====================================================================================================================================
// Send the positions of the winder and carriage to the PC in # of steps !!!CAN NOT BE CALLED TOO OFTEN - WILL SLOW THE STEPPERS A LOT
void Send_Status()
{
char W[10];
char C[10];
sprintf(W, "%09ld", curPosition_W);
sprintf(C, "%09ld", curPosition_C);
String strSts = (STSout + W + C);
Serial.println(strSts);
delay(20);
}
// End of PROGRAM---------------------------------------------------------------------------------------------------------------------------------
Comments
