Build a Smart Timelapse Camera with UNIHIKER K10

/******************************************************
 * UNIHIKER K10 Time-Lapse Camera
 * --------------------------------
 * Features:
 * - Stream camera to display
 * - Capture time-lapse images to SD card
 * - Selectable resolution
 *
 * Hardware: UNIHIKER K10 (ESP32-S3)
 *******************************************************/

#include "unihiker_k10.h"

// ============================================================
// CAMERA PINS (K10 - DO NOT CHANGE)
// ============================================================
#define CAM_PWDN     -1
#define CAM_RESET    -1
#define CAM_XCLK      7
#define CAM_SIOD     47
#define CAM_SIOC     48
#define CAM_Y9        6
#define CAM_Y8       15
#define CAM_Y7       16
#define CAM_Y6       18
#define CAM_Y5        9
#define CAM_Y4       11
#define CAM_Y3       10
#define CAM_Y2        8
#define CAM_VSYNC     4
#define CAM_HREF      5
#define CAM_PCLK     17

// ============================================================
// CONFIG
// ============================================================
#define APP_VERSION     "v3.0"
#define JPG_QUALITY     50
#define EXIT_HOLD_MS    800
#define UI_REFRESH_MS   800

// ============================================================
// COLORS
// ============================================================
#define C_BG          0x0000
#define C_CARD        0x10A2
#define C_CARD_LIGHT  0x2124
#define C_BORDER      0x4228
#define C_ACCENT      0x07FF
#define C_CYAN        0x07FF
#define C_WHITE       0xFFFF
#define C_GRAY        0x8410
#define C_DARK_GRAY   0x4208
#define C_YELLOW      0xFFE0
#define C_GREEN       0x07E0
#define C_RED         0xF800
#define C_MAGENTA     0xF81F

// ============================================================
// SCREEN
// ============================================================
#define SCR_W   240
#define SCR_H   320

// ============================================================
// STATES
// ============================================================
enum State {
    S_SPLASH,
    S_MENU,
    S_RES,
    S_HRS,
    S_MIN,
    S_SEC,
    S_CONFIRM,
    S_STREAM,
    S_REC,
    S_DONE,
    S_ERR
};

// ============================================================
// RESOLUTIONS
// ============================================================
struct ResInfo {
    const char* name;
    const char* detail;
    framesize_t size;
};

const ResInfo RES[] = {
    {"QVGA",    "240x320 - Fast",     FRAMESIZE_QVGA},
    {"VGA",     "640x480 - Good",     FRAMESIZE_SVGA},
    {"SVGA",    "800x600 - Better",   FRAMESIZE_XGA},
    {"HD",      "1280x720 - HD",      FRAMESIZE_SXGA},
    {"SXGA",    "1280x1024 - Best",   FRAMESIZE_UXGA}
};
#define NUM_RES 5

// ============================================================
// GLOBALS
// ============================================================
UNIHIKER_K10 k10;
TFT_eSPI tft = TFT_eSPI();

// Buttons
volatile bool flagA = false;
volatile bool flagB = false;
uint32_t bothStart = 0;

// State
State st = S_SPLASH;
bool needDraw = true;
uint32_t stTime = 0;
uint32_t lastDraw = 0;

// Settings
int selMode = 0;
int selRes = 1;
int valH = 0, valM = 0, valS = 10;
uint32_t interval = 10000;

// Capture
uint32_t capStart = 0;
uint32_t nextCap = 0;
uint32_t imgNum = 0;
uint32_t imgBase = 0;
uint32_t totalKB = 0;
int errCnt = 0;

// Camera
bool camOn = false;
uint8_t* jpgBuf = NULL;
size_t jpgSize = 0;

// SD
bool sdOn = false;

// Buffers
char msgErr[40] = {0};
char msgFile[20] = {0};

// Stream
bool streaming = false;

// ============================================================
// ISR
// ============================================================
void IRAM_ATTR onA() { flagA = true; }
void IRAM_ATTR onB() { flagB = true; }

// ============================================================
// BUTTONS
// ============================================================
bool pressA() {
    if (flagA) { flagA = false; return true; }
    return false;
}

bool pressB() {
    if (flagB) { flagB = false; return true; }
    return false;
}

void clearBtn() {
    flagA = false;
    flagB = false;
    bothStart = 0;
}

bool checkExit() {
    if (flagA && flagB) {
        if (bothStart == 0) bothStart = millis();
        if (millis() - bothStart >= EXIT_HOLD_MS) {
            flagA = false;
            flagB = false;
            bothStart = 0;
            return true;
        }
    } else {
        bothStart = 0;
    }
    return false;
}

// ============================================================
// CLEANUP
// ============================================================
void stopCam() {
    if (jpgBuf) { free(jpgBuf); jpgBuf = NULL; jpgSize = 0; }
    if (camOn) { esp_camera_deinit(); camOn = false; }
}

void stopStream() {
    streaming = false;
    k10.initScreen(2);
    tft.init();
    tft.setRotation(2);
    tft.setTextSize(1);
    delay(50);
}

void cleanup() {
    if (streaming) stopStream();
    stopCam();
    imgNum = 0;
    totalKB = 0;
    errCnt = 0;
    msgFile[0] = 0;
    msgErr[0] = 0;
}

void goHome() {
    cleanup();
    st = S_MENU;
    needDraw = true;
    stTime = millis();
    clearBtn();
}

void goTo(State s) {
    st = s;
    needDraw = true;
    stTime = millis();
    clearBtn();
}

// ============================================================
// DRAWING HELPERS
// ============================================================
void card(int x, int y, int w, int h, uint16_t fill, uint16_t edge, bool shadow = false) {
    if (shadow) {
        tft.fillRoundRect(x + 2, y + 2, w, h, 8, C_DARK_GRAY);
    }
    tft.fillRoundRect(x, y, w, h, 8, fill);
    tft.drawRoundRect(x, y, w, h, 8, edge);
}

void topBar(const char* txt, uint16_t accent = C_CYAN) {
    tft.fillRect(0, 0, SCR_W, 38, C_CARD);
    tft.drawFastHLine(0, 37, SCR_W, accent);
    tft.drawFastHLine(0, 38, SCR_W, accent);

    tft.setTextColor(C_DARK_GRAY, C_CARD);
    tft.drawString(txt, 10, 11, 4);
    tft.setTextColor(C_WHITE, C_CARD);
    tft.drawString(txt, 8, 9, 4);
}

void botBar(const char* a, const char* b, bool showExit = false) {
    int y = SCR_H - 38;

    tft.fillRect(0, y, SCR_W, 38, C_CARD);
    tft.drawFastHLine(0, y, SCR_W, C_BORDER);

    if (a && a[0]) {
        tft.fillRoundRect(8, y + 8, 22, 22, 4, C_YELLOW);
        tft.setTextColor(C_BG, C_YELLOW);
        tft.drawString("A", 14, y + 12, 2);
        tft.setTextColor(C_GRAY, C_CARD);
        tft.drawString(a, 35, y + 12, 2);
    }

    if (b && b[0]) {
        tft.fillRoundRect(125, y + 8, 22, 22, 4, C_GREEN);
        tft.setTextColor(C_BG, C_GREEN);
        tft.drawString("B", 131, y + 12, 2);
        tft.setTextColor(C_GRAY, C_CARD);
        tft.drawString(b, 152, y + 12, 2);
    }

    if (showExit) {
        tft.setTextColor(C_DARK_GRAY, C_CARD);
        tft.drawString("A+B Exit", 175, y + 28, 1);
    }
}

void menuOpt(int y, const char* txt, const char* sub, bool sel) {
    uint16_t bg = sel ? C_CARD_LIGHT : C_BG;
    uint16_t edge = sel ? C_CYAN : C_BORDER;

    card(8, y, SCR_W - 16, sub ? 42 : 32, bg, edge, sel);

    int dotX = 22;
    int dotY = y + (sub ? 21 : 16);
    if (sel) {
        tft.fillCircle(dotX, dotY, 6, C_CYAN);
        tft.fillCircle(dotX, dotY, 3, C_WHITE);
    } else {
        tft.drawCircle(dotX, dotY, 5, C_BORDER);
    }

    tft.setTextColor(sel ? C_YELLOW : C_WHITE, bg);
    tft.drawString(txt, 38, y + 8, 2);

    if (sub) {
        tft.setTextColor(C_GRAY, bg);
        tft.drawString(sub, 38, y + 26, 1);
    }
}

void infoCard(int y, const char* lbl, const char* val, uint16_t col, bool highlight = false) {
    uint16_t bg = highlight ? C_CARD_LIGHT : C_CARD;
    card(8, y, SCR_W - 16, 38, bg, highlight ? col : C_BORDER);

    tft.setTextColor(C_GRAY, bg);
    tft.drawString(lbl, 16, y + 5, 1);

    tft.setTextColor(col, bg);
    tft.drawString(val, 16, y + 19, 2);

    if (highlight) {
        tft.fillRect(8, y, 3, 38, col);
    }
}

void progressBar(int y, float pct, uint16_t col = C_CYAN) {
    pct = constrain(pct, 0, 1);
    int w = SCR_W - 32;
    int filled = (int)(w * pct);

    tft.fillRoundRect(16, y, w, 10, 5, C_DARK_GRAY);

    if (filled > 0) {
        tft.fillRoundRect(16, y, filled, 10, 5, col);
        tft.drawFastHLine(16, y + 2, max(1, filled - 4), C_WHITE);
    }
}

void valueBox(int y, const char* lbl, int val, const char* unit, int maxVal) {
    card(8, y, SCR_W - 16, 80, C_CARD, C_CYAN, true);

    tft.setTextColor(C_GRAY, C_CARD);
    tft.drawString(lbl, 16, y + 8, 2);

    char buf[16];
    sprintf(buf, "%d", val);
    tft.setTextColor(C_YELLOW, C_CARD);
    tft.setTextDatum(MC_DATUM);
    tft.drawString(buf, SCR_W / 2, y + 45, 6);
    tft.setTextDatum(TL_DATUM);

    tft.setTextColor(C_GRAY, C_CARD);
    tft.drawString(unit, SCR_W / 2 + 30, y + 40, 2);

    sprintf(buf, "0 - %d", maxVal);
    tft.setTextColor(C_DARK_GRAY, C_CARD);
    tft.drawString(buf, 16, y + 65, 1);
}

// ============================================================
// SPLASH SCREEN
// ============================================================

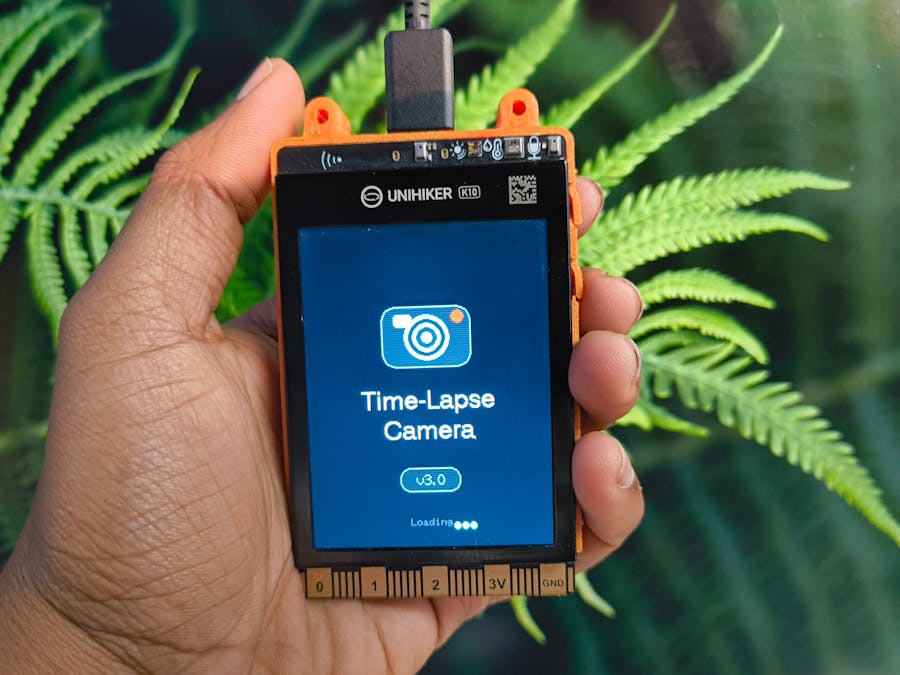

void drawSplash() {
    tft.fillScreen(C_BG);

    int cx = SCR_W / 2;
    int iconY = 80;

    // Camera body with shadow
    tft.fillRoundRect(cx - 42, iconY + 2, 84, 58, 10, C_DARK_GRAY);
    tft.fillRoundRect(cx - 44, iconY, 88, 60, 12, C_CARD_LIGHT);
    tft.drawRoundRect(cx - 44, iconY, 88, 60, 12, C_CYAN);

    // Lens rings
    tft.fillCircle(cx, iconY + 30, 22, C_CYAN);
    tft.fillCircle(cx, iconY + 30, 18, C_CARD);
    tft.fillCircle(cx, iconY + 30, 14, C_CYAN);
    tft.fillCircle(cx, iconY + 30, 10, C_CARD_LIGHT);
    tft.fillCircle(cx, iconY + 30, 5, C_WHITE);

    // Flash
    tft.fillRoundRect(cx - 32, iconY + 8, 18, 12, 3, C_YELLOW);

    // Shutter button
    tft.fillCircle(cx + 30, iconY + 10, 6, C_RED);

    // App name with glow effect
    tft.setTextColor(C_CYAN, C_BG);
    tft.setTextDatum(MC_DATUM);
    tft.drawString("Time-Lapse", cx + 1, 176, 4);
    tft.setTextColor(C_WHITE, C_BG);
    tft.drawString("Time-Lapse", cx, 175, 4);

    tft.setTextColor(C_CYAN, C_BG);
    tft.drawString("Camera", cx + 1, 206, 4);
    tft.setTextColor(C_WHITE, C_BG);
    tft.drawString("Camera", cx, 205, 4);

    // Version badge
    card(cx - 30, 240, 60, 24, C_CARD, C_CYAN);
    tft.setTextColor(C_CYAN, C_CARD);
    tft.drawString(APP_VERSION, cx, 252, 2);

    // Loading animation
    tft.setTextColor(C_DARK_GRAY, C_BG);
    tft.drawString("Loading", cx, SCR_H - 25, 1);
    tft.setTextDatum(TL_DATUM);

    // Animated loading dots
    for (int i = 0; i < 3; i++) {
        delay(300);
        int dotX = cx + 25 + (i * 8);
        tft.fillCircle(dotX, SCR_H - 22, 3, C_CYAN);
    }

    delay(400);
}

// ============================================================
// SCREENS
// ============================================================
void scrMenu() {
    tft.fillScreen(C_BG);
    topBar("Mode Select");
    botBar("Change", "Select", false);

    menuOpt(60, "Live Stream", "Preview camera on screen", selMode == 0);
    menuOpt(115, "Time-Lapse", "Capture to SD card", selMode == 1);

    // Info card
    card(8, 175, SCR_W - 16, 80, C_CARD, C_BORDER);
    tft.setTextColor(C_CYAN, C_CARD);
    tft.drawString("Info", 16, 182, 2);
    tft.setTextColor(C_GRAY, C_CARD);

    if (selMode == 0) {
        tft.drawString("Live preview on screen", 16, 210, 1);
        tft.drawString("No images saved", 16, 225, 1);
        tft.drawString("Press A+B to exit stream", 16, 240, 1);
    } else {
        tft.drawString("Capture at intervals", 16, 210, 1);
        tft.drawString("Save JPEG to SD card", 16, 225, 1);
        tft.drawString("Press A+B to stop recording", 16, 240, 1);
    }
}

void scrRes() {
    tft.fillScreen(C_BG);
    topBar("Resolution");
    botBar("Change", "Select", true);

    for (int i = 0; i < NUM_RES; i++) {
        menuOpt(45 + i * 45, RES[i].name, RES[i].detail, i == selRes);
    }
}

void scrTime(const char* title, const char* lbl, int val, int mx) {
    tft.fillScreen(C_BG);
    topBar(title);
    botBar("+1", "OK", true);

    valueBox(70, lbl, val, "", mx);

    card(8, 170, SCR_W - 16, 55, C_CARD, C_BORDER);
    tft.setTextColor(C_GRAY, C_CARD);
    tft.drawString("Interval Preview", 16, 178, 1);

    char buf[20];
    sprintf(buf, "%02d:%02d:%02d", valH, valM, valS);
    tft.setTextColor(C_CYAN, C_CARD);
    tft.drawString(buf, 16, 195, 4);
}

void scrConfirm() {
    tft.fillScreen(C_BG);
    topBar("Confirm", C_GREEN);
    botBar("Back", "Start!", true);

    char buf[32];

    infoCard(48, "Resolution", RES[selRes].name, C_CYAN, true);

    sprintf(buf, "%02d:%02d:%02d", valH, valM, valS);
    infoCard(92, "Interval", buf, C_CYAN, true);

    infoCard(136, "SD Card", sdOn ? "Ready" : "NOT FOUND!", sdOn ? C_GREEN : C_RED, !sdOn);

    sprintf(buf, "img%05lu.jpg", imgBase + 1);
    infoCard(180, "First Image", buf, C_GRAY, false);

    if (!sdOn) {
        card(8, 230, SCR_W - 16, 35, C_RED, C_RED);
        tft.setTextColor(C_WHITE, C_RED);
        tft.setTextDatum(MC_DATUM);
        tft.drawString("Insert SD card!", SCR_W/2, 247, 2);
        tft.setTextDatum(TL_DATUM);
    }
}

void scrRec() {
    tft.fillScreen(C_BG);
    topBar("Recording", C_RED);

    tft.fillCircle(SCR_W - 25, 19, 8, C_RED);
    tft.fillCircle(SCR_W - 25, 19, 4, C_WHITE);

    tft.fillRect(0, SCR_H - 30, SCR_W, 30, C_CARD);
    tft.setTextColor(C_YELLOW, C_CARD);
    tft.setTextDatum(MC_DATUM);
    tft.drawString("Hold A+B to Stop", SCR_W/2, SCR_H - 15, 2);
    tft.setTextDatum(TL_DATUM);
}

void updateRec() {
    uint32_t el = (millis() - capStart) / 1000;
    int h = el / 3600;
    int m = (el % 3600) / 60;
    int s = el % 60;

    int32_t rem = (nextCap - millis()) / 1000;
    if (rem < 0) rem = 0;

    float pct = 1.0f - (float)(nextCap - millis()) / interval;

    char buf[24];

    sprintf(buf, "%02d:%02d:%02d", h, m, s);
    infoCard(48, "Elapsed", buf, C_CYAN, true);

    sprintf(buf, "%lu", imgNum);
    infoCard(92, "Images Captured", buf, C_GREEN, true);

    sprintf(buf, "%ld sec", rem);
    infoCard(136, "Next Capture", buf, C_YELLOW, false);

    progressBar(180, pct, C_CYAN);

    if (msgFile[0]) {
        infoCard(195, "Last File", msgFile, C_GRAY, false);
    }

    if (totalKB > 1024) {
        sprintf(buf, "%.1f MB", (float)totalKB / 1024);
    } else {
        sprintf(buf, "%lu KB", totalKB);
    }
    infoCard(239, "Total Size", buf, C_GRAY, false);

    // Blink record indicator
    static uint32_t lastBlink = 0;
    static bool vis = true;
    if (millis() - lastBlink > 500) {
        vis = !vis;
        lastBlink = millis();
    }
    tft.fillCircle(SCR_W - 25, 19, 8, vis ? C_RED : C_CARD);
    if (vis) tft.fillCircle(SCR_W - 25, 19, 4, C_WHITE);
}

void scrDone() {
    tft.fillScreen(C_BG);
    topBar("Complete", C_GREEN);
    botBar("", "Home", false);

    int cx = SCR_W / 2;
    tft.fillCircle(cx, 85, 30, C_GREEN);
    tft.setTextColor(C_BG, C_GREEN);
    tft.setTextDatum(MC_DATUM);
    tft.drawString("OK", cx, 85, 4);
    tft.setTextDatum(TL_DATUM);

    char buf[24];
    sprintf(buf, "%lu images", imgNum);
    infoCard(130, "Captured", buf, C_CYAN, true);

    if (totalKB > 1024) {
        sprintf(buf, "%.1f MB", (float)totalKB / 1024);
    } else {
        sprintf(buf, "%lu KB", totalKB);
    }
    infoCard(174, "Total Size", buf, C_GRAY, false);
}

void scrErr() {
    tft.fillScreen(C_BG);
    topBar("Error", C_RED);
    botBar("", "Retry", false);

    int cx = SCR_W / 2;
    tft.fillCircle(cx, 85, 30, C_RED);
    tft.setTextColor(C_WHITE, C_RED);
    tft.setTextDatum(MC_DATUM);
    tft.drawString("!", cx, 85, 4);
    tft.setTextDatum(TL_DATUM);

    card(8, 130, SCR_W - 16, 60, C_CARD, C_RED);
    tft.setTextColor(C_WHITE, C_CARD);
    tft.drawString(msgErr, 16, 155, 2);
}

// ============================================================
// SD & CAMERA FUNCTIONS
// ============================================================
bool sdInit() {
    if (!SD.begin()) { strcpy(msgErr, "SD mount failed"); return false; }
    if (SD.cardType() == CARD_NONE) { strcpy(msgErr, "No SD card"); return false; }
    return true;
}

uint32_t sdScan() {
    uint32_t mx = 0;
    File root = SD.open("/");
    if (!root) return 0;

    while (true) {
        File f = root.openNextFile();
        if (!f) break;
        const char* n = f.name();
        int len = strlen(n);
        if (len >= 12 && n[0] == 'i' && n[1] == 'm' && n[2] == 'g') {
            if (n[len-4] == '.' && n[len-3] == 'j' && n[len-2] == 'p' && n[len-1] == 'g') {
                char num[6] = {0};
                for (int i = 0; i < 5; i++) num[i] = n[3 + i];
                uint32_t v = atoi(num);
                if (v > mx) mx = v;
            }
        }
        f.close();
    }
    root.close();
    return mx;
}

bool sdSave(uint8_t* buf, size_t len, uint32_t num) {
    char path[24];
    sprintf(path, "/img%05lu.jpg", num);

    File f = SD.open(path, FILE_WRITE);
    if (!f) { strcpy(msgErr, "File create failed"); return false; }

    size_t w = f.write(buf, len);
    f.close();

    if (w != len) { strcpy(msgErr, "Write failed"); return false; }

    for (int i = 0; i < 18; i++) msgFile[i] = path[i + 1];
    msgFile[18] = 0;
    totalKB += len / 1024;
    return true;
}

bool camInit(framesize_t sz) {
    camera_config_t c;
    c.ledc_channel = LEDC_CHANNEL_0;
    c.ledc_timer = LEDC_TIMER_0;
    c.pin_d0 = CAM_Y2; c.pin_d1 = CAM_Y3; c.pin_d2 = CAM_Y4; c.pin_d3 = CAM_Y5;
    c.pin_d4 = CAM_Y6; c.pin_d5 = CAM_Y7; c.pin_d6 = CAM_Y8; c.pin_d7 = CAM_Y9;
    c.pin_xclk = CAM_XCLK; c.pin_pclk = CAM_PCLK;
    c.pin_vsync = CAM_VSYNC; c.pin_href = CAM_HREF;
    c.pin_sscb_sda = CAM_SIOD; c.pin_sscb_scl = CAM_SIOC;
    c.pin_pwdn = CAM_PWDN; c.pin_reset = CAM_RESET;
    c.xclk_freq_hz = 10000000;
    c.pixel_format = PIXFORMAT_RGB565;
    c.frame_size = sz;
    c.grab_mode = CAMERA_GRAB_LATEST;
    c.fb_count = 2;

    if (esp_camera_init(&c) != ESP_OK) {
        strcpy(msgErr, "Camera init failed");
        return false;
    }

    sensor_t* s = esp_camera_sensor_get();
    if (s) s->set_hmirror(s, 1);

    camOn = true;
    return true;
}

bool camCapture() {
    camera_fb_t* fb = esp_camera_fb_get();
    if (!fb) { errCnt++; return false; }

    bool ok = fmt2jpg(fb->buf, fb->len, fb->width, fb->height, fb->format, JPG_QUALITY, &jpgBuf, &jpgSize);
    esp_camera_fb_return(fb);

    if (!ok) { errCnt++; return false; }
    errCnt = 0;
    return true;
}

void camFreeJpg() {
    if (jpgBuf) { free(jpgBuf); jpgBuf = NULL; jpgSize = 0; }
}

// ============================================================
// STATE HANDLERS
// ============================================================
void hSplash() {
    if (needDraw) { drawSplash(); needDraw = false; }
    if (millis() - stTime > 2500 || pressA() || pressB()) {
        goTo(S_MENU);
    }
}

void hMenu() {
    if (needDraw) { scrMenu(); needDraw = false; }
    if (pressA()) { selMode = (selMode + 1) % 2; scrMenu(); }
    if (pressB()) {
        if (selMode == 0) goTo(S_STREAM);
        else goTo(S_RES);
    }
}

void hRes() {
    if (checkExit()) { goHome(); return; }
    if (needDraw) { scrRes(); needDraw = false; }
    if (pressA()) { selRes = (selRes + 1) % NUM_RES; scrRes(); }
    if (pressB()) { goTo(S_HRS); }
}

void hHrs() {
    if (checkExit()) { goHome(); return; }
    if (needDraw) { scrTime("Hours", "Hours", valH, 24); needDraw = false; }
    if (pressA()) { valH = (valH + 1) % 25; scrTime("Hours", "Hours", valH, 24); }
    if (pressB()) { goTo(S_MIN); }
}

void hMin() {
    if (checkExit()) { goHome(); return; }
    if (needDraw) { scrTime("Minutes", "Minutes", valM, 59); needDraw = false; }
    if (pressA()) { valM = (valM + 1) % 60; scrTime("Minutes", "Minutes", valM, 59); }
    if (pressB()) { goTo(S_SEC); }
}

void hSec() {
    if (checkExit()) { goHome(); return; }
    if (needDraw) { scrTime("Seconds", "Seconds", valS, 59); needDraw = false; }
    if (pressA()) { valS = (valS + 1) % 60; scrTime("Seconds", "Seconds", valS, 59); }
    if (pressB()) {
        interval = 1000UL * (3600UL * valH + 60UL * valM + valS);
        if (interval < 1000) { interval = 1000; valS = 1; valM = 0; valH = 0; }
        sdOn = sdInit();
        if (sdOn) imgBase = sdScan();
        goTo(S_CONFIRM);
    }
}

void hConfirm() {
    if (checkExit()) { goHome(); return; }
    if (needDraw) { scrConfirm(); needDraw = false; }
    if (pressA()) { goTo(S_MENU); }
    if (pressB()) {
        if (!sdOn) {
            sdOn = sdInit();
            if (sdOn) imgBase = sdScan();
            scrConfirm();
            if (!sdOn) { strcpy(msgErr, "SD not ready"); goTo(S_ERR); }
        } else {
            if (camInit(RES[selRes].size)) {
                imgNum = 0; totalKB = 0; errCnt = 0; msgFile[0] = 0;
                capStart = millis(); nextCap = capStart;
                goTo(S_REC);
            } else { goTo(S_ERR); }
        }
    }
}

void hStream() {
    if (checkExit()) { stopStream(); goHome(); return; }
    if (needDraw) { streaming = true; k10.initBgCamerImage(); k10.setBgCamerImage(); needDraw = false; }
    flagA = false; flagB = false;
}

void hRec() {
    if (checkExit()) { stopCam(); goTo(S_DONE); return; }
    if (needDraw) { scrRec(); updateRec(); needDraw = false; }

    uint32_t now = millis();
    if (now >= nextCap) {
        if (camCapture()) {
            uint32_t n = imgBase + imgNum + 1;
            if (sdSave(jpgBuf, jpgSize, n)) imgNum++;
            else errCnt++;
            camFreeJpg();
        }
        nextCap += interval;
        if (nextCap < now) nextCap = now + interval;
        if (errCnt >= 5) { strcpy(msgErr, "Too many errors"); stopCam(); goTo(S_ERR); return; }
    }
    if (now - lastDraw >= UI_REFRESH_MS) { updateRec(); lastDraw = now; }
    flagA = false; flagB = false;
}

void hDone() {
    if (needDraw) { scrDone(); needDraw = false; }
    if (pressB()) { goTo(S_MENU); }
}

void hErr() {
    if (needDraw) { scrErr(); needDraw = false; }
    if (pressB()) { msgErr[0] = 0; errCnt = 0; goTo(S_MENU); }
}

// ============================================================
// MAIN
// ============================================================
void run() {
    switch (st) {
        case S_SPLASH:   hSplash(); break;
        case S_MENU:     hMenu(); break;
        case S_RES:      hRes(); break;
        case S_HRS:      hHrs(); break;
        case S_MIN:      hMin(); break;
        case S_SEC:      hSec(); break;
        case S_CONFIRM:  hConfirm(); break;
        case S_STREAM:   hStream(); break;
        case S_REC:      hRec(); break;
        case S_DONE:     hDone(); break;
        case S_ERR:      hErr(); break;
    }
}

void setup() {
    Serial.begin(115200);
    Serial.println("\n=============================");
    Serial.println("  K10 Time-Lapse Camera");
    Serial.printf("  %s\n", APP_VERSION);
    Serial.println("=============================\n");

    k10.begin();
    k10.initScreen(2);
    tft.init();
    tft.setRotation(2);
    tft.setTextSize(1);
    tft.fillScreen(C_BG);

    k10.buttonA->setPressedCallback(onA);
    k10.buttonB->setPressedCallback(onB);
    clearBtn();

    Serial.println("Ready!\n");
}

void loop() {
    run();
    delay(10);
}
