Arduino Board - Blink an LED

This project shows the simplest thing you can do with an Arduino to see physical output: blink the onboard LED.

IntermediateProtip876

Things used in this project

Hardware components

Arduino Uno Board

Breadboard – half size

Jumper wires (generic)

USB Cable

5 mm LED: Red

Resistor 220 ohm

Story

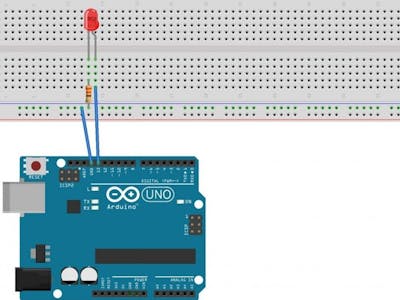

You can start building your Arduino circuit by looking at the breadboard image. In the below description, we will give you a step-by-step overview how to built it in a systematic way.

Step 1 – Insert black jumper wire into the GND pin on the Arduino and then in the GND rail of the breadboard row 15.

Step 2 – Insert red jumper wire into pin 13 on the Arduino and then the other end into column F and row 7 on the breadboard.

Step 3 – Set the LONG leg of the LED into row 7th and column H.

Step 4 – Set the SHORT leg of the LED into column H and row 4th.

Step 5 – Bend both legs of a 220 Ohm resistor and place one leg in the GND rail around row 4 and place other leg in I column, row 4th.

Step 6 – Connect the Arduino Uno to your computer via USB cable.

Upload On Blink Sketch:

Now upload the program to the Arduino. To open the blink sketch, you will need to go to File > Examples > Basics > Blink.

Insert the complete code on the Blink sketch. Next, you need to click on the verify button that’s located in the top left of the IDE box. This will compile the sketch and look for any errors in the code. Once it says “Done Compiling” you are ready to upload it. Click the upload button to send the program to the Arduino board. This is your final outcome of the project.

Such a various projects can be developed using IoT Devices. For that IoT Training will help you to evolve your own ideas.

Code

Blink an LED using Arduino

// Pin 13 has an LED connected on most Arduino boards.
// give it a name:
int led = 13;

// the setup routine runs once when you press reset:
void setup() {
  // initialize the digital pin as an output.
  pinMode(led, OUTPUT);
}

// the loop routine runs over and over again forever:
void loop() {
  digitalWrite(led, HIGH);   // turn the LED on (HIGH is the voltage level)
  delay(1000);               // wait for a second
  digitalWrite(led, LOW);    // turn the LED off by making the voltage LOW
  delay(1000);               // wait for a second
}
