Interfacing OLED Display with Arduino

Adding a display to an embedded project significantly improves usability, whether you're showing sensor values, system status, or simple graphics. While character LCDs are commonly used, they are limited in flexibility and visual quality.

OLED displays solve this problem by offering sharp contrast, low power consumption, and full pixel-level control. In this project, we interface a compact OLED display with an Arduino to display text and basic graphics. This setup is widely used in IoT devices, portable electronics, and real-time monitoring systems where clarity and efficiency matter.

Module Overview & Pinout

OLED modules come in different communication variants but are typically powered by the SSD1306 controller, which handles display rendering internally.

I2C OLED Pinout

• GND → Ground connection
• VCC → 3.3V–5V supply
• SCL → Clock line
• SDA → Data line

SPI OLED Pinout

• GND → Ground
• VCC → Power supply
• SCK → Clock signal
• MOSI → Data transmission
• CS → Chip select
• DC → Command/Data control

👉 Offers faster communication but requires more wiring.

Project Overview / Working Principle

The OLED display operates using organic LEDs, where each pixel emits its own light. This eliminates the need for a backlight and improves contrast while reducing power consumption.

At the core of the module is the SSD1306 controller, which contains internal memory (GDDRAM). Instead of refreshing every pixel continuously from the Arduino, the microcontroller sends data once, and the display handles rendering internally.

The display memory is organized into pages and columns, where each bit corresponds to a pixel. This structure allows efficient rendering of text, shapes, and images.

Depending on the interface:

• I2C simplifies connections using two wires
• SPI enables faster updates for graphics-heavy applications

Hardware Setup & Connections

I2C Wiring (Recommended for Beginners)

To connect the OLED using I2C:

• Connect VCC to Arduino 5V
• Connect GND to Arduino GND
• Connect SCL to Arduino A5
• Connect SDA to Arduino A4

This setup is quick and works well for most basic applications.

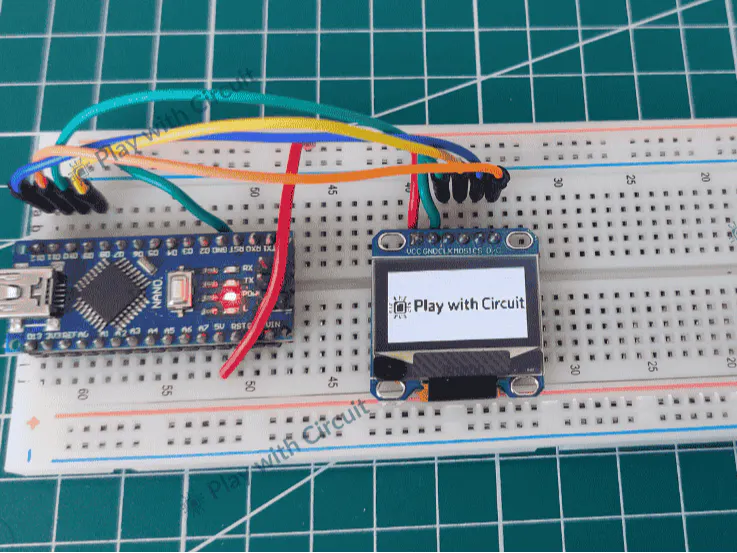

SPI Wiring (For Faster Communication)

For SPI-based OLED:

• Connect VCC to 5V
• Connect GND to GND
• Connect SCK to D10
• Connect MOSI to D9
• Connect CS to D12
• Connect DC to D11

SPI is useful when you need faster screen refresh, such as animations or real-time data visualization.

Displaying Text on OLED Display

Displaying Basic Shapes on OLED Display

Conclusion

Interfacing an OLED display with Arduino is a simple yet powerful upgrade for any embedded project. It allows you to create more interactive and visually appealing systems without adding significant complexity.

Whether you're building a sensor dashboard, wearable device, or IoT interface, OLED displays provide excellent clarity and efficiency in a compact form factor.

For complete step-by-step instructions and code, check the full guide at Play with Circuit.
