Pushing Limits: YOLOv8 vs. v26 on Jetson Orin Nano

Introduction

Deploying modern object detection models on edge devices with limited resources (like the 4GB Jetson Orin Nano) is always a trade-off between accuracy and speed. While Python frameworks (like ultralytics) are great for training, they often introduce significant overhead during inference.

In this project, I explore the limits of the Jetson Orin Nano by ditching Python for a pure C++ implementation using NVIDIA TensorRT. My goal was twofold:

Achieve real-time performance (>30 FPS) for YOLO models.

• Achieve real-time performance (>30 FPS) for YOLO models.

Benchmark the newly released YOLOv26 against the stable YOLOv8 to see if the "End-to-End" architecture holds up in a strict TensorRT environment.

• Benchmark the newly released YOLOv26 against the stable YOLOv8 to see if the "End-to-End" architecture holds up in a strict TensorRT environment.

The Challenge: Python vs. C++ on the Edge

My initial tests with Python on the Jetson Orin Nano (4GB) hit a bottleneck. Memory usage was high, and the Python Global Interpreter Lock (GIL) combined with overhead made it difficult to maintain a stable high framerate. To solve this, I built a custom C++ inference pipeline that handles:

Media I/O: OpenCV (with hardware acceleration where possible).

• Media I/O: OpenCV (with hardware acceleration where possible).

Preprocessing: CUDA kernels (Resize, Normalize, CHW conversion).

• Preprocessing: CUDA kernels (Resize, Normalize, CHW conversion).

Inference: TensorRT Engine (FP16 precision).

• Inference: TensorRT Engine (FP16 precision).

Post-processing: C++ implementation of NMS and coordinate mapping.

• Post-processing: C++ implementation of NMS and coordinate mapping.

Deep Dive: The YOLOv26 "Mystery"

One of the core experiments of this project was attempting to deploy the experimental YOLOv26. However, I encountered a significant hurdle: Confidence Misalignment.

While YOLOv8 converted to TensorRT perfectly, YOLOv26 exhibited bounding box drift and inaccurate confidence scores in C++. To understand why, I analyzed the ONNX graphs of both models (compared with YOLOv10 for reference).

Model Architecture Discrepancy

YOLOv10 / v8 (Optimized): The ONNX export includes the complete post-processing subgraph (TopK and Gather operators). The output shape is typically 1x300x6, allowing for true End-to-End NMS-free inference.

• YOLOv10 / v8 (Optimized): The ONNX export includes the complete post-processing subgraph (TopK and Gather operators). The output shape is typically 1x300x6, allowing for true End-to-End NMS-free inference.

YOLOv26 (Default Export): The exported v26 model outputs 1x84x8400. It lacks the embedded end-to-end post-processing subgraph.

• YOLOv26 (Default Export): The exported v26 model outputs 1x84x8400. It lacks the embedded end-to-end post-processing subgraph.

Conclusion: The "NMS-Free" feature advertised for v26 relies on specific Python-side handling or specific export arguments that are not yet standard. In a raw TensorRT C++ environment, this fallback to the traditional output format causes compatibility issues with standard post-processing pipelines.

Note: For the stability of this project's code release, I have set YOLOv8n as the default model, as it provides the most stable industrial-grade performance.

Performance Benchmarks

I tested the inference pipeline across three different configurations. The results clearly show the superiority of the C++ TensorRT approach on edge hardware.

1. Mac Mini (M-Series Chip)

CPU Inference: ~21.4 FPS

• CPU Inference: ~21.4 FPS

MPS (GPU) Inference: ~20.5 FPS

Insight: On macOS, the MPS backend had higher instant FPS but suffered from synchronization latency, resulting in a lower average FPS than the CPU for video streams.

• Insight: On macOS, the MPS backend had higher instant FPS but suffered from synchronization latency, resulting in a lower average FPS than the CPU for video streams.
• MPS (GPU) Inference: ~20.5 FPSInsight: On macOS, the MPS backend had higher instant FPS but suffered from synchronization latency, resulting in a lower average FPS than the CPU for video streams.

2. Jetson Orin Nano (Python + ONNX)

ONNX Runtime: ~16.0 FPS

The overhead of the Python runtime and ONNX interpretation limits the performance.

• The overhead of the Python runtime and ONNX interpretation limits the performance.
• ONNX Runtime: ~16.0 FPSThe overhead of the Python runtime and ONNX interpretation limits the performance.

3. Jetson Orin Nano (C++ + TensorRT) - WINNER 🚀

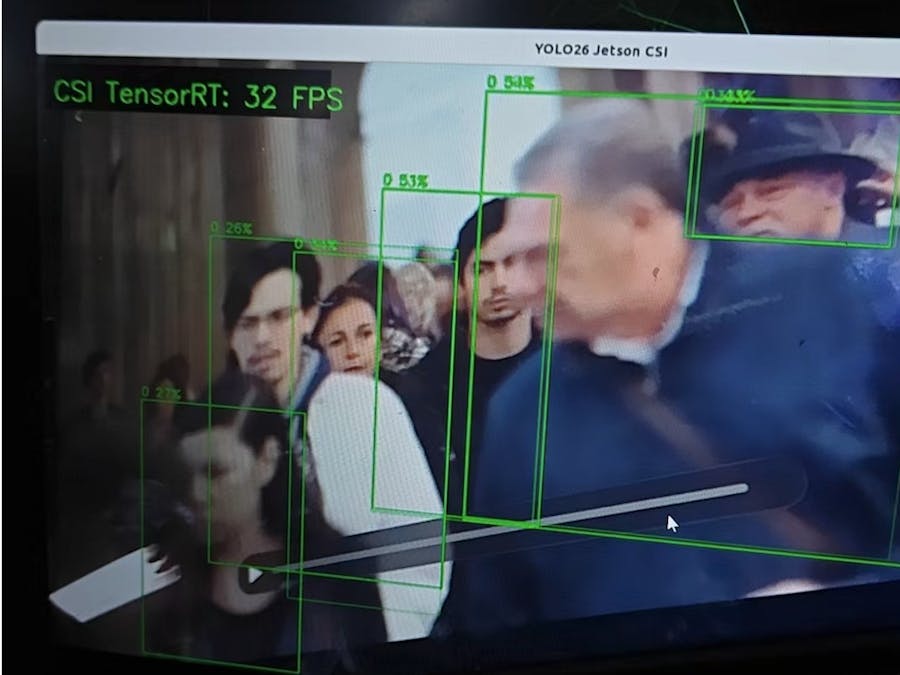

Video Inference (No Display):33.2 FPS

• Video Inference (No Display):33.2 FPS

Latency: ~12ms (End-to-End)

• Latency: ~12ms (End-to-End)

Throughput: ~90 FPS (Raw benchmark with trtexec)

• Throughput: ~90 FPS (Raw benchmark with trtexec)

By switching to C++ and TensorRT, we achieved a ~100% performance boost compared to the Python implementation on the same hardware, making it viable for real-time robotic applications.

How to Run the Code

Prerequisites

NVIDIA Jetson (Orin Nano/NX/AGX)

• NVIDIA Jetson (Orin Nano/NX/AGX)

JetPack 6.x (CUDA, TensorRT installed)

• JetPack 6.x (CUDA, TensorRT installed)

OpenCV (with GStreamer support recommended)

• OpenCV (with GStreamer support recommended)

Step 1: Export the Model

You can use my script to export the YOLOv8 model to ONNX. Note that we use opset=18 for maximum compatibility.

Python

from ultralytics import YOLO
model = YOLO("yolov8n.pt")
model.export(format="onnx", imgsz=640, dynamic=False, simplify=True, opset=18)

Step 2: Build the Engine

Use trtexec to convert the ONNX model to a highly optimized TensorRT engine (FP16 precision is recommended for Orin Nano).

Bash

/usr/src/tensorrt/bin/trtexec \
  --onnx=yolov8n.onnx \
  --saveEngine=yolov8n_fp16.engine \
  --fp16

Step 3: Compile and Run

Navigate to the C++ project directory and build using CMake.

Bash

mkdir build && cd build
cmake ..
make -j4
./yolo_app

Future Work

While the current system runs YOLOv8 flawlessly, solving the YOLOv26 export issue is next on the roadmap. I plan to:

Investigate custom ONNX export scripts to force the inclusion of TopK layers for v26.

• Investigate custom ONNX export scripts to force the inclusion of TopK layers for v26.

Integrate this perception module into a ROS 2 node for my RoboCup Rescue simulation project.

• Integrate this perception module into a ROS 2 node for my RoboCup Rescue simulation project.

If you are interested in the bleeding edge of Embedded AI, feel free to fork the repo and contribute!
