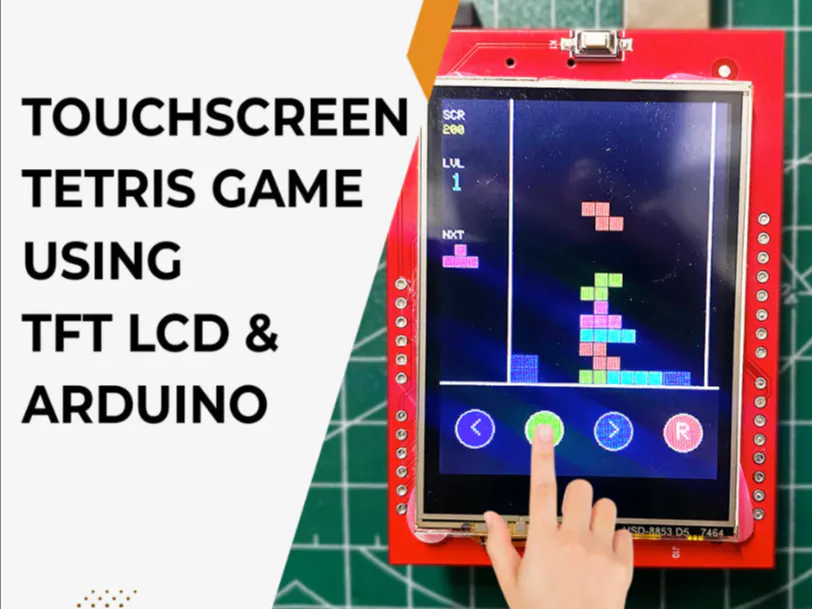

Touchscreen Tetris Game Using TFT LCD & Arduino

#include <MCUFRIEND_kbv.h>
#include <TouchScreen.h>

// ========================================
// DISPLAY AND TOUCH SETUP
// ========================================

MCUFRIEND_kbv tft;

const int XP = 6;
const int XM = A2;
const int YP = A1;
const int YM = 7;

const int TS_LEFT = 907;
const int TS_RT   = 136;
const int TS_TOP  = 942;
const int TS_BOT  = 139;

TouchScreen ts = TouchScreen(XP, YP, XM, YM, 300);

#define MINPRESSURE 200
#define MAXPRESSURE 1000

// ========================================
// COLORS
// ========================================

#define BLACK   0x0000
#define BLUE    0x001F
#define RED     0xF800
#define GREEN   0x07E0
#define CYAN    0x07FF
#define MAGENTA 0xF81F
#define YELLOW  0xFFE0
#define WHITE   0xFFFF
#define ORANGE  0xFD20

// ========================================
// GAME BOARD SETTINGS
// ========================================

#define COLS  14
#define ROWS  20
#define BLOCK 12

// Game board starts at x=60, y=0
// Board width  = 14 x 12 = 168 pixels
// Board height = 20 x 12 = 240 pixels
#define GAME_X  60
#define GAME_Y  0
#define GAME_W  (COLS * BLOCK)
#define GAME_H  (ROWS * BLOCK)

// Bottom panel for buttons
#define PANEL_Y  240
#define PANEL_H  80

// ========================================
// GAME VARIABLES
// ========================================

// The game board grid (0 = empty, 1-7 = block color)
int board[ROWS][COLS];

// Current falling piece
int pieceX       = 0;
int pieceY       = 0;
int currentPiece = 0;
int rotation     = 0;

// Previous piece position (used to erase without flicker)
int prevX        = 0;
int prevY        = 0;
int prevRot      = 0;
int prevPiece    = 0;

// Next piece to fall
int nextPiece    = 0;

// Timing
unsigned long lastDrop = 0;
int dropDelay          = 500;

// Game state
bool gameOver    = false;
long score       = 0;
int  level       = 1;
int  totalLines  = 0;

// ========================================
// PIECE COLORS
// ========================================

uint16_t pieceColors[7] = {
  CYAN,     // I Block
  BLUE,     // J Block
  ORANGE,   // L Block
  YELLOW,   // O Block
  GREEN,    // S Block
  MAGENTA,  // T Block
  RED       // Z Block
};

// ========================================
// TETROMINO SHAPES
// Each piece has 4 rotations, each rotation is a 4x4 grid
// ========================================

const byte tetromino[7][4][4][4] = {

  // Piece 0 : I Block
  {
    { {0,0,0,0}, {1,1,1,1}, {0,0,0,0}, {0,0,0,0} },
    { {0,1,0,0}, {0,1,0,0}, {0,1,0,0}, {0,1,0,0} },
    { {0,0,0,0}, {1,1,1,1}, {0,0,0,0}, {0,0,0,0} },
    { {0,1,0,0}, {0,1,0,0}, {0,1,0,0}, {0,1,0,0} }
  },

  // Piece 1 : J Block
  {
    { {1,0,0,0}, {1,1,1,0}, {0,0,0,0}, {0,0,0,0} },
    { {0,1,1,0}, {0,1,0,0}, {0,1,0,0}, {0,0,0,0} },
    { {0,0,0,0}, {1,1,1,0}, {0,0,1,0}, {0,0,0,0} },
    { {0,1,0,0}, {0,1,0,0}, {1,1,0,0}, {0,0,0,0} }
  },

  // Piece 2 : L Block
  {
    { {0,0,1,0}, {1,1,1,0}, {0,0,0,0}, {0,0,0,0} },
    { {0,1,0,0}, {0,1,0,0}, {0,1,1,0}, {0,0,0,0} },
    { {0,0,0,0}, {1,1,1,0}, {1,0,0,0}, {0,0,0,0} },
    { {1,1,0,0}, {0,1,0,0}, {0,1,0,0}, {0,0,0,0} }
  },

  // Piece 3 : O Block
  {
    { {0,1,1,0}, {0,1,1,0}, {0,0,0,0}, {0,0,0,0} },
    { {0,1,1,0}, {0,1,1,0}, {0,0,0,0}, {0,0,0,0} },
    { {0,1,1,0}, {0,1,1,0}, {0,0,0,0}, {0,0,0,0} },
    { {0,1,1,0}, {0,1,1,0}, {0,0,0,0}, {0,0,0,0} }
  },

  // Piece 4 : S Block
  {
    { {0,1,1,0}, {1,1,0,0}, {0,0,0,0}, {0,0,0,0} },
    { {0,1,0,0}, {0,1,1,0}, {0,0,1,0}, {0,0,0,0} },
    { {0,1,1,0}, {1,1,0,0}, {0,0,0,0}, {0,0,0,0} },
    { {0,1,0,0}, {0,1,1,0}, {0,0,1,0}, {0,0,0,0} }
  },

  // Piece 5 : T Block
  {
    { {0,1,0,0}, {1,1,1,0}, {0,0,0,0}, {0,0,0,0} },
    { {0,1,0,0}, {0,1,1,0}, {0,1,0,0}, {0,0,0,0} },
    { {0,0,0,0}, {1,1,1,0}, {0,1,0,0}, {0,0,0,0} },
    { {0,1,0,0}, {1,1,0,0}, {0,1,0,0}, {0,0,0,0} }
  },

  // Piece 6 : Z Block
  {
    { {1,1,0,0}, {0,1,1,0}, {0,0,0,0}, {0,0,0,0} },
    { {0,0,1,0}, {0,1,1,0}, {0,1,0,0}, {0,0,0,0} },
    { {1,1,0,0}, {0,1,1,0}, {0,0,0,0}, {0,0,0,0} },
    { {0,0,1,0}, {0,1,1,0}, {0,1,0,0}, {0,0,0,0} }
  }
};

// ========================================
// BASIC DRAWING FUNCTIONS
// ========================================

// Draw one square block on the game board
void drawCell(int col, int row, uint16_t color) {
  tft.fillRect(
    GAME_X + col * BLOCK,
    GAME_Y + row * BLOCK,
    BLOCK - 1,
    BLOCK - 1,
    color
  );
}

// Erase a piece from its old position
void erasePiece(int col, int row, int oldRotation, int oldPiece) {
  for (int r = 0; r < 4; r++) {
    for (int c = 0; c < 4; c++) {
      if (tetromino[oldPiece][oldRotation][r][c]) {
        drawCell(col + c, row + r, BLACK);
      }
    }
  }
}

// Draw a piece at a given position
void drawPiece(int col, int row, int rot, int piece) {
  for (int r = 0; r < 4; r++) {
    for (int c = 0; c < 4; c++) {
      if (tetromino[piece][rot][r][c]) {
        drawCell(col + c, row + r, pieceColors[piece]);
      }
    }
  }
}

// Update only the cells that changed — prevents screen flicker
void drawGame() {
  // Erase piece from old position
  erasePiece(prevX, prevY, prevRot, prevPiece);

  // Restore any locked board blocks that were under the old piece
  for (int row = 0; row < 4; row++) {
    for (int col = 0; col < 4; col++) {
      if (tetromino[prevPiece][prevRot][row][col]) {
        int boardX = prevX + col;
        int boardY = prevY + row;
        if (boardY >= 0 && boardY < ROWS && boardX >= 0 && boardX < COLS) {
          if (board[boardY][boardX]) {
            drawCell(boardX, boardY, pieceColors[board[boardY][boardX] - 1]);
          }
        }
      }
    }
  }

  // Draw piece at new position
  drawPiece(pieceX, pieceY, rotation, currentPiece);

  // Save current position as previous for next frame
  prevX     = pieceX;
  prevY     = pieceY;
  prevRot   = rotation;
  prevPiece = currentPiece;
}

// Full board redraw — only called when board changes (line clear or new piece)
void redrawBoard() {
  tft.fillRect(GAME_X, GAME_Y, GAME_W, GAME_H, BLACK);

  for (int row = 0; row < ROWS; row++) {
    for (int col = 0; col < COLS; col++) {
      if (board[row][col]) {
        drawCell(col, row, pieceColors[board[row][col] - 1]);
      }
    }
  }

  drawPiece(pieceX, pieceY, rotation, currentPiece);

  prevX     = pieceX;
  prevY     = pieceY;
  prevRot   = rotation;
  prevPiece = currentPiece;
}

// ========================================
// UI PANELS
// ========================================

// Draw score, level, and next piece preview in the left sidebar
void drawScorePanel() {
  // Clear sidebar area
  tft.fillRect(0, 0, GAME_X - 3, PANEL_Y, BLACK);

  // Score label and value
  tft.setTextColor(WHITE);
  tft.setTextSize(1);
  tft.setCursor(2, 10);
  tft.print("SCR");

  tft.setTextColor(YELLOW);
  tft.setTextSize(1);
  tft.setCursor(2, 22);
  char buf[10];
  ltoa(score, buf, 10);
  tft.print(buf);

  // Level label and value
  tft.setTextColor(WHITE);
  tft.setTextSize(1);
  tft.setCursor(2, 50);
  tft.print("LVL");

  tft.setTextColor(CYAN);
  tft.setTextSize(2);
  tft.setCursor(8, 62);
  tft.print(level);

  // Next piece label
  tft.setTextColor(WHITE);
  tft.setTextSize(1);
  tft.setCursor(2, 110);
  tft.print("NXT");

  // Draw next piece preview
  int blockSize = 10;
  int originX   = 2;
  int originY   = 122;

  for (int row = 0; row < 4; row++) {
    for (int col = 0; col < 4; col++) {
      int drawX = originX + col * blockSize;
      int drawY = originY + row * blockSize;

      if (tetromino[nextPiece][0][row][col]) {
        tft.fillRect(drawX, drawY, blockSize - 1, blockSize - 1, pieceColors[nextPiece]);
      } else {
        tft.fillRect(drawX, drawY, blockSize - 1, blockSize - 1, BLACK);
      }
    }
  }
}

// Draw the four touch buttons at the bottom of the screen
void drawButtons() {
  // Clear button panel
  tft.fillRect(0, PANEL_Y, 240, PANEL_H, BLACK);

  // Top divider line
  tft.fillRect(0, PANEL_Y, 240, 2, WHITE);

  int centerY = PANEL_Y + PANEL_H / 2;
  int radius  = 16;

  // Button positions:
  // Left  = Move piece left
  // Down  = Move piece down faster
  // Right = Move piece right
  // R     = Rotate piece
  int   centerX[4] = { 30,    90,    150,   210  };
  uint16_t color[4] = { BLUE,  GREEN, BLUE,  RED  };
  const char* label[4] = { "<",   "v",   ">",   "R"  };

  for (int i = 0; i < 4; i++) {
    tft.fillCircle(centerX[i], centerY, radius, color[i]);
    tft.drawCircle(centerX[i], centerY, radius, WHITE);
    tft.setTextColor(WHITE);
    tft.setTextSize(2);
    tft.setCursor(centerX[i] - 5, centerY - 8);
    tft.print(label[i]);
  }
}

// Draw the white border around the game board
void drawBoardBorder() {
  tft.drawRect(GAME_X - 1, GAME_Y, GAME_W + 2, GAME_H, WHITE);
  tft.drawRect(GAME_X - 2, GAME_Y, GAME_W + 4, GAME_H, WHITE);
}

// Draw the full static UI (called once at start)
void drawStaticUI() {
  tft.fillScreen(BLACK);
  drawBoardBorder();
  drawScorePanel();
  drawButtons();
}

// ========================================
// COLLISION DETECTION
// ========================================

// Check if current piece touches a wall or locked block
bool checkCollision(int newX, int newY, int newRotation) {
  for (int row = 0; row < 4; row++) {
    for (int col = 0; col < 4; col++) {
      if (tetromino[currentPiece][newRotation][row][col]) {
        int boardX = newX + col;
        int boardY = newY + row;

        // Check wall and floor boundaries
        if (boardX < 0 || boardX >= COLS || boardY >= ROWS) {
          return true;
        }

        // Check collision with locked blocks
        if (boardY >= 0 && board[boardY][boardX]) {
          return true;
        }
      }
    }
  }
  return false;
}

// ========================================
// SCORE SYSTEM
// ========================================

// Lock the current piece into the board grid
void mergePiece() {
  for (int row = 0; row < 4; row++) {
    for (int col = 0; col < 4; col++) {
      if (tetromino[currentPiece][rotation][row][col]) {
        board[pieceY + row][pieceX + col] = currentPiece + 1;
      }
    }
  }
}

// Remove completed lines and move everything above down
int clearLines() {
  int cleared = 0;

  for (int row = ROWS - 1; row >= 0; row--) {
    bool full = true;

    for (int col = 0; col < COLS; col++) {
      if (!board[row][col]) {
        full = false;
        break;
      }
    }

    if (full) {
      // Shift all rows above down by one
      for (int above = row; above > 0; above--) {
        for (int col = 0; col < COLS; col++) {
          board[above][col] = board[above - 1][col];
        }
      }

      // Clear the top row
      for (int col = 0; col < COLS; col++) {
        board[0][col] = 0;
      }

      cleared++;
      row++; // Recheck same row index after shift
    }
  }

  return cleared;
}

// Update score and increase game speed when level increases
void addScore(int lines) {
  const int pointsPerLine[5] = { 0, 100, 300, 500, 800 };

  if (lines >= 1 && lines <= 4) {
    score += (long)pointsPerLine[lines] * level;
  }

  totalLines += lines;
  level       = totalLines / 10 + 1;

  if (level > 10) {
    level = 10;
  }

  // Increase game speed when level increases
  dropDelay = max(80, 500 - (level - 1) * 45);
}

// ========================================
// TOUCH CONTROLS
// ========================================

// Read touch input and move or rotate the piece
void handleTouch() {
  TSPoint p = ts.getPoint();
  pinMode(XM, OUTPUT);
  pinMode(YP, OUTPUT);

  if (p.z < MINPRESSURE || p.z > MAXPRESSURE) {
    return;
  }

  // Map raw touch values to screen coordinates
  int touchX = map(p.y, TS_LEFT, TS_BOT, 0, 240);
  int touchY = map(p.x, TS_TOP, TS_RT,  0, 320);

  // Calibrated button centers on the TX axis
  // Button positions: Left(<), Down(v), Right(>), Rotate(R)
  int buttonX[4]  = { 193, 142, 83, 28 };
  int buttonY     = 30;
  int tapRadius   = 30 * 30;
  bool moved      = false;

  // Left button — move piece left
  if (sq(touchX - buttonX[0]) + sq(touchY - buttonY) < tapRadius) {
    if (!checkCollision(pieceX - 1, pieceY, rotation)) {
      pieceX--;
      moved = true;
    }
  }
  // Down button — move piece down
  else if (sq(touchX - buttonX[1]) + sq(touchY - buttonY) < tapRadius) {
    if (!checkCollision(pieceX, pieceY + 1, rotation)) {
      pieceY++;
      moved = true;
    }
  }
  // Right button — move piece right
  else if (sq(touchX - buttonX[2]) + sq(touchY - buttonY) < tapRadius) {
    if (!checkCollision(pieceX + 1, pieceY, rotation)) {
      pieceX++;
      moved = true;
    }
  }
  // Rotate button — rotate piece
  else if (sq(touchX - buttonX[3]) + sq(touchY - buttonY) < tapRadius) {
    int newRotation = (rotation + 1) % 4;
    if (!checkCollision(pieceX, pieceY, newRotation)) {
      rotation = newRotation;
      moved    = true;
    }
  }

  if (moved) {
    drawGame();
    delay(80);
  }
}

// ========================================
// PIECE MANAGEMENT
// ========================================

// Spawn the next piece and generate a new upcoming piece
void newPiece() {
  currentPiece = nextPiece;

  // Generate next random Tetris piece
  nextPiece = random(0, 7);

  pieceX   = 5;
  pieceY   = 0;
  rotation = 0;

  // Sync previous position with spawn position
  prevX     = pieceX;
  prevY     = pieceY;
  prevRot   = rotation;
  prevPiece = currentPiece;

  // If new piece immediately collides, game is over
  if (checkCollision(pieceX, pieceY, rotation)) {
    gameOver = true;
  }

  drawScorePanel();
}

// ========================================
// SETUP
// ========================================

void setup() {
  Serial.begin(9600);

  // Start display
  uint16_t ID = tft.readID();
  tft.begin(ID);
  tft.setRotation(0);

  // Create random seed from floating analog pin
  randomSeed(analogRead(A5));

  // Clear game board
  memset(board, 0, sizeof(board));

  // Reset all game values
  score      = 0;
  level      = 1;
  totalLines = 0;

  // Set starting previous position
  prevX     = 5;
  prevY     = 0;
  prevRot   = 0;
  prevPiece = 0;

  // Generate first next piece
  nextPiece = random(0, 7);

  // Draw UI and start game
  drawStaticUI();
  newPiece();
  redrawBoard();
}

// ========================================
// MAIN LOOP
// ========================================

// Main game loop:
// 1. Read touch input
// 2. Move piece down automatically on timer
// 3. Check if piece can keep falling
// 4. If blocked: lock it, clear lines, spawn new piece
// 5. Update display without flicker
void loop() {

  // Show game over screen and stop
  if (gameOver) {
    tft.fillScreen(BLACK);
    tft.drawRect(15, 100, 210, 120, WHITE);
    tft.drawRect(16, 101, 208, 118, WHITE);
    tft.setTextColor(RED);
    tft.setTextSize(3);
    tft.setCursor(50, 115);
    tft.print("GAME");
    tft.setCursor(50, 150);
    tft.print("OVER");
    tft.setTextColor(YELLOW);
    tft.setTextSize(2);
    tft.setCursor(20, 190);
    tft.print("SCORE:");
    tft.print(score);
    while (1);
  }

  // Read touch input
  handleTouch();

  // Auto-drop piece on timer
  if (millis() - lastDrop > dropDelay) {

    // If block can move down, drop it one row
    if (!checkCollision(pieceX, pieceY + 1, rotation)) {
      pieceY++;
      drawGame(); // Only redraw changed cells — no flicker

    } else {
      // If block cannot move down, lock it into the board
      mergePiece();

      int lines = clearLines();

      if (lines > 0) {
        addScore(lines);
        drawScorePanel();
      }

      // Spawn next piece and do full board redraw
      newPiece();
      redrawBoard();
    }

    lastDrop = millis();
  }
}
