Story

Introduction

Concurrency in embedded systems allows multiple tasks to run within the same system. In this project, timer interrupts and task scheduling were used on the RT-Spark development board to manage different tasks and respond to events efficiently.'

Hardware Setup

The LEDs were configured as outputs, while the user button was configured as an external interrupt source. The hardware used in this project includes:

RT-Spark Development Board

Software Architecture

The background tasks are handled by interrupt service routines (ISRs), while the foreground tasks run inside the main loop. Timer interrupts set flags that signal the main loop to execute specific tasks. This approach allows the system to perform multiple operations while remaining responsive.

Implementation

The timers and external interrupt were configured using STM32CubeMX and implemented in STM32CubeIDE and the two hardware timers were configured to generate interrupts at different intervals.

Timer 2 toggles the red LED every 1 second.
Timer 3 toggles the blue LED every 0.5 second.
Pressing the button immediately toggles both LEDs.
The main loop executes tasks based on flags set by the timer interrupts.

The timers and external interrupt were configured using STM32CubeMX and implemented in STM32CubeIDE.

Results

The project successfully demonstrated timer interrupts, task scheduling, and event-triggered behavior.

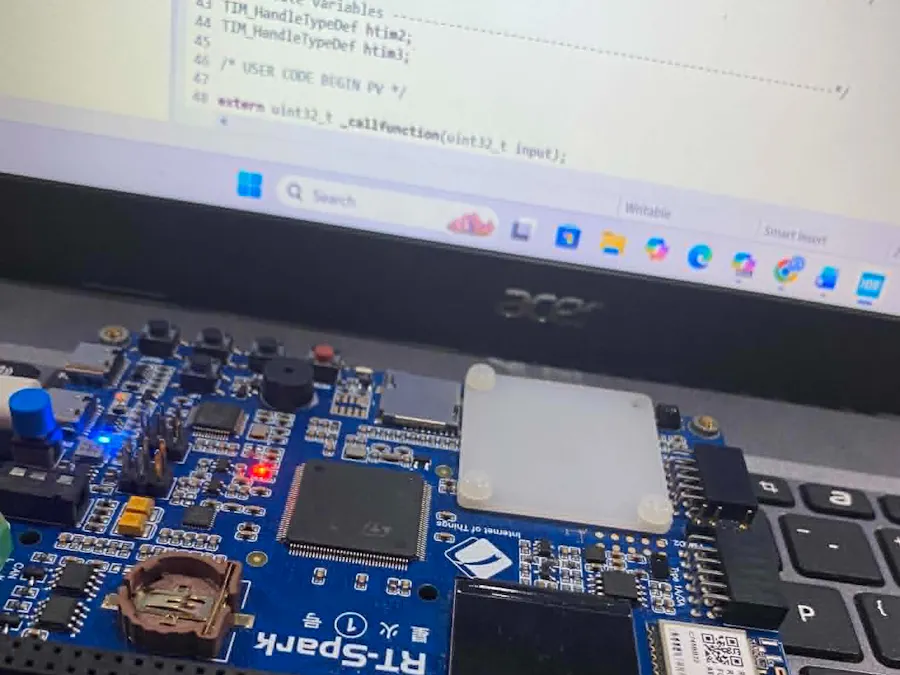

Figure 1. Output

Timing Measurement

The timing analysis produced the following results:

TRelease (TIM2): 1.0 second
TLatency (Task A): 24.94 µs
TISR (TIM2): 4.31 µs
TTask (Task A): 50 ms
TResponse (Task A): 50.02443 ms

Observations

The red LED blinked every 1 second.

The blue LED blinked every 0.5 second.
The button interrupt responded immediately when pressed.
Multiple tasks were handled efficiently using interrupts and flags.

Analysis

The project showed that interrupt-based scheduling is more responsive than polling. Timer interrupts allow tasks to be executed at specific intervals, while the button interrupt responds immediately to user input. The foreground/background architecture also helps organize tasks efficiently and improves system responsiveness.

main.c

/* USER CODE BEGIN Header */
/**
  ******************************************************************************
  * @file           : main.c
  * @brief          : Main program body with DWT cycle counter
  ******************************************************************************
  * @attention
  *
  * Copyright (c) 2026 STMicroelectronics.
  * All rights reserved.
  *
  * This software is licensed under terms that can be found in the LICENSE file
  * in the root directory of this software component.
  * If no LICENSE file comes with this software, it is provided AS-IS.
  *
  ******************************************************************************
  */
/* USER CODE END Header */

/* Includes ------------------------------------------------------------------*/
#include "main.h"

/* Private includes ----------------------------------------------------------*/
/* USER CODE BEGIN Includes */

/* USER CODE END Includes */

/* Private typedef -----------------------------------------------------------*/
/* USER CODE BEGIN PTD */

/* USER CODE END PTD */

/* Private define ------------------------------------------------------------*/
/* USER CODE BEGIN PD */

/* USER CODE END PD */

/* Private macro -------------------------------------------------------------*/
/* USER CODE BEGIN PM */

/* USER CODE END PM */

/* Private variables ---------------------------------------------------------*/
TIM_HandleTypeDef htim2;
TIM_HandleTypeDef htim3;

/* USER CODE BEGIN PV */
/// Flags for foreground/background communication
volatile uint8_t task_adc_ready = 0;
volatile uint8_t task_display_ready = 0;
volatile uint32_t tick_count = 0;

/* USER CODE END PV */

/* Private function prototypes -----------------------------------------------*/
void SystemClock_Config(void);
static void MX_GPIO_Init(void);
static void MX_TIM2_Init(void);
static void MX_TIM3_Init(void);

/* USER CODE BEGIN PFP */

/* USER CODE END PFP */

/* Private user code ---------------------------------------------------------*/
/* USER CODE BEGIN 0 */
// ------------------- DWT Cycle Counter for Microsecond Timing -------------------
static void DWT_Init(void) {
    if (!(CoreDebug->DEMCR & CoreDebug_DEMCR_TRCENA_Msk)) {
        CoreDebug->DEMCR |= CoreDebug_DEMCR_TRCENA_Msk; // Enable trace
    }
    DWT->CYCCNT = 0;            // Reset cycle counter
    DWT->CTRL |= DWT_CTRL_CYCCNTENA_Msk; // Enable cycle counter
}

static uint32_t DWT_GetMicroseconds(void) {
    return DWT->CYCCNT / (SystemCoreClock / 1000000);
}
// --------------------------------------------------------------------------------

// Timer Interrupt Callback
void HAL_TIM_PeriodElapsedCallback(TIM_HandleTypeDef *htim)
{
    if (htim->Instance == TIM2)
    {
        uint32_t start_us = DWT_GetMicroseconds();

        HAL_GPIO_WritePin(DEBUG_PIN_GPIO_Port, DEBUG_PIN_Pin, GPIO_PIN_SET);
        HAL_GPIO_TogglePin(LED_RED_GPIO_Port, LED_RED_Pin);
        task_adc_ready = 1;

        HAL_GPIO_WritePin(DEBUG_PIN_GPIO_Port, DEBUG_PIN_Pin, GPIO_PIN_RESET);

        uint32_t elapsed_us = DWT_GetMicroseconds() - start_us;
        // You can store or print elapsed_us if needed
    }
}
/* USER CODE END 0 */

/**
  * @brief  The application entry point.
  * @retval int
  */
int main(void)
{
    /* USER CODE BEGIN 1 */
    /* USER CODE END 1 */

    /* MCU Configuration--------------------------------------------------------*/
    HAL_Init();

    /* USER CODE BEGIN Init */
    /* USER CODE END Init */

    /* Configure the system clock */
    SystemClock_Config();

    /* USER CODE BEGIN SysInit */
    /* USER CODE END SysInit */

    /* Initialize all configured peripherals */
    MX_GPIO_Init();
    MX_TIM2_Init();
    MX_TIM3_Init();

    /* USER CODE BEGIN 2 */
    HAL_TIM_Base_Start_IT(&htim2);
    HAL_TIM_Base_Start_IT(&htim3);

    DWT_Init();  // Initialize DWT cycle counter
    /* USER CODE END 2 */

    /* Infinite loop */
    /* USER CODE BEGIN WHILE */
    while (1)
    {
        if (task_adc_ready)
        {
            uint32_t start_us = DWT_GetMicroseconds();

            HAL_GPIO_WritePin(DEBUG_PIN_GPIO_Port, DEBUG_PIN_Pin, GPIO_PIN_SET);
            task_adc_ready = 0;
            HAL_Delay(50); // Simulate ADC processing
            HAL_GPIO_WritePin(DEBUG_PIN_GPIO_Port, DEBUG_PIN_Pin, GPIO_PIN_RESET);

            uint32_t elapsed_us = DWT_GetMicroseconds() - start_us;
            // You can store or print elapsed_us if needed
        }
    }
    /* USER CODE END WHILE */

    /* USER CODE BEGIN 3 */
    /* USER CODE END 3 */
}

/**
  * @brief System Clock Configuration
  * @retval None
  */
void SystemClock_Config(void)
{
    RCC_OscInitTypeDef RCC_OscInitStruct = {0};
    RCC_ClkInitTypeDef RCC_ClkInitStruct = {0};

    __HAL_RCC_PWR_CLK_ENABLE();
    __HAL_PWR_VOLTAGESCALING_CONFIG(PWR_REGULATOR_VOLTAGE_SCALE1);

    RCC_OscInitStruct.OscillatorType = RCC_OSCILLATORTYPE_HSI;
    RCC_OscInitStruct.HSIState = RCC_HSI_ON;
    RCC_OscInitStruct.HSICalibrationValue = RCC_HSICALIBRATION_DEFAULT;
    RCC_OscInitStruct.PLL.PLLState = RCC_PLL_NONE;
    if (HAL_RCC_OscConfig(&RCC_OscInitStruct) != HAL_OK)
    {
        Error_Handler();
    }

    RCC_ClkInitStruct.ClockType = RCC_CLOCKTYPE_HCLK|RCC_CLOCKTYPE_SYSCLK
                                |RCC_CLOCKTYPE_PCLK1|RCC_CLOCKTYPE_PCLK2;
    RCC_ClkInitStruct.SYSCLKSource = RCC_SYSCLKSOURCE_HSI;
    RCC_ClkInitStruct.AHBCLKDivider = RCC_SYSCLK_DIV1;
    RCC_ClkInitStruct.APB1CLKDivider = RCC_HCLK_DIV1;
    RCC_ClkInitStruct.APB2CLKDivider = RCC_HCLK_DIV1;

    if (HAL_RCC_ClockConfig(&RCC_ClkInitStruct, FLASH_LATENCY_0) != HAL_OK)
    {
        Error_Handler();
    }
}

/**
  * @brief TIM2 Initialization Function
  */
static void MX_TIM2_Init(void)
{
    TIM_ClockConfigTypeDef sClockSourceConfig = {0};
    TIM_MasterConfigTypeDef sMasterConfig = {0};

    htim2.Instance = TIM2;
    htim2.Init.Prescaler = 8399;
    htim2.Init.CounterMode = TIM_COUNTERMODE_UP;
    htim2.Init.Period = 9999;
    htim2.Init.ClockDivision = TIM_CLOCKDIVISION_DIV1;
    htim2.Init.AutoReloadPreload = TIM_AUTORELOAD_PRELOAD_DISABLE;
    if (HAL_TIM_Base_Init(&htim2) != HAL_OK)
    {
        Error_Handler();
    }

    sClockSourceConfig.ClockSource = TIM_CLOCKSOURCE_INTERNAL;
    if (HAL_TIM_ConfigClockSource(&htim2, &sClockSourceConfig) != HAL_OK)
    {
        Error_Handler();
    }

    sMasterConfig.MasterOutputTrigger = TIM_TRGO_RESET;
    sMasterConfig.MasterSlaveMode = TIM_MASTERSLAVEMODE_DISABLE;
    if (HAL_TIMEx_MasterConfigSynchronization(&htim2, &sMasterConfig) != HAL_OK)
    {
        Error_Handler();
    }
}

/**
  * @brief TIM3 Initialization Function
  */
static void MX_TIM3_Init(void)
{
    TIM_ClockConfigTypeDef sClockSourceConfig = {0};
    TIM_MasterConfigTypeDef sMasterConfig = {0};

    htim3.Instance = TIM3;
    htim3.Init.Prescaler = 8399;
    htim3.Init.CounterMode = TIM_COUNTERMODE_UP;
    htim3.Init.Period = 4999;
    htim3.Init.ClockDivision = TIM_CLOCKDIVISION_DIV1;
    htim3.Init.AutoReloadPreload = TIM_AUTORELOAD_PRELOAD_DISABLE;
    if (HAL_TIM_Base_Init(&htim3) != HAL_OK)
    {
        Error_Handler();
    }

    sClockSourceConfig.ClockSource = TIM_CLOCKSOURCE_INTERNAL;
    if (HAL_TIM_ConfigClockSource(&htim3, &sClockSourceConfig) != HAL_OK)
    {
        Error_Handler();
    }

    sMasterConfig.MasterOutputTrigger = TIM_TRGO_RESET;
    sMasterConfig.MasterSlaveMode = TIM_MASTERSLAVEMODE_DISABLE;
    if (HAL_TIMEx_MasterConfigSynchronization(&htim3, &sMasterConfig) != HAL_OK)
    {
        Error_Handler();
    }
}

/**
  * @brief GPIO Initialization Function
  */
static void MX_GPIO_Init(void)
{
    GPIO_InitTypeDef GPIO_InitStruct = {0};

    __HAL_RCC_GPIOF_CLK_ENABLE();
    __HAL_RCC_GPIOE_CLK_ENABLE();

    HAL_GPIO_WritePin(GPIOF, LED_RED_Pin|LED_BLUE_Pin, GPIO_PIN_RESET);
    HAL_GPIO_WritePin(DEBUG_PIN_GPIO_Port, DEBUG_PIN_Pin, GPIO_PIN_RESET);

    GPIO_InitStruct.Pin = LED_RED_Pin|LED_BLUE_Pin;
    GPIO_InitStruct.Mode = GPIO_MODE_OUTPUT_PP;
    GPIO_InitStruct.Pull = GPIO_NOPULL;
    GPIO_InitStruct.Speed = GPIO_SPEED_FREQ_LOW;
    HAL_GPIO_Init(GPIOF, &GPIO_InitStruct);

    GPIO_InitStruct.Pin = DEBUG_PIN_Pin;
    GPIO_InitStruct.Mode = GPIO_MODE_OUTPUT_PP;
    GPIO_InitStruct.Pull = GPIO_NOPULL;
    GPIO_InitStruct.Speed = GPIO_SPEED_FREQ_LOW;
    HAL_GPIO_Init(DEBUG_PIN_GPIO_Port, &GPIO_InitStruct);
}

/**
  * @brief  This function is executed in case of error occurrence.
  */
void Error_Handler(void)
{
    __disable_irq();
    while (1)
    {
    }
}

#ifdef USE_FULL_ASSERT
void assert_failed(uint8_t *file, uint32_t line)
{
}
#endif /* USE_FULL_ASSERT */
