pager using arduino

Pushpa device

Hey everyone. I know that you have enjoyed the move of“Pushpa: the rise “. You might have noticed that the hero of the movie holds a device in which he receives messages. We are going to remake it using Arduino.

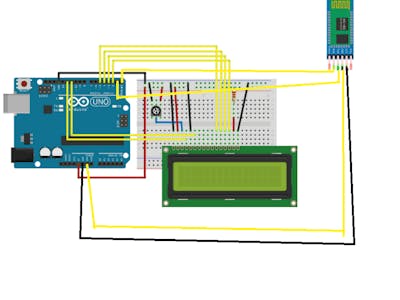

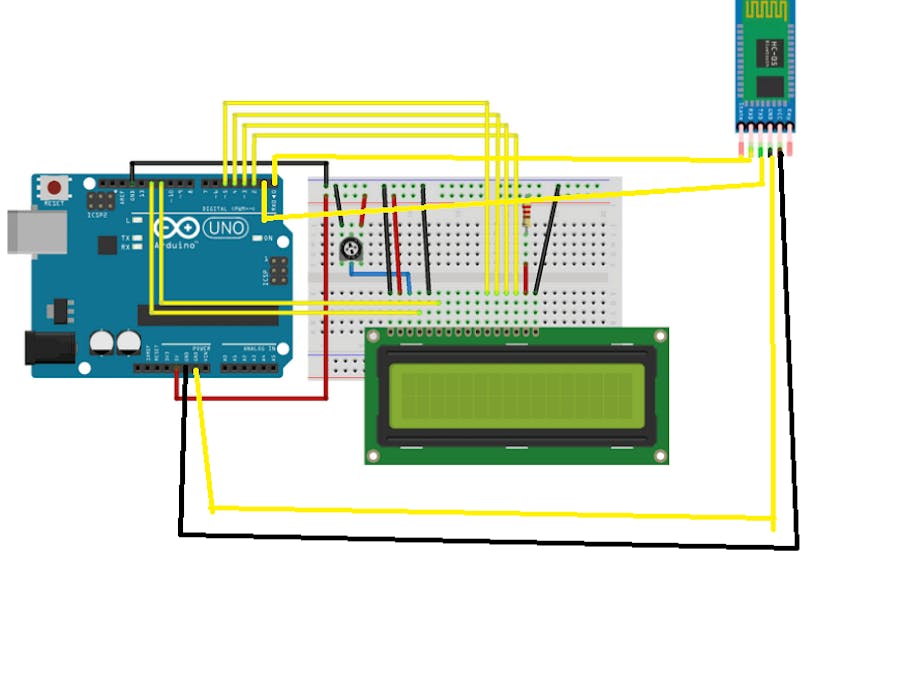

1) rx of Bluetooth to tx of Arduino

2) tx of Bluetooth to rx of Arduino

3) VCC of Bluetooth to 5V of Arduino

4) GND of Bluetooth to GND of Arduino

• LCD RS pin to digital pin 12

• LCD Enable pin to digital pin 11

• LCD D4 pin to digital pin 5

• LCD D5 pin to digital pin 4

• LCD D6 pin to digital pin 3

• LCD D7 pin to digital pin 2

• LCD R/W pin to GND

• LCD VSS pin to GND

• LCD VCC pin to 5V

• LCD LED+ to 5V through a 220 ohm resistor

• LCD LED- to GND

Here is the code

With these you can receive messages from a phone on your lcd using this app

https://play.google.com/store/apps/details?id=com.tools.ArduinoBluetooth
