Non - Volatile Env Logger with DFRobot Beetle ESP32 C6

Build a fully autonomous environmental logger using the Beetle ESP32-C6, a DFRobot SEN0500 multi-sensor, a W25Q32 SPI NOR flash chip, a rechargeable 3.7V battery, and a custom 3D-printed case from JUSTWAY. Logs temperature, humidity, pressure, altitude, light, and UV index every hour for over a decade — completely power-independent between charges.

The Beetle ESP32-C6 reads 6 environmental parameters from the SEN0500 sensor via I2C and stores each timestamped record on a W25Q32 SPI flash chip. A 4MB flash chip holds ~130, 000 records.

At one reading per hour, that's over 5, 000 days — nearly 15 years of continuous logging without any cloud, WiFi, or cloud dependency.

Why W25Q Flash Instead of SD Card?

• Reliability — No filesystem. Raw sectors. No corruption.
• Power — Microamps idle vs milliamps for SD.
• Size — 5mm SOP-8 footprint. No card slot needed.
• Cost — $2 for 4MB vs $4+ for SD + module.
• Longevity — 20+ year retention. SD cards fail unpredictably.
• Simplicity — 4 wires (CS/MOSI/MISO/SCK). No filesystem overhead.

Wiring Diagram

Below is the complete circuit showing the Beetle, sensor, flash chip, charging module, battery, and LED.

Pin Connections Quick Reference

See Circuit Diagram above for visual reference.

The 3D-Printed Enclosure (JUSTWAY)

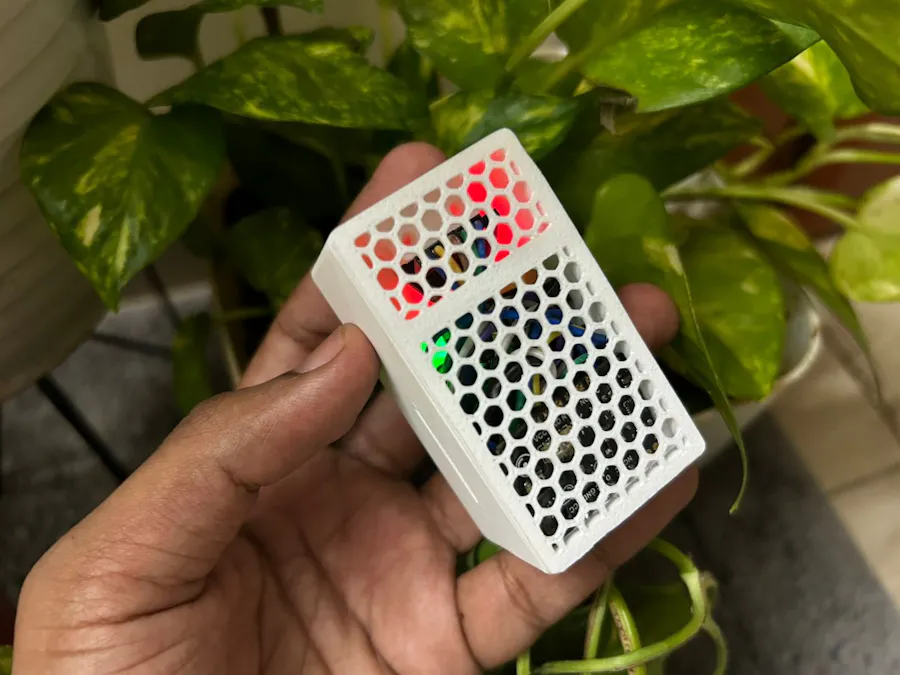

To keep the build compact and deployment-ready, I housed the Beetle ESP32-C6 and other sensor in a custom 3D-printed enclosure designed specifically for this project.

The case was fabricated by JustWay, a maker-friendly manufacturing service that specializes in rapid prototyping for embedded systems and IoT devices.

The JUSTWAY case is a custom SLA/FDM 3D-printed housing that:

• Protects the PCB from dust, moisture, and light
• Mounts the Beetle, sensor on the outside face, and flash/battery inside
• Provides USB-C access for charging and data offload
• Includes cable routing grooves and sensor mounting posts

Best Practices

• Print in ABS or PETG for UV/temperature stability (not PLA)
• Seal seams with epoxy or silicone if the logger will sit outdoors
• Mount the sensor on the outside face, away from battery heat
• Use silicone thermal pads between battery and case walls
• Mount a small solar panel on the top for trickle charging (optional 100mA 5.5V panel)

Software Setup

1. Install the ESP32 Board

In Arduino IDE, go to Boards Manager and add: https://espressif.github.io/arduino-esp32/package_esp32_index.json Select DFRobot Beetle ESP32-C6 from the Boards menu.

2. Install Libraries

Via Library Manager (Ctrl+Shift+I), install:

• DFRobot_EnvironmentalSensor — for the SEN0500

• Adafruit SSD1306 (if using OLED display)

• DFRobot_GDL (if using a TFT screen)

Note: SPI.h, Wire.h, and WiFi.h are built-in.

Arduino Code

Logger Sketch (beetle_sensor_logger.ino)

This is the main logging sketch. Upload this to the Beetle ESP32-C6 to start logging environmental data every hour.

/*
 * Beetle ESP32-C6 + W25QXX + SEN050X — Sensor Logger
 *
 * Reads DFRobot Environmental Sensor via I2C and logs to SPI flash every 3s.
 *
 * Connections:
 *   W25QXX:   CS=GPIO7  MOSI=GPIO22  MISO=GPIO21  SCK=GPIO23
 *   SEN050X:  SDA→GPIO8  SCL→GPIO9  VCC→3.3V  GND→GND
 *
 * Libraries: DFRobot_EnvironmentalSensor by DFRobot
 */

#include <SPI.h>
#include <Wire.h>
#include "DFRobot_EnvironmentalSensor.h"

// ── SPI Flash Pins ────────────────────────────────────────
#define FLASH_CS   7
#define FLASH_MOSI 22
#define FLASH_MISO 21
#define FLASH_SCK  23
#define LED_PIN    15

// ── Flash commands ────────────────────────────────────────
#define CMD_READ        0x03
#define CMD_PAGE_PROG   0x02
#define CMD_SECT_ERASE  0x20
#define CMD_WRITE_EN    0x06
#define CMD_READ_SR1    0x05
#define COUNT_ADDR      0x000000   // sector 0 — header only
#define DATA_ADDR       0x002000   // sector 2 — records (avoids erase clash)
#define STRUCT_VERSION  2   // bump this if Record struct changes

// ── Record struct ─────────────────────────────────────────
struct Record {
  uint32_t timestamp;
  float    tempC;
  float    tempF;
  float    humidity;
  float    pressure_hpa;
  float    altitude_m;
  float    light_lx;
  float    uv_mwcm2;
};

DFRobot_EnvironmentalSensor sensor(SEN050X_DEFAULT_DEVICE_ADDRESS, &Wire);

// ── Flash helpers ─────────────────────────────────────────
inline void csL()  { digitalWrite(FLASH_CS, LOW);  }
inline void csH()  { digitalWrite(FLASH_CS, HIGH); }
uint8_t  readSR1() { csL(); SPI.transfer(CMD_READ_SR1); uint8_t r=SPI.transfer(0x00); csH(); return r; }
void waitBusy()    { while(readSR1()&1) delay(1); }
void writeEnable() { csL(); SPI.transfer(CMD_WRITE_EN); csH(); }

void flashRead(uint32_t a, uint8_t *b, uint32_t n) {
  csL(); SPI.transfer(CMD_READ); SPI.transfer(a>>16); SPI.transfer(a>>8); SPI.transfer(a);
  for(uint32_t i=0;i<n;i++) b[i]=SPI.transfer(0x00); csH();
}
void flashWrite(uint32_t a, uint8_t *b, uint32_t n) {
  writeEnable(); csL(); SPI.transfer(CMD_PAGE_PROG); SPI.transfer(a>>16); SPI.transfer(a>>8); SPI.transfer(a);
  for(uint32_t i=0;i<n;i++) SPI.transfer(b[i]); csH();
}
void eraseSector(uint32_t a) { writeEnable(); csL(); SPI.transfer(CMD_SECT_ERASE); SPI.transfer(a>>16); SPI.transfer(a>>8); SPI.transfer(a); csH(); }

uint32_t readCount()  { uint8_t b[4]; flashRead(COUNT_ADDR,b,4); return ((uint32_t)b[0]<<24)|(b[1]<<16)|(b[2]<<8)|b[3]; }
uint8_t  readVersion(){ uint8_t v; flashRead(COUNT_ADDR+4,&v,1); return v; }
void writeHeader(uint32_t n) {
  eraseSector(COUNT_ADDR); waitBusy();
  uint8_t hdr[5];
  hdr[0] = (uint8_t)(n >> 24); hdr[1] = (uint8_t)(n >> 16);
  hdr[2] = (uint8_t)(n >> 8);  hdr[3] = (uint8_t)n;
  hdr[4] = STRUCT_VERSION;
  flashWrite(COUNT_ADDR, hdr, 5);
  waitBusy();
}

void clearAll() { Serial.print(F("Erasing... ")); writeHeader(0); waitBusy(); eraseSector(DATA_ADDR); waitBusy(); Serial.println(F("done")); }

// ── Setup ─────────────────────────────────────────────────
void setup() {
  Serial.begin(115200);
  delay(1000);
  Serial.println(F("\n=== W25QXX + SEN050X Logger ===\n"));

  // SPI flash
  SPI.begin(FLASH_SCK, FLASH_MISO, FLASH_MOSI, FLASH_CS);
  pinMode(FLASH_CS, OUTPUT); csH();
  pinMode(LED_PIN, OUTPUT);
  Serial.println(F("[OK] SPI flash"));

  // I2C sensor
  Wire.begin();
  Serial.print(F("[  ] Sensor... "));
  int tries = 0;
  while (sensor.begin() != 0 && tries < 10) { Serial.print('.'); delay(1000); tries++; }
  if (tries >= 10) { Serial.println(F("\n[FAIL] Check wiring: SDA→8 SCL→9 VCC→3.3V GND→GND")); while(1) delay(1000); }
  Serial.println(F("OK"));

  // Storage
  uint32_t count = readCount();
  uint8_t  ver   = readVersion();
  if (count == 0xFFFFFFFF || ver != STRUCT_VERSION) {
    if (ver != STRUCT_VERSION && ver != 0xFF) Serial.println(F("[! ] Struct changed — clearing old data"));
    clearAll();
    count = 0;
    writeHeader(0);
  }
  Serial.print(F("[  ] Records stored: ")); Serial.println(count);
  Serial.print(F("[  ] Record size: ")); Serial.print(sizeof(Record)); Serial.println(F(" bytes\n"));

  Serial.print(F("First reading: "));
  Serial.print(sensor.getTemperature(TEMP_C)); Serial.print(F("C  "));
  Serial.print(sensor.getHumidity()); Serial.print(F("%  "));
  Serial.print(sensor.getAtmospherePressure(HPA)); Serial.println(F("hPa\n"));
  Serial.println(F("Logging every 3s...\n"));
}

// ── Loop ──────────────────────────────────────────────────
void loop() {
  static uint32_t lastLog = 0;
  uint32_t now = millis();

  if (now - lastLog >= 3000) {  // 1 hour
    lastLog = now;

    // ── Read sensor ──
    Record rec;
    rec.timestamp    = millis();
    rec.tempC        = sensor.getTemperature(TEMP_C);
    rec.tempF        = sensor.getTemperature(TEMP_F);
    rec.humidity     = sensor.getHumidity();
    rec.pressure_hpa = sensor.getAtmospherePressure(HPA);
    rec.altitude_m   = sensor.getElevation();
    rec.light_lx     = sensor.getLuminousIntensity();
    rec.uv_mwcm2     = sensor.getUltravioletIntensity();

    // ── Write to flash ──
    uint32_t count = readCount();
    uint32_t addr  = DATA_ADDR + count * sizeof(Record);
    flashWrite(addr, (uint8_t*)&rec, sizeof(Record));
    waitBusy();
    writeHeader(count + 1);

    // Blink LED
    digitalWrite(LED_PIN, HIGH);
    delay(80);
    digitalWrite(LED_PIN, LOW);

    // ── Print readings ──
    Serial.println(F("-------------------------------"));
    Serial.print(F("Temp: "));
    Serial.print(rec.tempC);
    Serial.println(F(" ℃"));
    Serial.print(F("Temp: "));
    Serial.print(rec.tempF);
    Serial.println(F(" ℉"));
    Serial.print(F("Humidity: "));
    Serial.print(rec.humidity);
    Serial.println(F(" %"));
    Serial.print(F("Ultraviolet intensity: "));
    Serial.print(rec.uv_mwcm2);
    Serial.println(F(" mw/cm2"));
    Serial.print(F("LuminousIntensity: "));
    Serial.print(rec.light_lx);
    Serial.println(F(" lx"));
    Serial.print(F("Atmospheric pressure: "));
    Serial.print(rec.pressure_hpa);
    Serial.println(F(" hpa"));
    Serial.print(F("Altitude: "));
    Serial.print(rec.altitude_m);
    Serial.println(F(" m"));
    Serial.print(F("[Record #"));
    Serial.print(count + 1);
    Serial.println(F("]"));
    Serial.println(F("-------------------------------\n"));
  }

  delay(100);
}

Reader Sketch (beetle_sensor_reader.ino)

Upload this separate sketch to read all data from flash and dump as CSV. Copy the output between the DATA markers into a spreadsheet.

/*
 * Beetle ESP32-C6 + W25QXX — Sensor Data READER
 *
 * Dumps all records stored by beetle_sensor_logger.ino to Serial CSV.
 * Output ready for Excel, Google Sheets, or Python.
 *
 * Connections:
 *   CS=GPIO7  MOSI=GPIO22  MISO=GPIO21  SCK=GPIO23
 */

#include <SPI.h>

#define FLASH_CS   7
#define FLASH_MOSI 22
#define FLASH_MISO 21
#define FLASH_SCK  23

#define CMD_READ      0x03
#define CMD_READ_SR1  0x05

#define COUNT_ADDR    0x000000
#define DATA_ADDR     0x002000

struct Record {
  uint32_t timestamp;
  float    tempC;
  float    tempF;
  float    humidity;
  float    pressure_hpa;
  float    altitude_m;
  float    light_lx;
  float    uv_mwcm2;
};

inline void csL()  { digitalWrite(FLASH_CS, LOW);  }
inline void csH()  { digitalWrite(FLASH_CS, HIGH); }

void flashRead(uint32_t addr, uint8_t *buf, uint32_t len) {
  csL();
  SPI.transfer(CMD_READ);
  SPI.transfer(addr >> 16); SPI.transfer(addr >> 8); SPI.transfer(addr);
  for (uint32_t i = 0; i < len; i++) buf[i] = SPI.transfer(0x00);
  csH();
}

uint32_t readCount() {
  uint8_t b[4];
  flashRead(COUNT_ADDR, b, 4);
  return ((uint32_t)b[0]<<24) | (b[1]<<16) | (b[2]<<8) | b[3];
}

void setup() {
  Serial.begin(115200);
  delay(1000);

  SPI.begin(FLASH_SCK, FLASH_MISO, FLASH_MOSI, FLASH_CS);
  pinMode(FLASH_CS, OUTPUT); csH();

  uint32_t count = readCount();

  Serial.println(F("=== W25QXX + SEN050X — Data Dump ==="));
  Serial.print(F("Records: ")); Serial.println(count);
  Serial.print(F("Record size: ")); Serial.print(sizeof(Record));
  Serial.println(F(" bytes"));
  Serial.println();

  if (count == 0 || count == 0xFFFFFFFF) {
    Serial.println(F("No data. Run the logger first."));
    return;
  }

  // CSV header
  Serial.println(F("#,TIMESTAMP_MS,TEMP_C,TEMP_F,HUMID_%,PRESS_HPA,ALT_M,LIGHT_LX,UV_MWCM2"));
  Serial.println(F("--- DATA START ---"));

  uint32_t dump = (count > 1000) ? 1000 : count;
  uint32_t start = (count > 1000) ? (count - 1000) : 0;

  if (count > 1000) {
    Serial.print(F("# Showing last 1000 of "));
    Serial.print(count);
    Serial.println(F(" records"));
  }

  Record rec;
  for (uint32_t i = start; i < count; i++) {
    uint32_t addr = DATA_ADDR + i * sizeof(Record);
    flashRead(addr, (uint8_t*)&rec, sizeof(Record));

    Serial.print(i + 1);
    Serial.print(','); Serial.print(rec.timestamp);
    Serial.print(','); Serial.print(rec.tempC, 1);
    Serial.print(','); Serial.print(rec.tempF, 1);
    Serial.print(','); Serial.print(rec.humidity, 1);
    Serial.print(','); Serial.print(rec.pressure_hpa, 1);
    Serial.print(','); Serial.print(rec.altitude_m, 1);
    Serial.print(','); Serial.print(rec.light_lx, 0);
    Serial.print(','); Serial.println(rec.uv_mwcm2, 2);
    delay(150);  // line-by-line readable pace
  }

  Serial.println(F("--- DATA END ---"));
  Serial.println();

  // Stats
  Serial.println(F("=== STATS ==="));
  float minT=999, maxT=-999, sumT=0;
  uint32_t step = (count > 5000) ? count / 5000 : 1;
  uint32_t n = 0;

  for (uint32_t i = 0; i < count; i += step) {
    flashRead(DATA_ADDR + i * sizeof(Record), (uint8_t*)&rec, sizeof(Record));
    if (rec.tempC < minT) minT = rec.tempC;
    if (rec.tempC > maxT) maxT = rec.tempC;
    sumT += rec.tempC;
    n++;
  }
  Serial.print(F("Temp  min:")); Serial.print(minT,1);
  Serial.print(F("  max:")); Serial.print(maxT,1);
  Serial.print(F("  avg:")); Serial.println(sumT/n, 1);
  Serial.print(F("Total: ")); Serial.print(count);
  Serial.print(F(" records  |  flash: "));
  Serial.print(count * sizeof(Record) / 1024);
  Serial.println(F(" KB"));
  Serial.println(F("\nCopy lines between DATA START/END into a .csv file."));
}

void loop() { delay(1000); }

Ongoing Logging

The logger sleeps between readings. Every hour it wakes, samples, writes, and returns to sleep. The LED blinks for ~80ms on each write — easy to verify from across the room.

Storage Capacity & Lifetime

For a W25Q32 (4MB chip) logging every 1 hour at 36 bytes per record: you get ~5, 400 days = ~14.8 years of lifetime. The practical limit is ~11 years before hitting the 100k erase cycles per sector.

Conclusion

This is a complete, practical environmental logger built from affordable, widely available parts. The Beetle ESP32-C6 is compact and power-efficient. The SEN0500 captures six key metrics. The W25Q32 flash chip stores 130, 000 readings without the complexity of an SD filesystem. The rechargeable battery lets you deploy it anywhere, and the JUSTWAY 3D-printed case keeps it safe from the elements.

Whether you're monitoring a remote weather station, a greenhouse, a server room, or a museum gallery, this logger delivers a decade of historical data at a glance.

No WiFi. No cloud. No subscriptions. Just pure data, stored locally, forever
