Team Pillai HOC College: Sagar Kotian

Published February 24, 2018

Alexa at Your Fingertips

A smart glove which converts sign language into Alexa commands. Can also be used for speech.

IntermediateFull instructions provided2 days8,690

Things used in this project

Hardware components

Arduino UNO

Flexible Potentiometer

Jumper wires (generic)

Solderless Breadboard Half Size

Software apps and online services

Arduino IDE

Hand tools and fabrication machines

Soldering iron (generic)

Story

Alexa brings ease and fun to almost everyone with just a small voice command. But what about those who can't speak? This project is for the verbally disabled people who could use alexa at the ease of a gesture. Not only can they control their smart home, but also communicate to other people without the person in front of them knowing the gesture language.

This glove which we have developed converts gestures given through hand, into audio. We have developed some basic commands already which is shown in the video.

How it's made

The glove uses flex sensors( 4.5 inch), one in each finger to read the gestures through arduino, which is shown on the serial output.

Step 1:

Connect the flex sensors to a bread board. I used 2 bread boards, 3 flex sensors in one and 2 in one. Make sure the flex sensors are connected throw 10k resistors.

Step 2:

Give the analog connections to each flex sensor.Thumb, Index, Middle, Ring and Pinkey to A0, A1, A2, A3 and A4 respectively.

Step 3:

Give a common ground and common VCC(5V) on each bread board(could be interconnected since arduino has one 5V pin). Connect these to the board.

Step 4:

Connect your Arduino to your PC and upload the code attached.

Step 5:

Open your serial monitor and check the values. Change your code and make your own gestures accordingly.

The perfected glove:

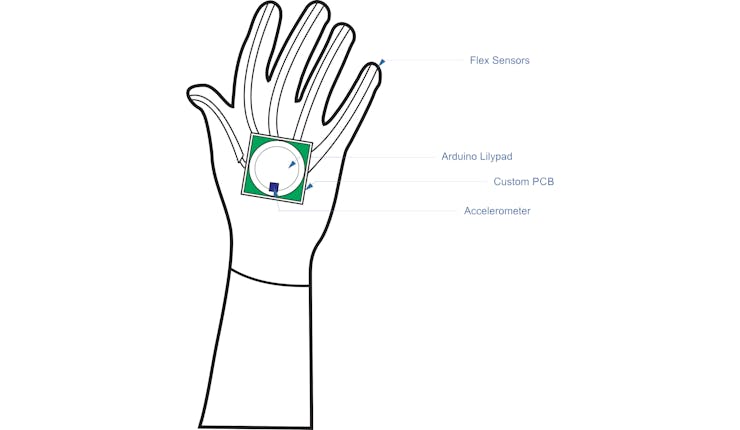

The glove design in future when it gets completed:

Code

Code

// These constants won't change:
const int sensorPinTHUMB = A0;    // pin that the THUMB flex sensor is attached to
const int sensorPinINDEX = A1;    // pin that the INDEX flex sensor is attached to
const int sensorPinMIDDLE = A2;    // pin that the MIDDLE flex sensor is attached to
const int sensorPinRING = A3;    // pin that the RING flex sensor is attached to
const int sensorPinPINKEY = A4;    // pin that the PINKEY flex sensor is attached to
// variables:
int sensorValueTHUMB = 0;         // the sensor value
int sensorValueINDEX = 0;         // the sensor value
int sensorValueMIDDLE = 0;         // the sensor value
int sensorValueRING = 0;         // the sensor value
int sensorValuePINKEY = 0;         // the sensor value
int sensorMinTHUMB = 1023;        // minimum sensor value
int sensorMinINDEX = 1023;        // minimum sensor value
int sensorMinMIDDLE = 1023;        // minimum sensor value
int sensorMinRING = 1023;        // minimum sensor value
int sensorMinPINKEY = 1023;        // minimum sensor value
int sensorMaxTHUMB = 0;           // maximum sensor value
int sensorMaxINDEX = 0;           // maximum sensor value
int sensorMaxMIDDLE = 0;           // maximum sensor value
int sensorMaxRING = 0;           // maximum sensor value
int sensorMaxPINKEY = 0;           // maximum sensor value
void setup() {
Serial.begin (9600);
 // calibrate during the first five seconds
 while (millis() < 5000) {
     sensorValueTHUMB = analogRead(sensorPinTHUMB);
     sensorValueINDEX = analogRead(sensorPinINDEX);
     sensorValueMIDDLE = analogRead(sensorPinMIDDLE);
     sensorValueRING = analogRead(sensorPinRING);
     sensorValuePINKEY = analogRead(sensorPinPINKEY);
//--------------------------------------------------
   // record the maximum sensor value
   if (sensorValueTHUMB > sensorMaxTHUMB) {
     sensorMaxTHUMB = sensorValueTHUMB;
   }
      // record the maximum sensor value
   if (sensorValueINDEX > sensorMaxINDEX) {
     sensorMaxINDEX = sensorValueINDEX;
   }
  // record the maximum sensor value
   if (sensorValueMIDDLE > sensorMaxMIDDLE) {
     sensorMaxMIDDLE = sensorValueMIDDLE;
   }
   // record the maximum sensor value
   if (sensorValueRING > sensorMaxRING) {
     sensorMaxRING = sensorValueRING;
   }
   // record the minimum sensor value
   if (sensorValueRING < sensorMinRING) {
     sensorMinRING = sensorValueRING;
   }
    // record the maximum sensor value
   if (sensorValuePINKEY > sensorMaxPINKEY) {
     sensorMaxPINKEY = sensorValuePINKEY;
   }
   //--------------------------------------------------------
   // record the minimum sensor value
   if (sensorValueTHUMB < sensorMinTHUMB) {
     sensorMinTHUMB = sensorValueTHUMB;
   }
      // record the minimum sensor value
   if (sensorValueINDEX < sensorMinINDEX) {
     sensorMinINDEX = sensorValueINDEX;
   }
       // record the minimum sensor value
   if (sensorValueMIDDLE < sensorMinMIDDLE) {
     sensorMinMIDDLE = sensorValueMIDDLE;
   }
   // record the minimum sensor value
   if (sensorValueRING < sensorMinRING) {
     sensorMinRING = sensorValueRING;
   }
   // record the minimum sensor value
   if (sensorValuePINKEY < sensorMinPINKEY) {
     sensorMinPINKEY = sensorValuePINKEY;
   }
 }
Serial.print ("LowTHUMB = ");
 Serial.println (sensorMinTHUMB);
 Serial.print ("HighTHUMB = ");
 Serial.println (sensorMaxTHUMB);
 Serial.println ("             ");
 Serial.print ("LowINDEX = ");
 Serial.println (sensorMinINDEX);
 Serial.print ("HighINDEX = ");
 Serial.println (sensorMaxINDEX);
 Serial.println ("             ");
 Serial.print ("LowMIDDLE = ");
 Serial.println (sensorMinMIDDLE);
 Serial.print ("HighMIDDLE = ");
 Serial.println (sensorMaxMIDDLE);
 Serial.println ("             ");
  Serial.print ("LowRING = ");
 Serial.println (sensorMinRING);
 Serial.print ("HighRING = ");
 Serial.println (sensorMaxRING);
 Serial.println ("             ");
 Serial.print ("LowPINKEY = ");
 Serial.println (sensorMinPINKEY);
 Serial.print ("HighPINKEY = ");
 Serial.println (sensorMaxPINKEY);
 Serial.println ("             ");
 delay (1000);
}
void loop() {
// read the sensor:
 sensorValueTHUMB = analogRead(sensorPinTHUMB);
 sensorValueINDEX = analogRead(sensorPinINDEX);
 sensorValueMIDDLE = analogRead(sensorPinMIDDLE);
 sensorValueRING = analogRead(sensorPinRING);
 sensorValuePINKEY = analogRead(sensorPinPINKEY);
 // apply the calibration to the sensor reading
 sensorValueTHUMB = map(sensorValueTHUMB, sensorMinTHUMB, sensorMaxTHUMB, 1, 255);
 sensorValueINDEX = map(sensorValueINDEX, sensorMinINDEX, sensorMaxINDEX, 1, 255);
 sensorValueMIDDLE = map(sensorValueMIDDLE, sensorMinMIDDLE, sensorMaxMIDDLE, 1, 255);
 sensorValueRING = map(sensorValueRING, sensorMinRING, sensorMaxRING, 1, 255);
 sensorValuePINKEY = map(sensorValuePINKEY, sensorMinPINKEY, sensorMaxPINKEY, 1, 255);
 // in case the sensor value is outside the range seen during calibration
 sensorValueTHUMB = constrain(sensorValueTHUMB, 1, 255);
 sensorValueINDEX = constrain(sensorValueINDEX, 1, 255);
 sensorValueMIDDLE = constrain(sensorValueMIDDLE, 1, 255);
 sensorValueRING = constrain(sensorValueRING, 1, 255);
 sensorValuePINKEY = constrain(sensorValuePINKEY, 1, 255);
 Serial.println ("-------------------");
 Serial.print ("sensorValue-THUMB = ");
 Serial.println (sensorValueTHUMB);
 Serial.print ("sensorValue-INDEX = ");
 Serial.println (sensorValueINDEX);
 Serial.print ("sensorValue-MIDDLE = ");
 Serial.println (sensorValueMIDDLE);
 Serial.print ("sensorValue-RING = ");
 Serial.println (sensorValueRING);
 Serial.print ("sensorValue-PINKEY = ");
 Serial.println (sensorValuePINKEY);
 Serial.println ("   ");
  Serial.println (" ");
if (sensorValueTHUMB <50 && sensorValueINDEX <50  && sensorValueMIDDLE <50 && sensorValueRING <50 ) {
   Serial.println  ("\n");
   Serial.println ("Hey Alexa");
   Serial.println  ("        ");
 }
 else {
 }
 if (sensorValueTHUMB > 180 && sensorValueINDEX > 180 && sensorValueMIDDLE > 180 && sensorValueRING > 180 ) {
   Serial.println ("Hey Alexa, what time is it?");
   Serial.println  ("        ");
 }
 else {
 }
  if (sensorValueTHUMB <50 && sensorValueINDEX <50 && sensorValueMIDDLE > 120 && sensorValueRING > 120 ) {
   Serial.println ("Hey Alexa, how are the weather conditions?");
   Serial.println  ("        ");
 }
 else {
 }
 if (sensorValueTHUMB <30 && sensorValueINDEX > 120 && sensorValueMIDDLE >120 && sensorValueRING <80) {
   Serial.println ("Hey Alexa, turn on the lights");
   Serial.println  ("        ");
 }
 else {
 }
 if (sensorValueTHUMB <50 && sensorValueINDEX <50 && sensorValueMIDDLE <50 && sensorValueRING >140 ) {
   Serial.println ("Hey  Alexa, Turn off the lights");
   Serial.println  ("        ");
 }
 else {
 }
 if (sensorValueTHUMB >150 && sensorValueINDEX <50 && sensorValueMIDDLE >150 && sensorValueRING >150) {
   Serial.println ("Hey Alexa, Set an alarm");
   Serial.println  ("        ");
 }
 else {
 }
 if (sensorValueTHUMB > 150 && sensorValueINDEX <80  && sensorValueMIDDLE <80 && sensorValueRING >150 ) {
   Serial.println ("Hey Alexa, Set a reminder");
   Serial.println  ("        ");
 }
 else {
 }
 if (sensorValueTHUMB <50 && sensorValueINDEX > 150 && sensorValueMIDDLE > 150 && sensorValueRING > 150  ) {
   Serial.println ("Good Morning");
   Serial.println  ("        ");
 }
 else {
 }
 delay (1000);
}
