Things used in this project

Hardware components:
A000066 iso both
Arduino UNO & Genuino UNO
×1
Phpoc shield for arduino per pztifwjlwk
PHPoC Shield for Arduino
×1
7V LED By KINGBRIGHT
×3
12002 04
Breadboard (generic)
×1
Screen shot 2017 02 16 at 2 2fejqs9vfo
MikroElektronika RELAY click
×2
11026 02
Jumper wires (generic)
×1

Schematics

Wiring
Wiring i3uunejif2

Code

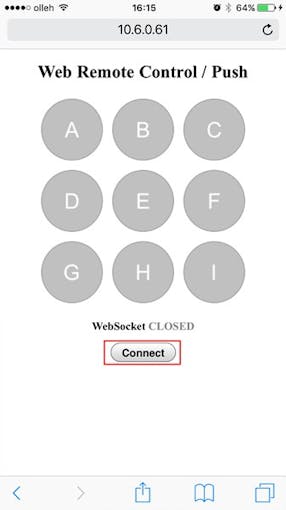

Normal code for controlling LED via webpageArduino
/* arduino web server - remote control (push button) */

#include "SPI.h"
#include "Phpoc.h"

#define STATE_YELLOW	'A'
#define STATE_GREEN		'B'
#define STATE_RED		'C'

#define PIN_LED_YELLOW 		3
#define PIN_LED_GREEN 		8
#define PIN_LED_RED			9

PhpocServer server(80);

char current_led = STATE_RED;
int pins[3] = {PIN_LED_YELLOW, PIN_LED_GREEN, PIN_LED_RED};

void handleEvent(char stt);

void setup(){
	Serial.begin(9600);
	while(!Serial)
		;

	Phpoc.begin(PF_LOG_SPI | PF_LOG_NET);
	//Phpoc.begin();

	server.beginWebSocket("remote_push");

	Serial.print("WebSocket server address : ");
	Serial.println(Phpoc.localIP());

	pinMode(PIN_LED_YELLOW, OUTPUT);
	pinMode(PIN_LED_GREEN, OUTPUT);
	pinMode(PIN_LED_RED, OUTPUT);

	digitalWrite(PIN_LED_RED, HIGH);

}

void loop() {
	//Wait for a new client:
	PhpocClient client = server.available();

	if (client) {
		if (client.available() > 0) {
			//Read the bytes incoming from the client:
			char event = client.read();
			if(event == 'A' || event == 'B' || event == 'C')
				if(event != current_led)
					handleEvent(event);
		}
	}
}

void handleEvent(char event){

	for(int i = 0; i < 5; i++){
		digitalWrite(pins[current_led - 'A'], (i%2));
		delay(100);
	}
	//Turn on green led
	digitalWrite(pins[event - 'A'], HIGH);

	// update current state
	current_led = event;
}

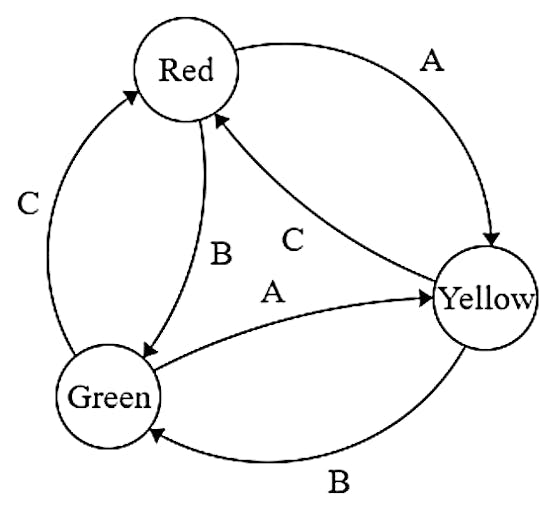

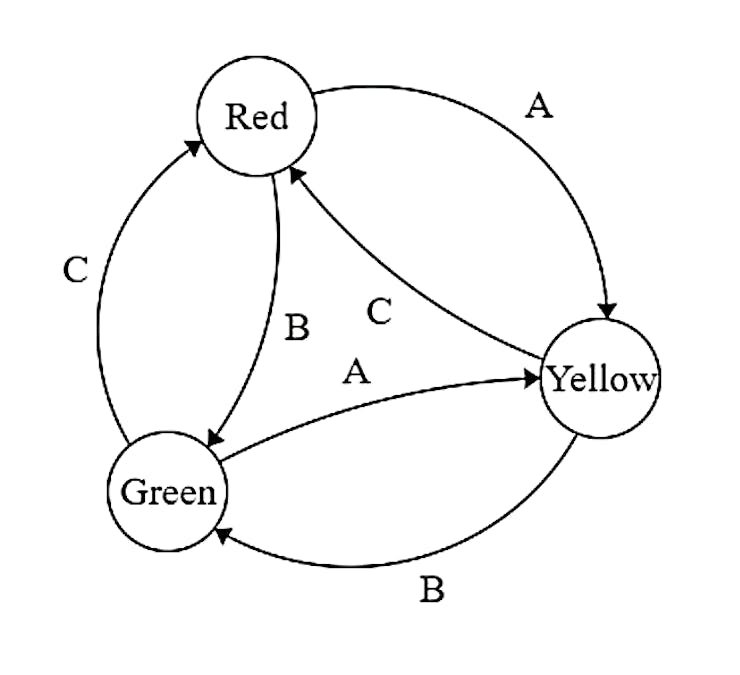

Finite State Machine Code for controlling LED via webpageArduino
This code have the same functionality as normal code but using Finite State Machine model
/* arduino web server - remote control (push button) */

#include "SPI.h"
#include "Phpoc.h"

#define STATE_YELLOW	'A'
#define STATE_GREEN		'B'
#define STATE_RED		'C'

#define PIN_LED_YELLOW 		3
#define PIN_LED_GREEN 		8
#define PIN_LED_RED			9

PhpocServer server(80);

char fsm_state = STATE_RED;

void FSMEvent(char stt);

void setup(){
	Serial.begin(9600);
	while(!Serial)
		;

	Phpoc.begin(PF_LOG_SPI | PF_LOG_NET);
	//Phpoc.begin();

	server.beginWebSocket("remote_push");

	Serial.print("WebSocket server address : ");
	Serial.println(Phpoc.localIP());

	pinMode(PIN_LED_YELLOW, OUTPUT);
	pinMode(PIN_LED_GREEN, OUTPUT);
	pinMode(PIN_LED_RED, OUTPUT);

	digitalWrite(PIN_LED_RED, HIGH);
}

void loop() {
	//Wait for a new client:
	PhpocClient client = server.available();

	if (client) {
		if (client.available() > 0) {
			//Read the bytes incoming from the client:
			char event = client.read();
			if(event == 'A' || event == 'B' || event == 'C')
				if(event != fsm_state)
					FSMEvent(event);
		}
	}
}

void FSMEvent(char event){

	//Action is taken based on current state and event
	switch(fsm_state){
		case STATE_YELLOW:

			if(event == STATE_GREEN){
				//Blink yellow led in a second and then turn off
				for(int i = 0; i < 5; i++){
					digitalWrite(PIN_LED_YELLOW, (i%2));
					delay(100);
				}
				//Turn on green led
				digitalWrite(PIN_LED_GREEN, HIGH);
			}
			else if(event == STATE_RED){
				//Blink yellow led in a second and then turn off
				for(int i = 0; i < 5; i++){
					digitalWrite(PIN_LED_YELLOW, (i%2));
					delay(100);
				}
				//Turn on red led
				digitalWrite(PIN_LED_RED, HIGH);
			}

			break;

		case STATE_GREEN:

			if(event == STATE_YELLOW){
				//Blink green led in a second and then turn off
				for(int i = 0; i < 5; i++){
					digitalWrite(PIN_LED_GREEN, (i%2));
					delay(100);
				}
				//Turn on yellow led
				digitalWrite(PIN_LED_YELLOW, HIGH);
			}
			else if(event == STATE_RED){
				//Blink green led in a second and then turn off
				for(int i = 0; i < 5; i++){
					digitalWrite(PIN_LED_GREEN, (i%2));
					delay(100);
				}
				//Turn on red led
				digitalWrite(PIN_LED_RED, HIGH);
			}

			break;

		case STATE_RED:

			if(event == STATE_YELLOW){
				//Blink red led in a second and then turn off
				for(int i = 0; i < 5; i++){
					digitalWrite(PIN_LED_RED, (i%2));
					delay(100);
				}
				//Turn on yellow led
				digitalWrite(PIN_LED_YELLOW, HIGH);
			}
			else if(event == STATE_GREEN){
				//Blink red led in a second and then turn off
				for(int i = 0; i < 5; i++){
					digitalWrite(PIN_LED_RED, (i%2));
					delay(100);
				}
				//Turn on green led
				digitalWrite(PIN_LED_GREEN, HIGH);
			}

			break;
	}

	// update current state
	fsm_state = event;
}
