Terminator Hunter Killer Robot

Ci20 controlled Terminator Robot. It is modeled after the T-1 Battlefield Robot. My idea is to use the Ci20 to terminate stuff!

AdvancedShowcase (no instructions)24 hours681

Things used in this project

Story

Read more

Custom parts and enclosures

CAD Files !!

3D Printing Brackets n things

Schematics

Main Project Writeup - Verbose

This is my go-to project log that I maintained as I progressed through this challenge.

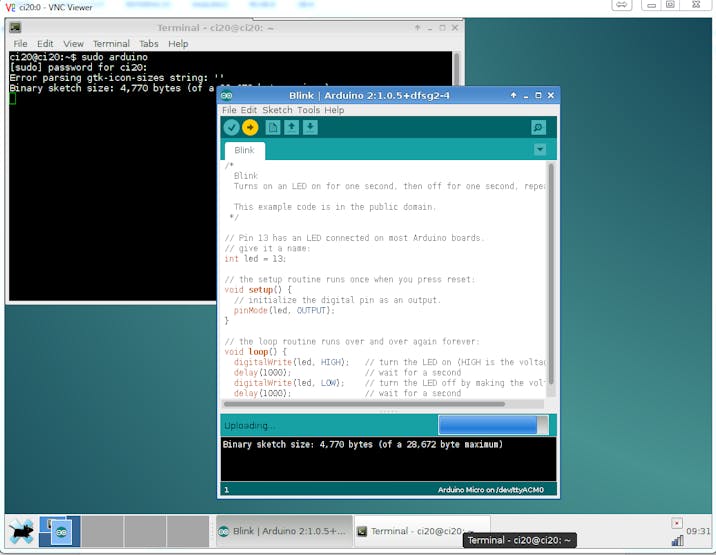

Code

Arduino Code

C/C++
Runtime Firmware for Arduino
// Alex Eastabrook
// Ci20 Arduino Robot Firmware.
// Version 0.1a

#include <Adafruit_NeoPixel.h>

// Macros
#define TRACE(msg) { Serial.print(__FUNCTION__); Serial.print("\t"); Serial.print(__LINE__); Serial.println(msg);  }
#define NUMOFELEMENTS(x)  (sizeof(x) / sizeof((x)[0]))

// Pin Definitions
#define MOTOR_L_FORWARD_PIN   2
#define MOTOR_L_BACKWARD_PIN  3
#define MOTOR_R_FORWARD_PIN   4
#define MOTOR_R_BACKWARD_PIN  5

#define ULTRASONIC_TRIG      7
#define ULTRASONIC_ECHO      6

#define PIR_SENSOR_LEFT       11
#define PIR_SENSOR_RIGHT      12

#define MISSILE_PIN         10

#define NEOPIXEL_PIN          9
#define NUMPIXELS             6

#define CMD_BUFFER_SIZE       40
// Globals.
short output_pins[] = {MOTOR_L_FORWARD_PIN, MOTOR_L_BACKWARD_PIN , MOTOR_R_FORWARD_PIN, MOTOR_R_BACKWARD_PIN, NEOPIXEL_PIN , MISSILE_PIN, ULTRASONIC_TRIG };
short input_pins[] = {ULTRASONIC_ECHO, PIR_SENSOR_LEFT , PIR_SENSOR_RIGHT };

Adafruit_NeoPixel pixels = Adafruit_NeoPixel(NUMPIXELS, NEOPIXEL_PIN, NEO_GRB + NEO_KHZ800);

void setup() {
  // put your setup code here, to run once:

  Serial.begin(9600);
  while (!Serial) {
    ; // wait for serial port to connect. Needed for native USB port only
  }
  TRACE("Serial Setup Complete : Trace now available");

  for (short i = 0; i < NUMOFELEMENTS(output_pins) ; i++)
  {
    pinMode(output_pins[i], OUTPUT);
  }
  for (short i = 0; i < NUMOFELEMENTS(input_pins) ; i++)
  {
    pinMode(input_pins[i], INPUT);
  }
  pixels.begin();
  pixels.show();


}

// Motor Control.
void stopMotors()
{
  digitalWrite(MOTOR_R_FORWARD_PIN, LOW);
  digitalWrite(MOTOR_R_BACKWARD_PIN, LOW);
  digitalWrite(MOTOR_L_FORWARD_PIN, LOW);
  digitalWrite(MOTOR_L_BACKWARD_PIN, LOW);
  TRACE("Motors Off");
  delay(50);
}

void stop(void) //Stop
{
  stopMotors();
}

void forward( )
{
  stopMotors();
  digitalWrite(MOTOR_R_FORWARD_PIN, HIGH);
  digitalWrite(MOTOR_L_FORWARD_PIN, HIGH);
  TRACE("Forward");

}

void reverse ( )
{
  stopMotors();
  digitalWrite(MOTOR_R_BACKWARD_PIN, HIGH);
  digitalWrite(MOTOR_L_BACKWARD_PIN, HIGH);
  TRACE("Backward");
}

void left ( )
{
  stopMotors();
  digitalWrite(MOTOR_R_BACKWARD_PIN, HIGH);
  digitalWrite(MOTOR_L_FORWARD_PIN, HIGH);
  TRACE("Left");
}

void right ( )
{
  stopMotors();
  digitalWrite(MOTOR_L_BACKWARD_PIN, HIGH);
  digitalWrite(MOTOR_R_FORWARD_PIN, HIGH);
  TRACE("Right");
}
void fire ( )
{

  digitalWrite(MISSILE_PIN, HIGH);
  delay(20);
  digitalWrite(MISSILE_PIN, LOW);
  TRACE("MISSILE FIRED");
}

void setRed()
{
  for (int i = 0; i < NUMPIXELS; i++) {
    pixels.setPixelColor(i, pixels.Color(0, 0, 0)); // Moderately bright green color.
    pixels.show(); // This sends the updated pixel color to the hardware.
  }
  delay(100);
  pixels.setPixelColor(0, 200, 0, 0);
  pixels.setPixelColor(2, 200, 0, 0);
  pixels.setPixelColor(3, 200, 0, 0);
  pixels.setPixelColor(5, 200, 0, 0);
  pixels.show();
  delay(100);
}
void setBlue()
{
  for (int i = 0; i < NUMPIXELS; i++) {
    pixels.setPixelColor(i, pixels.Color(0, 0, 0)); // Moderately bright green color.
    pixels.show(); // This sends the updated pixel color to the hardware.
  }
  delay(300);
  pixels.setPixelColor(0, 0,  200, 0);
  pixels.setPixelColor(2, 0,  200, 0);
  pixels.setPixelColor(3, 0,  200, 0);
  pixels.setPixelColor(5, 0,  200, 0);
  pixels.show();

}

unsigned long ultrasonic_polling_counter;
unsigned long pir_polling_counter;

void loop() {


  // System Running.
  if ((millis() - ultrasonic_polling_counter   ) > 1000)
  {
    ultrasonic_polling_counter = millis();
    int maximumRange = 200; // Maximum range needed
    int minimumRange = 0; // Minimum range needed
    long duration, distance; // Duration used to calculate distance

    /* The following trigPin/echoPin cycle is used to determine the
      distance of the nearest object by bouncing soundwaves off of it. */
    digitalWrite(ULTRASONIC_TRIG, LOW);
    delayMicroseconds(2);

    digitalWrite(ULTRASONIC_TRIG, HIGH);
    delayMicroseconds(10);

    digitalWrite(ULTRASONIC_TRIG, LOW);
    duration = pulseIn(ULTRASONIC_ECHO, HIGH);

    //Calculate the distance (in cm) based on the speed of sound.
    distance = duration / 58.2;

    if (distance >= maximumRange || distance <= minimumRange) {
      /* Send a negative number to computer and Turn LED ON
        to indicate "out of range" */
      Serial.println("Forward Distance : OutOfRange");
    }
    else {
      /* Send the distance to the computer using Serial protocol, and
        turn LED OFF to indicate successful reading. */

      Serial.print("Forward Distance :");
      Serial.println(distance);

    }

    if ((millis() - pir_polling_counter   ) > 5000)
    {
      pir_polling_counter = millis();


      if (digitalRead(PIR_SENSOR_RIGHT));
      Serial.println("THERMAL SIGNATURE DETECTED RIGHT");

      if (digitalRead(PIR_SENSOR_LEFT));
      Serial.println("THERMAL SIGNATURE DETECTED LEFT");

    }

  }

  if (Serial.available() )
  {
    char val = Serial.read();
    switch (val) // Perform an action depending on the command
    {
      case 'w'://Move Forward
      case 'W':
        forward ();
        setRed();
        break;
      case 's'://Move Backwards
      case 'S':
        reverse ();
        setRed();
        break;
      case 'a'://Turn Left
      case 'A':
        left ();
        setRed();
        break;
      case 'd'://Turn Right
      case 'D':
        right ();
        setRed();

        break;
      case 'q'://Turn Right
      case 'Q':
        fire ();

        break;

      default:
        stop();
        setBlue();
        break;
    }
  }
}
