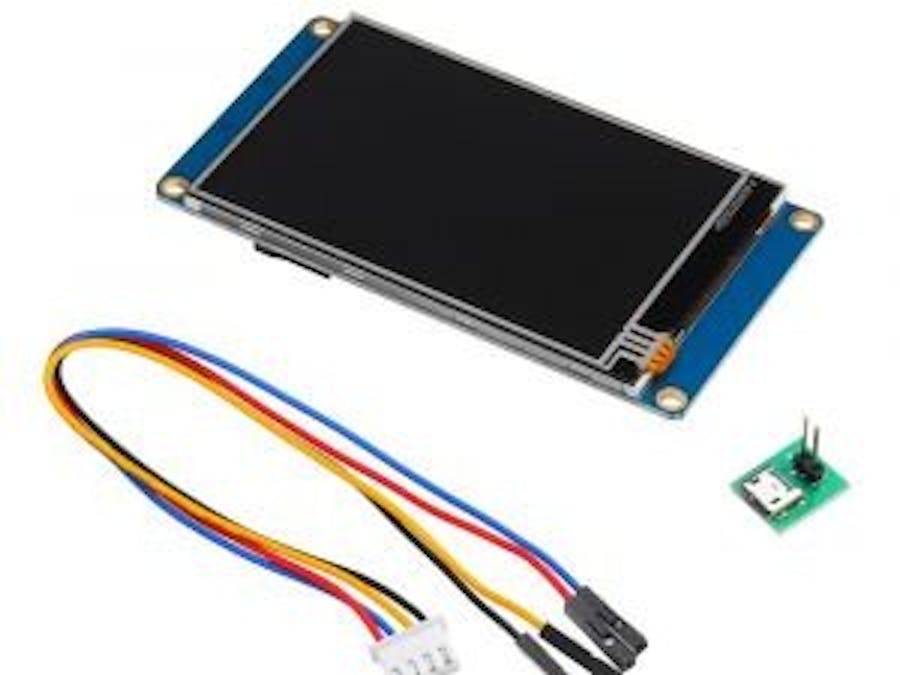

Wearable Touch Keyz

Interface Nextion with ESP32 to create a wearable touch keyboard

BeginnerFull instructions provided351

Things used in this project

Hardware components

Espressif ESP32

I have used an M5StickC(M5Stack) but you can use any ESP32 compatible board, as long as it has BLE

Itead Nextion NX3224T024 - Generic 2.4'' TFT Intelligent LCD Touch Display

Either of the HMI LCD works

Itead Nextion NX3224T028 - Generic 2.8" HMI LCD Touch Display

Either of the HMI LCD works

Itead Nextion NX4024T032 - Generic 3.2" HMI TFT Intelligent LCD Touch Display Module

Either of the HMI LCD works

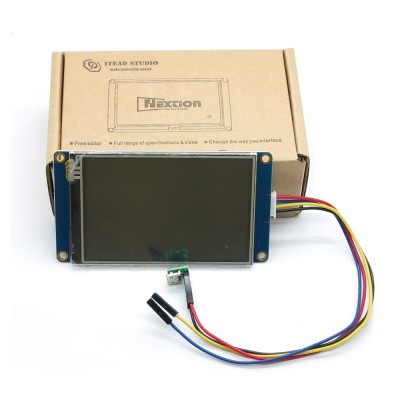

Itead Nextion NX4832T035 - 3.5" HMI TFT LCD Touch Display Module

Either of the HMI LCD works

Itead Nextion NX4827T043 - 4.3” TFT LCD Intelligent Touch Display

Either of the HMI LCD works

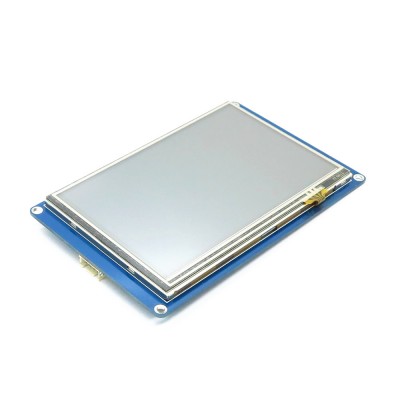

Itead Nextion NX8048T050 - 5" LCD TFT HMI Intelligent Touch Display

Either of the HMI LCD works

Itead Nextion NX8048T070 - Generic 7.0" HMI TFT LCD Touch Display

Either of the HMI LCD works

Software apps and online services

Arduino IDE

Itead Nextion Editor

Story

This is a project interfacing ESP32's BLE capabilities and Nextion's awesome touch interface. Just upload the INO file and the TFT file according to your Nextion device and enjoy typing.

Usage:

To use the Wearable Keyboard, all you have to do is to connect it to the device you want to type in(Windows, MacOS, and Linux are currently supported) and type in the characters
