ESP32 Smart Doorcam

This is an Esp32 AI-thinker camera module based smart IoT doorcam with Motion Detection and OTA firmware update capability.

AdvancedShowcase (no instructions)16 hours72

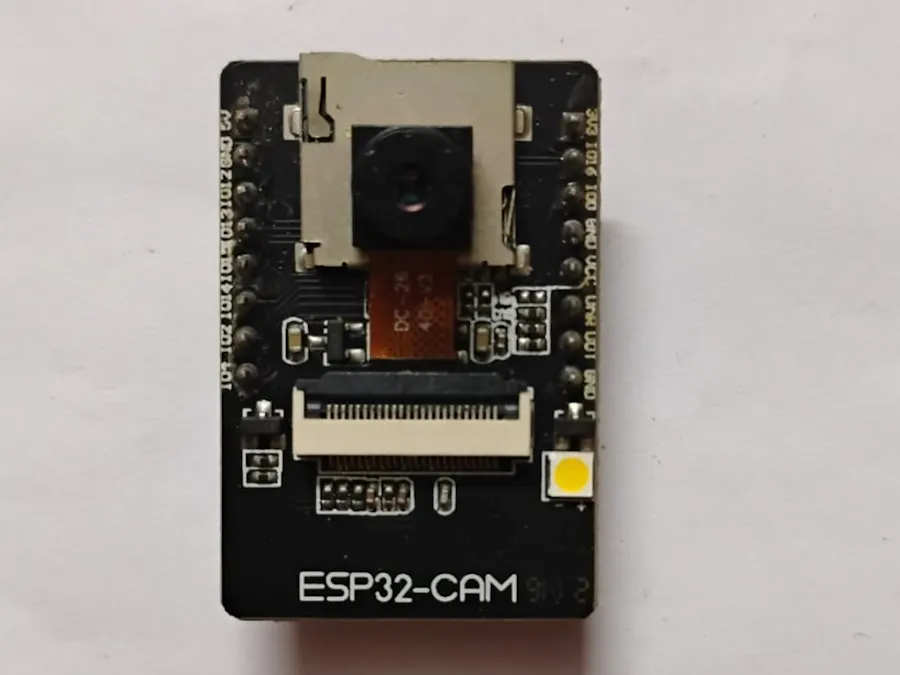

ESP32 Smart Doorcam

Things used in this project

Hardware components

Espressif ESP32 Camera Development Board
×1
SparkFun FTDI Basic Breakout - 5V
SparkFun FTDI Basic Breakout - 5V
×1

Software apps and online services

Github Termux

Story

Read more

Schematics

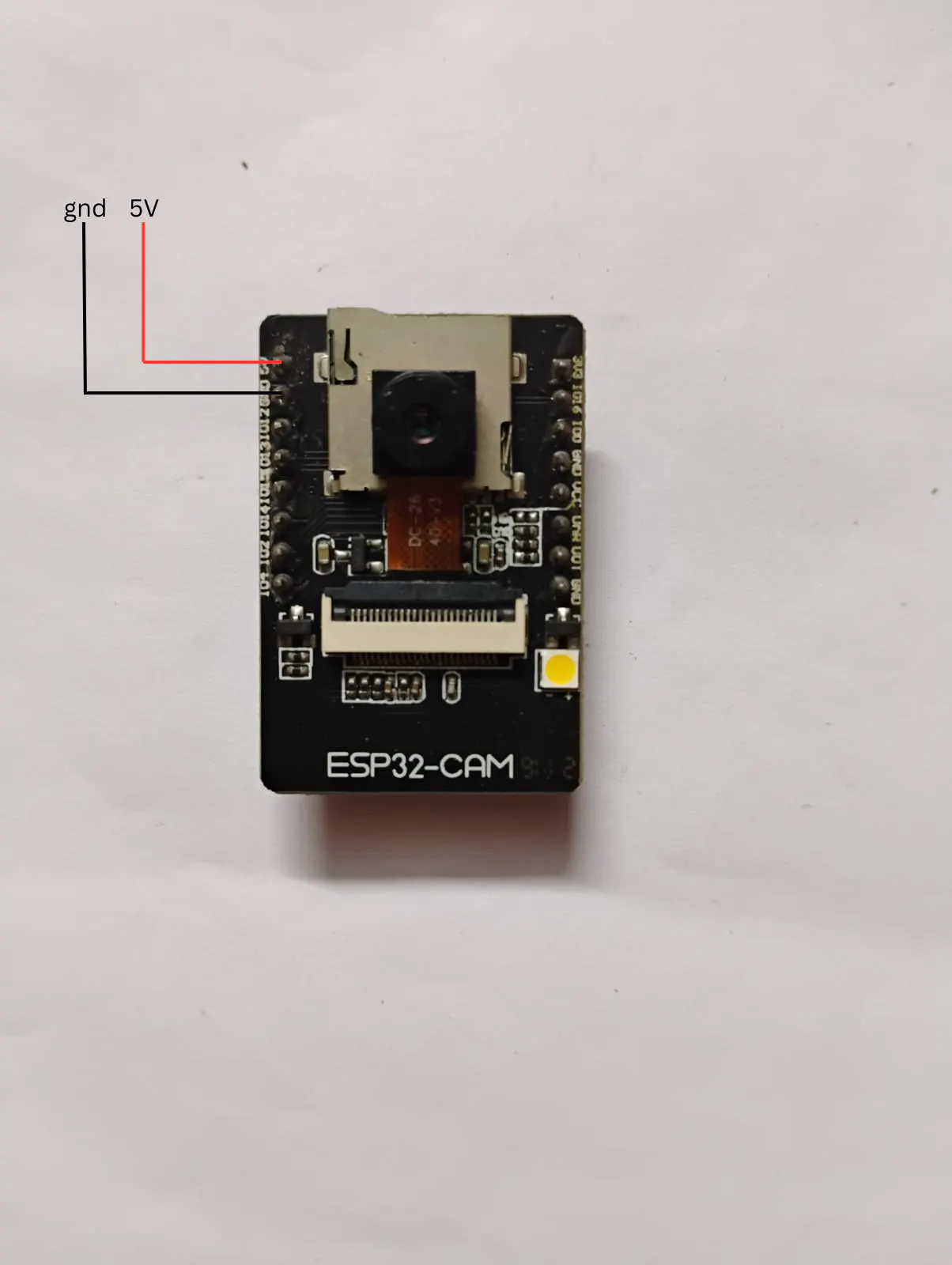

Schematic

Code

ESP32_Doorcam firmware

C/C++
#include <WiFi.h>
#include <HTTPClient.h>
#include <Update.h>
#include <esp_camera.h>

// ================= CONFIG =================
const char* ssid = "";
const char* password = "";

const char* firmware_url = "http://192.168.0.108:8000/firmware";
const char* version_url  = "http://192.168.0.108:8000/version";
const char* log_url      = "http://192.168.0.108:8000/log";

#define FIRMWARE_VERSION "1.0.0" // Human detection

// ==========================================

// ================= CAMERA PINS =================
#define PWDN_GPIO_NUM     32
#define RESET_GPIO_NUM    -1
#define XCLK_GPIO_NUM      0
#define SIOD_GPIO_NUM     26
#define SIOC_GPIO_NUM     27
#define Y9_GPIO_NUM       35
#define Y8_GPIO_NUM       34
#define Y7_GPIO_NUM       39
#define Y6_GPIO_NUM       36
#define Y5_GPIO_NUM       21
#define Y4_GPIO_NUM       19
#define Y3_GPIO_NUM       18
#define Y2_GPIO_NUM        5
#define VSYNC_GPIO_NUM    25
#define HREF_GPIO_NUM     23
#define PCLK_GPIO_NUM     22

// ================= MOTION GLOBALS =================
uint8_t *prev_frame = NULL;
size_t prev_len = 0;

#define MOTION_THRESHOLD 105
#define SAMPLE_STEP 5

unsigned long lastTriggerTime = 0;
#define COOLDOWN 5000

int motionCounter = 0;
#define MOTION_CONFIRM 2

int baselineDiff = 0;
#define BASELINE_SMOOTH 20

int baseline = 0;

// ================= LOGGER =================
void logMsg(String msg) {
  Serial.println(msg);

  static unsigned long lastLog = 0;
  if (millis() - lastLog < 2000) return;

  lastLog = millis();

  if (WiFi.status() != WL_CONNECTED) return;

  WiFiClient client;
  HTTPClient http;

  http.begin(client, log_url);
  http.setTimeout(2000);
  http.addHeader("Content-Type", "text/plain");

  http.POST(msg);
  http.end();
}

// ================= CAMERA INIT (JPEG)=================
void initCamera() {
  logMsg("Camera Starting...");

  camera_config_t config;

  config.ledc_channel = LEDC_CHANNEL_0;
  config.ledc_timer = LEDC_TIMER_0;

  config.pin_d0 = Y2_GPIO_NUM;
  config.pin_d1 = Y3_GPIO_NUM;
  config.pin_d2 = Y4_GPIO_NUM;
  config.pin_d3 = Y5_GPIO_NUM;
  config.pin_d4 = Y6_GPIO_NUM;
  config.pin_d5 = Y7_GPIO_NUM;
  config.pin_d6 = Y8_GPIO_NUM;
  config.pin_d7 = Y9_GPIO_NUM;

  config.pin_xclk = XCLK_GPIO_NUM;
  config.pin_pclk = PCLK_GPIO_NUM;
  config.pin_vsync = VSYNC_GPIO_NUM;
  config.pin_href = HREF_GPIO_NUM;

  config.pin_sccb_sda = SIOD_GPIO_NUM;
  config.pin_sccb_scl = SIOC_GPIO_NUM;

  config.pin_pwdn = PWDN_GPIO_NUM;
  config.pin_reset = RESET_GPIO_NUM;

  config.xclk_freq_hz = 20000000;
  config.pixel_format = PIXFORMAT_JPEG;

  config.frame_size = FRAMESIZE_VGA;
  config.jpeg_quality = 10;
  config.fb_count = 2;
  config.grab_mode = CAMERA_GRAB_LATEST;

  if (esp_camera_init(&config) != ESP_OK) {
    logMsg("Camera init FAILED");
    return;
  }

  sensor_t * s = esp_camera_sensor_get();

  if (s) {
    s->set_brightness(s, 1);
    s->set_contrast(s, 1);
    s->set_saturation(s, 1);

    s->set_gain_ctrl(s, 1);
    s->set_exposure_ctrl(s, 1);
    s->set_awb_gain(s, 1);

    s->set_whitebal(s, 1);

    s->set_gainceiling(s, (gainceiling_t)6);
    s->set_bpc(s, 1);
    s->set_wpc(s, 1);

    s->set_sharpness(s, 1);
    s->set_denoise(s, 1);

    s->set_aec2(s, 1);

    s->set_hmirror(s, 0);
    s->set_vflip(s, 0);
  }

  logMsg("Camera ready!");
}

// ================= MOTION DETECTION =================
bool detectMotion(camera_fb_t *fb) {
  if (!fb) return false;

  static int prevValues[200];
  static bool initialized = false;

  int diff = 0;
  int index = 0;

  int len = fb->len;

  // sample sparse points
  for (int i = 100; i < len - 100 && index < 200; i += 300) {

    int val = fb->buf[i];  // pseudo brightness

    if (!initialized) {
      prevValues[index] = val;
    } else {
      int d = abs(val - prevValues[index]);

      if (d > 20) {
        diff++;
      }

      // smooth update
      prevValues[index] = (prevValues[index] * 3 + val) / 4;
    }

    index++;
  }

  initialized = true;

  if (baseline == 0) baseline = diff;
  if (diff < baseline + 10){
    baseline = (baseline * 9 + diff) / 10;
  }

  Serial.println("Diff:" + String(diff));

  int threshold = baseline + 10;

  Serial.println("Threshold:" + String(threshold));

  if (diff > baseline + 30){
    Serial.println("Strong motion");
  }

  return diff > threshold;
}


// ================= DOORBELL =================
void sendRing() {
  WiFiClient client;
  HTTPClient http;

  http.begin(client, "http://192.168.0.108:8000/ring");
  int code = http.GET();

  Serial.println("Ring code: " + String(code));
  http.end();
}

// ================= OTA =================
String getServerVersion() {
  WiFiClient client;
  HTTPClient http;

  http.begin(client, version_url);
  http.setTimeout(10000);

  int httpCode = http.GET();

  if (httpCode == HTTP_CODE_OK) {
    WiFiClient * stream = http.getStreamPtr();

    String version = "";
    unsigned long startTime = millis();

    while (millis() - startTime < 5000) {
      while (stream->available()) {
        char c = stream->read();
        version += c;
      }
      if (!stream->connected()) break;
      delay(10);
    }

    version.trim();
    http.end();
    return version;
  }

  http.end();
  return "";
}

void performOTA() {
  WiFiClient client;
  HTTPClient http;

  logMsg("Starting OTA...");

  http.begin(client, firmware_url);
  http.setTimeout(20000);

  int httpCode = http.GET();

  if (httpCode == HTTP_CODE_OK) {
    int contentLength = http.getSize();

    logMsg("Firmware size:" + String(contentLength));

    if (!Update.begin(contentLength)){
      logMsg("Not enough space for OTA");
      http.end();
      return;
    }

    WiFiClient * stream = http.getStreamPtr();
    size_t written = Update.writeStream(*stream);

    logMsg("Written bytes:" + String(written));

    if (written == contentLength && Update.end(true)) {
      logMsg("OTA Success!");
      logMsg("Rebooting...");
      delay(1000);
      ESP.restart();
    }
    else{
      logMsg("OTA Failed");
    }
  }
  else{
    logMsg("HTTP Error:" + String(httpCode));
  }

  http.end();
}

void checkForOTA() {
  String serverVersion = getServerVersion();

  logMsg("Checking OTA...");
  logMsg("Current Version:" + String(FIRMWARE_VERSION));

  if (serverVersion == "" || serverVersion == FIRMWARE_VERSION){
    logMsg("Already Latest Version");
    return;
  }

  logMsg("New Version detected!");
  performOTA();
}

//===============IMAGE==================
void sendImage(){
  camera_fb_t * fb = esp_camera_fb_get();

  if(!fb){
    Serial.println("Capture Failed");
    return;
  }

  WiFiClient client;
  HTTPClient http;

  http.begin(client, "http://192.168.0.108:8000/upload");
  http.addHeader("Content-Type","image/jpeg");

  int code = http.POST(fb->buf,fb->len);

  Serial.println("Upload code:" + String(code));

  http.end();
  esp_camera_fb_return(fb);
}

// ================= SETUP =================
void setup() {
  Serial.begin(115200);
  delay(1000);

  WiFi.begin(ssid, password);
  pinMode(4, OUTPUT);

  while (WiFi.status() != WL_CONNECTED) {
    delay(500);
    digitalWrite(4, HIGH);
    delay(500);
    digitalWrite(4,LOW);
  }

  WiFi.setSleep(false);

  logMsg("ESP32 Connected: " + WiFi.localIP().toString());

  Serial.println("\nInitializing Camera...");
  delay(2000);
  initCamera();

  Serial.println("\nChecking for OTA update...");
  delay(2000);
  checkForOTA();
}

// ================= LOOP =================
void loop() {

  camera_fb_t *fb = esp_camera_fb_get();

  if(!fb) {
    delay(1000);
    return;
  }

  bool motion = detectMotion(fb);
  esp_camera_fb_return(fb);

  if (motion){
    motionCounter++;
  } else {
    motionCounter = 0;
  }


  if(motionCounter >= 5 && (millis() - lastTriggerTime > COOLDOWN)){
    lastTriggerTime = millis();
    motionCounter = 0;

    logMsg("Ringing...");
    //sendRing();

    logMsg("Doorcam");
    sendImage();
  }

  delay(1000);
}

Server Python Script

Python
This is the python script required to run the OTA and backend server for this project.
import socket

HOST = "0.0.0.0"
PORT = 8000

def serve_client(conn):
    request = conn.recv(1024).decode()
    print("Request:\n", request)

    if "GET /version.txt" in request:
        with open("version.txt", "r") as f:
            version = f.read().strip()

        response_body = version + "\n"

        response = (
            "HTTP/1.1 200 OK\r\n"
            "Content-Type: text/plain\r\n"
            f"Content-Length: {len(response_body)}\r\n"
            "Connection: close\r\n"
            "\r\n"
            f"{response_body}"
        )

        conn.sendall(response.encode())
        print("Sent version")

    elif "GET /firmware.bin" in request:
        with open("firmware.bin", "rb") as f:
            data = f.read()

        headers = (
            "HTTP/1.1 200 OK\r\n"
            "Content-Type: application/octet-stream\r\n"
            f"Content-Length: {len(data)}\r\n"
            "Connection: close\r\n"
            "\r\n"
        )

        conn.sendall(headers.encode())
        conn.sendall(data)

        print(f"Sent firmware ({len(data)} bytes)")

    else:
        response = (
            "HTTP/1.1 404 Not Found\r\n"
            "Connection: close\r\n"
            "\r\n"
        )
        conn.sendall(response.encode())

    conn.close()


# -------- MAIN LOOP --------
server = socket.socket(socket.AF_INET, socket.SOCK_STREAM)
server.bind((HOST, PORT))
server.listen(5)

print(f"RAW OTA Server running on port {PORT}")

while True:
    conn, addr = server.accept()
    print(f"Connection from {addr}")
    serve_client(conn)
