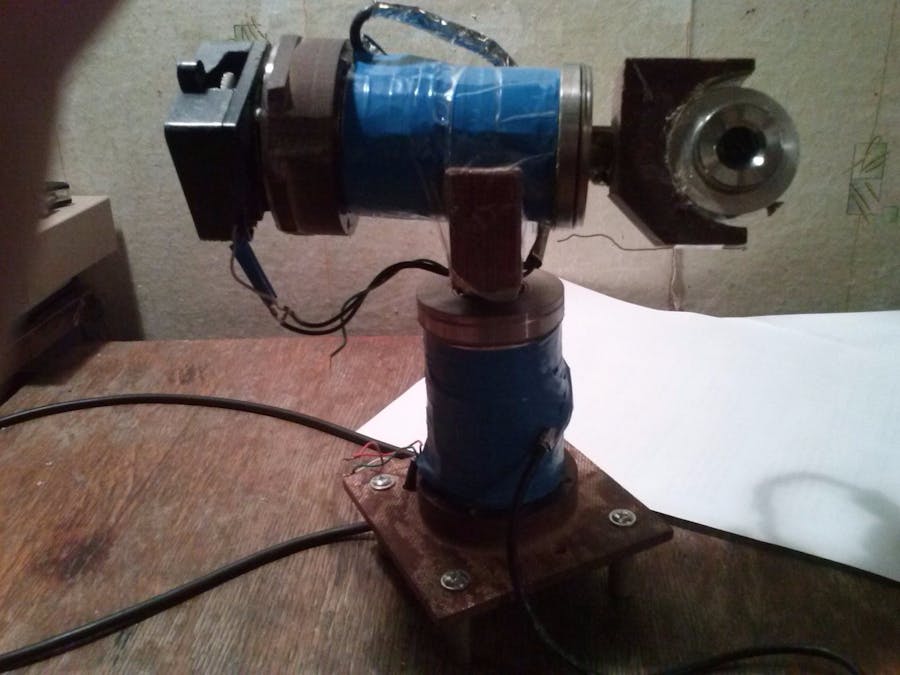

Skype Web-cam Turret

This project is my first IoT project which I did in the year of 2014.

Brief project description

For the rotation of a webcam we need two motorss and two reduction drives. We need a reduction drive to decrease the speed of the camera rotation and for increasing the rotation power. We need to use a micro controller and a motor driver for the motors (The micro controller cannot supply enough current for the motors). Also we need to write a program for the micro controller and for the Skype chat which can read the commands from the chat and send them to the micro controller.

The device for the rotation of the webcam

I was lucky to find the motors and reduction drives in a toy.

I faced a big problem during the creation of the device with the winding of the cable on the axis. I decided to use the bearings to solved this problem. I soldered one wire to the outer ring, and another to the inner ring. But this didn't help because during bearing rotation the connection between webcam and the computer disappeared for a couple of milliseconds and it was enough for the computer to disconnect the webcam. Only the physical reconnection of the webcam helps to return the connection between the webcam and the computer.

In another try I decided to try sliding contacts. I created from copper foil seven tracks for the sliding contacts, but I had to stop on this because of the quality of the tracks. I understood that I needed higher quality work than I could do.

I needed help from the outside. I designed the sliding contacts and found people who could create them for me (The process of assembly you can see below).

I covered the sliding contacts with aluminium foil to protect against electromagnetic interference. This variant worked much better than the variant with the bearing but it had the same problem with the disconnection that is why I decided to forget about full rotation.

The Motor Controller

I chose the breadboard AVR-USB-TINY45 which has micro-controller ATtiny85 and a nice USB connector.

Also I created an adapter for programming the micro-controller because the breadboard AVR-USB-TINY45 has a connector ISP6 and my programmator has ISP10.

I used PROTEUS to create the schematic for the controller and for the simulation.

Program for the micro-controller

The program controls the motor driver by setting four legs of the micro-controller in logical one or zero. Also the program sets all legs to logical zero if it doesn't get new commands during 200 milliseconds (I did it for protection against looping of the last command).

#define Max 230
class Device {
    // Class is uses as container for exchange information between PC and web-turret
    class dataexchange_t {
    public:
        char b1;
        char b2;     // We need only 4 bits to contain commands for all 4 legs but
        char b3;     // I decided to use 4 bytes because it's more comfortable to use.
        char b4;
    } data;
    class Position {
    public:
        float x;
        float y;
    } positionTransform, cameraPosition;
/*
 * positionTransform - contains transformed coordinates
 * cameraPosition - contains current camera position
*/
    HIDLibrary <dataexchange_t> hid;
    unsigned char processTime;   // Variable is decreasing number of request to device
    FILE *f;                     // I save last position of the camera in this file
    int SendData(dataexchange_t *);  // This method sends commands to the device
public:
    bool Connect();
    void SetCameraPosition(short int *, short int *);
    bool MoveCamera();
    bool StopMoveCamera();
    Device() {
        processTime = 10;
        (int&) data = positionTransform.x = positionTransform.y = 0;
        f = fopen("CameraPosition.txt","r+");
        fscanf(f,"%f %f", &cameraPosition.x, &cameraPosition.y);
        // Limits check
        if (cameraPosition.x < -Max || cameraPosition.y < -Max ||
                cameraPosition.y > Max || cameraPosition.x > Max)
            cameraPosition.x = cameraPosition.y = 0;
    }
    ~Device() {
        fclose(f);
    }
};
...

I created the specific coordinate axis system to control the camera rotating process. This system decreases amount of commands which are sent over the communication channel. The principle of this system is next: the user types how many degrees he wanted to rotate the camera from the current position then the program converts entered degrees to amount of commands that with an interval of 2 seconds must be sent to the device.

...
// My transformation of the camera position coordinates
// Device has different speed of rotation that is why I use two constants
// Axis X
if(*x > 0)
    positionTransform.x = (*x * 0.20832);  // The constant for clockwise rotation
else positionTransform.x = (*x * 0.225); // The constant for counterclockwise rotation
// Axis Y
if(*y > 0)
    positionTransform.y = (*y * 0.20832);
else positionTransform.y = (*y * 0.225);
...

I made the device to rotate the camera in a horizontal direction first, and then in a vertically axis, I did so because I wanted to avoid overloading of the USB power lines by two motors working simultaneously.

Skype

I wanted to have the possibility of controling the Web-turret remotely. I decided to use the Skype API to control the device and to transmit video and sound from web-camera. If you decided to use the Skype API you should download Skype4COM.dll and put it into the Windows directory (I used Windows 7 for this project).

I wrote the program for Skype which monitors Skype chat with the owner. If the owner write in chat with the web-turret command "0000", the program will start a video call and turn on the web-turret. The user can control the camera by typing the following commands in the chat:

• StopMove - stops the web-turret rotation

• MoveTo('X'@'Y') - rotation by the vertical(X) axis and the horizontal(Y) axis

• VideoOn - turn on video

• VideoOff - turn off video

I must note that I use old version of Skype API (This version was outdated even in 2014).

...
char comandName[] = {"###"};        // Skype login of the owner
char comandStart[] = {"0000"};      // Start command
int timeWait = 500;                 // Maximum time of the owner inactivity
CoInitialize(NULL);

SKYPE4COMLib::ISkypePtr pSkype(__uuidof(SKYPE4COMLib::Skype));  // Create Skype object
pSkype->Attach(6,VARIANT_TRUE); // Connection to Skype API

_bstr_t comand;
IChatMessagePtr curMessage, privMessage = NULL;
COleDateTime startTime(time(NULL));
// Monitoring of the Skype chat with owner
for (;;) { // Dummy loop
    // Get last message from client
    curMessage = pSkype->GetMessages((_bstr_t)comandName)->GetItem(1);
    // Get text from last message
    comand = curMessage->GetBody();
    // Check if message is new
    // Check for start command
    if ((privMessage == NULL || privMessage->GetId() != curMessage->GetId()) &&
            (!strcmp((char*) comand, comandStart)) &&
            (startTime.m_dt < curMessage->GetTimestamp())) {
        privMessage = curMessage;
        curMessage->PutSeen(true); // Set message as read
	ControlDevice(pSkype, comandName, timeWait, privMessage);
    } else {
        Sleep(5000);
    }
}
...
_bstr_t comand;
IChatMessagePtr curMessage;
int timeToSendMessage = (timeWait / 100) * 80;
Device device;
ICallPtr call;
// Check if we making call to the owner then put down call
for (int i = pSkype->GetActiveCalls()->GetCount(); i != 0 ; i--) {
    call = pSkype->GetActiveCalls()->GetItem(i); // Get all current calls
    if (!strcmp((char*) (call->GetPartnerHandle()), comandName)) { 		              call->Finish(); // Put down call
        Sleep(2000);
        break;
    }
}
// Start call to the owner
call = pSkype->PlaceCall(_bstr_t(comandName), L"", L"", L"");
// Sent message to the owner
pSkype->SendMessage(_bstr_t(comandName), _bstr_t(L"Connection started"));
// Connection to web-turret
if (!device.Connect()) {
    pSkype->SendMessage(_bstr_t(comandName),
        _bstr_t(L"The web-turret not found"));
}
// Wait until the owner take call
for (int i = 0; i < timeWait && call->Status != clsInProgress; i++) {
    Sleep(20);
}
if (call->Status == clsInProgress) {
    Sleep(2000);
    call->StartVideoSend();  // Turn video on (Sometimes not works)
    for(int time = 0; call->Status == clsInProgress;time++) {
        if(time >= timeWait) {  // If time of waiting ends then put down call 	                  call->Finish();
            break;
        }
        curMessage = pSkype->GetMessages((_bstr_t)comandName)->GetItem(1); 		if (curMessage->GetId() != privMessage->GetId()) { //Catch the owners messages 	    privMessage = curMessage;
            if (time > 0) {
                time = 0;
            }
            // Sent command to the web-turret
            if (!ComandToDevice((char*) curMessage->GetBody(),
                        &device, pSkype, comandName, &time, call)) {
                pSkype->SendMessage(_bstr_t(comandName),
                        _bstr_t(L"The command not executed"));
            }
            curMessage->PutSeen(true);
        }
        Sleep(200);
        if (!device.MoveCamera()) {
            pSkype->SendMessage(_bstr_t(comandName),
                _bstr_t(L"Some problem with the web-turret"));
            device.StopMoveCamera();
        }
        if (timeToSendMessage == time) {
                pSkype->SendMessage(_bstr_t(comandName),
                        _bstr_t(L"Time of a command expecting is ended"));
        }
    }
}
pSkype->SendMessage(_bstr_t(comandName), _bstr_t(L"Connection is over"));
...
