What's this

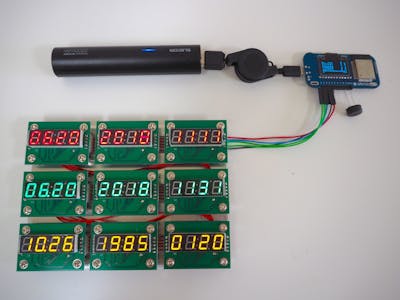

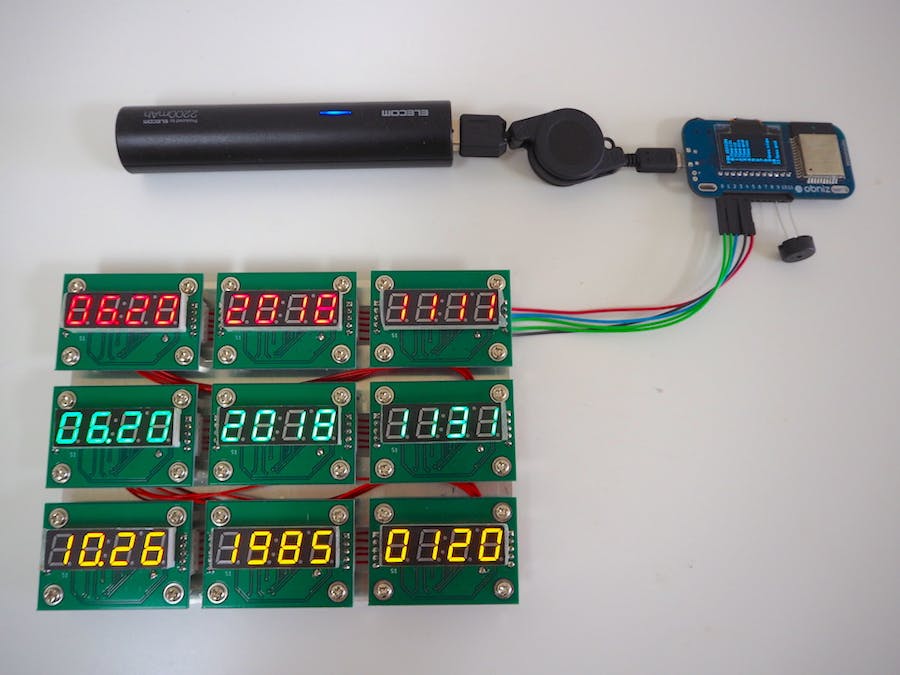

Read moreThis is a timer built with MAX7219 and LED array.
obniz connected to only top one of chained MAX7218.
Center green shows current time.
You can specify two timer date.
If time reached, then alarmed with beep sound.
<!-- HTML Example -->
<html>
<head>
<meta name="viewport" content="width=device-width, initial-scale=1">
<script src="https://obniz.io/js/jquery-3.2.1.min.js"></script>
<script src="https://unpkg.com/obniz@1.5.0/obniz.js"></script>
<link rel="stylesheet" href="https://stackpath.bootstrapcdn.com/bootstrap/4.1.1/css/bootstrap.min.css" integrity="sha384-WskhaSGFgHYWDcbwN70/dfYBj47jz9qbsMId/iRN3ewGhXQFZCSftd1LZCfmhktB" crossorigin="anonymous">
</head>
<body>
<div id="obniz-debug"></div>
<p>アラームA
<input type="date" id="dateA">
<input type="time" id="timeA">
<button id="set_a" class="btn btn-primary">SET A</button>
</p>
<p>アラームB
<input type="date" id="dateB">
<input type="time" id="timeB">
<button id="set_b" class="btn btn-primary">SET B</button>
</p>
<script>
var obniz = new Obniz("OBNIZ_ID_HERE");
obniz.onconnect = async function () {
// アラーム用スピーカー
var speaker = obniz.wired("Speaker", {signal:9, gnd:11});
// 7セグ接続
var segment = obniz.wired("7SegmentLED_MAX7219", { clk:0, cs:1, din:2, gnd:3, vcc:4});
segment.init(9,5); // コロン部分に1桁割り当てているので、4桁+1桁で5桁として初期化
segment.clearAll();
// 色によって輝度が違うので、brightnessAll関数を使わずに個別に設定
segment.brightness(0,15);
segment.brightness(1,15);
segment.brightness(2,15);
segment.brightness(3,2);
segment.brightness(4,2);
segment.brightness(5,2);
segment.brightness(6,5);
segment.brightness(7,5);
segment.brightness(8,5);
// アラーム用
var timerFlagA = 0;
var timerFlagB = 0;
var DateTimeA = new Date(0);
var DateTimeB = new Date(0);
var DateTime = new Date();
// それぞれのディスプレイに表示する内容を保持する配列
var Red_Date = [];
var Red_Year = [];
var Red_Time = [];
var Grn_Date = [];
var Grn_Year = [];
var Grn_Time = [];
var Ylw_Date = [];
var Ylw_Year = [];
var Ylw_Time = [];
getCurrentTime();
display();
obniz.repeat(async function(){ // 5秒おきに時刻取得、画面更新
getCurrentTime();
display();
if(DateTimeA.getTime() || DateTimeB.getTime()){ // アラームA,Bのいずれかが設定されているとき実行
if (DateTimeA < DateTime && timerFlagA == 1 ){ // アラームAの設定時刻を過ぎてフラグが1のときだけ実行
alarm();
console.log("アラームA");
timerFlagA = 0;
}
if (DateTimeB < DateTime && timerFlagB == 1 ){ // アラームBの設定時刻を過ぎてフラグが1のときだけ実行
alarm();
console.log("アラームB");
timerFlagB = 0;
}
}
}, 5000);
function display(){
// Yellow disprays
segment.setNumber(0,1,Ylw_Date[0],false);
segment.setNumber(0,2,Ylw_Date[1],true);
segment.setNumber(0,3,Ylw_Date[2],false);
segment.setNumber(0,4,Ylw_Date[3],false);
segment.setNumber(1,1,Ylw_Year[0],false);
segment.setNumber(1,2,Ylw_Year[1],false);
segment.setNumber(1,3,Ylw_Year[2],false);
segment.setNumber(1,4,Ylw_Year[3],false);
segment.setNumber(2,1,Ylw_Time[0],false);
segment.setNumber(2,2,Ylw_Time[1],false);
segment.setNumber(2,3,Ylw_Time[2],false);
segment.setNumber(2,4,Ylw_Time[3],false);
// Green displays
segment.setNumber(3,1,Grn_Date[0],false);
segment.setNumber(3,2,Grn_Date[1],true);
segment.setNumber(3,3,Grn_Date[2],false);
segment.setNumber(3,4,Grn_Date[3],false);
segment.setNumber(4,1,Grn_Year[0],false);
segment.setNumber(4,2,Grn_Year[1],false);
segment.setNumber(4,3,Grn_Year[2],false);
segment.setNumber(4,4,Grn_Year[3],false);
segment.setNumber(5,1,Grn_Time[0],false);
segment.setNumber(5,2,Grn_Time[1],false);
segment.setNumber(5,3,Grn_Time[2],false);
segment.setNumber(5,4,Grn_Time[3],false);
// Red displays
segment.setNumber(6,1,Red_Date[0],false);
segment.setNumber(6,2,Red_Date[1],true);
segment.setNumber(6,3,Red_Date[2],false);
segment.setNumber(6,4,Red_Date[3],false);
segment.setNumber(7,1,Red_Year[0],false);
segment.setNumber(7,2,Red_Year[1],false);
segment.setNumber(7,3,Red_Year[2],false);
segment.setNumber(7,4,Red_Year[3],false);
segment.setNumber(8,1,Red_Time[0],false);
segment.setNumber(8,2,Red_Time[1],false);
segment.setNumber(8,3,Red_Time[2],false);
segment.setNumber(8,4,Red_Time[3],false);
};
function getCurrentTime() { // 現在時刻を取得する関数
DateTime=new Date();
var c_year = DateTime.getFullYear();
var c_month = DateTime.getMonth()+1;
var c_day = DateTime.getDate();
var c_hours = DateTime.getHours();
var c_minutes = DateTime.getMinutes();
Grn_Year = divideNum(c_year);
Grn_Time = divideNum(c_hours).concat(divideNum(c_minutes));
Grn_Date = divideNum(c_month).concat(divideNum(c_day));
};
function divideNum(digitsNum) { // 数字を一文字ずつ分解し配列に入れる関数
var textArr = String(digitsNum).split('');
var numArr = [];
for (var i = 0; i < textArr.length; i++) {
numArr[i] = parseInt(textArr[i]);
}
if (textArr.length == 1){ // 数字が一桁だった場合は配列の先頭に"0"を追加
numArr.unshift(0);
}
return numArr;
};
async function alarm() {
for (var i = 0; i < 3; i++) {
speaker.play(1000);
await obniz.wait(500);
speaker.stop();
await obniz.wait(500);
}
};
$("#set_a").on("click",function(){
var a_date_text = document.getElementById('dateA').value;
var a_time_text = document.getElementById('timeA').value;
var a_date_arr = String(a_date_text).split('-');
var a_time_arr = String(a_time_text).split(':');
Red_Year = divideNum(a_date_arr[0]);
Red_Time = divideNum(a_time_arr[0]).concat(divideNum(a_time_arr[1]));
Red_Date = divideNum(a_date_arr[1]).concat(divideNum(a_date_arr[2]));
DateTimeA = new Date(a_date_arr[0], a_date_arr[1] - 1, a_date_arr[2], a_time_arr[0], a_time_arr[1], 0);
console.log("アラームAが設定されました:");
console.log(DateTimeA);
timerFlagA = 1;
display();
});
$("#set_b").on("click",function(){
var b_date_text = document.getElementById('dateB').value;
var b_time_text = document.getElementById('timeB').value;
var b_date_arr = String(b_date_text).split('-');
var b_time_arr = String(b_time_text).split(':');
Ylw_Year = divideNum(b_date_arr[0]);
Ylw_Time = divideNum(b_time_arr[0]).concat(divideNum(b_time_arr[1]));
Ylw_Date = divideNum(b_date_arr[1]).concat(divideNum(b_date_arr[2]));
DateTimeB = new Date(b_date_arr[0], b_date_arr[1] - 1, b_date_arr[2], b_time_arr[0], b_time_arr[1], 0);
console.log("アラームBが設定されました:");
console.log(DateTimeB);
timerFlagB = 1;
display();
});
while(true){ // コロンの点滅
segment.setNumber(2,0,2,false);
segment.setNumber(8,0,2,false);
segment.setNumber(5,0,2,false);
await obniz.wait(500);
segment.setNumber(2,0,"off",false);
segment.setNumber(8,0,"off",false);
segment.setNumber(5,0,"off",false);
await obniz.wait(500);
};
};
obniz.onclose = async function(){
$("#on").off("click");
$("#off").off("click");
$("#set_a").off("click");
$("#set_b").off("click");
};
</script>
</body>
</html>
