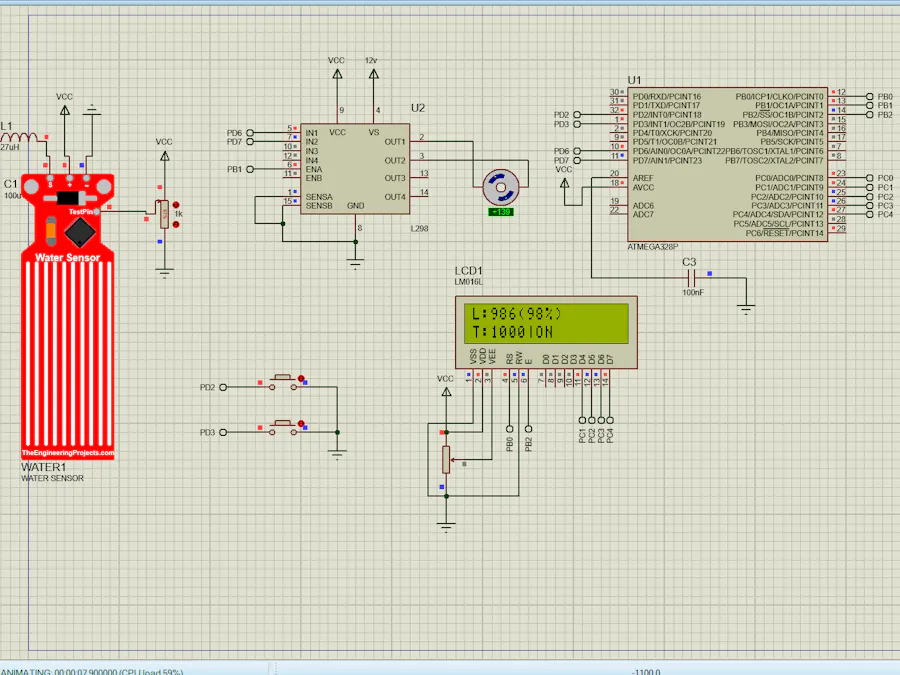

Water Tank Filling and Level Control System

#include <Arduino.h>
#include <avr/io.h>
#include <avr/interrupt.h>
#include <LiquidCrystal.h>

// ================= LCD =================
LiquidCrystal lcd(8, 10, A1, A2, A3, A4);

// ================= Pin =================
#define IN1 PD6
#define IN2 PD7

volatile int targetLevel = 1000;
int currentLevel = 0;

unsigned long lastInterruptTime = 0;

const int HYSTERESIS = 1;

// ======================================
// ADC
// ======================================
void setupADC()
{
    ADMUX = (1 << REFS0);

    ADCSRA =
        (1 << ADEN) |
        (1 << ADPS2) |
        (1 << ADPS1) |
        (1 << ADPS0);
}

uint16_t readADC()
{
    ADCSRA |= (1 << ADSC);

    while (ADCSRA & (1 << ADSC));

    return ADC;
}

int readWaterLevel()
{
    long total = 0;

    for (int i = 0; i < 50; i++)
    {
        total += readADC();
    }

    return total / 50;
}

// ======================================
// PWM TIMER1
// ENA = D9 = PB1 = OC1A
// ======================================
void setupPWM()
{
    DDRB |= (1 << DDB1);

    TCCR1A =
        (1 << COM1A1) |
        (1 << WGM10);

    TCCR1B =
        (1 << WGM12) |
        (1 << CS11);

    OCR1A = 0;
}

// ======================================
// MOTOR
// ======================================
void pumpON()
{
    PORTD |= (1 << PORTD6);
    PORTD &= ~(1 << PORTD7);

    OCR1A = 255;
}

void pumpOFF()
{
    PORTD &= ~(1 << PORTD6);
    PORTD &= ~(1 << PORTD7);

    OCR1A = 0;
}

// ======================================
// INTERRUPT
// D2 = INT0
// D3 = INT1
// ======================================
ISR(INT0_vect)
{
    if (millis() - lastInterruptTime > 50)
    {
        targetLevel += 10;

        if (targetLevel > 1023)
            targetLevel = 1023;

        lastInterruptTime = millis();
    }
}

ISR(INT1_vect)
{
    if (millis() - lastInterruptTime > 50)
    {
        targetLevel -= 10;

        if (targetLevel < 0)
            targetLevel = 0;

        lastInterruptTime = millis();
    }
}

void setupInterrupt()
{
    EICRA |= (1 << ISC01);
    EICRA |= (1 << ISC11);

    EIMSK |= (1 << INT0);
    EIMSK |= (1 << INT1);

    sei();
}

// ======================================
// SETUP
// ======================================
void setup()
{
    // Motor D6 D7 output
    DDRD |= (1 << DDD6);
    DDRD |= (1 << DDD7);

    // Button D2 D3 input pullup
    DDRD &= ~(1 << DDD2);
    DDRD &= ~(1 << DDD3);

    PORTD |= (1 << PORTD2);
    PORTD |= (1 << PORTD3);

    setupADC();
    setupPWM();
    setupInterrupt();

    lcd.begin(16, 2);

    lcd.setCursor(0, 0);
    lcd.print("Water Control");

    lcd.setCursor(0, 1);
    lcd.print("by Team 4");

    delay(50);

    lcd.clear();

    pumpOFF();
}

// ======================================
// LOOP
// ======================================
void loop()
{
    currentLevel = readWaterLevel();

    int targetCopy = targetLevel;

    int persen = 0;

    if (targetCopy > 0)
    {
        persen = (currentLevel * 100L) / targetCopy;
    }

    if (persen > 100)
    {
        persen = 100;
    }

    bool pumpStatus = false;

    if (currentLevel < targetCopy - HYSTERESIS)
    {
        pumpON();
        pumpStatus = true;
    }
    else if (currentLevel > targetCopy + HYSTERESIS)
    {
        pumpOFF();
        pumpStatus = false;
    }

    lcd.setCursor(0, 0);
    lcd.print("L:");
    lcd.print(currentLevel);
    lcd.print("(");
    lcd.print(persen);
    lcd.print("%)");

    lcd.print("   ");

    lcd.setCursor(0, 1);
    lcd.print("T:");
    lcd.print(targetCopy);

    lcd.print("|");

    if (pumpStatus)
        lcd.print("ON ");
    else
        lcd.print("OFF");

    lcd.print("   ");

    delay(5);
}
