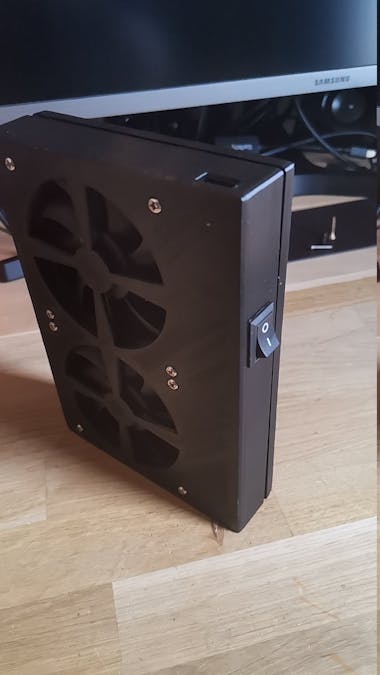

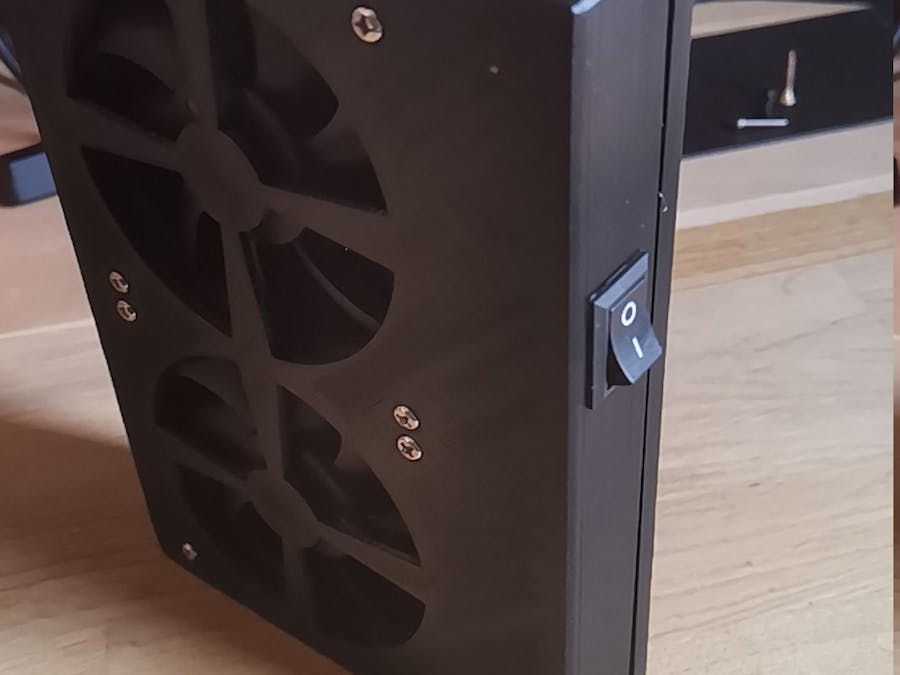

PSF - Portable Soldering Filter

Description

PSF is an essential solution for removing fumes from soldering applications.

While properly soldering may present very few to little safety concerns, soldering smoke is a hazardous respirable fume that is generated from the process of melting down the flux past its boiling point.

Protect your self, dont's breath this smoke.

PSF include a thick active carbon filter, and a HEPA filter with a powerfull ventilation.

My web site

Build instructions

Step 1

Just print the 2 STL file.

Step 2

Solder the battery to B+ and B- to the TP4056, Then solder the GND.- of the fan to the the TP4056, Solder the ON/Off button to the fan, then solder the on/off to the Volt.+ TP4056.

Step 3

Attach them to the case

Step 4

use hiot glue to fix the battery and the pcb in the approraite slot

Step 5

Insert the charbon filter and then the HEPA filter

Files

bottom.stl: the bottom case (to print)

soudure ventillation v29.f3d: Fusion 360 file, if you need to modify it for your need.

top.stl: top case file (to print)
