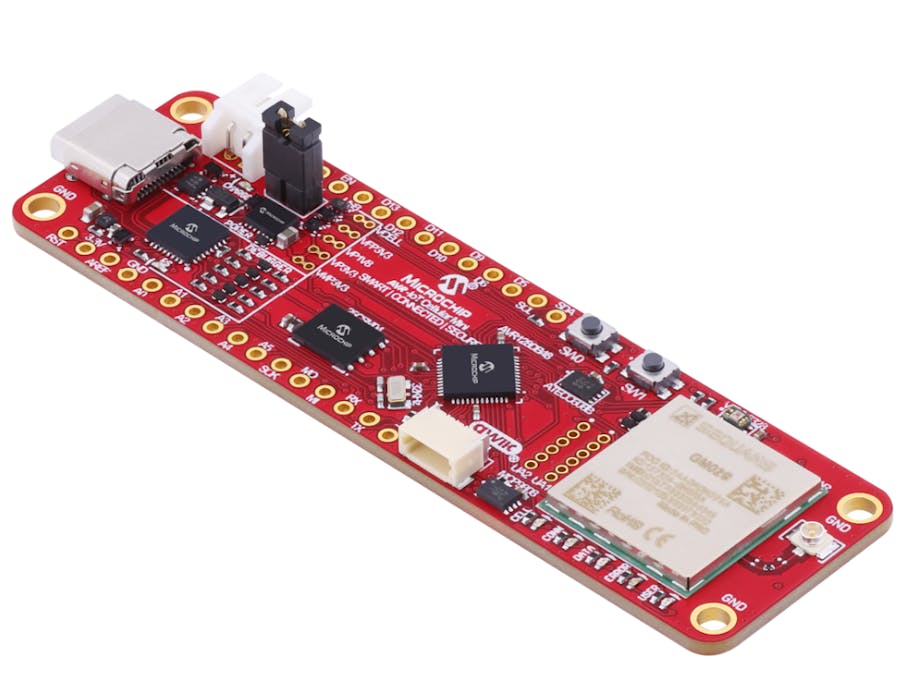

Getting Started with AVR IoT Cellular Mini

Introduction

This can also be used for other similar AVR Arduino boards.

For developing software leveraging the IoTConnect C SDK refer to the Developer Guide.

SIM Card Activation

The AVR-IoT Cell Mini Kit contains a Truphone SIM. Follow the steps below to create an account and activate it.

• Create an account or log in with an existing account at the Truphone Sign-up page.
• Activate the SIM from the account dashboard page by following the steps outlined in the activation process. See the screenshot below for reference:
• The AVR-IoT Cell Mini Kit contains a Truphone SIM. Follow the steps below to create an account and activate it.Create an account or log in with an existing account at the Truphone Sign-up page.Activate the SIM from the account dashboard page by following the steps outlined in the activation process. See the screenshot below for reference:

• Install the SIM into board by sliding the notched-corner end of the SIM in with the Truphone logo facing outwards.

Cloud Account Setup

An IoTConnect account is required to continue this guide. If you need to create an account, a free 2-month subscription is available. Please follow the Creating a New IoTConnect Account guide and return to this guide once complete.

• The IoTConnect CPID and Environment values will be required when provisioning the board. These values can be located in the IoTConnect WebUI on the Key Vault page. Copy these values for future use.

IoTConnect Firmware

*Note: This process will require a USB A to USB C cable which is not included in the AVR-IoT Cell Mini kit.

• Download and extract the pre-compiled firmware (avr-iot-02.00.00.zip).

The package contains two files:

• avr-iot-provision.ino.hex: Provisioning firmware. This will need to be loaded and run once to provision the board with the IoTConnect CPID and Environment information.
• avr-iot-sample.ino.hex: Sample firmware. This is the actual sample code which should be loaded only after the board has been provisioned.
• The package contains two files:avr-iot-provision.ino.hex: Provisioning firmware. This will need to be loaded and run once to provision the board with the IoTConnect CPID and Environment information.avr-iot-sample.ino.hex: Sample firmware. This is the actual sample code which should be loaded only after the board has been provisioned.
• Connect the board to your PC using a USB A to USB C cable.
• A new virtual drive will appear in your Windows Explorer.
• Follow the provisioning steps in the section below.

Provisioning

• Install a serial console application, such as Tera Term.
• Open the serial console application and establish a connection to the board in order to see the provisioning output.
• Load the Provisioning Firmware (avr-iot-provision.ino.hex) onto the board by copying it into the root of the Virtual Drive that was created in the previous section.
• After the copy is complete, remove power from the board and reapply after 5 seconds.
• Once the board boots, verify there is output in the serial console that looks similar to the example below.

[INFO] Starting the provisioning sample...
[INFO] Setting up MQTT profile #1 and ciphersuites...
[INFO] MQTT profile and ciphersuite config written successfully.
[INFO] Setting up HTTP profile #3..
[INFO] HTTP profile was set up successfully.
[INFO] HTTPS CA certificate updated successfuly.
[INFO] MQTT CA certificate updated successfuly.
-----BEGIN CERTIFICATE-----
MIIB8DCCAZegAwIBAgIQZqxXFSHF/eOiwnn/0rSQLzAKBggqhkjOPQQDAjBPMSEw
HwYDVQQKDBhNaWNyb2NoaXAgVGVjaG5vbG9neSBJbmMxKjAoBgNVBAMMIUNyeXB0
byBBdXRoZW50aWNhdGlvbiBTaWduZXIgMkQzMDAgFw0yMTAzMjUxMTAwMDBaGA8y
MDQ5MDMyNTExMDAwMFowQjEhMB8GA1UECgwYTWljcm9jaGlwIFRlY2hub2xvZ3kg
SW5jMR0wGwYDVQQDDBRzbjAxMjNFRTdBMTQzMjlEM0QwMTBZMBMGByqGSM49AgEG
CCqGSM49AwEHA0IABNHmLcX7BUciDWCRoXyWM1UBd1/UeQWE93uvUa3Z3XHuoZis
naG+sYdmoGhgkfhwjYKH7eATjrSKeFPfX9c/vlOjYDBeMAwGA1UdEwEB/wQCMAAw
DgYDVR0PAQH/BAQDAgOIMB0GA1UdDgQWBBReZ3gqfZtIp+p4ZMn+FkIVTx5E6TAf
BgNVHSMEGDAWgBQss+/LXwRk0qR/1plYzq+aUB2NqTAKBggqhkjOPQQDAgNHADBE
AiByL9Qrcr9VC94fKPws5bIFd8a9YKFzp4ZPVuUJML863QIgFmCDPBO9zxRiJdLw
2qgjeuEeDVW6r0SVw4wpJSELhOY=
-----END CERTIFICATE-----

• Use the console to set the values for CPID and ENV which were obtained from the IoTConnect Web GUI in a previous step.
• The DUID value should be left unset. A DUID unique to your device will be generated and displayed on the console during startup.
• Obtain the fingerprint of the device certificate that is displayed on the screen. This can be done with openssl command line or this web site
• Note the fingerprint and the Device ID value and use it in the next steps.

Running Demo Code with Arduino IDE

• Load the Sample firmware image avr-iot-sample.ino.hex.
• On a successful run, you should see an output similar to this:

[INFO] Starting the Sample Application 02.00.00
[INFO] CPID: [your CPID]
[INFO] Env : [your Env]
[INFO] DUID: avr-092ee282bb58cf55f34c66e3d3c
[INFO] Connecting to operator......... OK!
[INFO] +CCLK: "23/6/26,13:22:7-20"
[INFO] CPID: [your CPID]
[INFO] ENV:  [your Env]
[INFO] Attempting to connect to MQTT host:poc-iotconnect-iothub-030-eu2.azure-de
vices.net, client id:avtds-avr-092ee282bb58cf55f34c66e3d3c, username: poc-iotcon
nect-iothub-030-eu2.azure-devices.net/avtds-avr-092ee282bb58cf55f34c66e3d3c/?api
-version=2018-06-30
[INFO] IoTConnect Client Connected
[INFO] Sending: {"cpid":"****","dtg":"620c9902-17dd-46b0-a8a2-b20f77eed493","mt
":0,"sdk":{"l":"M_C","v":"2.0","e":"***"},"d":[{"id":"avr-092ee282bb58cf55f34c
66e3d3c","tg":"","d":[{"version":"01.00.00","cpu":3.1229999}],"dt":"2023-05-16T1
7:16:40.000Z"}],"t":"2023-05-16T17:16:40.000Z"}
