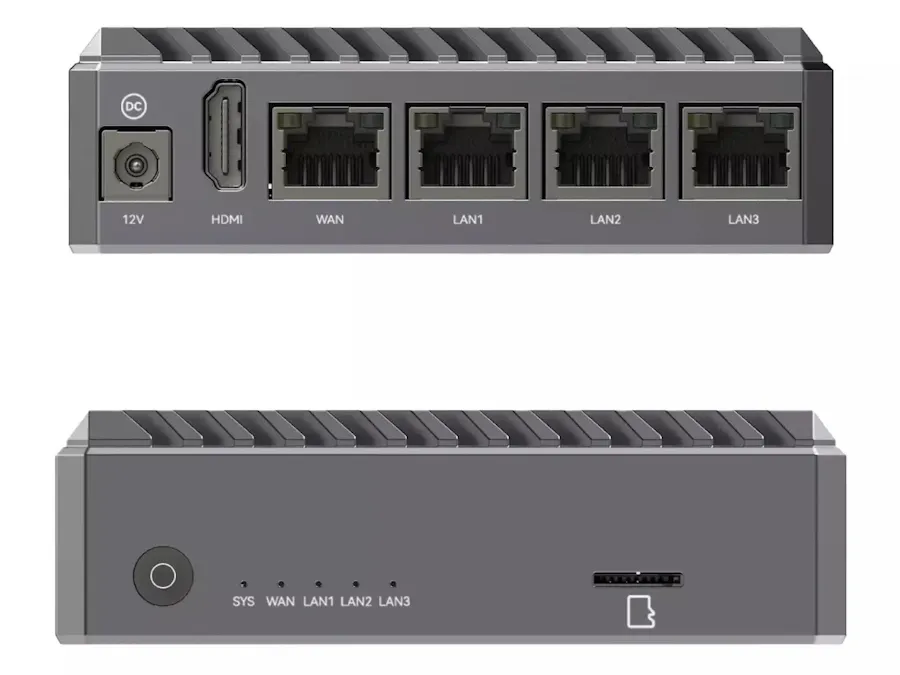

Hands-On: Setting Up Radxa E24C with NVMe SSD Storage

1. Introduction

The Radxa E24C, powered by the Rockchip RK3528, is a networking beast that punches above its weight. A key advantage of the RK3528 is its native NVMe support via the PCIe interface. Unlike older or lower-end SoCs that rely on USB bridges or slow SD interfaces, the E24C can communicate directly with high-speed storage.

Why use NVMe on this hardware?

• Superior Speed: Dramatically higher IOPS and throughput compared to MicroSD cards.
• Reliability: SSDs handle the constant read/write cycles of a modern OS far better than flash cards.
• Low Latency: Native PCIe integration means the CPU accesses data with minimal overhead, essential for networking and server tasks.

In this guide, we skip the SD card bottleneck entirely by using Maskrom mode to flash the SPI, enabling native boot directly from a 250GB NVMe SSD.

2. Bill of Materials (BOM)

• Radxa E24C
• M.2 NVMe SSD 250Gb(Tested with Debian 12)
• 12V/2A DC Power Supply (DC552
• USB-A to USB-C Cable (For Maskrom/Serial)
• PC with RKDevTool (Windows) and Driver Assistant.

3. Step 1: Entering Maskrom Mode

To flash the SPI, you must put the board into Maskrom mode:

• Connect the E24C to your PC via the USB-C port.
• Hold the Maskrom button (located near the GPIO/LEDs).
• Connect the 12V DC Po
• Release the button. Your PC should now detect a "Rockchip USB Device."

4. Step 2: Flashing the SPI Bootloader

Download the SPI Flash image from the Radxa documentation.

• On Windows: Use RKDevTool. Load the SPI image and click "Run" to write to the onboard SPI flash.
• Once finished, the E24C is now capable of looking for boot signatures on the PCIe bus (NVMe).

5. Step 3: Preparing the NVMe Storage

Since we are booting directly from the SSD:

• Connect your NVMe SSD to your PC using a USB-to-NVMe adapter (or use another SBC/PC).
• Download the Pre-compiled Debian 12 image for E24C (ensure it includes Hardware Acceleration).
• Flash the image directly to the NVMe using BalenaEtcher
• Insert the NVMe into the Radxa E24C

6. Step 4: First Boot & Desktop Setup

Connect your Serial Console (1, 500, 000 baud) or an HDMI monitor. The system should boot directly from /dev/nvme0n1.

Note on SD Cards: During testing, I found that some 8GB MicroSD cards were incompatible and failed to initialize. If you choose the SD route, use high-quality 16GB+ Class 10 cards.

Installing LXQt

The pre-compiled image is CLI-only but includes HW acceleration. To add a lightweight GUI:

Bash

sudo apt update
sudo apt install task-lxqt-desktop

After a reboot, you will have a functional, hardware-accelerated desktop environment running entirely off the high-speed NVMe.

Conclusion: A Resilient 24/7 Powerhouse

The Radxa E24C, combined with a native NVMe boot setup, is more than just a hobbyist board; it is a robust foundation for a reliable home server. By moving the OS from a fragile MicroSD card to a high-endurance SSD, you create a system built for resilience and long-term uptime.

With its dual Gigabit Ethernet and hardware acceleration, this setup is a "set-it-and-forget-it" powerhouse for:

• Personal Cloud & File Sharing: Host your own Nextcloud or Samba share with SSD speeds.
• Network Security: Deploy Pi-hole, a dedicated Firewall, or a VPN Gateway.
• Home Infrastructure: Perfect for an always-on Print Server or home automation hub.

The Value Proposition: Why Choose the E24C?

One of the most striking advantages of the E24C is its unmatched value. For most users, building a comparable setup with a Raspberry Pi requires buying several expensive add-ons. The E24C comes as a highly integrated package where the aluminum case and NVMe support are native parts of the design, not afterthoughts.

Cost & Value Comparison: Why the Radxa E24C Wins

When building a reliable home lab node, the price-to-performance ratio is the deciding factor. While many gravitate toward the Raspberry Pi, the E24C offers a much more integrated and cost-effective experience.

Below is a direct comparison of what you get with a typical E24C kit versus a modular Raspberry Pi 5 setup:

Radxa E24C (Integrated Pro Setup)

• Processor: Rockchip RK3528 with Native NVMe support.
• Case: Premium Aluminum Enclosure Included in the box.
• NVMe Support:Built-in M.2 Slot on the bottom of the PCB.
• Total Estimated Cost:Approximately $50 - $55.

Raspberry Pi 5 (Equivalent Modular Setup)

• Processor: Broadcom BCM2712 (Requires external HAT for NVMe).
• Case: Usually sold separately ($15 - $40 for a good aluminum case).
• NVMe Support: Requires a separate NVMe HAT ($10 - $30 extra).
• Total Estimated Cost:Approximately $100 - $140+ (depending on the HAT and Case quality).

The Bottom Line: By choosing the Radxa E24C, you get a system that is specifically designed for 24/7 resilience and high-speed storage at nearly half the price of a traditional Pi setup. It is a cleaner, more robust, and significantly more affordable solution for anyone looking to host their own private cloud or network services.
