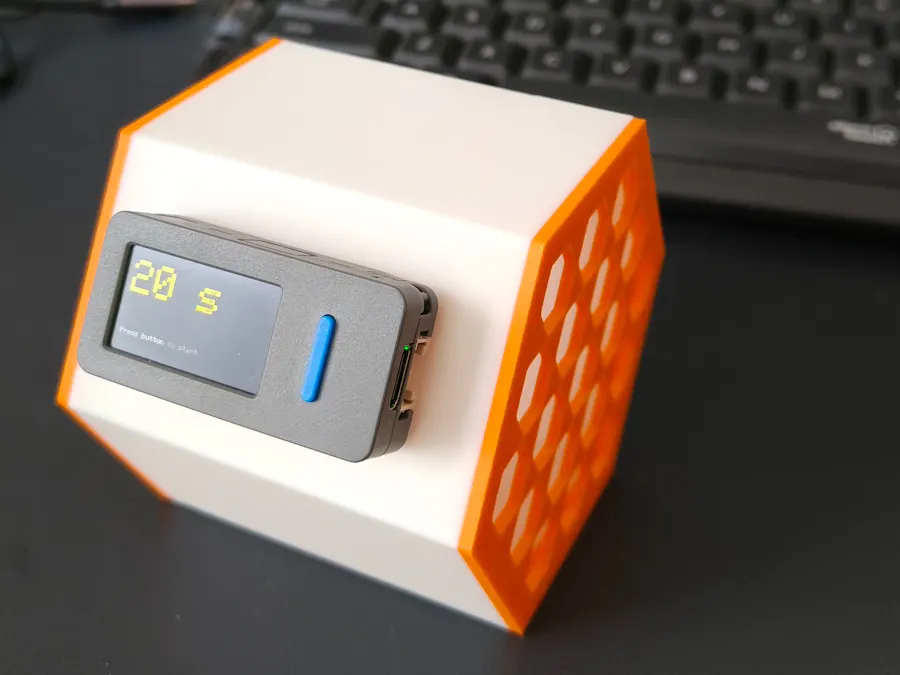

A Fun Hexagonal Prism Alarm Clock Based on M5Stack AtomS3

/**
    • HexTimer - M5Stack StickS3 Hexagonal Prism 5-Pose Timer Clock
    • Function: Uses the BMI270 6-axis IMU sensor's accelerometer data
    • to identify 5 poses of the hexagonal prism when rolled on a desktop,
    • each pose corresponds to a different timer duration.
    • Press the panel button to start the countdown; the countdown ends or
    • reset terminates the countdown.
    • Timer configuration:
    • Pose 1: 10 seconds
    • Pose 2: 20 seconds
    • Pose 3: 30 seconds
    • Pose 4: 40 seconds
    • Pose 5: 50 seconds
    • Operation logic:
        1. After identifying a pose, the LCD displays the corresponding timer duration.
        2. Press the panel button to start the countdown.
        3. Countdown ends → plays "beep beep beep" sound.
        4. Reset pose (6/7) → terminates countdown → plays "booo" sound.
        5. After finishing, automatically returns to standby state.
        6. Reset pose terminates the countdown.
    • Screen auto-rotation:
    • Pose 1/2/3/6/7: normal orientation
    • Pose 4/5: 180° flipped, text automatically stays "head up"
    • Hardware configuration:
        1. ESP32-S3-PICO-1-N8R8 main controller
        2. BMI270 6-axis IMU sensor (accelerometer + gyroscope)
        3. 1.14" LCD display (135x240 resolution)
        4. Built-in speaker (driven via M5PM1)
*/
#include <Arduino.h>
#include <M5Unified.h>
#include <M5PM1.h>
#include "SparkFun_BMI270_Arduino_Library.h"

// Low power management
M5PM1 pm1;
BMI270 imu;

// Refresh rate configuration
#define REFRESH_RATE_HZ 30
#define REFRESH_INTERVAL_MS (1000 / REFRESH_RATE_HZ)
// Screen layout configuration
const int SCREEN_WIDTH = 240;
const int SCREEN_HEIGHT = 135;
// Color definitions
#define COLOR_BG TFT_BLACK
#define COLOR_TEXT TFT_WHITE
#define COLOR_TIMER TFT_YELLOW
#define COLOR_FINISH TFT_GREEN
#define COLOR_STOP TFT_ORANGE
#define COLOR_BAR_BG 0x2104 // Dark gray
// Timer duration configuration (milliseconds)
const unsigned long TIMER_DURATIONS[] = {
0, // Placeholder (pose 0)
10000, // Pose 1: 10 seconds
20000, // Pose 2: 20 seconds
30000, // Pose 3: 30 seconds
40000, // Pose 4: 40 seconds
50000, // Pose 5: 50 seconds
};
// State definitions
enum TimerState {
STATE_IDLE, // Standby: identify pose, display timer duration
STATE_COUNTDOWN, // Countdown in progress
STATE_FINISHED, // Countdown finished (natural end)
STATE_STOPPED // Countdown terminated (user reset)
};
// Global variables
unsigned long lastRefreshTime = 0;
float accX = 0;
float accY = 0;
float accZ = 0;
// Current pose (1-7)
int currentFace = 0;
int lastRotationFace = 0; // Last pose that set the rotation
// Timer state
TimerState timerState = STATE_IDLE;
unsigned long countdownEndTime = 0; // Countdown end time point
unsigned long countdownDuration = 0; // Total countdown duration
int countdownFace = 0; // Pose corresponding to the countdown
// Sound play flag
bool soundPlayed = false;

// Low power management
static unsigned long resetPoseStartTime = 0;
static bool isInSleepReady = false;
static const unsigned long RESET_POSE_SLEEP_DELAY_MS = 10000; // Enter sleep after 10 seconds

// Detect current pose
// Returns 1-7 for 7 poses, 0 for unknown
int detectFace() {
// Detect reset pose 1: x≈1, y≈0, z≈0 (bottom side down, USB port up)
if (accX > 0.5f && accX < 1.1f && abs(accY) < 0.5f && abs(accZ) < 0.5f) {
return 6; // Reset 1: USB port up
}
// Detect reset pose 2: x≈-1, y≈0, z≈0 (other bottom side down, PIN port up)
if (accX > -1.1f && accX < -0.5f && abs(accY) < 0.5f && abs(accZ) < 0.5f) {
return 7; // Reset 2: PIN port up
}
// Detect pose 3: x≈0, y≈0, z≈1 (z close to 1, x and y close to 0)
if (accZ > 0.85f && accZ < 1.05f && abs(accX) < 0.3f && abs(accY) < 0.3f) {
return 3; // Pose 3: 180 degrees parallel
}
// Detect pose 1: x≈0, y≈0.9, z≈-0.5
if (accY > 0.6f && accY < 1.0f && accZ > -0.9f && accZ < -0.1f && abs(accX) < 0.3f) {
return 1; // Pose 1: 60 degrees
}
// Detect pose 2: x≈0, y≈0.9, z≈0.5
if (accY > 0.6f && accY < 1.0f && accZ > 0.1f && accZ < 0.9f && abs(accX) < 0.3f) {
return 2; // Pose 2: 120 degrees
}
// Detect pose 4: x≈0, y≈-0.9, z≈0.5
if (accY > -1.0f && accY < -0.6f && accZ > 0.1f && accZ < 0.9f && abs(accX) < 0.3f) {
return 4; // Pose 4: 240 degrees
}
// Detect pose 5: x≈0, y≈-0.9, z≈-0.5
if (accY > -1.0f && accY < -0.6f && accZ > -0.9f && accZ < -0.1f && abs(accX) < 0.3f) {
return 5; // Pose 5: 300 degrees
}
return 0; // Cannot determine pose
}
// Set screen rotation based on pose
// Pose 1/2/3/6/7: normal orientation (rotation 1)
// Pose 4/5: 180° flipped (rotation 3)
void setScreenRotation(int face) {
int rotation;
if (face == 4 || face == 5) {
rotation = 3; // Flip 180°
} else {
rotation = 1; // Normal orientation
}
if (rotation != lastRotationFace) {
M5.Display.setRotation(rotation);
lastRotationFace = rotation;
M5.Display.fillScreen(COLOR_BG);
}
}
// Play sound
// type: 0 = countdown end sound, 1 = user reset sound
void playSound(int type) {
if (type == 0) {
// Countdown end: play 3 short high-pitched beeps "beep beep beep"
for (int i = 0; i < 3; i++) {
M5.Speaker.tone(2000, 150); // 2000Hz, 150ms
delay(200);
}
} else {
// User reset: play 1 low long tone "booo"
M5.Speaker.tone(500, 500); // 500Hz, 500ms
delay(500);
}
M5.Speaker.stop();
}
// Start countdown
void startCountdown(int face) {
timerState = STATE_COUNTDOWN;
countdownFace = face;
countdownDuration = TIMER_DURATIONS[face];
countdownEndTime = millis() + countdownDuration;
soundPlayed = false;
Serial.printf("[TIMER] ====\n",
face, countdownDuration / 1000);
}
// Stop countdown (user reset)
void stopCountdown() {
timerState = STATE_STOPPED;
soundPlayed = false;
countdownEndTime = 0;
Serial.println("[TIMER] =====");
}
// Countdown natural end
void finishCountdown() {
timerState = STATE_FINISHED;
soundPlayed = false;
countdownEndTime = 0;
Serial.println("[TIMER] ====");
}
// Draw idle screen
void drawIdleScreen() {
M5.Display.fillScreen(COLOR_BG);
if (currentFace >= 1 && currentFace <= 5) {
// Display timer duration in extra large font
M5.Display.setTextColor(COLOR_TIMER);
M5.Display.setTextSize(6);
char timerStr[10];
snprintf(timerStr, sizeof(timerStr), "%lu s", TIMER_DURATIONS[currentFace] / 1000);
M5.Display.drawString(timerStr, 10, 15);
// Prompt to press button to start
M5.Display.setTextColor(TFT_GRAY);
M5.Display.setTextSize(1);
M5.Display.drawString("Press button to start", 10, 105);
} else if (currentFace == 6 || currentFace == 7) {
M5.Display.setTextColor(TFT_GRAY);
M5.Display.setTextSize(2);
M5.Display.drawString("Reset Pose", 10, 40);
M5.Display.setTextSize(1);
M5.Display.drawString("Place to side to set timer", 10, 80);
} else {
M5.Display.setTextColor(TFT_GRAY);
M5.Display.setTextSize(2);
M5.Display.drawString("Detecting...", 10, 40);
}
}
// Draw countdown screen
void drawCountdownScreen() {
M5.Display.fillScreen(COLOR_BG);
// Calculate remaining time
unsigned long remaining = 0;
if (millis() < countdownEndTime) {
remaining = (countdownEndTime - millis() + 500) / 1000; // Round to seconds
}
// Display remaining time in extra large font
M5.Display.setTextColor(COLOR_TIMER);
M5.Display.setTextSize(8);
char timeStr[10];
snprintf(timeStr, sizeof(timeStr), "%lu", remaining);
M5.Display.drawString(timeStr, 10, 10);
// Seconds unit
M5.Display.setTextSize(3);
M5.Display.drawString("s", 10 + strlen(timeStr) * 48, 25);
// Display progress bar
int barWidth = 220;
int barHeight = 12;
int barX = 10;
int barY = 115;
// Background
M5.Display.fillRoundRect(barX, barY, barWidth, barHeight, 6, COLOR_BAR_BG);
// Progress
if (countdownDuration > 0) {
unsigned long elapsed = countdownDuration - remaining * 1000;
int progress = (int)((float)elapsed / countdownDuration * barWidth);
if (progress > barWidth) progress = barWidth;
if (progress > 0) {
M5.Display.fillRoundRect(barX, barY, progress, barHeight, 6, COLOR_TIMER);
}
}
}
// Draw finished screen
void drawFinishedScreen() {
M5.Display.fillScreen(COLOR_BG);
M5.Display.setTextColor(COLOR_FINISH);
M5.Display.setTextSize(3);
M5.Display.drawString("Time's Up!", 10, 40);
M5.Display.setTextColor(TFT_GRAY);
M5.Display.setTextSize(1);
M5.Display.drawString("Change pose for next timer", 10, 100);
}
// Draw stopped screen
void drawStoppedScreen() {
M5.Display.fillScreen(COLOR_BG);
M5.Display.setTextColor(COLOR_STOP);
M5.Display.setTextSize(3);
M5.Display.drawString("Timer", 10, 30);
M5.Display.drawString("Stopped", 10, 60);
M5.Display.setTextColor(TFT_GRAY);
M5.Display.setTextSize(1);
M5.Display.drawString("Change pose for next timer", 10, 110);
}
// Initialization function
void setup() {
// Initialize serial (for debug output)
Serial.begin(115200);
Serial.setDebugOutput(true);
Serial.println();
Serial.println("=================================");
Serial.println("HexTimer - 5 Pose Timer Clock");
Serial.println("=================================");

// Initialize M5Unified
M5.begin();

// Turn off external 5V output to reduce capacitor noise
M5.Power.setExtOutput(false);

// Configure speaker
M5.Speaker.begin();
M5.Speaker.setVolume(200); // Set volume (0-255)

// Configure screen
M5.Display.setRotation(1); // Landscape display
M5.Display.fillScreen(COLOR_BG);

Serial.println("[INFO] System initialization complete");
Serial.println("[INFO] Timer configuration:");
Serial.println("[INFO] Pose 1: 10 seconds");
Serial.println("[INFO] Pose 2: 20 seconds");
Serial.println("[INFO] Pose 3: 30 seconds");
Serial.println("[INFO] Pose 4: 40 seconds");
Serial.println("[INFO] Pose 5: 50 seconds");
Serial.println("[INFO] Reset 1/2: Terminate countdown");

// ==== Low power management initialization ====
// Get I2C pins (only used for PM1 initialization parameters)
auto pin_num_sda = M5.getPin(m5::pin_name_t::in_i2c_sda);
auto pin_num_scl = M5.getPin(m5::pin_name_t::in_i2c_scl);
Serial.printf("[PM1] getPin: SDA:%u SCL:%u\n", pin_num_sda, pin_num_scl);

// Note: Do NOT reinitialize Wire! M5.begin() has already initialized the I2C bus and BMI270 IMU.
// Reinitializing Wire would break the IMU driver inside M5Unified, causing M5.Imu.getAccel() to fail.
// PM1 directly uses the Wire object already initialized by M5.begin().

// Initialize PM1
m5pm1_err_t err = pm1.begin(&Wire, M5PM1_DEFAULT_ADDR, pin_num_sda, pin_num_scl, M5PM1_I2C_FREQ_100K);
if (err == M5PM1_OK) {
    Serial.println("[PM1] PM1 initialization successful");
    // Configure GPIO4 as wake-up pin (connected to IMU interrupt)
    pm1.gpioSetWakeEnable(M5PM1_GPIO_NUM_4, true);
    pm1.gpioSetWakeEdge(M5PM1_GPIO_NUM_4, M5PM1_GPIO_WAKE_FALLING);
} else {
    Serial.printf("[PM1] PM1 initialization failed, error code: %d\n", err);
}

// BMI270 interrupt configuration is not initialized in setup to avoid interfering with the IMU driver inside M5Unified.
// Interrupt configuration will be temporarily initialized using the SparkFun BMI270 library in loop() before entering sleep.
}
// Main loop
void loop() {
M5.update(); // Update button state

// ==== Low power management: check whether to enter sleep ====
// When in reset pose (6 or 7) and held for 10 seconds, enter sleep mode
if (currentFace == 6 || currentFace == 7) {
    if (!isInSleepReady) {
        // Record the time when reset pose was entered
        resetPoseStartTime = millis();
        isInSleepReady = true;
        Serial.println("[PM1] Reset pose detected, starting 10s sleep timer...");
    }

    // Check if 10 seconds have elapsed
    if (millis() - resetPoseStartTime >= RESET_POSE_SLEEP_DELAY_MS) {
        // Display prompt before entering sleep
        M5.Display.fillScreen(COLOR_BG);
        M5.Display.setTextColor(TFT_GRAY);
        M5.Display.setTextSize(2);
        M5.Display.drawString("Sleeping...", 10, 40);
        M5.Display.drawString("Shake to wake", 10, 80);
        delay(1000);

        // ==== Configure IMU interrupt for wake-up ====
        // Note: The following operations will reinitialize the I2C bus, which will break M5Unified's IMU driver.
        // But that's fine because we are about to enter sleep, and the ESP32-S3 will power-cycle on wake.
        auto pin_num_sda = M5.getPin(m5::pin_name_t::in_i2c_sda);
        auto pin_num_scl = M5.getPin(m5::pin_name_t::in_i2c_scl);
        Wire.end();
        Wire.begin(pin_num_sda, pin_num_scl, 100000U);

        // Initialize SparkFun BMI270 library
        BMI270 sleepImu;
        while(sleepImu.beginI2C(BMI2_I2C_PRIM_ADDR) != BMI2_OK) {
            Serial.println("[PM1] BMI270 not connected for wakeup config!");
            delay(500);
        }

        // Enable ANY_MOTION interrupt
        int8_t ret = sleepImu.enableFeature(BMI2_ANY_MOTION);

        // Configure interrupt pin
        bmi2_int_pin_config intPinConfig;
        intPinConfig.pin_type = BMI2_INT1;
        intPinConfig.int_latch = BMI2_INT_NON_LATCH;
        intPinConfig.pin_cfg[0].lvl = BMI2_INT_ACTIVE_LOW;
        intPinConfig.pin_cfg[0].od = BMI2_INT_PUSH_PULL;
        intPinConfig.pin_cfg[0].output_en = BMI2_INT_OUTPUT_ENABLE;
        intPinConfig.pin_cfg[0].input_en = BMI2_INT_INPUT_DISABLE;
        ret |= sleepImu.setInterruptPinConfig(intPinConfig);
        ret |= sleepImu.mapInterruptToPin(BMI2_ANY_MOTION_INT, BMI2_INT1);

        if (!ret) {
            Serial.println("[PM1] BMI270 AnyMotion interrupt enabled for wakeup");
        } else {
            Serial.println("[PM1] Failed to enable AnyMotion interrupt");
        }

        // Prepare to enter sleep: keep LDO powered
        pm1.setLdoEnable(true);
        pm1.ldoSetPowerHold(true);
        pm1.setLedEnLevel(true);

        // Enter sleep mode
        Serial.println("[PM1] Entering sleep mode...");
        pm1.shutdown();

        // After wake from sleep, reset state
        Serial.println("[PM1] Woken up by IMU motion!");
        isInSleepReady = false;
        resetPoseStartTime = 0;

        // Reinitialize display
        M5.Display.fillScreen(COLOR_BG);
        M5.Display.setRotation(1);
    }
} else {
    // Not in reset pose, reset sleep timer
    isInSleepReady = false;
    resetPoseStartTime = 0;
}

// Check if refresh is needed
unsigned long currentTime = millis();
if (currentTime - lastRefreshTime < REFRESH_INTERVAL_MS) {
// Even if screen is not refreshed, check button state (to avoid missing button presses)
if (timerState == STATE_IDLE) {
if (M5.BtnA.wasPressed() || M5.BtnB.wasPressed()) {
if (currentFace >= 1 && currentFace <= 5) {
startCountdown(currentFace);
}
}
}
return;
}
lastRefreshTime = currentTime;
// Read IMU data
M5.Imu.getAccel(&accX, &accY, &accZ);
// Detect current pose
int detectedFace = detectFace();
// Add hysteresis to avoid frequent pose changes
static int stableCount = 0;
static int lastDetectedFace = 0;
if (detectedFace == lastDetectedFace) {
stableCount++;
} else {
stableCount = 0;
lastDetectedFace = detectedFace;
}
// Update only after 10 consecutive detections of the same pose
if (stableCount > 10 && detectedFace != currentFace) {
currentFace = detectedFace;
Serial.printf("[INFO] ====\n", currentFace);
}
// ====
switch (timerState) {
case STATE_IDLE: {
// Standby state: when pose 1-5 is detected, display corresponding timer duration
// Press panel button to start countdown (StickS3 only has BtnA and BtnB)
if (M5.BtnA.wasPressed() || M5.BtnB.wasPressed()) {
if (currentFace >= 1 && currentFace <= 5) {
startCountdown(currentFace);
}
}
break;
}
case STATE_COUNTDOWN: {
// Countdown in progress: check for timeout or user reset
if (currentTime >= countdownEndTime) {
// Countdown natural end
finishCountdown();
} else if (currentFace == 6 || currentFace == 7) {
// User reset terminates
stopCountdown();
}
break;
}
case STATE_FINISHED: {
// Countdown finished: play sound
if (!soundPlayed) {
playSound(0); // Countdown end sound
soundPlayed = true;
}
// Return to standby after pose change
if (currentFace >= 1 && currentFace <= 5) {
timerState = STATE_IDLE;
Serial.println("[TIMER] ====");
}
break;
}
case STATE_STOPPED: {
// Countdown terminated: play sound
if (!soundPlayed) {
playSound(1); // User reset sound
soundPlayed = true;
}
// Return to standby after pose change
if (currentFace >= 1 && currentFace <= 5) {
timerState = STATE_IDLE;
Serial.println("[TIMER] ====");
}
break;
}
}
// Set screen rotation based on current pose
setScreenRotation(currentFace);
// Draw screen content
switch (timerState) {
case STATE_IDLE:
drawIdleScreen();
break;
case STATE_COUNTDOWN:
drawCountdownScreen();
break;
case STATE_FINISHED:
drawFinishedScreen();
break;
case STATE_STOPPED:
drawStoppedScreen();
break;
}
// Serial debug output
Serial.printf("[DEBUG] Acc: X=%.3f Y=%.3f Z=%.3f | Pose=%d | State=%d\n",
accX, accY, accZ, currentFace, timerState);
}
