Project #30 - UNIHIKER - MEMS VOC - Mk05

BeginnerFull instructions provided1 hour30

Things used in this project

Hardware components

DFRobot UNIHIKER

DFRobot Fermion: MEMS VOC Gas Detection Sensor

USB Battery Pack

DFRobot USB 3.1 Cable A to C

Software apps and online services

Python

Story

Project #30 - UNIHIKER - MEMS VOC - Mk05

https://www.donluc.com/?p=4133

https://youtu.be/rwrBm-ZCIos

https://edu.dfrobot.com/makelog-314859.html

#DonLucElectronics #DonLuc #UNIHIKER #VOC #Display #IoT #Project #Debian #Python #Thonny #DFRobot #Fritzing #Programming #Electronics #Microcontrollers #Consultant

Fermion: MEMS Volatile Organic Compounds VOC Gas Detection Sensor

Fermion: MEMS Volatile Organic Compounds VOC Gas Sensor employs state-of-the-art microelectromechanical system (MEMS) technology, endowing the sensor with compact dimensions, low power consumption, minimal heat generation, short preheating time, and swift response recovery. The sensor can qualitatively measure VOC gas concentration and is suitable for indoor air quality detection, fresh air system, air purifier and other application scenarios. Kindly remove the protective film before usage. Gas detected: ethanol, formaldehyde, toluene, etc. Detection range: 1-500 ppm. It is advisable to preheat the module for at least 24 hours.

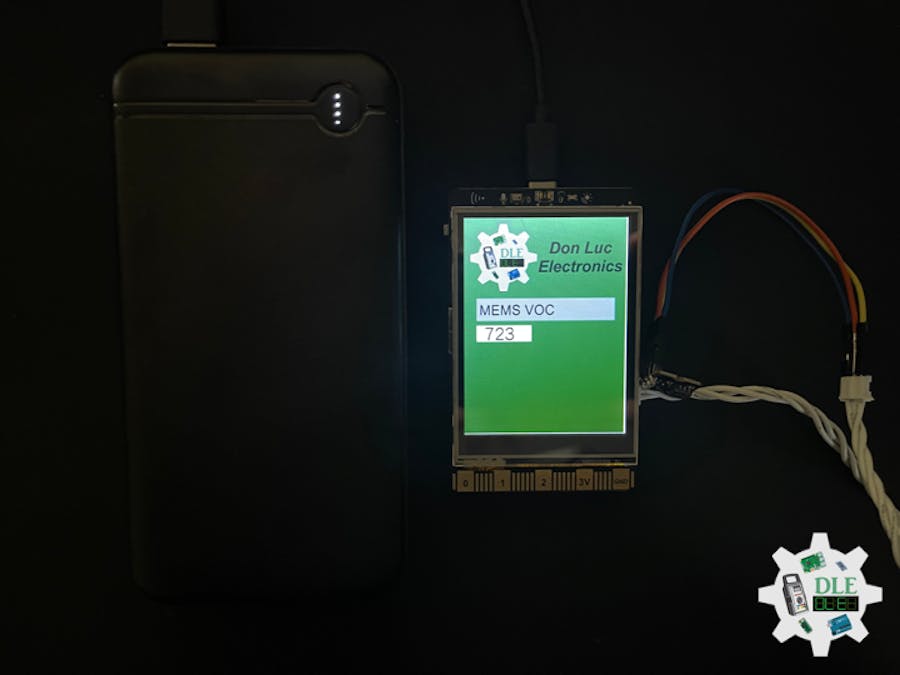

DL2409Mk05

1 x UNIHIKER

1 x Fermion: MEMS VOC Gas Detection Sensor

1 x USB Battery Pack

1 x USB 3.1 Cable A to C

UNIHIKER

ADC - 21

VIN - +5V

GND - GND

DL2409Mk05p

DL2409Mk05p.py

People can contact us:http://www.donluc.com/?page_id=1927

Electronics, IoT, Teacher, Instructor, R&D and Consulting

Programming Language
Microcontrollers (PIC, Arduino, Raspberry Pi, Arm, Silicon Labs, Espressif, Etc...)
IoT
Wireless (Radio Frequency, Bluetooth, WiFi, Etc...)
Robotics
Automation
Camera and Video Capture Receiver Stationary, Wheel/Tank and Underwater Vehicle
Unmanned Vehicles Terrestrial and Marine
Machine Learning
Artificial Intelligence (AI)
RTOS
Sensors, eHealth Sensors, Biosensor, and Biometric
Research & Development (R & D)
Consulting
Etc...

Luc Paquin – Curriculum Vitae - 2024

https://www.donluc.com/luc/

Web:https://www.donluc.com/

Facebook:https://www.facebook.com/neosteam.labs.9/

YouTube:https://www.youtube.com/@thesass2063

Twitter:https://twitter.com/labs_steam

Pinterest:https://www.pinterest.com/NeoSteamLabs/

Instagram:https://www.instagram.com/neosteamlabs/

DFRobot Luc.Paquin:https://edu.dfrobot.com/dashboard/makelogs

ELECROW:https://www.elecrow.com/share/sharepj/center/no/760816d385ebb1edc0732fd873bfbf13

TikTok: www.tiktok.com/@luc.paquin8

LinkedIn:https://www.linkedin.com/in/jlucpaquin/

Don Luc

Code

DL2409Mk05p.py

"""
****** Don Luc Electronics © ******
Software Version Information
Project #30 - UNIHIKER - Fermion: MEMS VOC - Mk05
30-05
DL2409Mk05.py
DL2409Mk05
1 x UNIHIKER
1 x Fermion: MEMS VOC Gas Detection Sensor
1 x USB Battery Pack
1 x USB 3.1 Cable A to C

-*- coding: utf-8 -*-
"""
# Import the unihiker library
from unihiker import GUI

# Import the time library
import time

# Import the Board module from the pinpong.board package
from pinpong.board import Board

# Import all modules from the pinpong.extension.unihiker package
from pinpong.extension.unihiker import *

# Initialize the board by selecting the board type and port number;
# if not specified, the program will automatically detect it
Board().begin()

# Initialize pin 21 as analog input mode
# Fermion: MEMS VOC Gas Detection Sensor
adc0 = Pin(Pin.P21, Pin.ANALOG)

# Instantiate the GUI class and create a gui object
gui = GUI()

# Display the initial background image 'DL2409Mk05p'
img = gui.draw_image(x=0, y=0, w=240, h=320, image='DL2409Mk05p.png')

# MEMS VOC
# Display the initial Fermion: MEMS VOC Gas Detection Sensor valueVOC
valueVOC = gui.draw_text(x=30, y=151, text='0', font_size=18)

while True:

    # Fermion: MEMS VOC Gas Detection Sensor
    # Read analog value
    VOCSensor = adc0.read_analog()
    valueVOC.config(text=VOCSensor)

    # Delay for 1 second to keep the screen content displayed for a longer time
    time.sleep(1)
