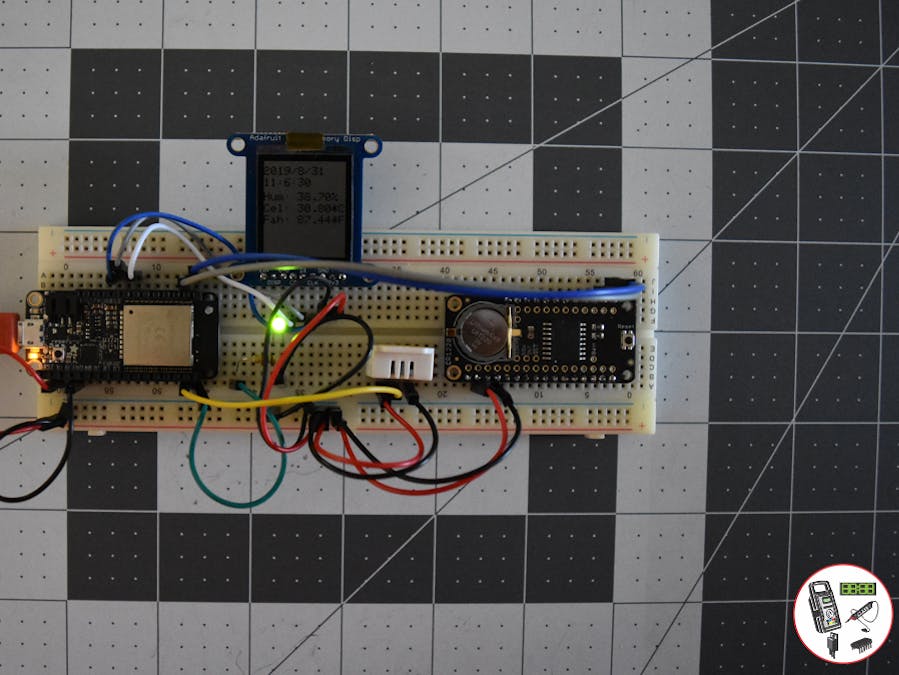

Project #11: ESP32 Feather - RHT03 - Mk04

Adafruit HUZZAH32 ESP32 Feather Adafruit SHARP Memory Display Adafruit DS3231 Precision RTC Feather RHT03 Humidity and Temperature Sensor

BeginnerProtip1 hour1,180
Project #11: ESP32 Feather - RHT03 - Mk04

Things used in this project

Hardware components

Adafruit HUZZAH32 – ESP32 Feather Board
Adafruit HUZZAH32 – ESP32 Feather Board
×1
Adafruit SHARP Memory Display
×1
Adafruit DS3231 Precision RTC FeatherWing
×1
Adafruit CR1220 12mm Lithium Battery
×1
SparkFun RHT03 Humidity and Temperature Sensor
×1
5 mm LED: Green
5 mm LED: Green
×1
Resistor 100 ohm
Resistor 100 ohm
×1
Adafruit Jumper Wires 3 M/M
×14
Adafruit Jumper Wires 6 M/M
×2
Solderless Breadboard Full Size
Solderless Breadboard Full Size
×1
SparkFun Cerberus USB Cable
×1

Software apps and online services

Arduino IDE
Arduino IDE

Story

Read more

Schematics

Fritzing

Code

DL1909Mk01.ino

Arduino
// ***** Don Luc Electronics *****
// Software Version Information
// Project #11: HUZZAH32 ESP32 Feather - Mk04
// 09-01
// DL1909Mk01p.ino 11-04
// Adafruit HUZZAH32 ESP32 Feather Board
// SHARP Display
// LED Green
// DS3231 Precision RTC
// EEPROM
// RHT03 Humidity and Temperature Sensor

// include Library Code
#include <Adafruit_SharpMem.h>
#include <Adafruit_GFX.h>
#include <RTClib.h>
#include <Wire.h>
#include "EEPROM.h"
#include <SparkFun_RHT03.h>

// SHARP Memory Display
// any pins can be used
#define SHARP_SCK  13
#define SHARP_MOSI 12
#define SHARP_SS   27
// Set the size of the display here, e.g. 144x168!
Adafruit_SharpMem display(SHARP_SCK, SHARP_MOSI, SHARP_SS, 144, 168);
// The currently-available SHARP Memory Display (144x168 pixels)
// requires > 4K of microcontroller RAM; it WILL NOT WORK on Arduino Uno
// or other <4K "classic" devices!
#define BLACK 0
#define WHITE 1
int minorHalfSize; // 1/2 of lesser of display width or height

// LED Green
int iLEDGreen =  21;                 // LED Green

// DS3231 Precision RTC
RTC_DS3231 RTC;
String sDate;
String sTime;

// RHT Humidity and Temperature Sensor
const int RHT03_DATA_PIN = 17;          // RHT03 data pin Digital 17
RHT03 rht;                              // This creates a RTH03 object, which we'll use to interact with the sensor
float latestHumidity;
float latestTempC;
float latestTempF;

// The current address in the EEPROM (i.e. which byte
// we're going to  read to next)
#define EEPROM_SIZE 64
String sver = "9-1.p";
// Unit ID information
String uid = "";

void loop() {

  // iLEDGreen
  digitalWrite(iLEDGreen,  HIGH );
  // DS3231 Precision RTC
  timeRTC();
  // RHT03 Humidity and Temperature Sensor
  isRHT03();
  // SHARP Memory Display On
  isDisplayOn();
  // iLEDGreen
  digitalWrite(iLEDGreen,  LOW );
  // Delay 1
  delay( 1000 );

}

getDisplay.ino

Arduino
// Display
// SHARP Memory Display On
void isDisplayOn() {

    // Clear Display
    display.clearDisplay();
    // text display date, time, LED on
    display.setRotation(4);
    display.setTextSize(2);
    display.setTextColor(BLACK);
    display.setCursor(0,10);
    display.println( sDate );
    display.setCursor(0,30);
    display.println( sTime );
    display.setTextSize(2);
    display.setCursor(0,55);
    display.print("Hum: ");
    display.print( latestHumidity );
    display.println("%");
    display.setCursor(0,75);
    display.print("Cel: ");
    display.print( latestTempC );
    display.println("*C");
    display.setCursor(0,95);
     display.print("Fah: ");
    display.print( latestTempF );
    display.println("*F");
    display.refresh();

}
// SHARP Memory Display - UID
void isDisplayUID() {

    // text display EEPROM
    display.setRotation(4);
    display.setTextSize(3);
    display.setTextColor(BLACK);
    display.setCursor(0,20);
    display.println( sver );
   // display.setTextSize();
    display.setTextColor(BLACK);
    display.setCursor(0,65);
    display.println( uid );
    display.refresh();
    delay( 100 );

}

getEEPROM.ino

Arduino
// EEPROM
void GetUID()
{

  // Get unit ID
  uid = "";
  for (int x = 0; x < 5; x++)
  {
    uid = uid + char(EEPROM.read(x));
  }

}

getRHT.ino

Arduino
// RHT03 Humidity and Temperature Sensor
void isRHT03(){

  // Call rht.update() to get new humidity and temperature values from the sensor.
  int updateRet = rht.update();

  // The humidity(), tempC(), and tempF() functions can be called -- after
  // a successful update() -- to get the last humidity and temperature value
  latestHumidity = rht.humidity();
  latestTempC = rht.tempC();
  latestTempF = rht.tempF();

}

getRTCDS3231.ino

Arduino
// DS3231 Precision RTC
void setupRTC() {

  // DS3231 Precision RTC
  RTC.begin();
  if (! RTC.begin()) {
    while (1);
  }

  DateTime now = RTC.now();

  if (RTC.lostPower()) {
    // Following line sets the RTC to the date & time this sketch was compiled
    RTC.adjust(DateTime(F(__DATE__), F(__TIME__)));
  }

}
// timeRTC
void timeRTC() {

    // DS3231 Precision RTC
    sDate = "";
    sTime = "";

    DateTime now = RTC.now();

    // sData
    sDate += String(now.year(), DEC);
    sDate += "/";
    sDate += String(now.month(), DEC);
    sDate += "/";
    sDate += String(now.day(), DEC);

    // sTime
    sTime += String(now.hour(), DEC);
    sTime += ":";
    sTime += String(now.minute(), DEC);
    sTime += ":";
    sTime += String(now.second(), DEC);

}

setup.ino

Arduino
// Setup
void setup() {

  // EEPROM with unique ID
  EEPROM.begin(EEPROM_SIZE);

  // Get Unit ID
  GetUID();

  // SHARP Display start & clear the display
  display.begin();
  display.clearDisplay();

  isDisplayUID();

  delay( 5000 );

  // Initialize the LED Green
  pinMode(iLEDGreen, OUTPUT);

  // DS3231 Precision RTC
  setupRTC();

  // DS3231 Precision RTC
  timeRTC();

  // RHT03 Humidity and Temperature Sensor
  // Call rht.begin() to initialize the sensor and our data pin
  rht.begin(RHT03_DATA_PIN);

}
