Solar Powered Park Bench

Solar Powered Inductive chargers combined with LED-lit seating are reactive to sounds in the environment. Motion Sensors turn it off/on.

IntermediateWork in progress7 days166
Solar Powered Park Bench

Things used in this project

Hardware components

Argon
Particle Argon
used for Prototype 1 (the small model)
×1
Flora RGB Neopixel LEDs- Pack of 4
Adafruit Flora RGB Neopixel LEDs- Pack of 4
used for Prototype 1 (the small model)
×1
NeoPixel Ring: WS2812 5050 RGB LED
Adafruit NeoPixel Ring: WS2812 5050 RGB LED
used for Prototype 1 (the small model)
×1
0.96" OLED 64x128 Display Module
ElectroPeak 0.96" OLED 64x128 Display Module
used for Prototype 1 (the small model)
×1
IR Range Sensor
Digilent IR Range Sensor
used for Prototype 1 (the small model)
×1
Boron
Particle Boron
Used in final prototype (life-sized solar-powered park bench)
×1
LIDAR Lite L4 Motion Sensor
Used in final prototype (life-sized solar-powered park bench)
×2
MSGEQ7 Sound Sensor
Used in final prototype (life-sized solar-powered park bench)
×1
Adafruit LPD 8806 GRB weatherproof LEDs
Used in final prototype (life-sized solar-powered park bench)
×5
5V 2A inductive charging unit
Used in final prototype (life-sized solar-powered park bench)
×4
Capacitor 470 µF
Capacitor 470 µF
Used in final prototype (life-sized solar-powered park bench)
×1
Resistor 4.75k ohm
Resistor 4.75k ohm
Used in final prototype (life-sized solar-powered park bench)
×2
10W solar Panel
Used in final prototype (life-sized solar-powered park bench) The linked solar panel comes with a charge controller suitable for 12V
×2
12V lead acid battery
Used in final prototype (life-sized solar-powered park bench)
×2
Adafruit 12v to 5v DC/DC step-down buck converter
Used in final prototype (life-sized solar-powered park bench)
×3
mono mic
For use with the MSGEQ7, must be mono. It needs to have one stripe on a 3.5mm audio jack.
×1

Software apps and online services

Particle Build Web IDE
Particle Build Web IDE
Bubble.io

Hand tools and fabrication machines

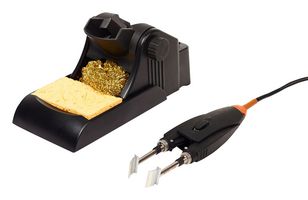

Soldering Iron Kit, Precision
Soldering Iron Kit, Precision
Miter Saw
palm sander

Story

Read more

Custom parts and enclosures

Bench Model

This is the final bench model. It does not include holes for the inductive charging units, or holes for the pipes. It also does not include the canopy. It is used to get a rough estimate of how much wood you will need to buy in order to build it. It can also be used to figure out how much your bench will weigh based on the material you use.

Overview Drawing of the Bench

This drawing shows the top, bottom, and side views of the bench, along with some external measurements.

External Cuts Diagram

This drawing shows many of the cuts needed to build the bench.

Schematics

NM Park Bench Photo Schematic

A photo diagram displaying the wiring for the NM Park Bench Prototype.

Code

NM Park Bench

This repository includes programs that have all sensors integrated for running the solar-powered park bench.

NM Park Bench Tests

Component tests for the Solar Powered Park Bench

Credits

Katie Neeley

Katie Neeley

3 projects • 14 followers
Former U.S. Marine, Visual Artist, Developer, Programmer, and Entrepreneur. I love to explore the phenomenal nature of reality.
Thanks to Dr. Brian Rashap.
