Original publication: http://www.needlab.org/face-masks-disinfection-device
FFP1 and FFP2 masks are indispensable protective elements during epidemics. They are intended for single-use, but during a crisis the re-usage is inevitable and disinfection mechanisms are required (1). During the ongoing SARS-CoV-2 pandemics, hospitals, healthcare centers, and research facilities have implemented different mechanisms of disinfection for these masks, usually involving ultraviolet germicidal irradiation (UVGI) and/or heat of some sort. Nonetheless, these methods are not available to many vulnerable parts of the population, where nonetheless, due to shortage, the re-usage of these masks has become the only option. The need for a viable method of disinfection of face masks is further increased by evidence of SARS-CoV-2 being extremely stable on the surface of surgical masks even after 7 days (2).
This project intends to create a low budget and portable device that can effectively use UVGI and dry heat to disinfect face masks from SARS-CoV virions and that can be easily reproduced by people who need it.DIY instruction on making disinfection device
Device set up diagram
● Temperature must be maintained in the range 65+/-5°C
● The lamp must provide UV-C wavelength.
● The disinfection cycle duration is minimum of 30 minutes. (recommendation: Not more than 30 min in order to have a safer range to avoid potential face-mask degradation and loss of functionality.)
- A frying pan of 22 centimeters diameter (induction compatible) with the handle removed.
- Cover the frying pan with aluminum foil for UV-C light reflection.
- Make a hole of 20 centimeters at the center of the box/ bottom surface of the device.
- In order to maintain the position of the frying pan use four metal holders as shown in the image.
Important: The frying pan should not touch the wood of the box, as it reduces the heat efficiency. Hence one has to select the right diameter of the hole and shape the metal brackets according to this diagram:
For the UV-C source in this device, an 11 W lamp bulb from a “Sterilizer for Aquarium” kit was used. The UV-C bulb was extracted and mounted to the top cover at the two ends of the bulb as shown in the image. The bulb is mounted by creating 4 holes in the top cover and using a zip tie/cable tie and soft padding to securely fasten the bulb. The top surface is covered in aluminium to reflect the UV radiation.
Feel free to use UV-C lamp from other sources. If you do not have access to the crystal tube (used in this project) do not use glass as a replacement as glass blocks the UV radiation.!! WARNING:You must be aware that UV-C radiation is very dangerous for your eyes and skin. The UV-C light must be switched ON only when the top cover of the device is closed and switched off when the device is open.
Please check also the very relevant recommendations that Horror Coder gave us into the Comments of this post (Thanks again for his precious contribution):"...I want to press about the unseen danger of UVC, you must check that the box is light really light proof. Remember that the visibile radiation of germicide tube is just a byproduct and it's only 3/4% of total emission, so don' trust your eye, there's a big risk of emission leak and you don't perceive it. You have to check that is light tight putting a light inside the box rated like 10X the tube wattage (use a hipower led torch or something similar) and check for light leaks around the box/enclosure in a completely dark environment. You have to fill all the holes, use some foam gasket and / or some borders to avoid this risk of UV-C leaks outside of the box, and check it with the method recommended above.
Before installing the UV-C tube and the wire rack, cover sides and top surface of the box with aluminum foil, as shown in the image.The goal is to reflect the UV-C light on the side faces, thus augmenting the efficacy.
Tips: Double sided tape can be used to maintain the aluminium foil in place for the surfaces and the edges can be duct tapped.Making of the Wire rack - Placement for the Face-masks
The face-masks will be placed on top of a wire rack. I wire rack was made using copper thinned wire at 30 mm apart from each wire. The wire rack is 120 mm above the bottom surface. The wire rack is held together by passing the wire through small holes made on the front and back surfaces of the box.
- Arduino UNO Rev3

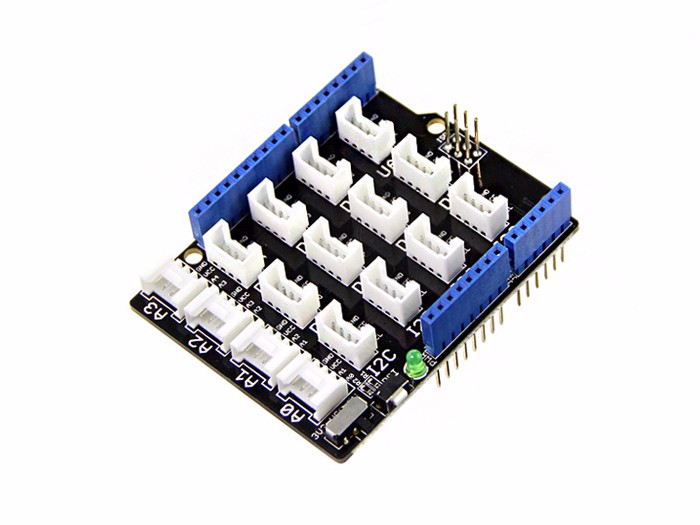

- Grove base shield V2, 0
- Grove Infrared Temperature sensor
- Grove Light Sensor(P)
- Push Button
- Piezo speaker
- Quad Alphanumeric Display - White 0.54" Digits w/ I2C Backpack
- Wall Adapter Power Supply 12VDC
INIT: In this state, the LED display indicates the temperature, but you have to wait for it to reach the threshold (70°C) to start the counting of the cycle in state COUNT
COUNT: Minutes elapsed from 30 to 0 are displayed on the LED display, next to the temperature. In the case of temperature is too low, or if the UV light is off, the state will change to ERR.
END: This is the normal state at the end of elapsed time.The speaker will advertise. Push the button to go to INIT again.
ERR: This is the error state, it will be activated if temperature goes too low or if the UV light are off. The speaker will advertise. Push the button to go to INIT again.
There are few alarm conditions -If alarm is ON, there is a specific tone sequence on the speaker and messages are displayed on the LED display.
Alarm conditions:1) If the system is in ERR state (UV light is off/lost or temperature too low)2) If the temperature is too high (more than 75°C)
External libraries to includeUser Manual
1. Place the box on top of your induction (or resistive) hob.
2. Switch the power ON for the Arduino.
3. Close the box and start to heat at 70~80% of the power of your induction hob.
4. Wait till you reach the 60°C temperature. Now reduce the change power of induction hob to 30%.
5. Now you can open the device, place your masks inside and close the device.
7. Push the button to start => the remaining time should be displayed (30 minutes).
8. From now you just have to wait for the time has decreased to 00 minutes, there will be a signal on the speaker.
9. To restart at the initial state for a new cycle, just push the button.
Remark: When the timer is counting elapsing time (COUNT state), the small dot between Timer and Temperature displays will blink at 1 second rhythm.Temperature cycles
The capacity to get rid of microorganisms through moist heat usually under 100°C is known since the time of Pasteur. In this device, we implemented dry heat instead, which is reported to effectively eliminate SARS-CoV infectivity. Assays show considerable inactivation of the virus at 56°C during 30-90 min, almost complete inactivation at 65°C for 20-60 min, and complete inactivation at 75°C during 30-45 min (7, 8). Furthermore, a recent study showed that SARS-CoV-2 lost all detectable infectivity after being incubated at 56°C for 30 min, or 70°C for 5 min (2).
According to this evidence and additional considerations regarding the effects of these disinfection methods on the functionality of the face masks —which will be explained in the next sections—, we decided to set the heat exposure of the protocol to be used with the device at 65 °C for 30 min.Germicidal protocols on face masks
So far, we have presented evidence regarding viral disinfection on samples dissimilar to the face masks to which we intend to apply the disinfection. Hence, here we present some reports of viral disinfection on the same type of masks we intend to use.
Disinfection of face masks has been shown to be effective against influenza virus using UVGI at ~1 J/cm2 (10), UVGI at ~18 J/cm2, or moist heat at 65±5 °C during 3 h (11). There are no studies of disinfection of masks with coronaviruses, but since influenza viruses are also ssRNA viruses, similar effects could be expected.Learn more about :Recommended method for disinfecting face-masks.
It is very important to establish a good procedure for the process of disinfecting used masks. The main questions are about Personalisation, counting the number of disinfection cycles, method of packaging disinfected face-masks. We recommend to take inspiration from this paper "N95 Filtering Facepiece Respirator Ultraviolet Germicidal Irradiation (UVGI) Process for Decontamination and Reuse" published by Nebraska Medicine.Conclusions
Considering the gathered evidence and technical details of the device, we decided to set the disinfection protocol at 30 min of UVC irradiation and dry heat at 65±5 °C. This time has to be counted considering the time it takes for the device to reach the required temperature and light intensity. Either UVC or heat alone with these specifications should be enough to remove almost all SARS-CoV-2 infectivity, and the simultaneous action of both should increase the effectivity of the method to an even safer level.Safety considerations
• UVC radiation is harmful to the skin and eyes. The UVC light bulb should be turned on only when the box is closed.
• Be careful with metallic parts of the box that could be hot after the heating and could burn the skin.Disclaimer
Based on the available scientific evidence, the disinfection protocol will likely eliminate almost all SARS-CoV infectivity, and will definitely make the masks much safer to reuse than without any kind of disinfection. However, Needlab and the members working on this project assume no liability for the usage of this device. It was designed with goodwill and to the best of our knowledge and capabilities, but the following must be stated:
No proper laboratory testing has been yet done in terms of SARS-CoV-2 inactivation with this device, nor actual effects on face masks’ filtration capacities can be confidently assessed beforehand. The usage of the device and this guide is a free decision.Next Steps
We are now working on a V2 with lot of improvements:
- Increasing dimensions to put more masks inside
- providing the files for both CNC milling and Laser cutter as two possibilities
- Offering 3 choices for the heating system: induction, simple electric cooking plate, infrared radiant (including PID temperature regulation).
- Using a 2x16 LCD display for the HMI
- Multiple cycle modes: Heat + UV-C, Heat only, UV-C only
- possibility to select different temperature sensors https://create.arduino.cc/projecthub/user66015547/benchmarking-of-temperature-sensors-for-arduino-03b33b
Infrared radiant and Ultraviolet (UV-C) to kill the virus
On the other hand, we are looking for solutions to validate the process with the support of specialized laboratories.
Udtates on June 11th:
the V2 with 12 FFP2 / N95 masks inside
We won the OPT 1st prize and we are working with the university in morocco to locally produce the device
Update on September 2th: V2 project on Hackaday:
Original publication: http://www.needlab.org/face-masks-disinfection-deviceBibliography
